Amp Guts Photos - Official Thread - Lets see those pics

[anderbass]

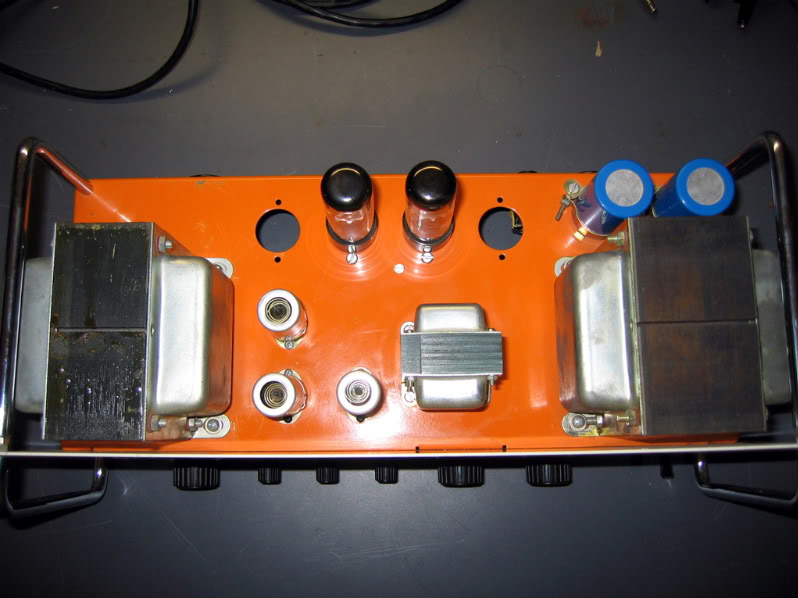

Matamp built 90's reissue Orange Overdrive-80 guts:



[MHensleyJr]

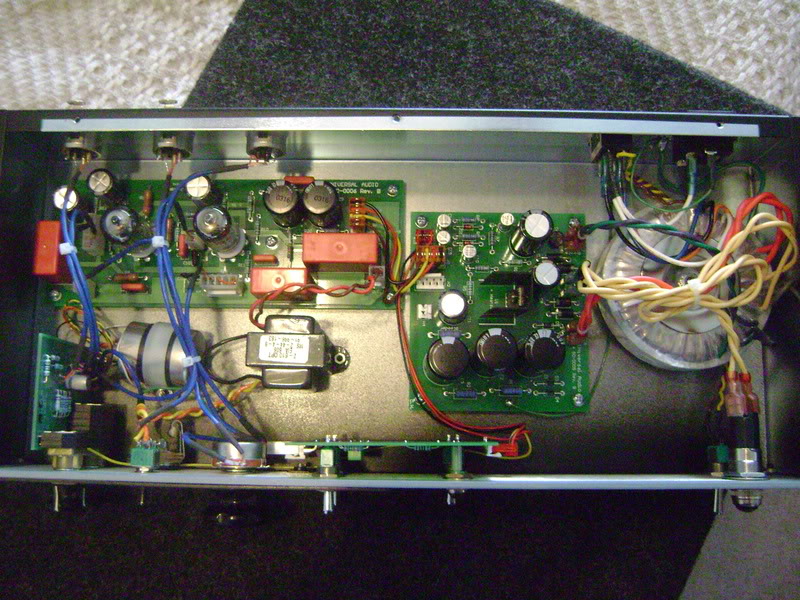

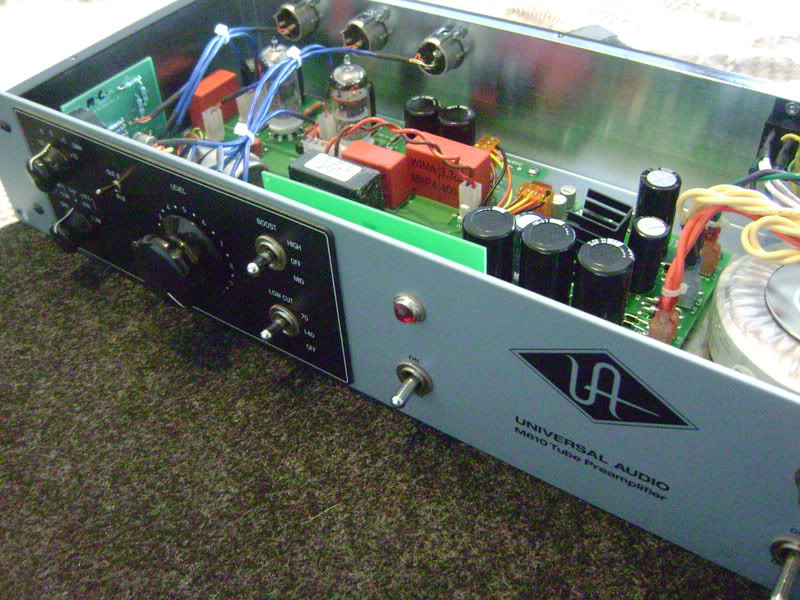

Universal Audio M610 guts



[Chef]

wow, that seems like a mighty big transformer for a preamp...?



[svtb15]

I guess UA has to justify the cost somehow
BTW that is a great... unit.... only kidding about the cost...



[The Golden Boy]

Nothing a little duct tape won't fix........

My thoughts exactly.



[svtb15]

Mesa Fathom M6 Guts



[sonicnuance]

Mesa Fathom M6 Guts

what's this, Mesa only using one tube in an amp?! This is heresy



[IronRadio]

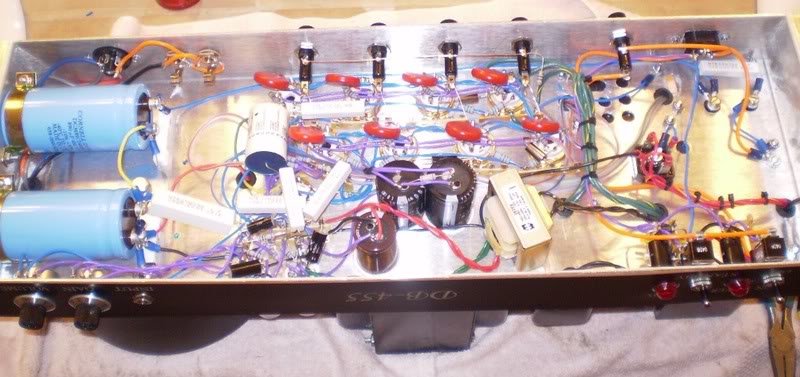

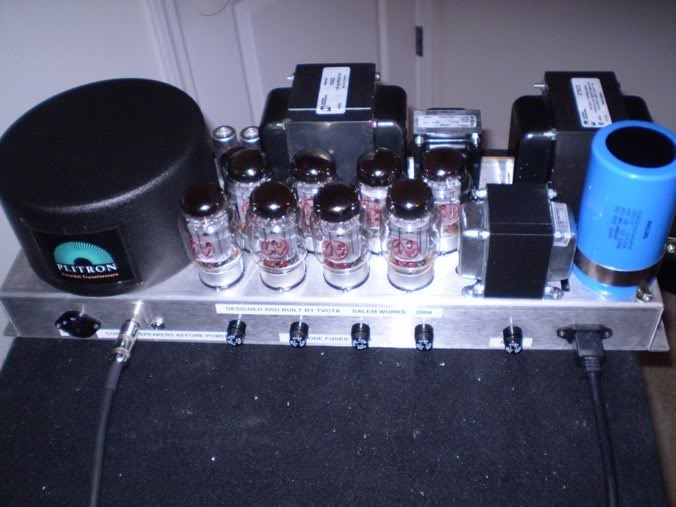

Here's the insides of my DB455 400W amp, designed and built by yours truly!



[12bass]

Nice job!



[svtb15]

i would love to hear that home brew amp!!!



[Chef]

Seriously: wow!



[kissmybASS01]

Here are two pics of the inside of my Marshall MB450h.

http://www.talkbass.com/forum/attachment.php?attachmentid=109167&d=1226973375

http://www.talkbass.com/forum/attachment.php?attachmentid=109169&d=1226973513

I don't have any pics of the inside of my Peavey VB-2. Still too new, too much scary stuff inside....too scared to open it up!



[rayzak]

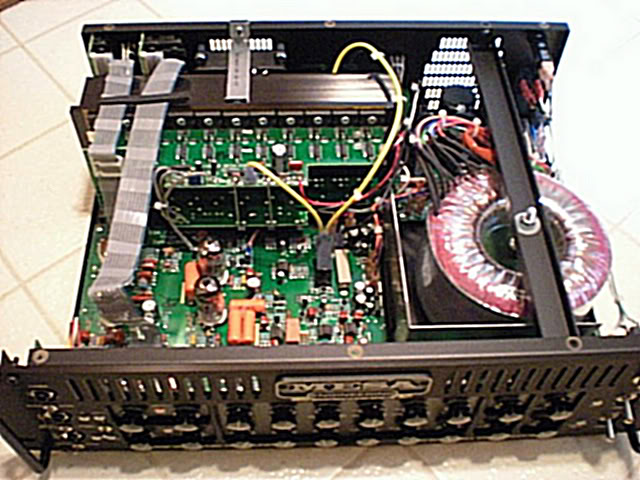

Mesa Titan V-12- Truly sorry for the crappy pics. I need some serious photography lessons

[Invalid or Expired Link Removed]



[BillyB_from_LZ]

Here's the insides of my DB455 400W amp, designed and built by yours truly!

Wow! All Canadian made magnetics?

And...how much does that beauty weigh?



[BillyB_from_LZ]

Mesa Titan V-12- Truly sorry for the crappy pics. I need some serious photography lessons

Is that big toroid hanging from the crossmember? They couldn't possible bolt it to the bottom too or there would be one big shorted turn through the center of the toriod.



[vin*tone]

Here's one for the point-to-point fans....
The Ratajczyck Bassdrive.

Link Removed

Link Removed

John Ratajczyck winds and laminates his own transformers...

Link Removed

The guy I bought this off said it was 135 watt but it looks identical to his 200 watt version. There's no marking. Does anyone know how to tell?



[Red Planet]

Here's the insides of my DB455 400W amp, designed and built by yours truly!

So whats a Tube Viper DB1?

BTW that DB455 is nice. How much for me one?



[chicago_mike]

Im curious as to the amount of transformers. 2 smaller ones for heaters? Im assuming none are phase inverters. But looks killer! Have you tried the new'ish EH 12BH7 yet?



[BillyB_from_LZ]

The guy I bought this off said it was 135 watt but it looks identical to his 200 watt version. There's no marking. Does anyone know how to tell?

If you can find photos of either amp (other than yours of course) compare the size of the Output Transformer. Otherwise, have Bass Gear Magazine do an article on it and measure the power output!
