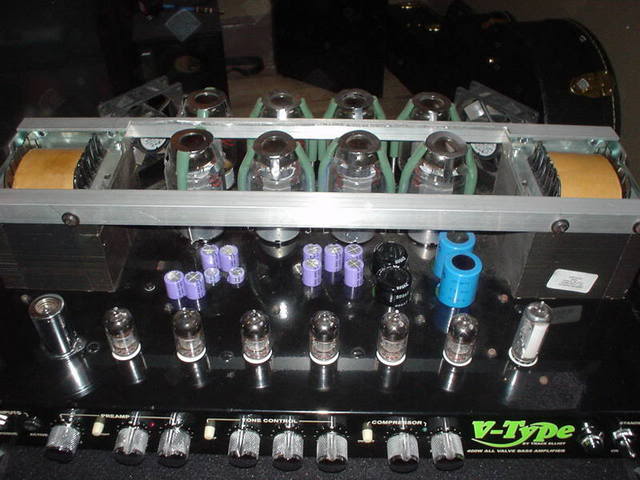

Trace V8
I'll try to get some more and some other amps
I'll try to get some more and some other amps
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Amp Guts Photos - Official Thread - Lets see those pics
- Thread starter svtb15
- Start date

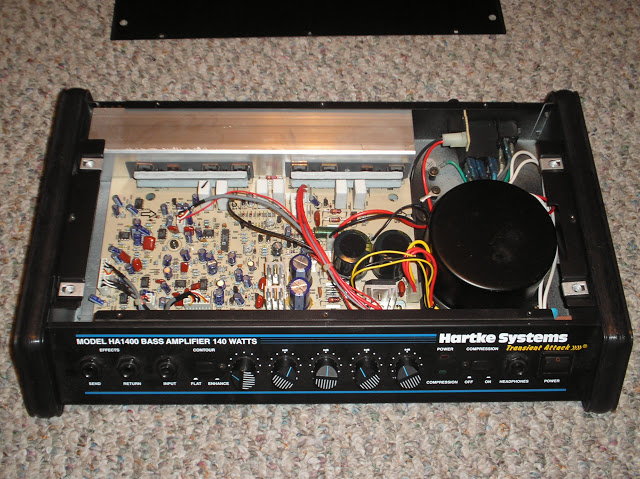

Here is a picture of my Hartke HA1400. See a few more pics [Invalid or Expired Link Removed].
Chef
In Memoriam
Chef
In Memoriam

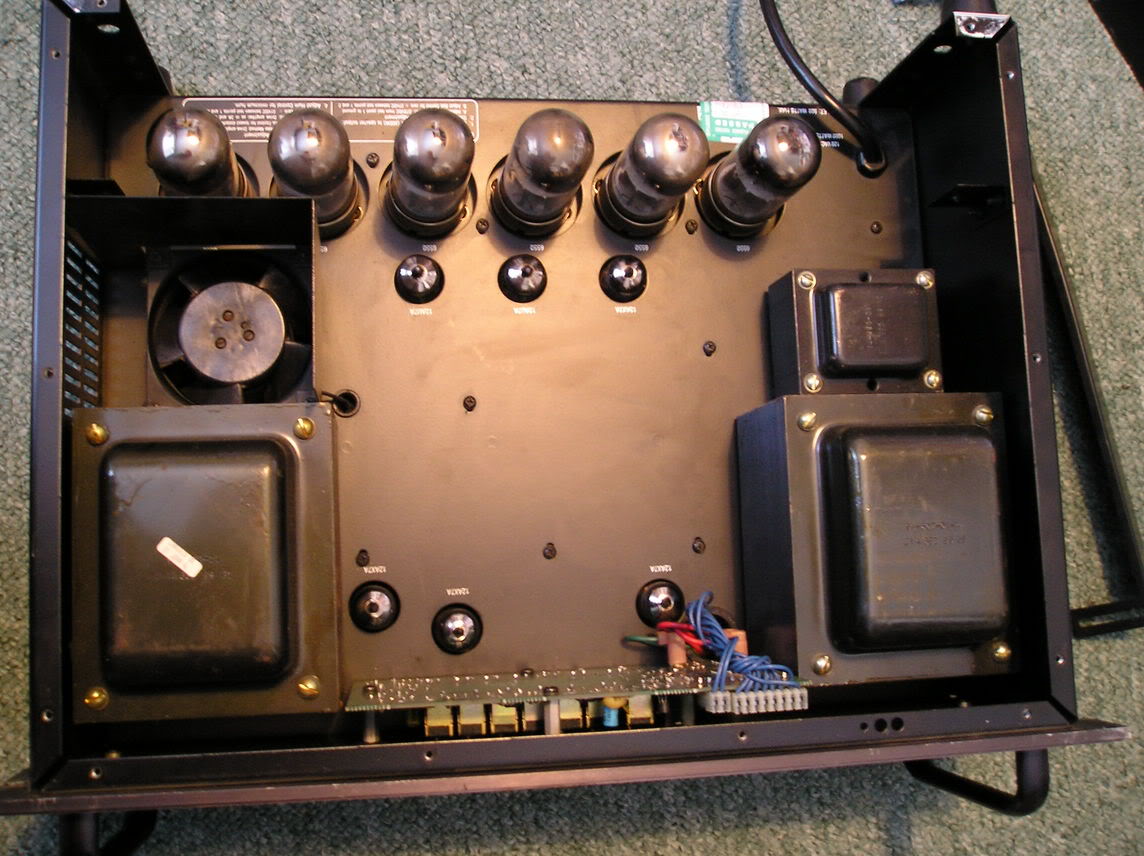

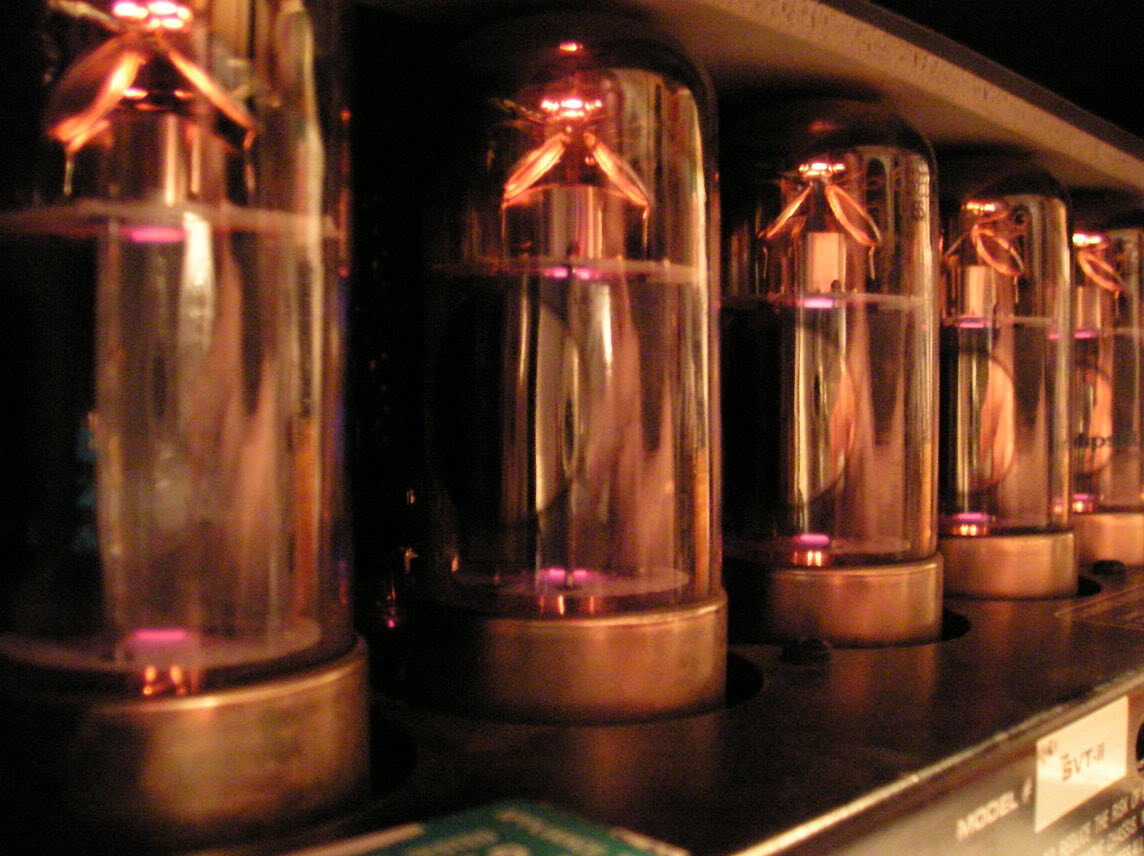

1989 Ampeg SVT-II
I have one somewhere of the internal circuit board, but I can't find it at the mo
I have one somewhere of the internal circuit board, but I can't find it at the mo
- Mar 22, 2004
- 13,004
- 4,741
- Disclosures
- I play it all. Whatever works for the gig. Q+
wow that 8 pro is packed inside!!! is that a class D amp? i wanted to get one a few years ago.. but the wait seamed to go on and on. so i guess they were not just a rumor but a real honest to goodness amp.. wow.. very cool.. I also love that poster i posts up with the Trace V-Type amp.. another guts wow
Mesa Walkabout
Aggie DB359
Ampeg SVT-8Pro
Yeah the elusive 8-Pro. From what I've heard it isn't in production yet and the ones that are out there floating around were all made by LOUD in the USA before the production change to Vietnam. Rumor is there is somewhere between 35-50 of them and they were test amps that went out to endorsee's and such then went back to the factory for refurbishing and some of the dealers got ahold of them. This is only what I read somewhere I don't know for certain if that was the case. It's a really great amp. I've A/B it to one of my SVT's and its pretty darn close to it. You can also see in the amp that there is only 3 tubes not 4 like advertised. Yeah as for as I know it's a class D amp. It's not too heavey but it's no feather weight.
Youll notice a few things:
The Sanken output transistor is a very popular part in bass amps, as well as VERY expensive recievers. These chips are flat from about 20hz to just over 30Khz. Very cool.
Ribbon connectors: Why? The ones in the svt II's go bad quite often. they jostle around and lose connection quite abit. I replace them with ones that have clips on either side, yeah I have to do some cutting to fit, but once in they dont go anywhere.
Cap sizes: have gotten smaller, not so much as value, but in physical size. This is nice as it cuts down on weight and overall needed space for the part.
fffreddy, could you get me some good close up gut shots of your interstellar overdrive?
Lastly: We owe so much to Russ Allee its insane!
The Sanken output transistor is a very popular part in bass amps, as well as VERY expensive recievers. These chips are flat from about 20hz to just over 30Khz. Very cool.
Ribbon connectors: Why? The ones in the svt II's go bad quite often. they jostle around and lose connection quite abit. I replace them with ones that have clips on either side, yeah I have to do some cutting to fit, but once in they dont go anywhere.
Cap sizes: have gotten smaller, not so much as value, but in physical size. This is nice as it cuts down on weight and overall needed space for the part.
fffreddy, could you get me some good close up gut shots of your interstellar overdrive?
Lastly: We owe so much to Russ Allee its insane!
oh... i like this thread... good geeky goodness in here
Chef
In Memoriam

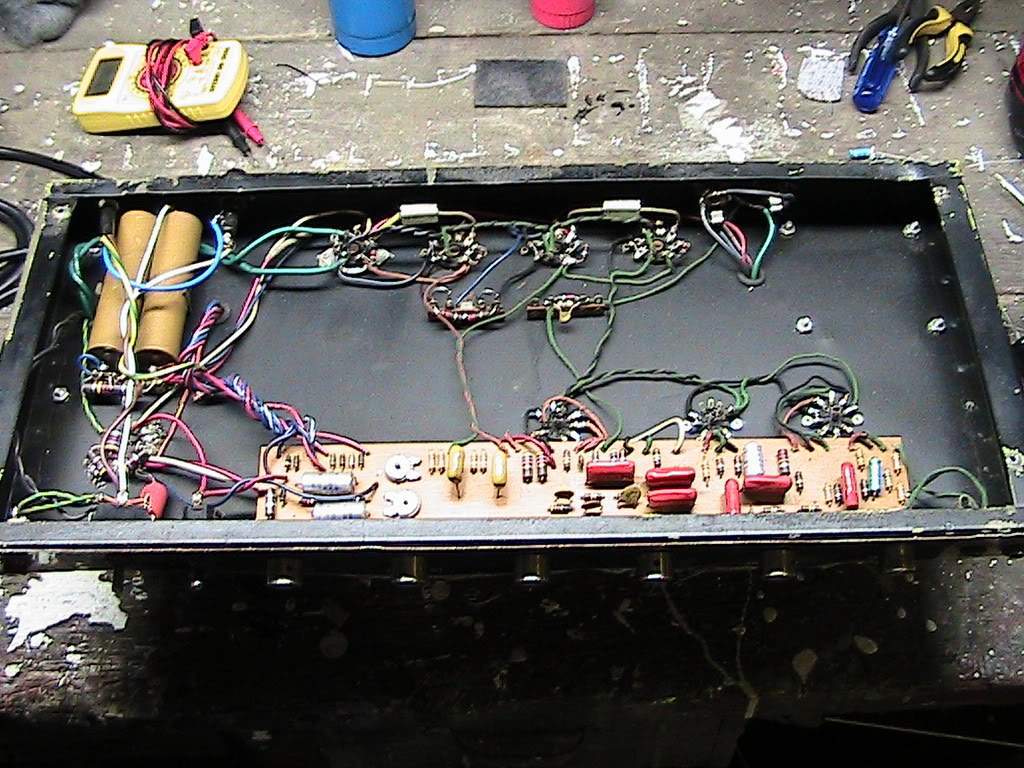

1970 Peavey VTB 300:
More photos of this amp please... I don't know that I've ever seen a VTB 300.
