Amp Guts Photos - Official Thread - Lets see those pics

[tubedude]

I do the same; in fact, I've never used the auto-route function. I too came from drafting manually, so it was a logical move to keep on with the same method of layout. Sometimes I have to revise a few times if I paint myself into a corner, but it doesn't happen very often.

I draft all designs manually using the Pentel image processor and a large gum edit function.
I don't trust software to make a better decision on parts placement and routing than an engineer with fourty years of experience.
In other words, I'm a grumpy old analog man that doesn't trust these new-fangled sandy state thinking machines, and can't learn new tricks.



[beans-on-toast]

I draft all designs manually using the Pentel image processor and a large gum edit function.
I don't trust software to make a better decision on parts placement and routing than an engineer with fourty years of experience.
In other words, I'm a grumpy old analog man that doesn't trust these new-fangled sandy state thinking machines, and can't learn new tricks.

You digital kids, get off my lawn!



[Leo was right]

Mesa WD800

View attachment 3271837 View attachment 3271838

Nice! There is some space for future features like additional tubes stages, compressor, overdrive ect..... Hummm!



[HarveySpaceBass]



[Raulplaysbass]

View attachment 3294654

OH my... that’s a beautiful thing.

It’s on my 2019 GAS List in case you are looking to unload it

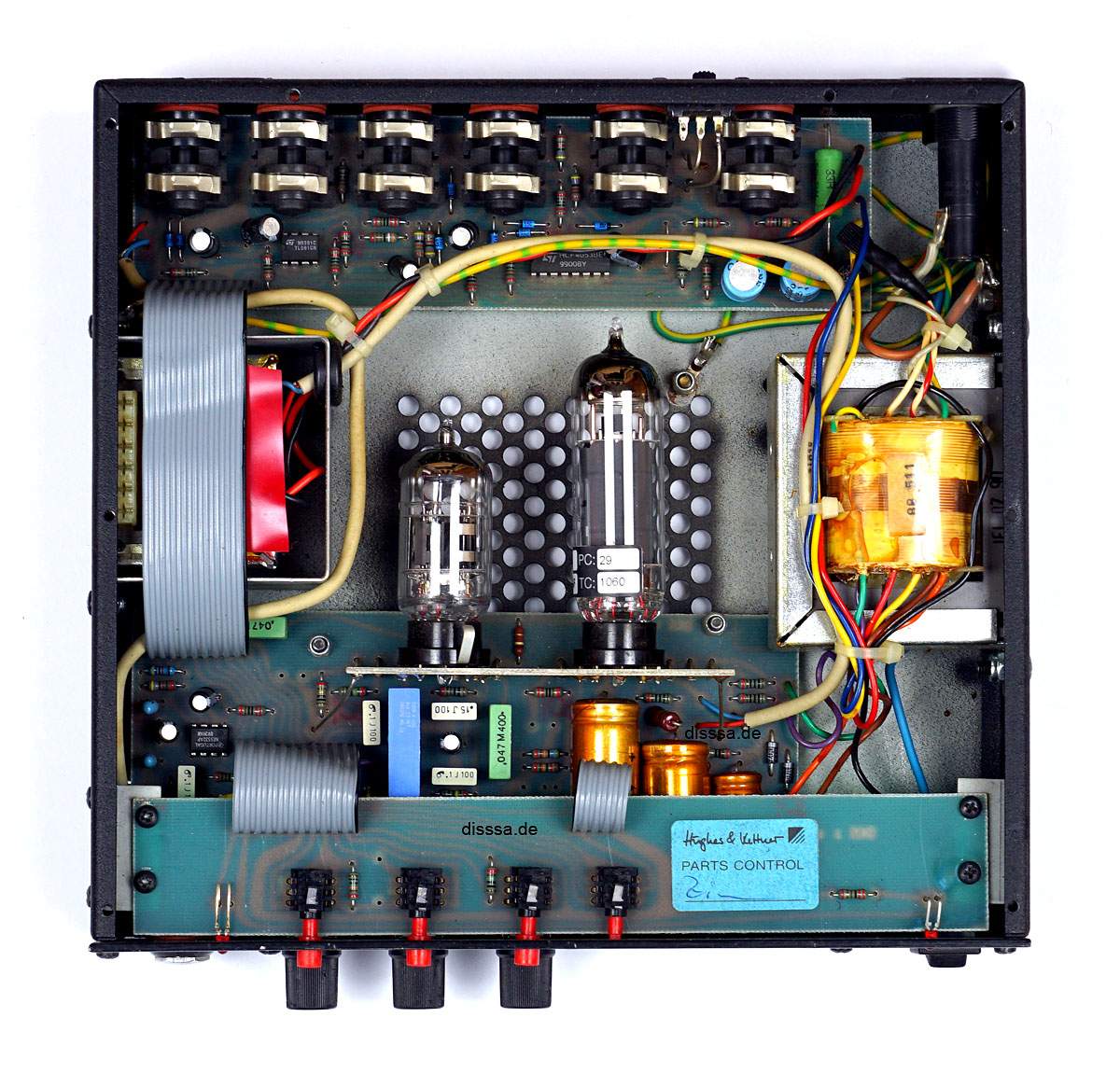

[disssa]

Invalid Link Removed

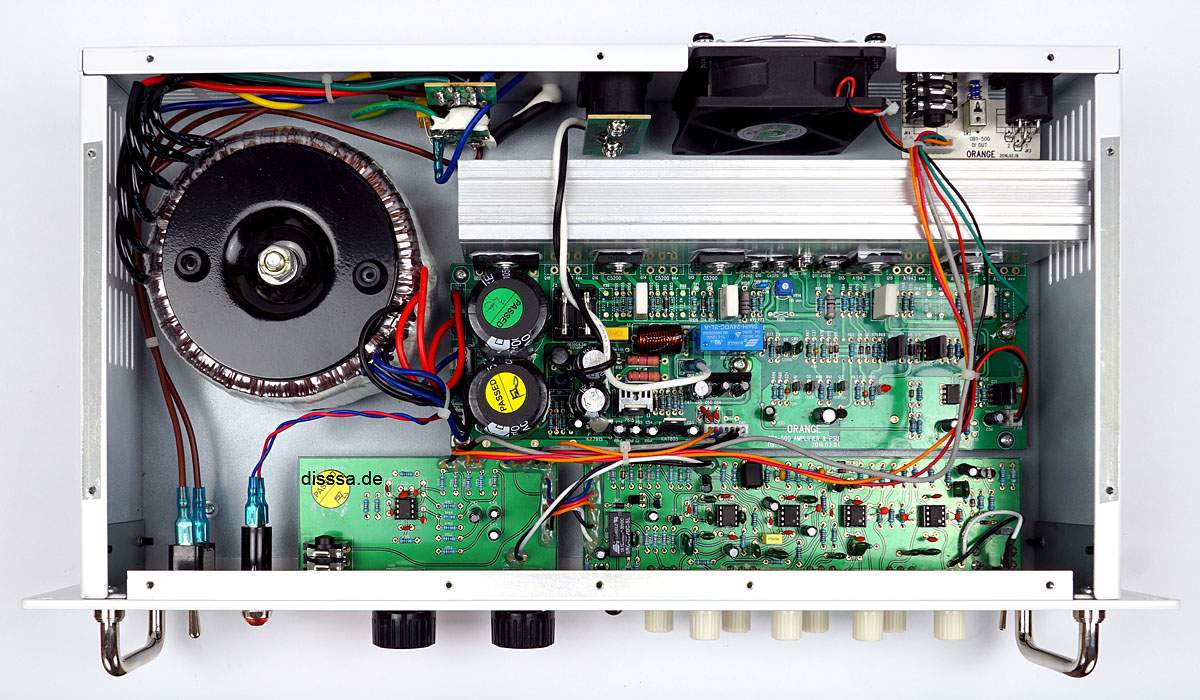

[disssa]

Invalid Link Removed



[Jeff Scott]

Invalid Link Removed
View attachment 3324873

Where's the t@@bs? I thought this was an Orange. Looks more like a lemon.



[Ravendk]

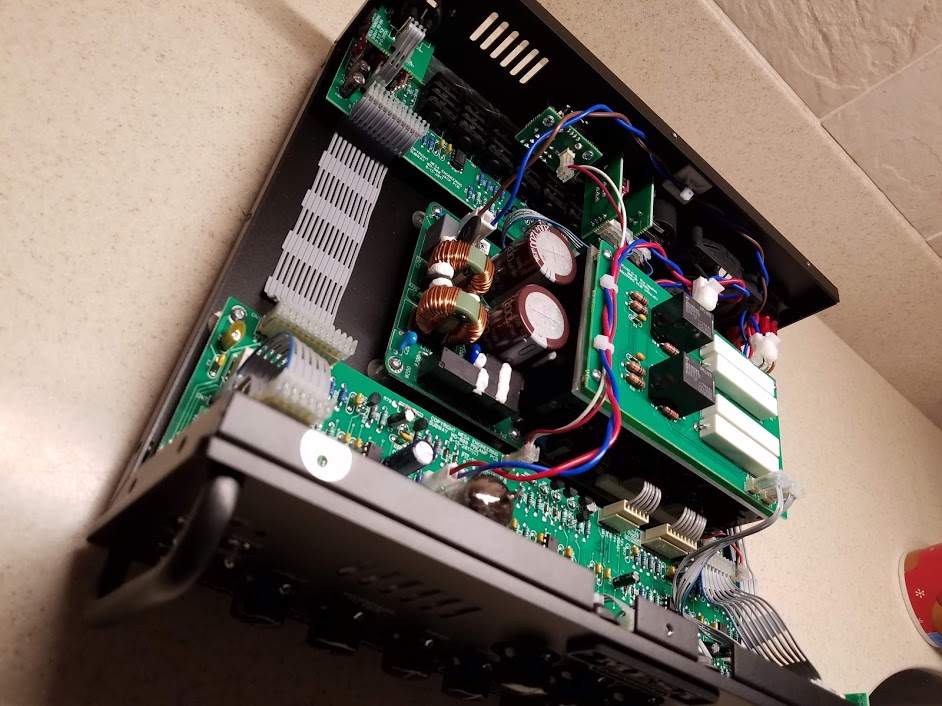

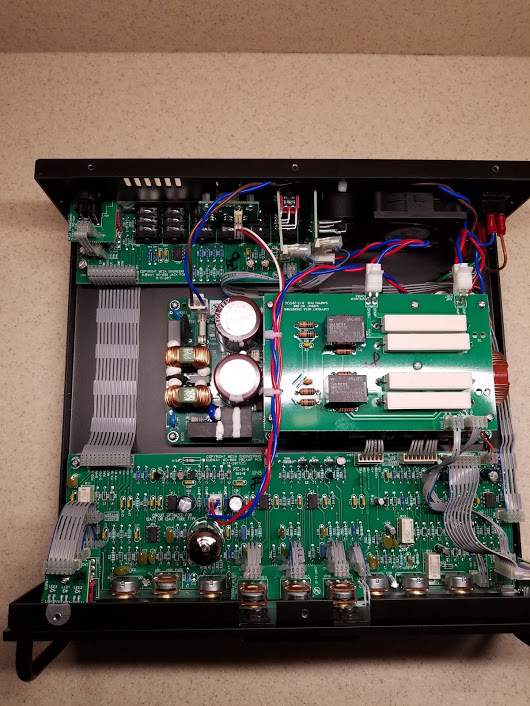

Here is a few pics of a Trace Elliot RAH500-12 that I recently repaired.....bought it locally from a guy for around $100 and used around $100 on parts....so now I'm the happy owner of two of these...



[Ravendk]

More Amp gut



[mnats]

Laney Linebacker 120B



[fast slapper]

Seen preamps with power supplies that size.



[Leo was right]

Nice! There is some space for future features like additional tubes stages, compressor, overdrive ect..... Hummm!

I like that agedhorse like this...



[Leo was right]

Nice! There is some space for future features like additional tubes stages, compressor, overdrive ect..... Hummm!

I like that agedhorse like this...



[oerk]

Seen preamps with power supplies that size.

Well, those preamps probably cost more than the whole Laney combo we're talking about. Built to a price point, nothing wrong with it - the ring transformer certainly looks big enough for 120W output power.



[agedhorse]

Well, those preamps probably cost more than the whole Laney combo we're talking about. Built to a price point, nothing wrong with it - the ring transformer certainly looks big enough for 120W output power.

Easily big enough.



[twinfallsbass]

KranK Dirty Valve D-800. It’s like throwing a hotdog down a hallway there is soooo much room in the cavity of this beast. Weighs 20lbs and is LOUD!!! ( 800W @ 4ohms ).



[fdeck]

KranK Dirty Valve D-800. It’s like throwing a hotdog down a hallway there is soooo much room in the cavity of this beast. Weighs 20lbs and is LOUD!!! ( 800W @ 4ohms ).

Very interesting. Those look like Hypex UCD400 modules. What I recall looking at a datasheet is that their power ratings are quite conservative, not "peak" or any of that rubbish.



[twinfallsbass]

Hi, yes your right. Are those modules still available?



[Dave-O-Dave]

Here's a shot of the tubes I took earlier, of my Gallien-Krueger MB Fusion 800. I was having a friend helping me diagnose a problem I was having, with this used head and cab I purchased a few days ago.
