GreaserMatt said:

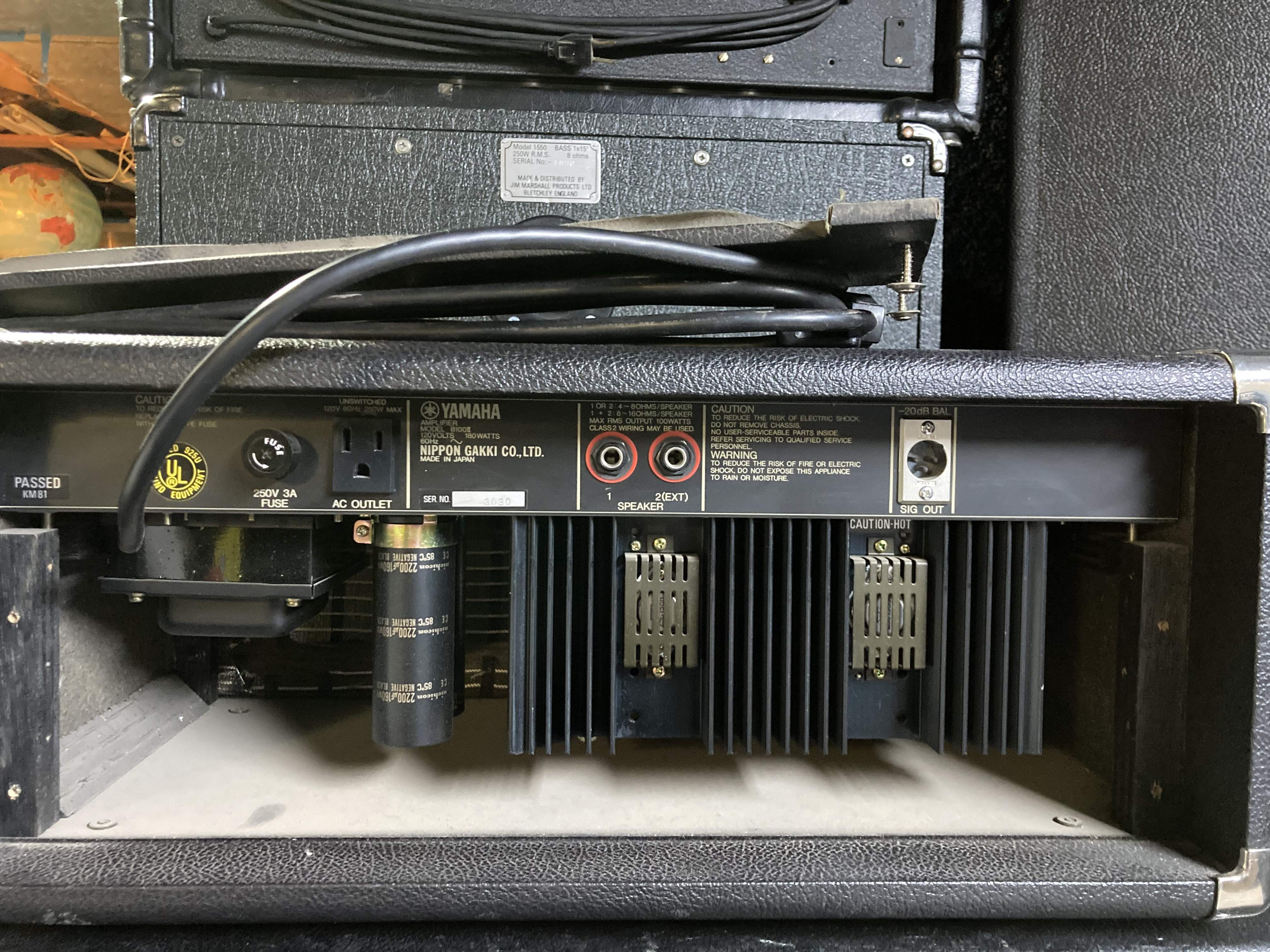

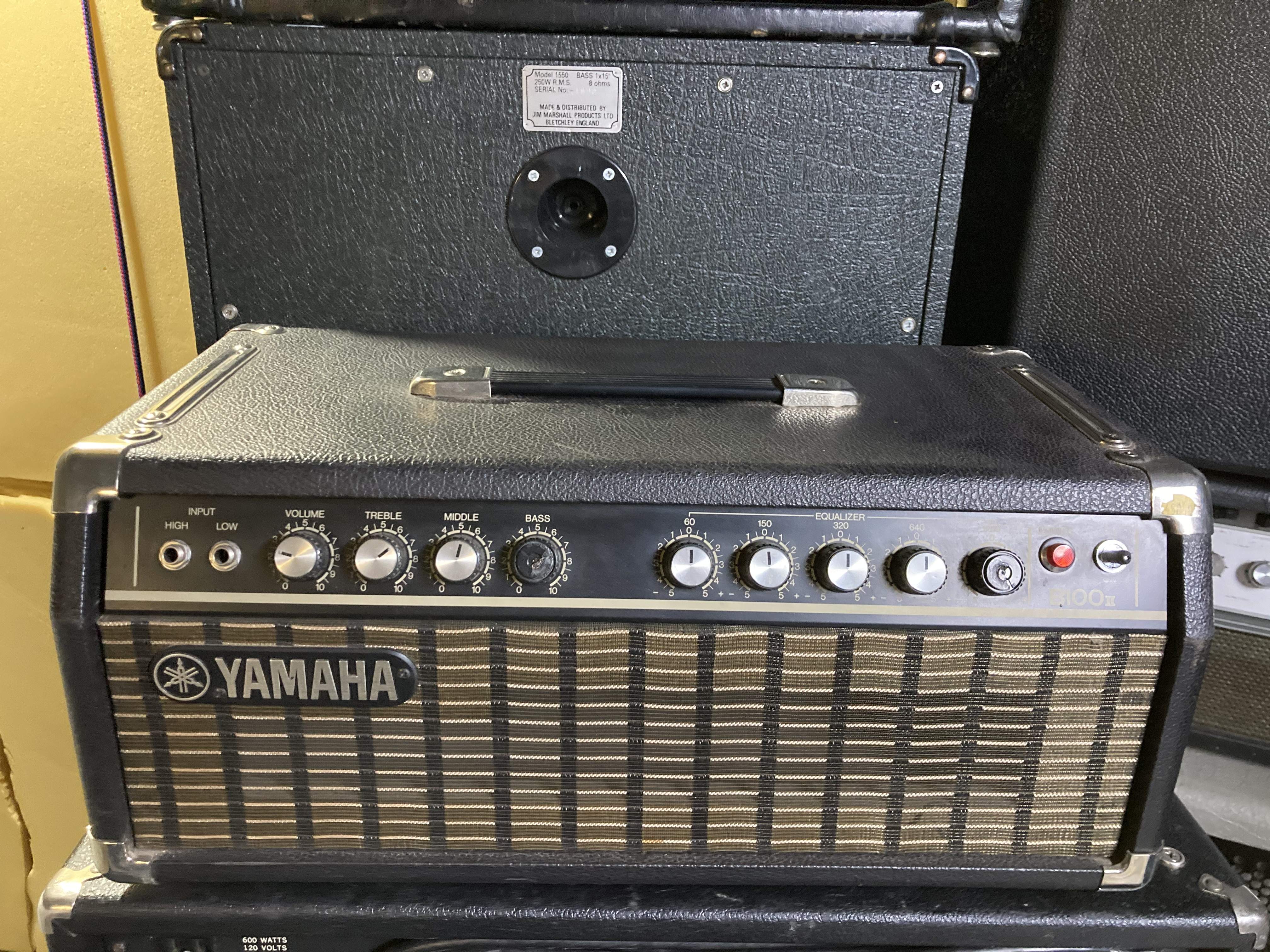

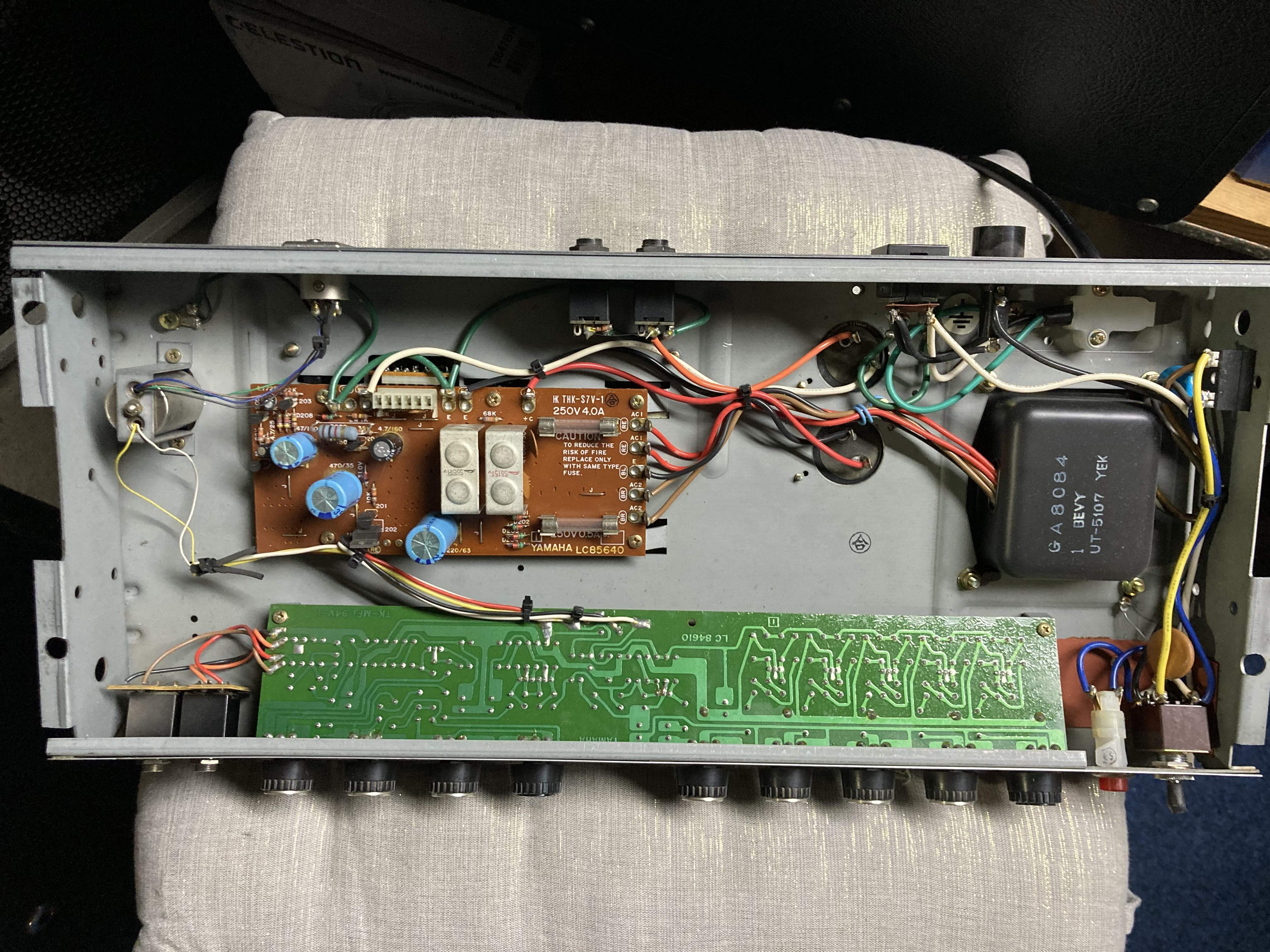

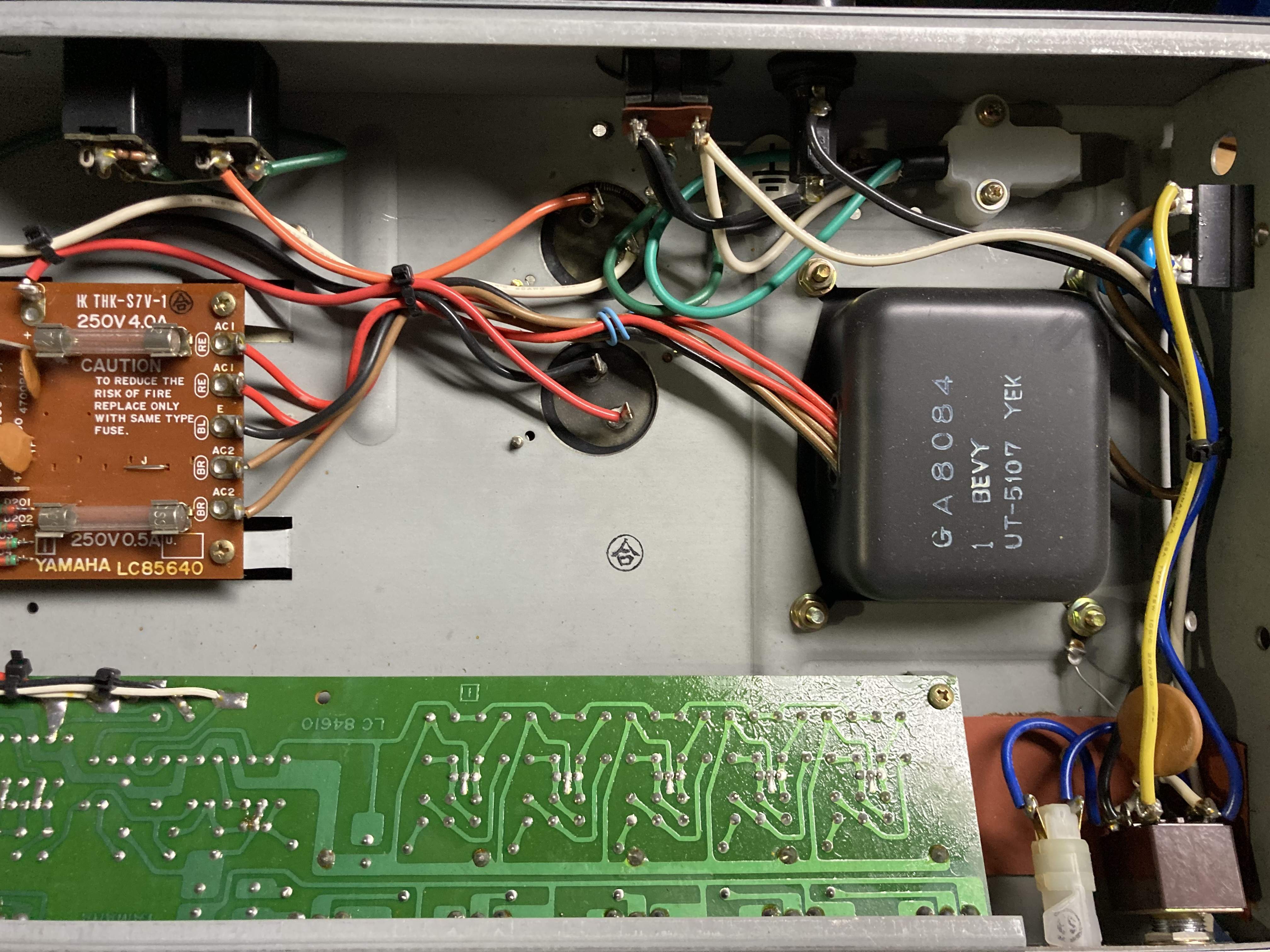

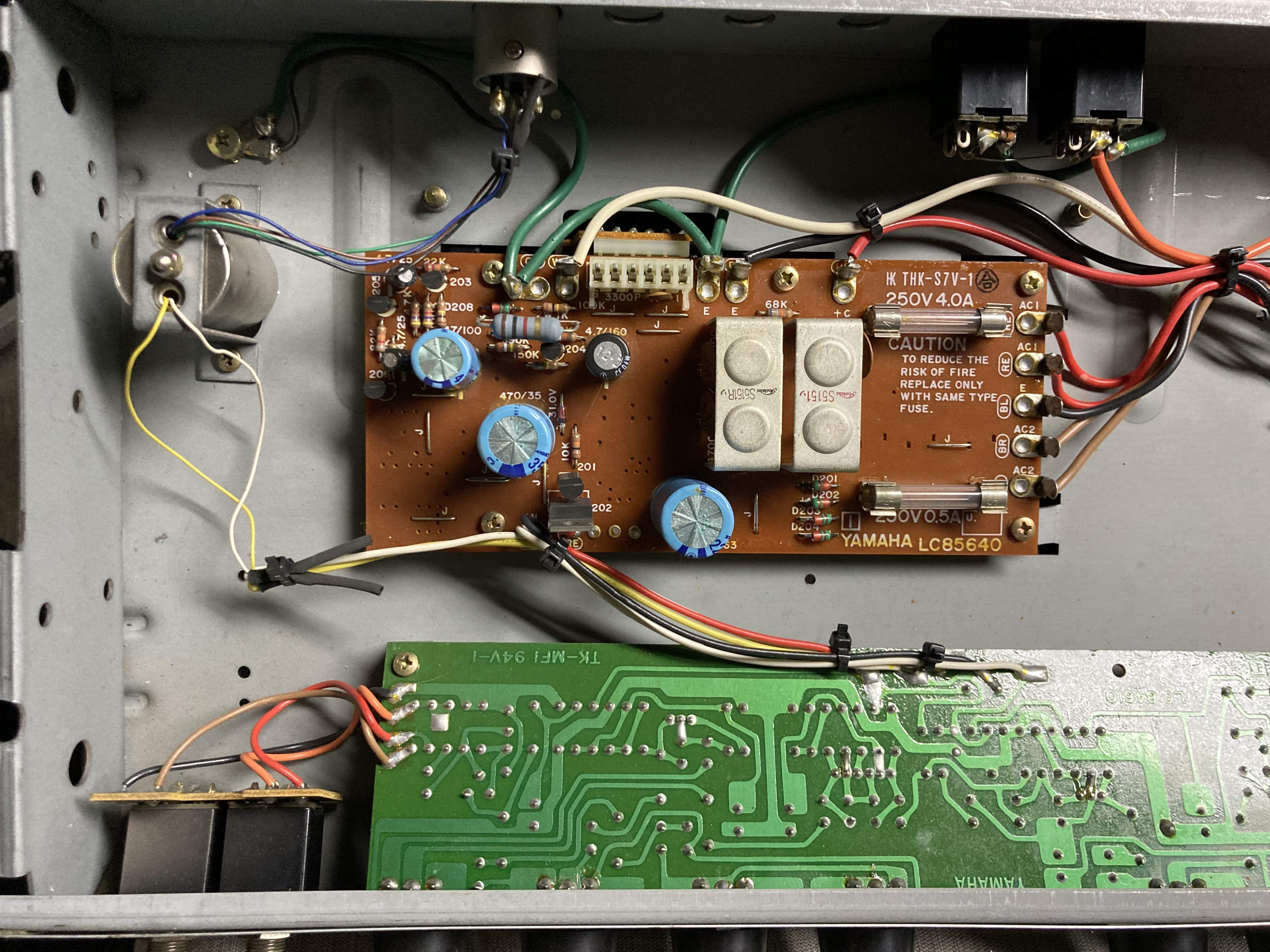

Ok, I didn't feel like going though all 84 pages, so I'm hoping these aren't on here yet; first up, early 80's (?) Yamaha B100 II bass head; I love the way this sounds, but the one time I brought it to practice I had trouble hearing myself, so it's sat at home ever since; Trans seems way too small for a bass amp; it's like they used a bunch of old stereo components that had laying around to build them LOL; not bad for guitar though...

View attachment 4699532 View attachment 4699533 View attachment 4699534 View attachment 4699537
Click to expand...

One gut shot in Post 1272, but that's OK!

At one time I used the guitar version, the G100 II on top of a Sonic 6x10 (sealed 6x10) at loud band practice and had no trouble hearing myself. Sounded amazing too!

A friend gave me the "small" combo version of the B100 II, the B100 IISE. It was just too big to keep around so I found a new home for it.

  • Like
Reactions: GreaserMatt
#1,682
GreaserMatt said:

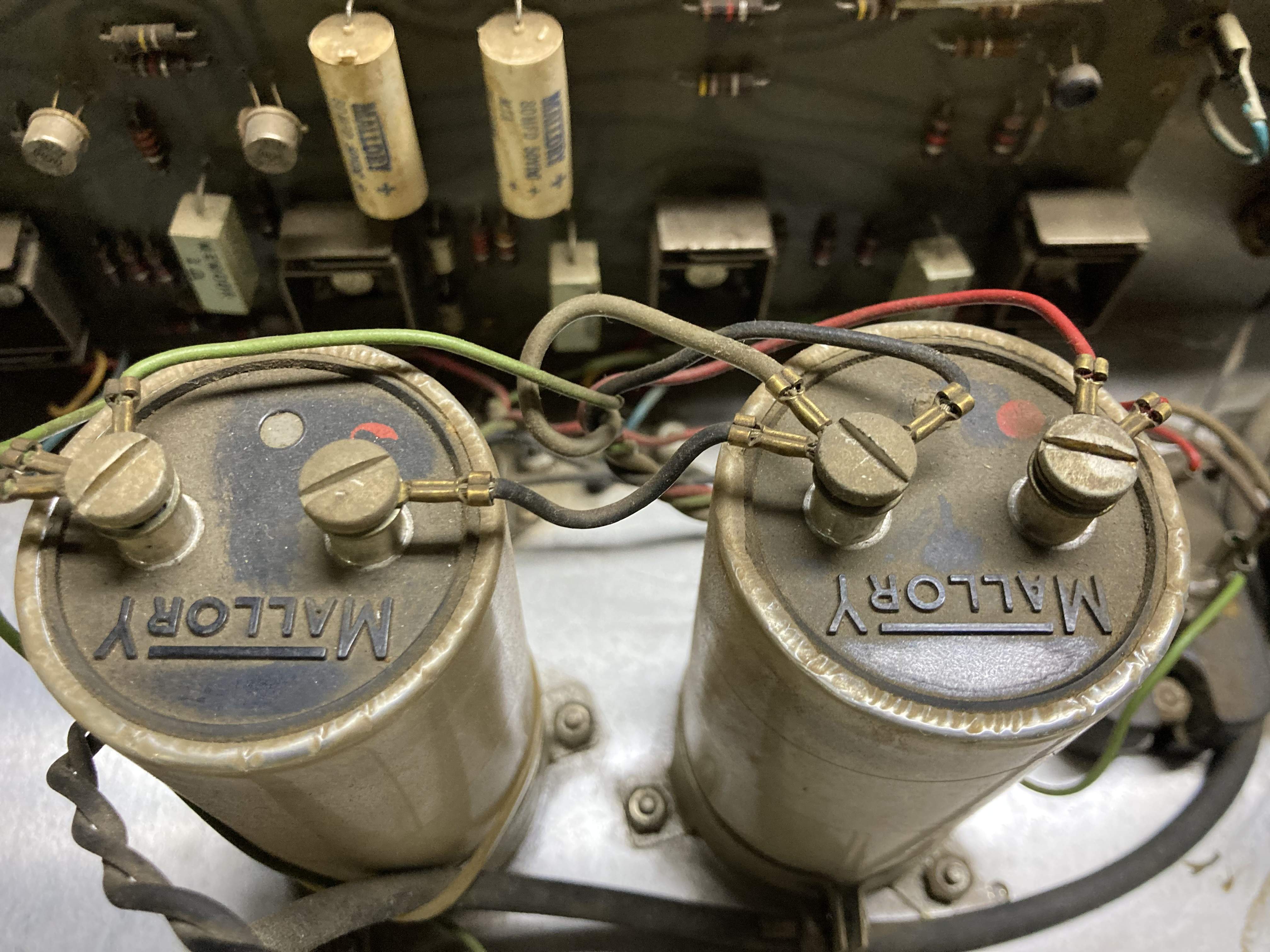

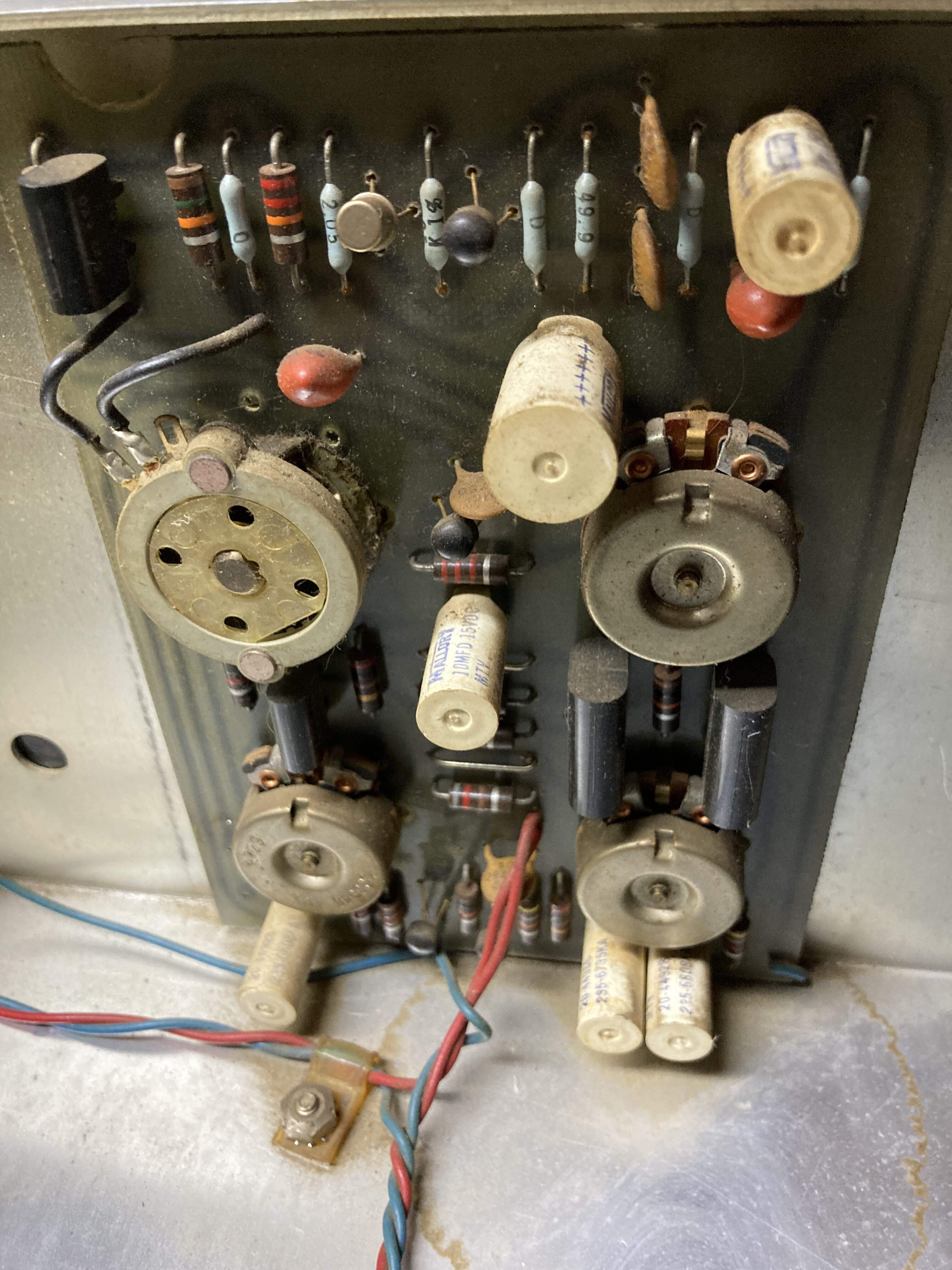

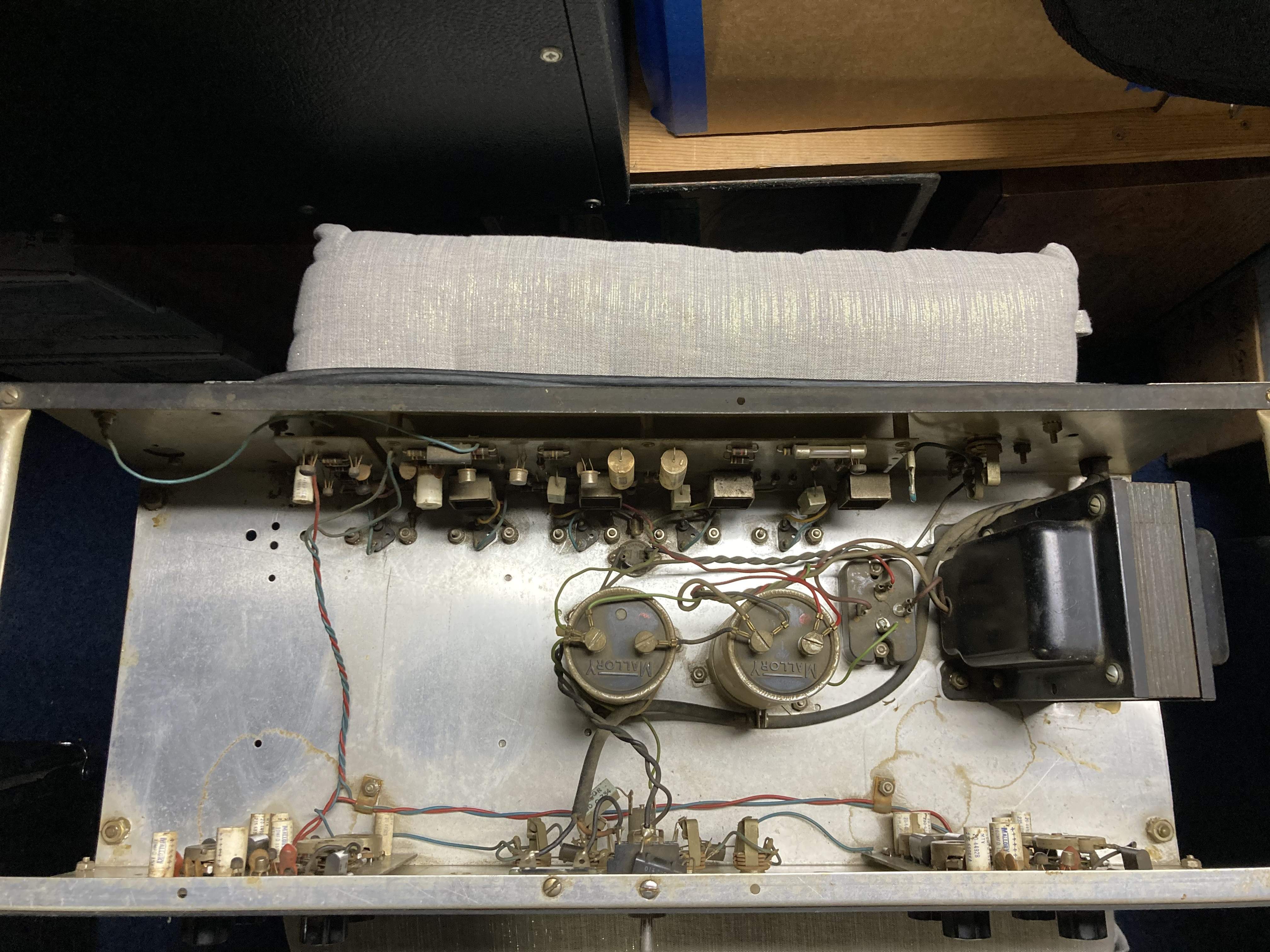

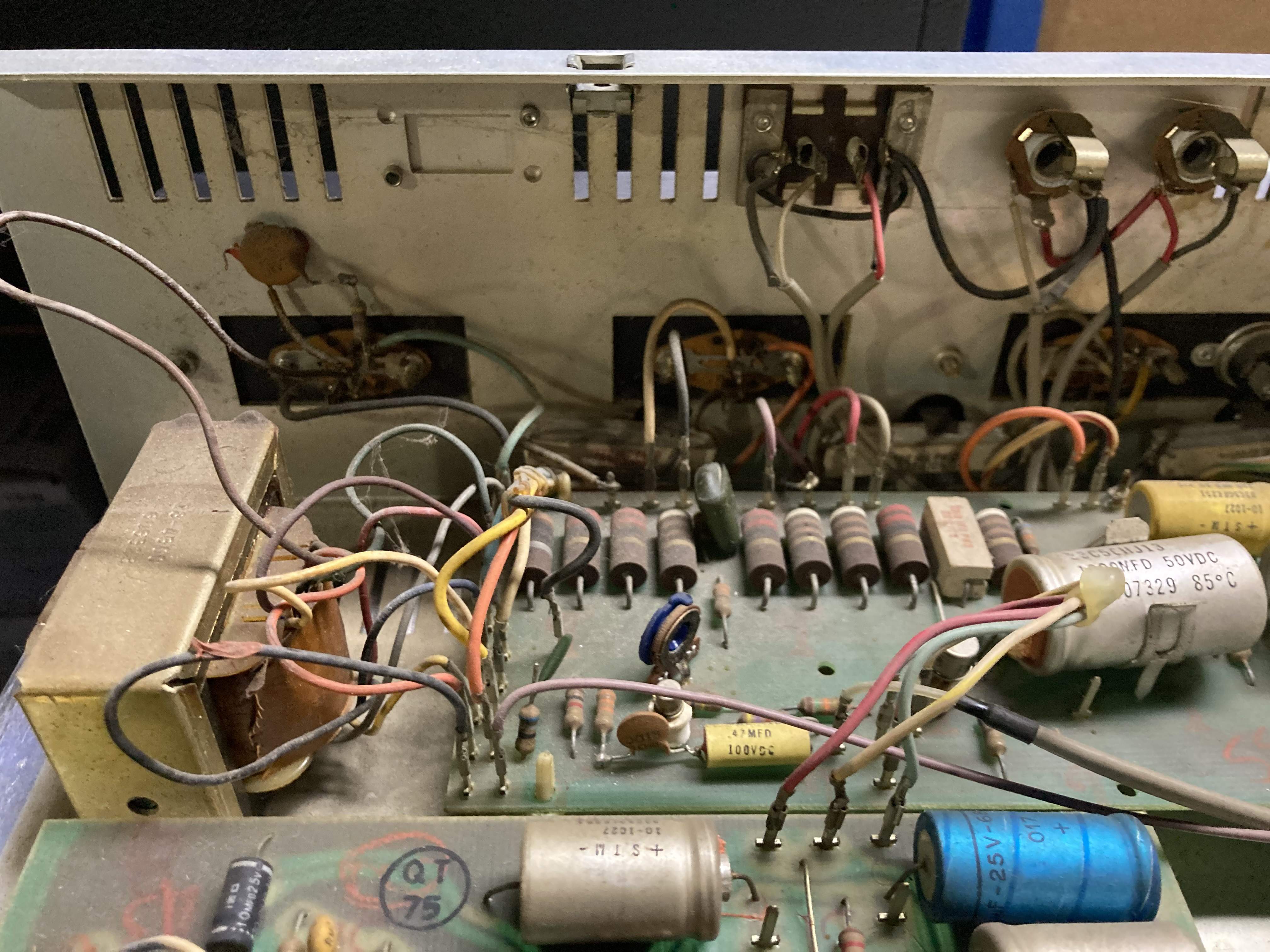

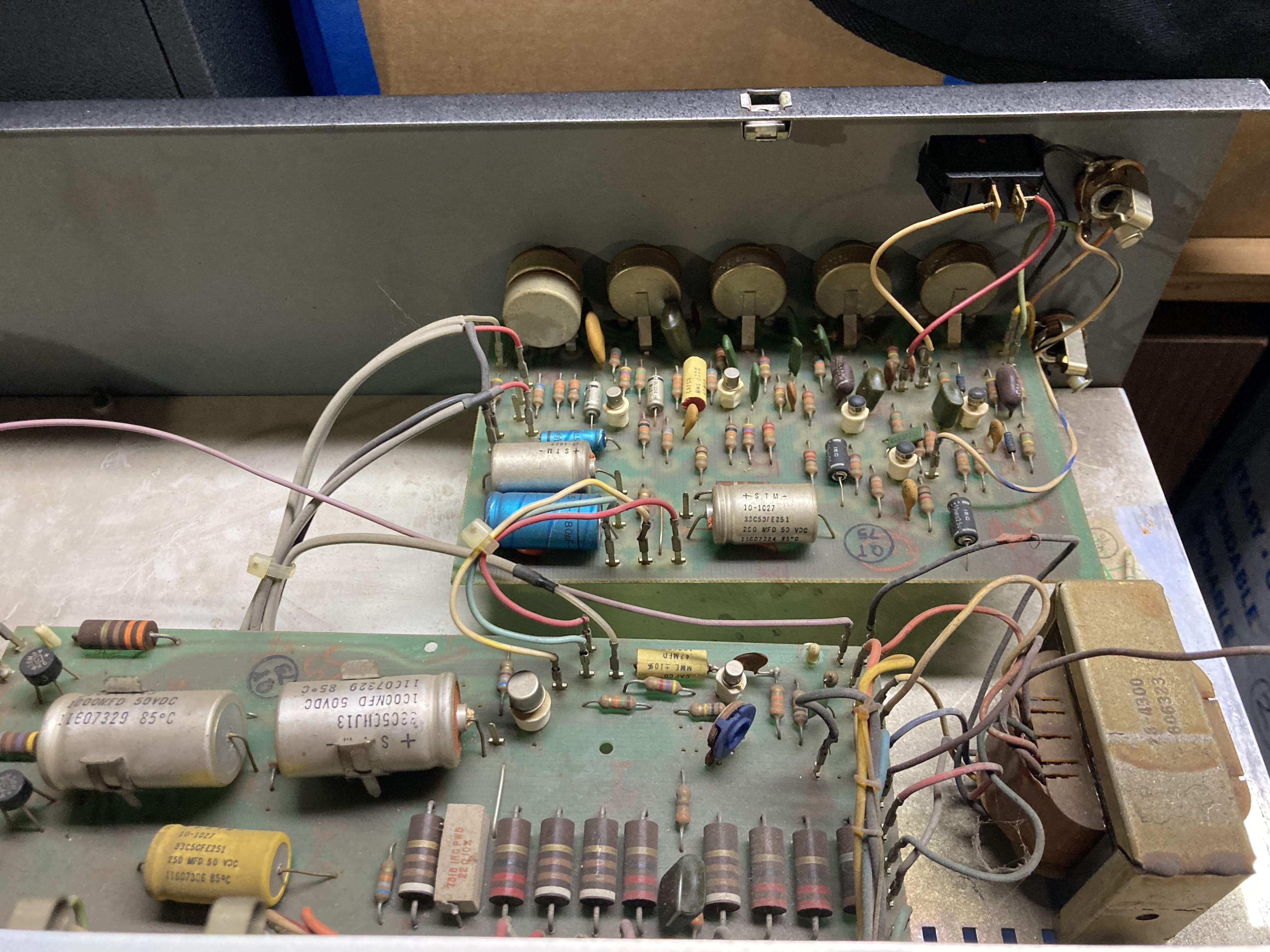

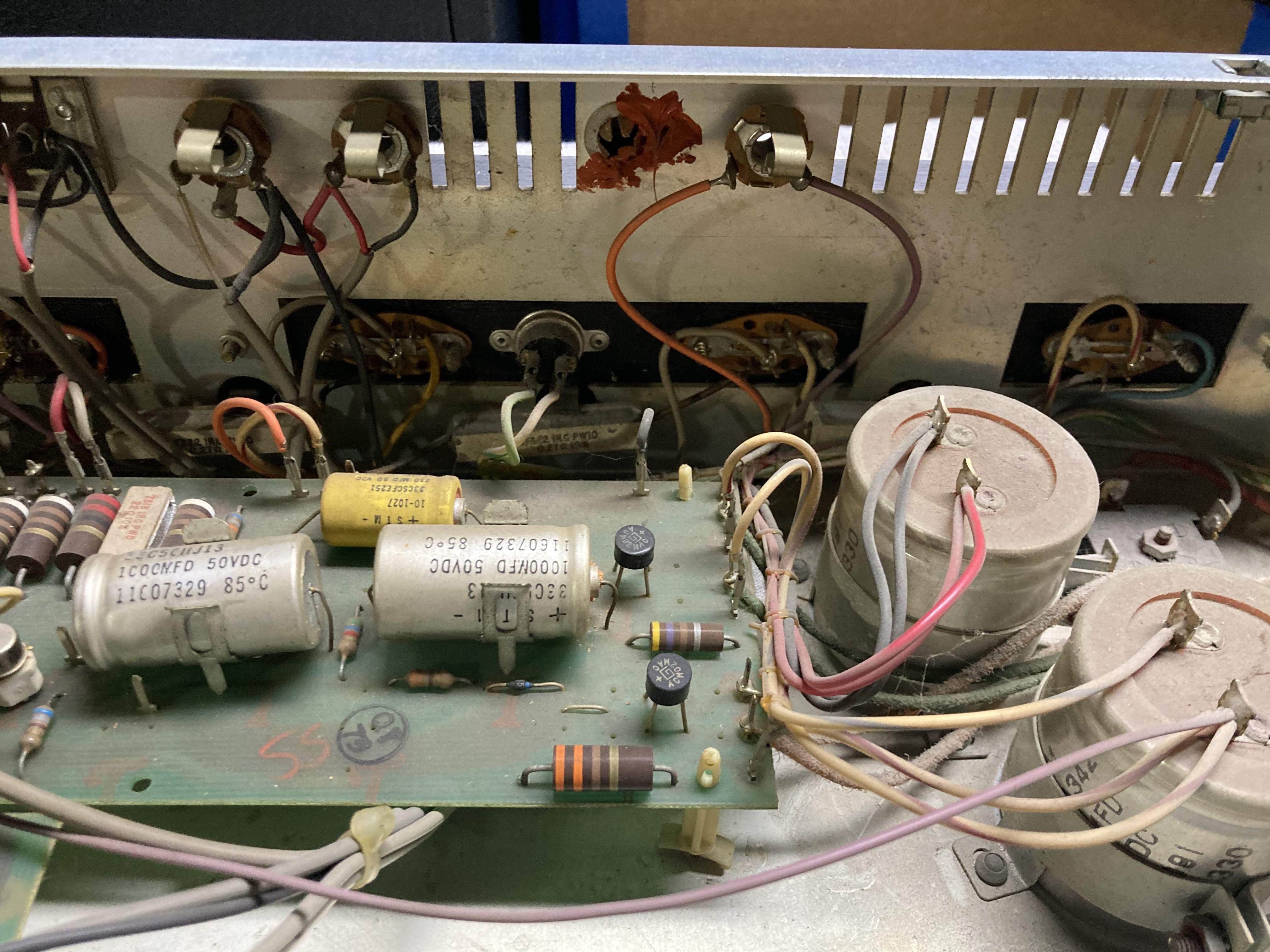

View attachment 4699553 View attachment 4699554 View attachment 4699555 View attachment 4699556 View attachment 4699559 Next up is my old Kustom K200A-1; I've had this for years; I'm pretty sure it's a bass amp because there's no reverb on it LOL; this thing's been tossed in the back of a truck, rained on, spilt beer, etc etc, never so much as a hiccup out of this thing. I know it's been said before but these are truly underrated amps. I just had to show off those caps! LOL; that last pic is the board behind each set of knob on the front...
Click to expand...

A friend has a Woodson W200 head which is essentially the same amp (I'm told some Woodsons even had Kustom circuit boards in them). Great, growly amp. While he has the matching 2x15, we used to plug it into my EV designed 2x15 (pre TL series) loaded with SRO15s. Amazing tone when turned up to the point where the pilot light pulsed with the string attack.

  • Like
Reactions: GreaserMatt and gtmalone
#1,683
  • Like
Reactions: GreaserMatt and gtmalone
#1,684
That's about the right size, Yamaha's US models were 60Hz only which makes them smaller than the 50Hz versions (by about 20%), and Yamaha used a higher grade of magnetic steel which also resulted in a slightly smaller transformer than others using a lower grade of steel.

  • Like
Reactions: GreaserMatt, BillyB_from_LZ, gtmalone and 1 other person
#1,685

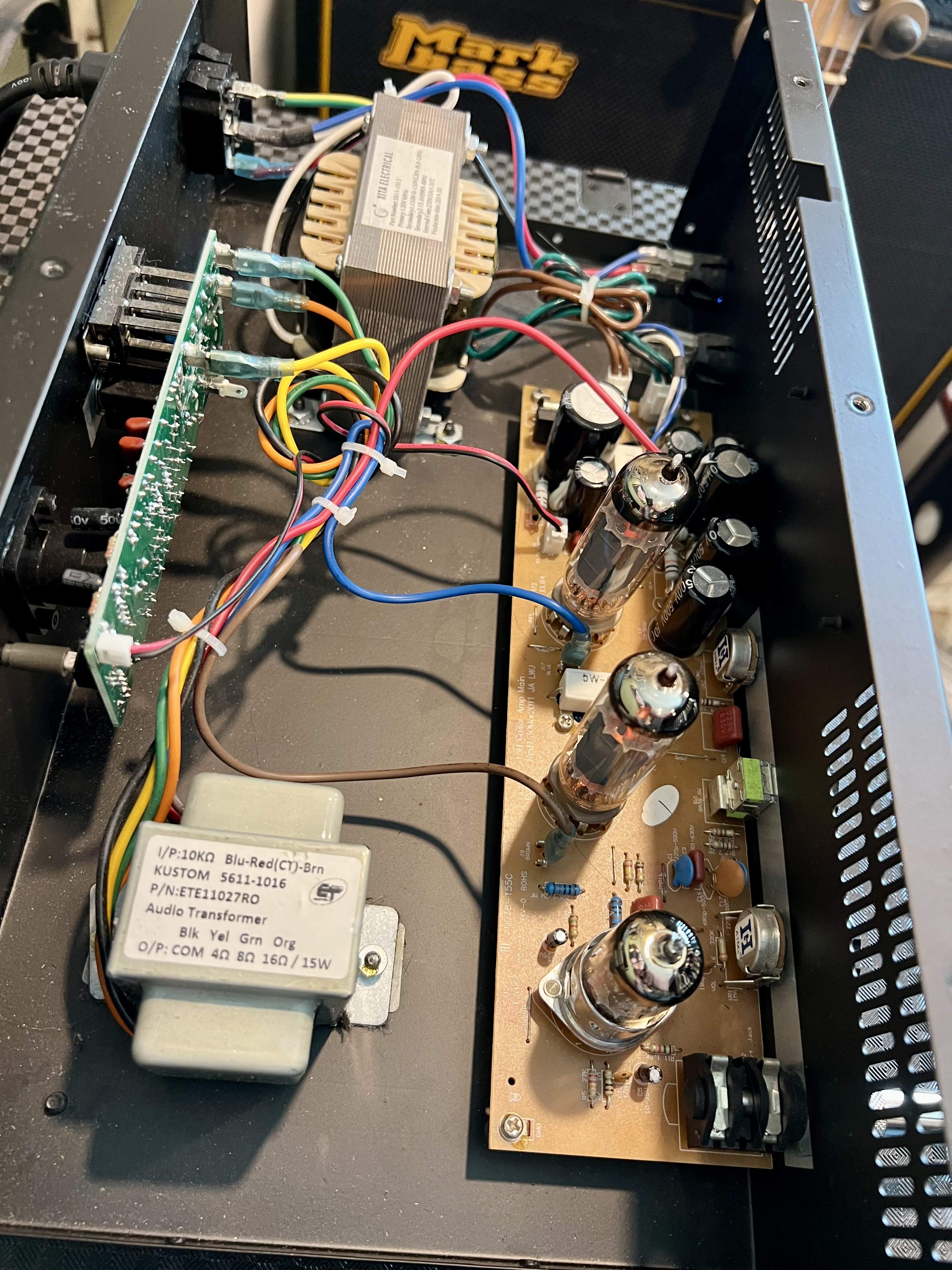

Kustom Defender 15H. 15W all tube head from two el84’s. Sold as a guitar amp, but an Excellent bedroom practice amp for bass!


  • Like
Reactions: Arthur U. Poon, GreaserMatt, BillyB_from_LZ and 1 other person
#1,688
GreaserMatt said:
Ok, I didn't feel like going though all 84 pages, so I'm hoping these aren't on here yet; first up, early 80's (?) Yamaha B100 II bass head; I love the way this sounds, but the one time I brought it to practice I had trouble hearing myself, so it's sat at home ever since; Trans seems way too small for a bass amp; it's like they used a bunch of old stereo components that had laying around to build them LOL; not bad for guitar though...

View attachment 4699532 View attachment 4699533 View attachment 4699534 View attachment 4699537
Click to expand...
I have a bare chassis Yamaha B50 amp, removed from a water damaged 15" combo, that I use in my workshop. It sits on top of a Session 410 bass cab under the bench out of harms way.

It does sound nice at "workshop volume" but I wouldn't want to try and gig with it.

  • Like
Reactions: GreaserMatt and BillyB_from_LZ
#1,700
hennessybass said:

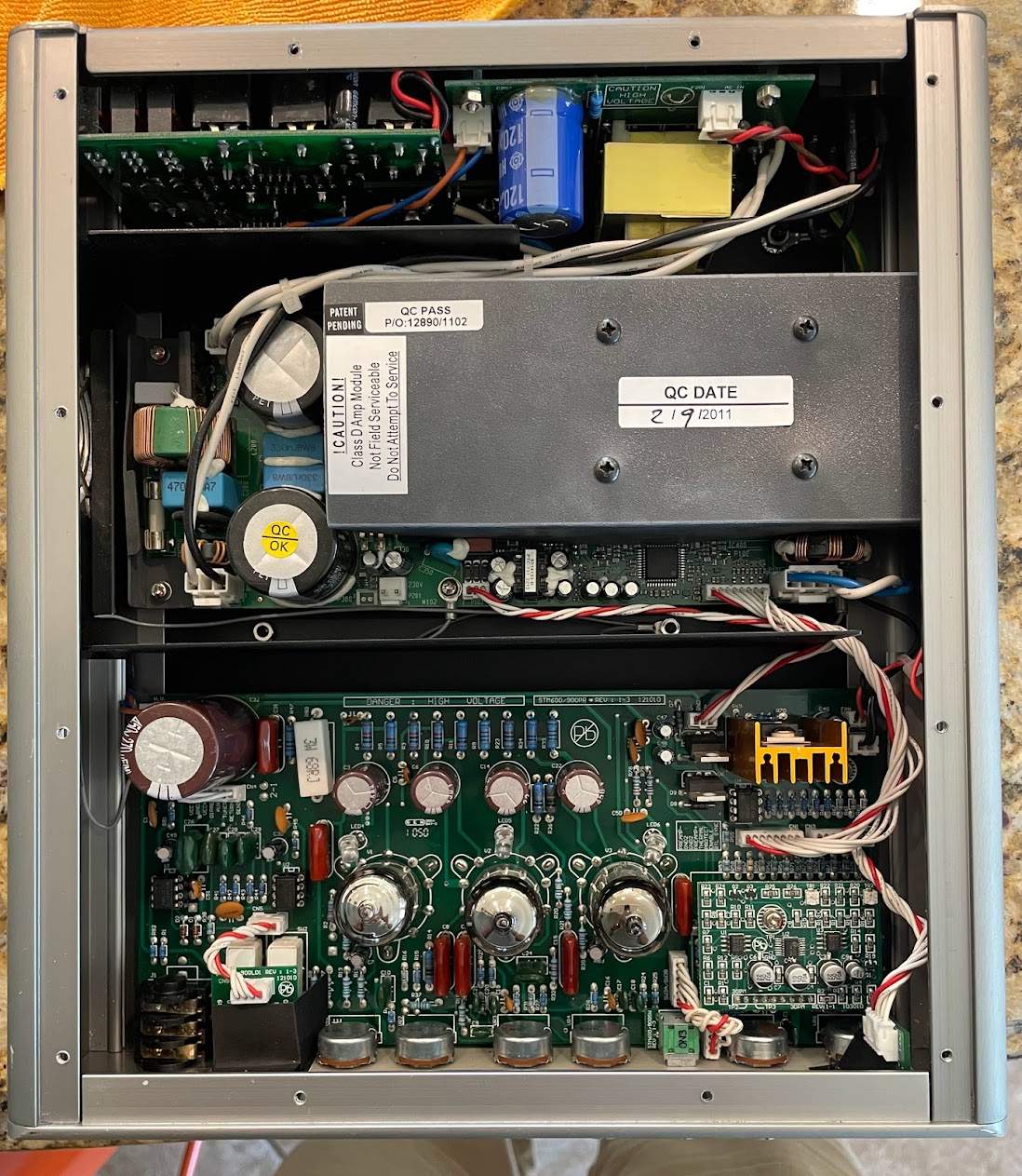

Genz-Benz Streamliner 900
View attachment 4988889
Click to expand...


Thanks for bringing this thread back to life! I guess I never looked at it. I’m looking at the photos that were posted when this thread was started in 2009. I’m seeing some incredible amp guts from some amps that I’ve only heard people talk about!

Totally cool!

BTW, I know almost nothing about electronics, but it sure is fascinating to see how different designers lay everything out.

  • Like
Reactions: cfortner, GreaserMatt, NickRich and 1 other person
