Ampeg PF-50T Humbuster

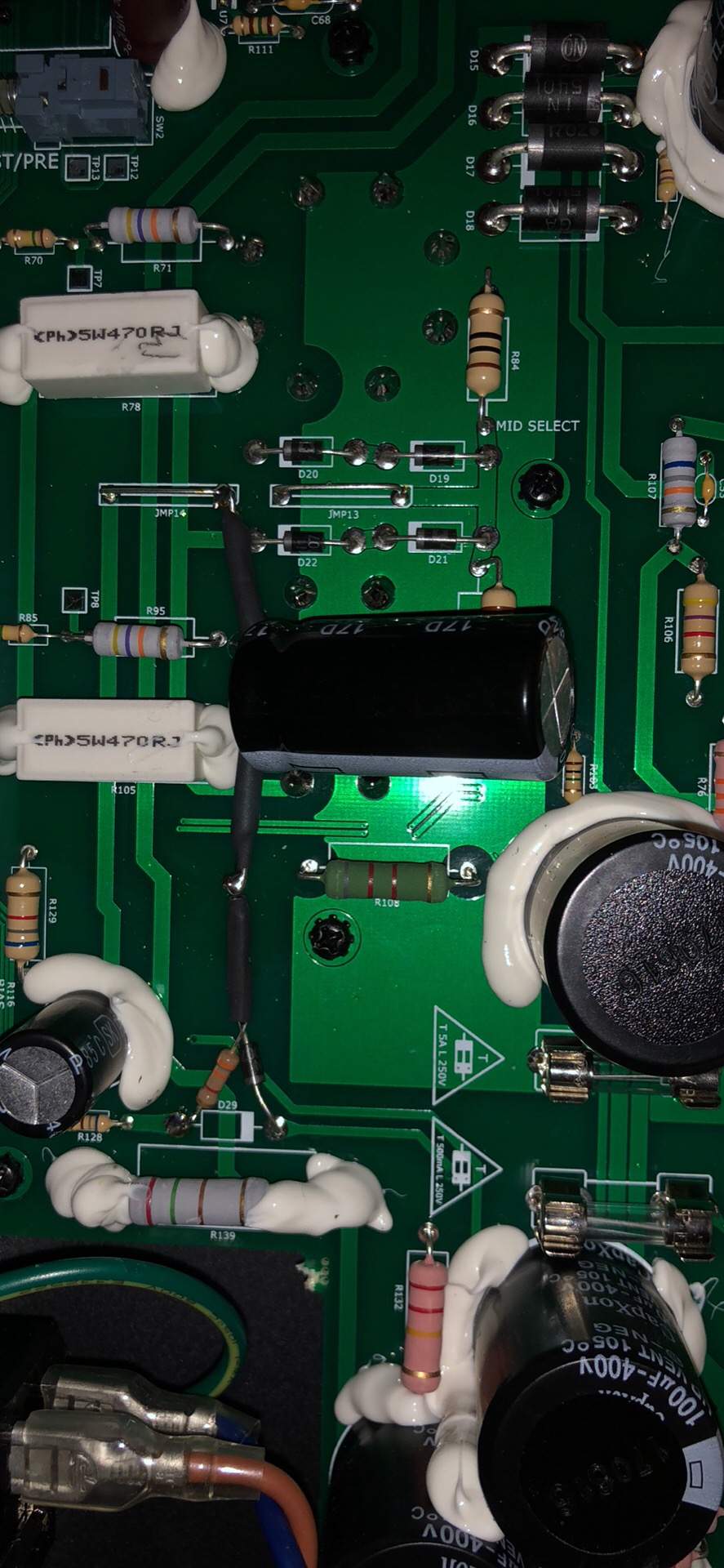

Revisiting this, and using Bertr's previous post as a template. I'm going to de-solder and remove r128, solder in a 3.9k resistor in it's place, solder a 100uF 100V cap to the Anode side leg of D29 with the other leg of the cap being soldered to ground. I did want to clarify something regarding the cap. If I'm using a polarized capacitor what side should be soldered to ground? + or - ?

I wonder if Yamaha will keep the flux capacitor on the board.


  • Like
Reactions: Doner Designs

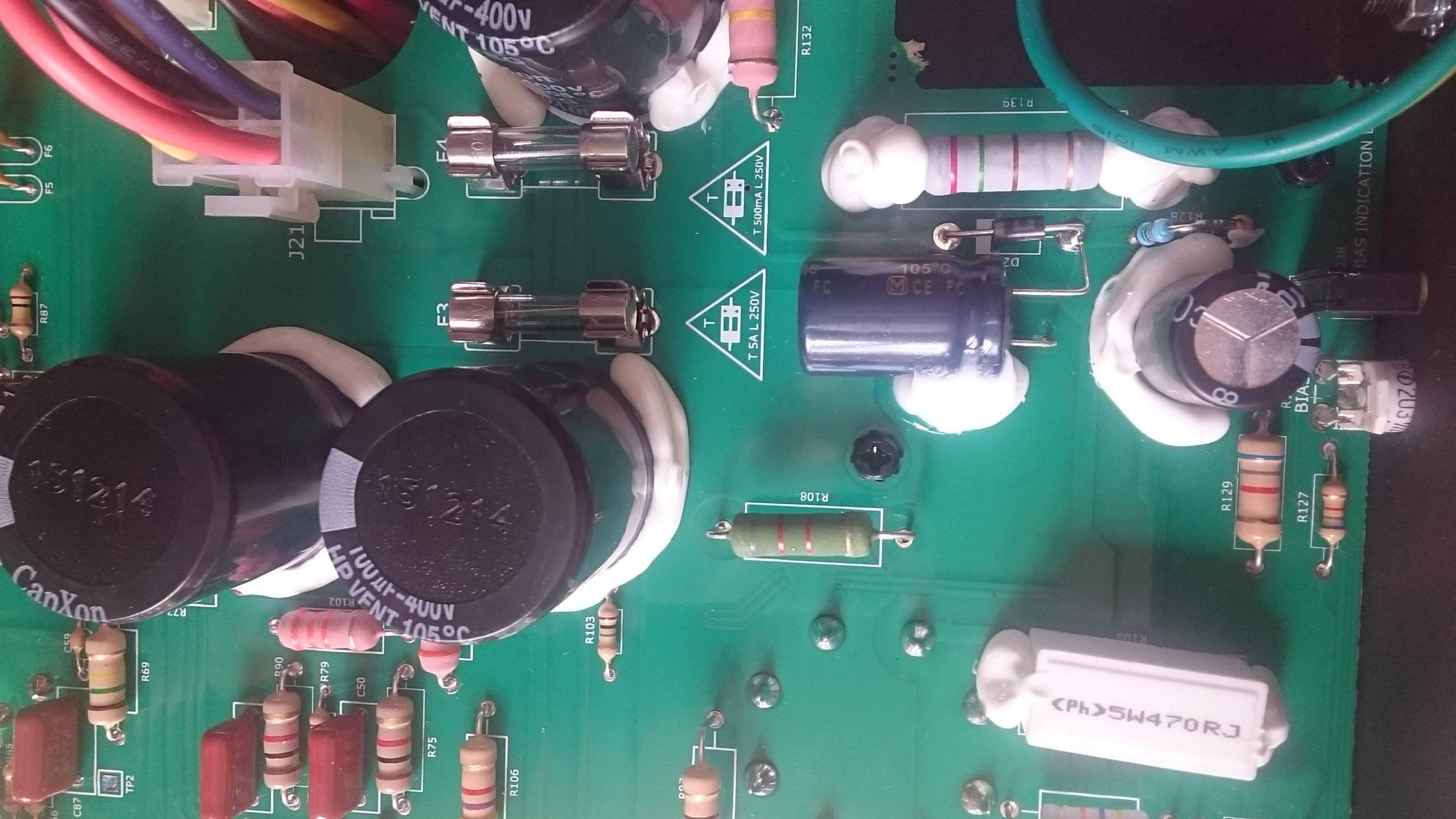

Yep, that's me in the thread linked. My Pf-50t is one of the last of the LOUD units, which there are some nice clearance deals on. The mod appears the same as Bertr's method on this thread, except the additional resistor is positioned differently (they lifted r128 instead of the diode leg), and the added capacitor goes to a different ground trace. But electronically, it's the same.


Yep, that's me in the thread linked. My Pf-50t is one of the last of the LOUD units, which there are some nice clearance deals on. The mod appears the same as Bertr's method on this thread, except the additional resistor is positioned differently (they lifted r128 instead of the diode leg), and the added capacitor goes to a different ground trace. But electronically, it's the same.

View attachment 3166997

Do you remember what revision your board was please?
