Any DIY pedal builders on TB? Strut your stuff!

[davelowell2]

My boards should arrive soon!

I ordered the pcb as well as an enclosure. Probably take me awhile but a fun one, I’m guessing.



[johnk_10]

I ordered the pcb as well as an enclosure. Probably take me awhile but a fun one, I’m guessing.

the most difficult part of building it is acquiring all of the necessary parts from at least 3 vendors.



[sunbeast]

the most difficult part of building it is acquiring all of the necessary parts from at least 3 vendors.

Yeah I just completed my final of the three (Mouser, to get the annoyingly specific XLR jack). I got enough to build a few to make it worthwhile



[HueyFreeman]

I have built a myriad of Nathan's boards. I would posit that the hardest part is making sure that the daughter boards have their connectors soldered in the right orientatiation.
You all laugh now, but..



[HueyFreeman]

I'm looking for a decent signal generator. One that doesn't break the bank yet not cheap. Curious as to what fellow DIY'ers are using and their thoughts.



[johnk_10]

I'm looking for a decent signal generator. One that doesn't break the bank yet not cheap. Curious as to what fellow DIY'ers are using and their thoughts.

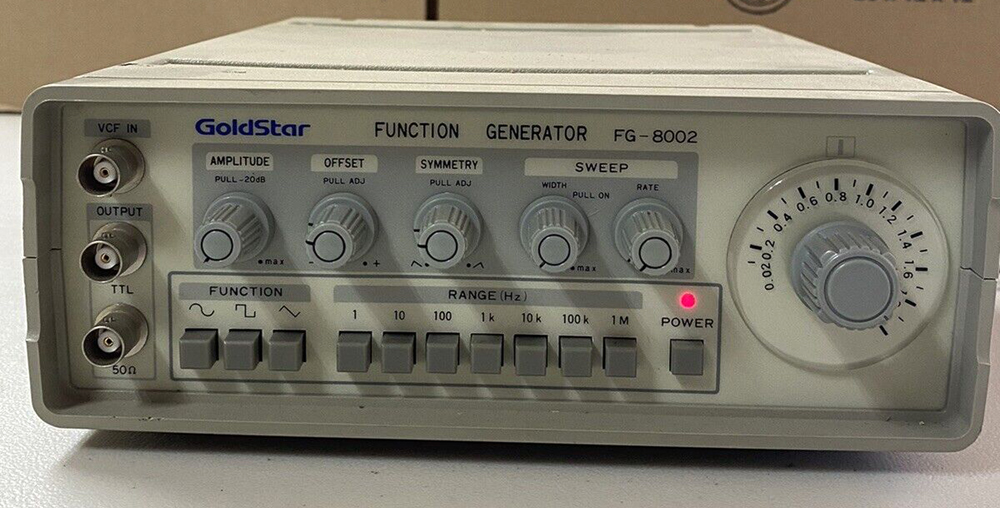

i've had one of these for about 20 years (it was $189 when i bought it) and it still works perfectly but you can get them for well under $100 now:



[mdalamond]

Interested on the responses to this myself.



[Feral Feline]

HueyFreeman — Define "not cheap". What do you need it to do and what for?

On the Simple Side:

JMK
Testing Rig | JMK PCBs
Tiny Tester | JMK PCBs


Paul in the Lab
Paul In The Lab: Poor Mans Audio Signal Generator Stripboard Veroboard Layout
Paul In The Lab: Audio Function Generator Stripboard Veroboard Layout


PedalParts (FuzzDog)
Ultra Tester


THCustom
Link Removed


Over at PPCB:
"AD9833 module after seeing them pop up on AliExpress all the time, and it rules. For about $3 plus an arduino and an op-amp you get sine square and triangle waves from 0.1Hz to 12 mhz"
and
"...UNi-T UTG962E for around 100.00..."



[Feral Feline]

There's also DC6FX's Noise Machine available on Oshpark.
From the Build Doc:

"...a slightly altered 9v function generator found on Make.com and MFOS. The different modes can be accessed by one rotary switch instead of multiple toggles. I also added a white nose section that is a little too quiet compared to the other settings. The controls are simple; level controls the volume, frequency controls the tone, and the switch gives you lower or higher ranges of tone. It only needs one jack for output and is handy as a VCF for the Son of Nasal Cavity sample and hold or to test audio on circuits. It easily fits a 1590B."



[HueyFreeman]

What do you need it to do and what for?

I'd like to build an impedance testing rig using Craig Anderton's jig. It calls for a signal generator. Nothing fancy, I suppose. Just need to generate a sine at variable freqs and be able to amplify to a few volts.
That being said, your question has moved me in a direction that doesn't require me to get a full featured function generator. Gonna try this inexpensive one from Amazon and see how it goes.



[G.Bisson]

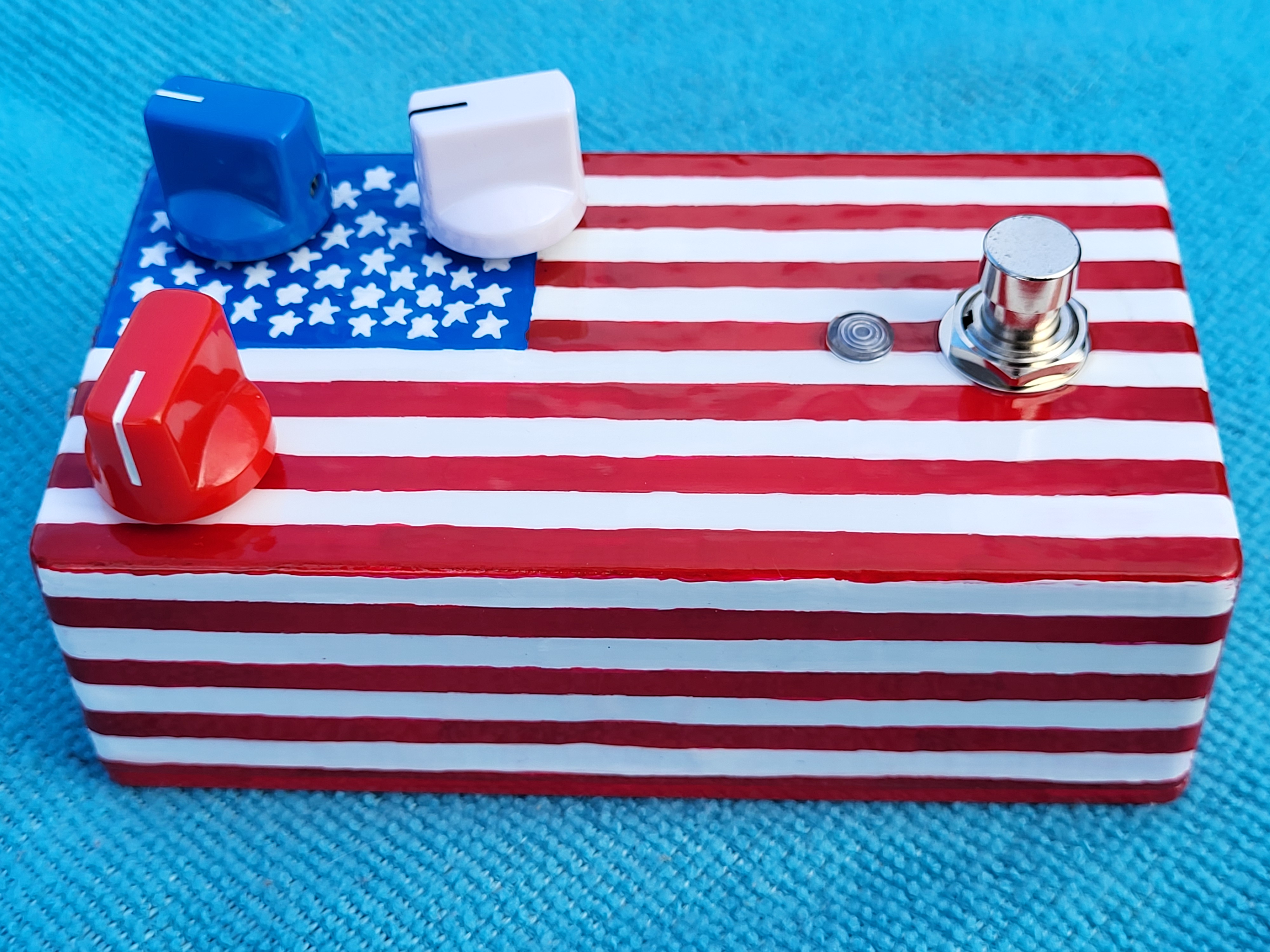

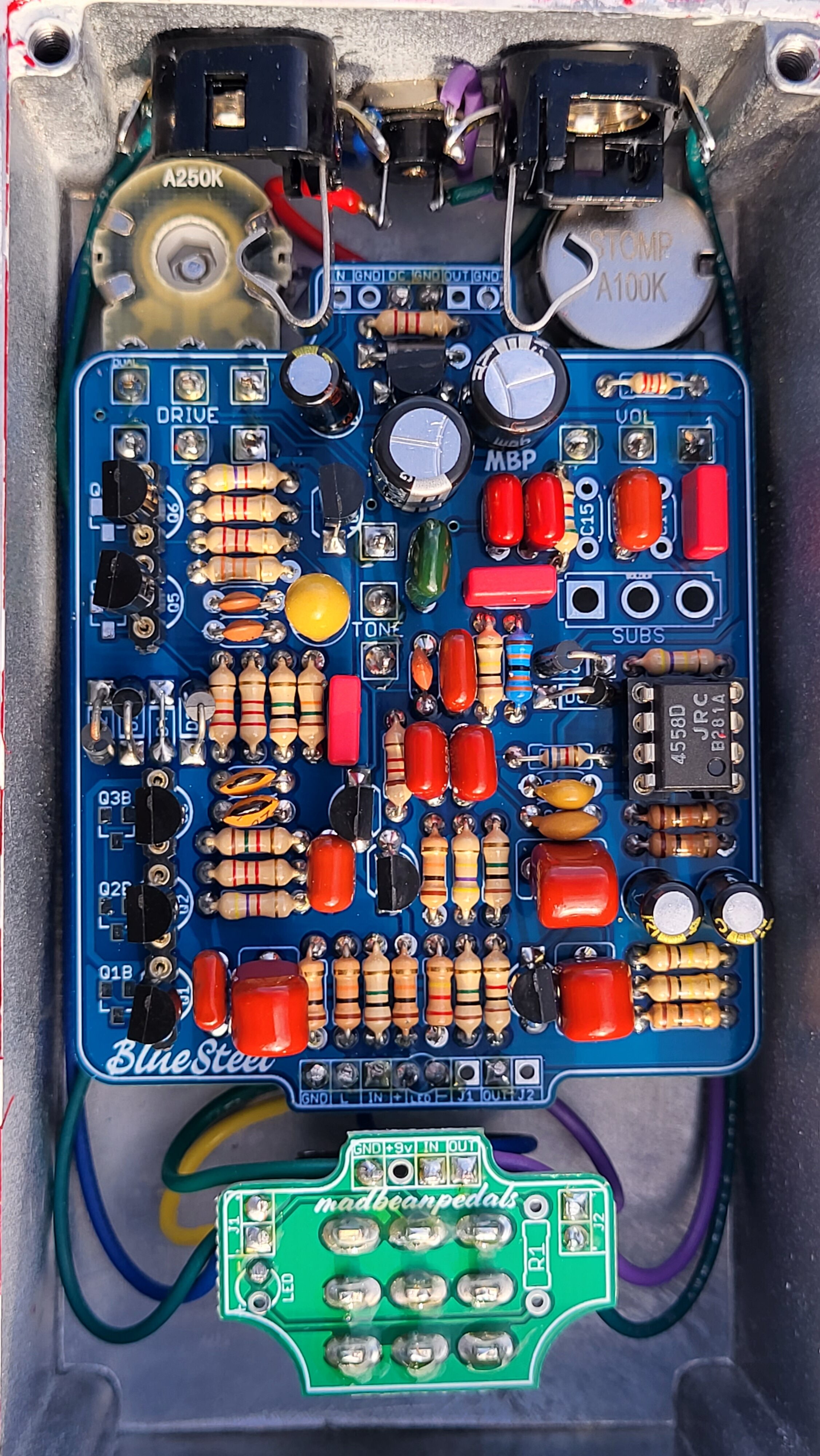

Painted a flag of the United States during the month of December. This is for a MadBean Blue Steel, similar to a Boss Blues Driver built to Keeley phat mod specs. Sounds great on bass.

Painting 13 even stripes was the most challenging part of this build. I carefully measured and calculated needed widths then cut strips of masking tape using a ruler and utility knife. Brushed in the red stripes, then removed masking tape and alternated brushing in each color going slower and neater with each pass.



[G.Bisson]

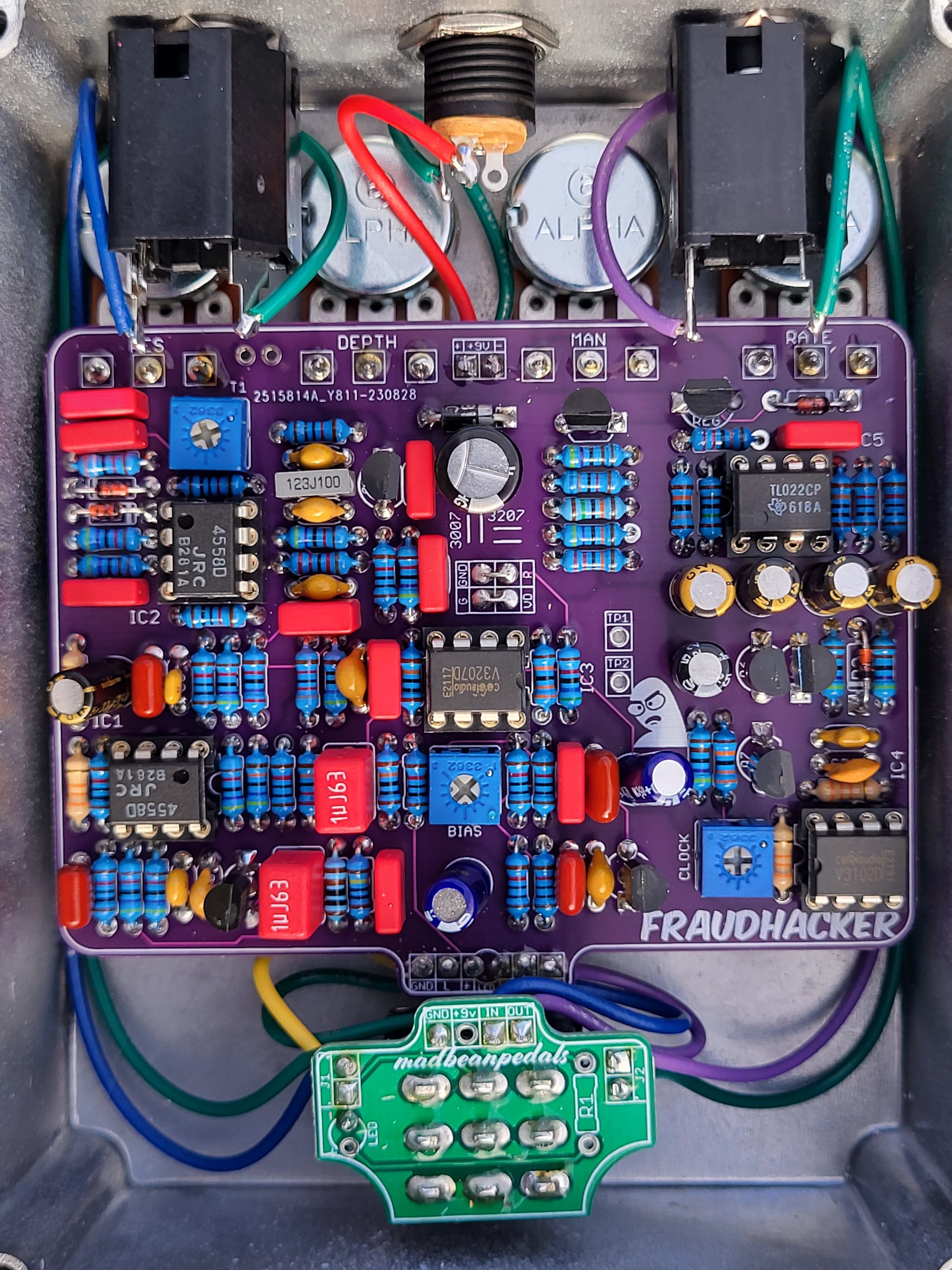

Also made this MadBean Fraudhacker, similar to a Boss BF-2 Flanger.



[johnk_10]

I'd like to build an impedance testing rig using Craig Anderton's jig. It calls for a signal generator. Nothing fancy, I suppose. Just need to generate a sine at variable freqs and be able to amplify to a few volts.
That being said, your question has moved me in a direction that doesn't require me to get a full featured function generator. Gonna try this inexpensive one from Amazon and see how it goes.

i got one of those from amazon and it works well enough.



[crguti]

Do you guys use voltage regulators in your design?



[disssa]

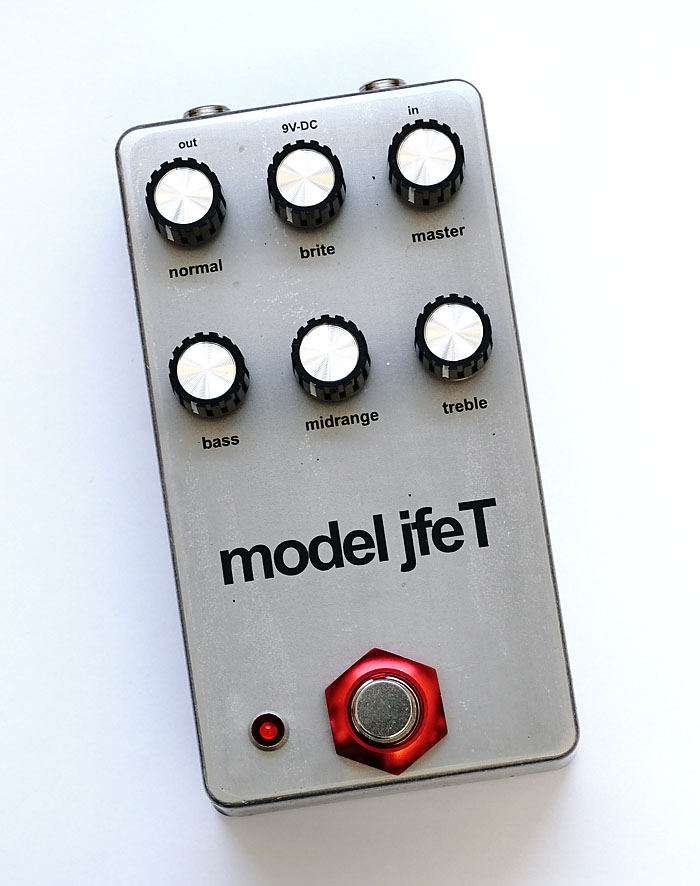

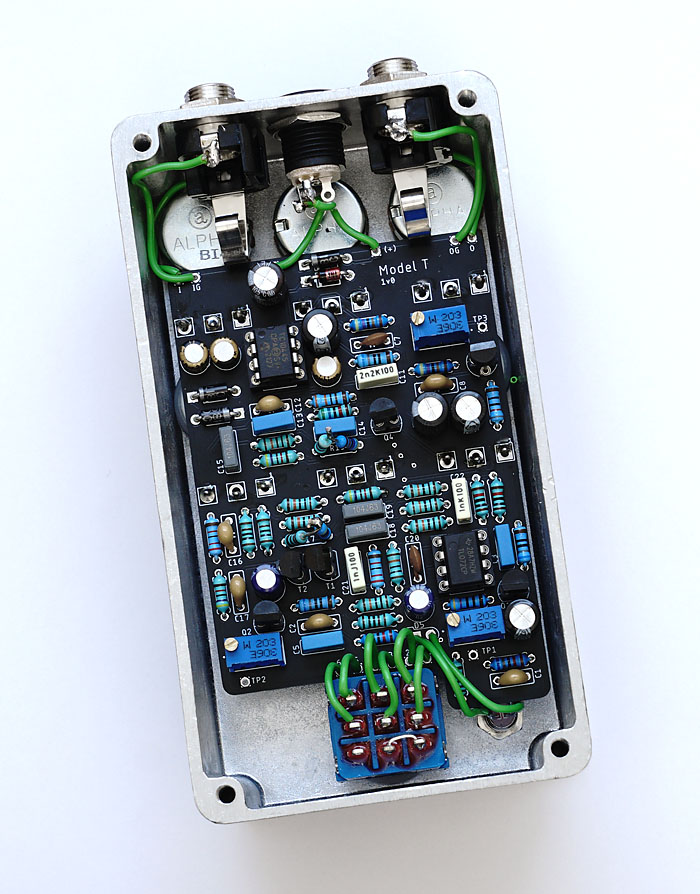

EAE model feT clone:



[disssa]

When Spaceman FX introduced the Equinox pedal, I couldn't help myself: I had to buy one.
It wasn't cheap, but I liked it. The only thing that bothered me was the large pedal format. So I decided to recreate the pedal. I wanted to pack it into a smaller pedal. (Later pedalpcb had the same idea. I could have saved a lot of money...)
I didn't implement the idea for a long time. But now:



[johnk_10]

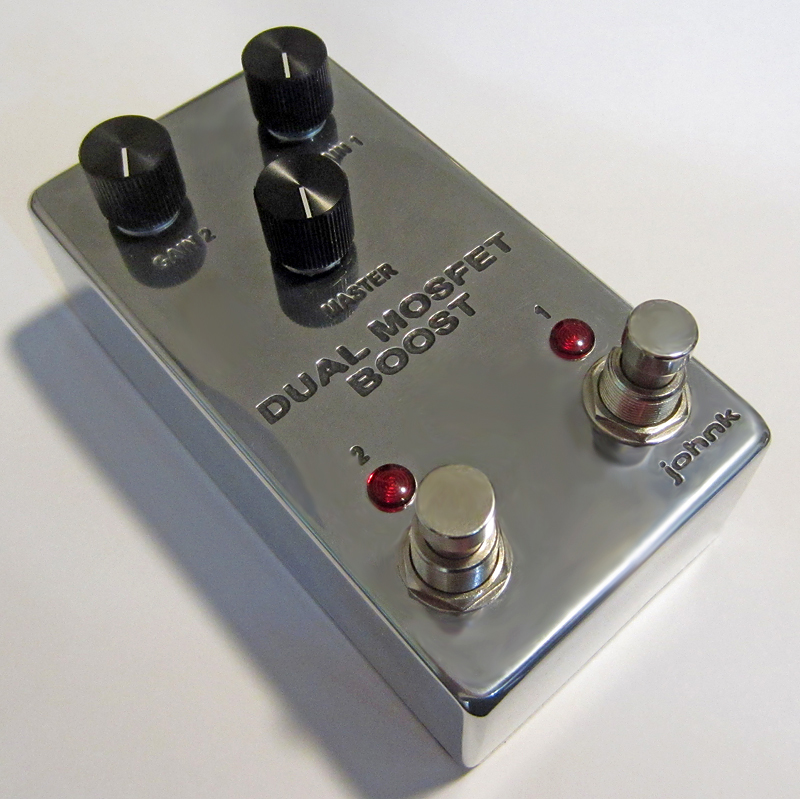

just finished this one last night. it's basically two Zvex SHO's (aka Super Duper 2n1, like a dual JPTR Jive without the clipping diodes):



[mdalamond]

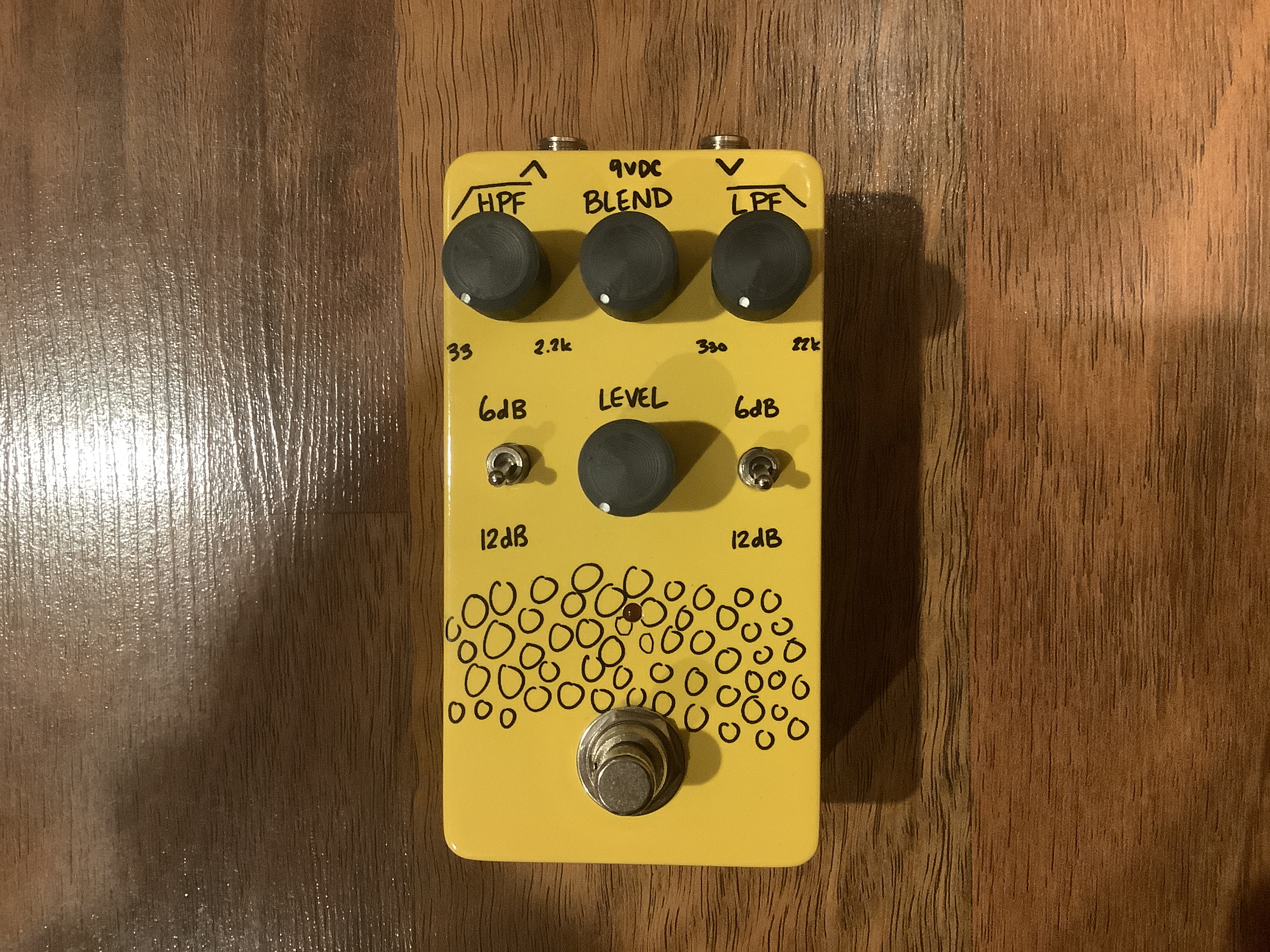

The latest in my VFE arsenal. This one is the. VFE Stand Out. I have the Fuzz Duo, Pinball V3 with Tilt switch and the Bumble Bee on the bench next. Waiting on some parts. I bought a Pinball V3 w/ tilt on an Indigo campaign from VFE last year to show my support for the kids in the classroom. It’s a great hpf/lpf. The Stand Out is supposed to be more mid focused according to the description. It sounds pretty good on bass. I printed the knobs . It uses the V 2.7 MCU soft relay bypass that can also be used as momentary, pretty standard in all VFE SPS series pedals.



[disssa]

Pinball V3

Where did you get the c10k/100k dual-pots from?



[mdalamond]

Where did you get the c10k/100k dual-pots from?

I bought about 40 of them while VFE had them in stock. They no longer have them but I think they may be available from Stompbox Parts and maybe Madbean
