Any DIY pedal builders on TB? Strut your stuff!

[JimboP]

Hi all. Just wondering if anyone has come across a PCB or build instructions for a Dwarfcraft Devices Ghost Fax?



[Feral Feline]

Is it the same layout at the plumes?

the only physical difference, as far as I know, is the extra resistor in series with C9; other than that, it's just component value changes.



@karter2000 — I'm not sure exactly how to proceed on the PB-LOoMs hybrid, but here's what I'm thinking for mine:
Some things may not be worth switching out, such as the gain pot, B1M vs A1M.
I'll just try them both and see where I prefer to put the sweet spot of the rotation. No switching it.

4PDT ON-ON toggle to swap out:

POLE 1 — R2 & C1 can be swapped out together as one.
POLE 2 — C4 & R6 can also be swapped out as a unit.
POLE 3 — C5
POLE 4 — C6​

The 1k in series with C9: leave it in, all the time, no switching it. It will then be more Blumes-like, or one could skip adding the 1k and the pedal will be a smidge more Plumes-like. I'm willing to bet it'll be hard to tell if this 1k makes much of a difference on its own.
Breadboard it and see which is preferable.



[AudioTaper]

I was thinking of just using a larger enclosure and having a Plumes and a Blumes in the same box. Footswitch for bypass and another to select the circuit you want. Then you can have different settings for each



[HueyFreeman]

Many builds have been completed since my last submission, but none post worthy until now..

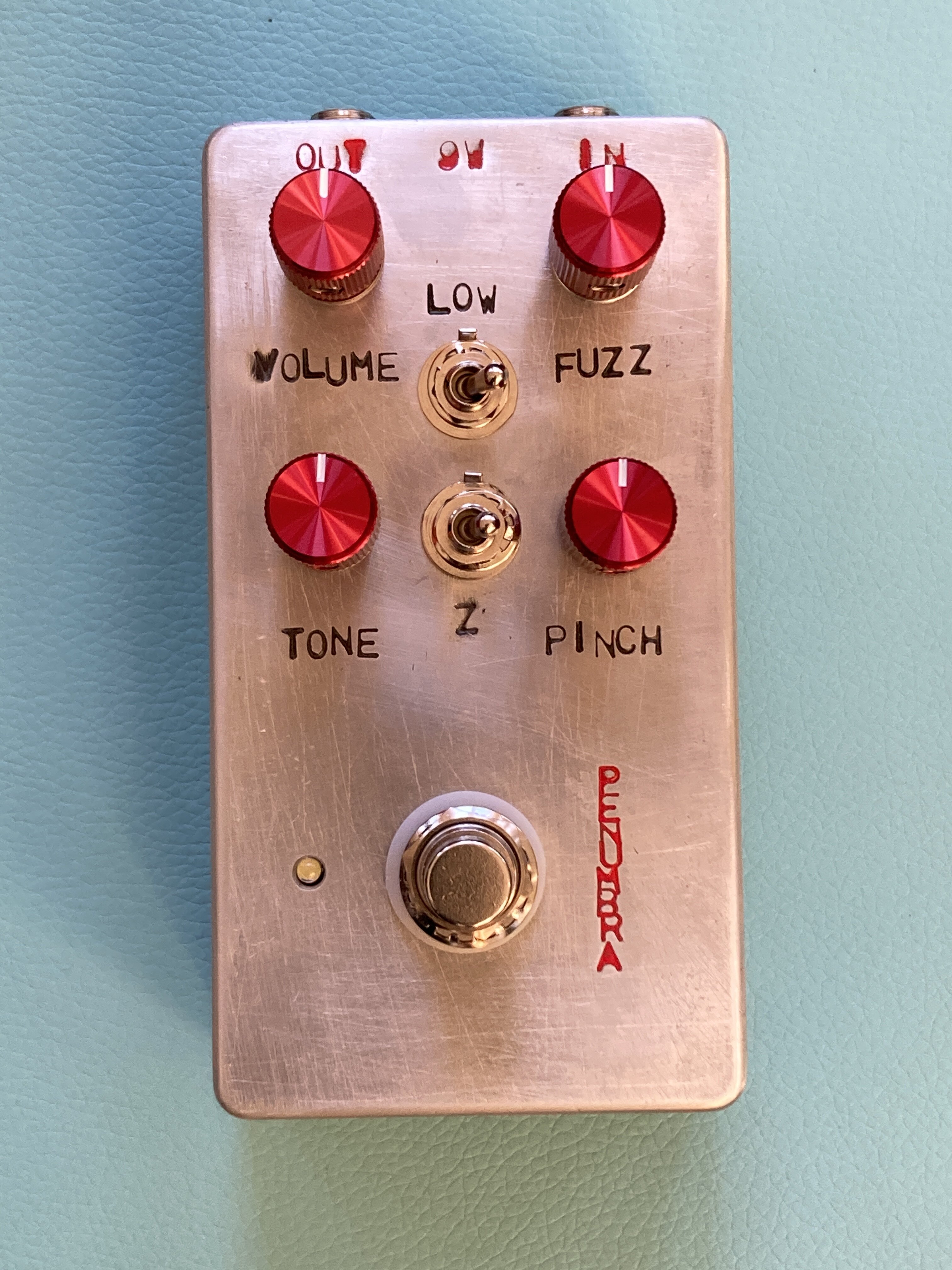

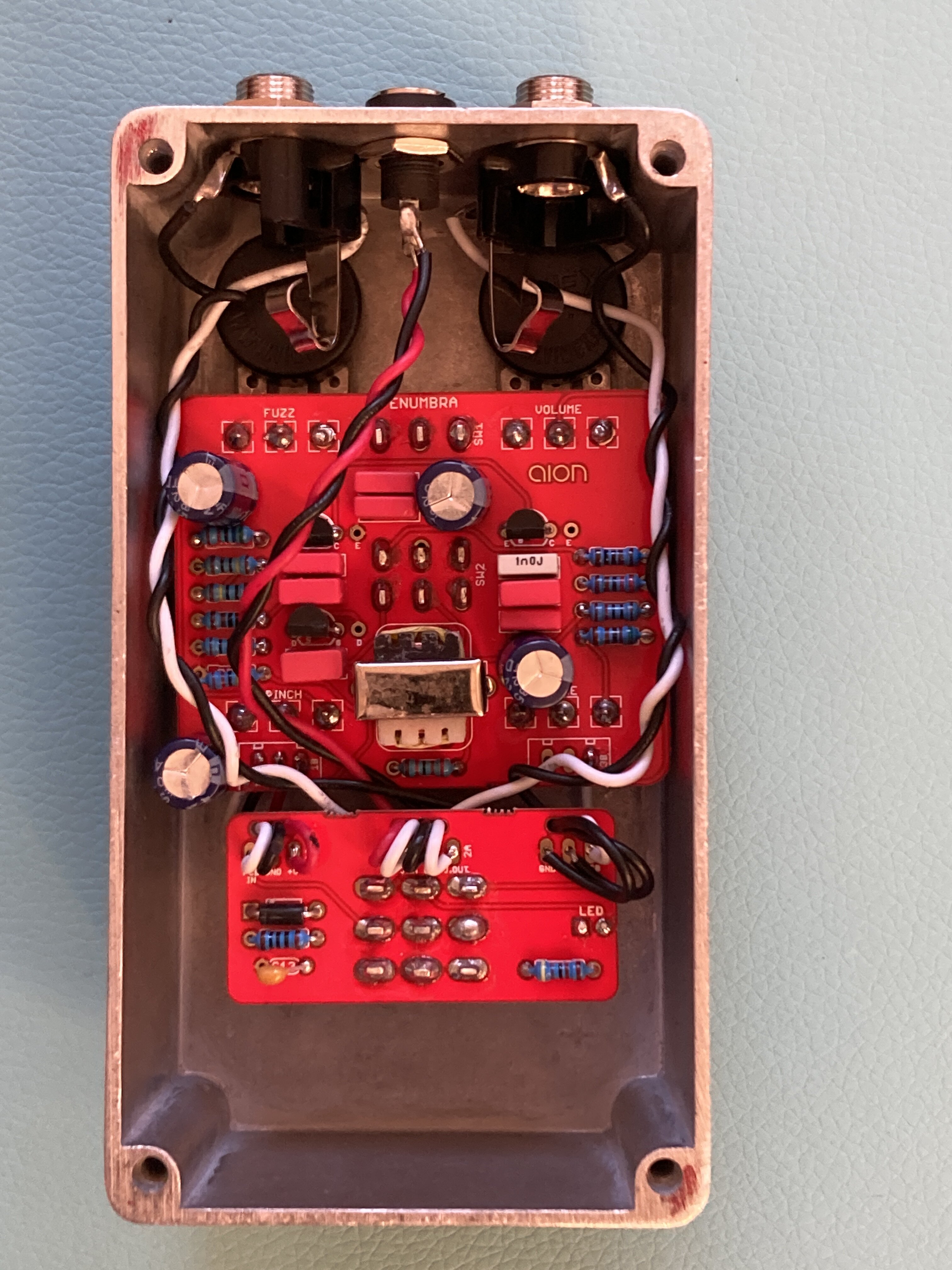

AionFx Penumbra (Wooly Mammoth)

Labelling is stamped and filled.
And yes, the DC label does say "9W". It was late and I was 2 beers in when I mistakenly grabbed the W instead of V.



[karter2000]

the only physical difference, as far as I know, is the extra resistor in series with C9; other than that, it's just component value changes.

@karter2000 — I'm not sure exactly how to proceed on the PB-LOoMs hybrid, but here's what I'm thinking for mine:
Some things may not be worth switching out, such as the gain pot, B1M vs A1M.
I'll just try them both and see where I prefer to put the sweet spot of the rotation. No switching it.

4PDT ON-ON toggle to swap out:

POLE 1 — R2 & C1 can be swapped out together as one.
POLE 2 — C4 & R6 can also be swapped out as a unit.
POLE 3 — C5
POLE 4 — C6​

The 1k in series with C9: leave it in, all the time, no switching it. It will then be more Blumes-like, or one could skip adding the 1k and the pedal will be a smidge more Plumes-like. I'm willing to bet it'll be hard to tell if this 1k makes much of a difference on its own.
Breadboard it and see which is preferable.

Awesome, thank you! I never thought of doing it this way. I even happen to have a 4PDT in my stuff.



[karter2000]

Hi all. Just wondering if anyone has come across a PCB or build instructions for a Dwarfcraft Devices Ghost Fax?

Unfortunately not, as it's a complex pedal and mostly digital. The chip in the bottom right corner is an embedded PIC microchip that is likely used for the majority of the digital signal processing. Probably has proprietary code on it as well.



[JimboP]

Unfortunately not, as it's a complex pedal and mostly digital. The chip in the bottom right corner is an embedded PIC microchip that is likely used for the majority of the digital signal processing. Probably has proprietary code on it as well.

Ah that's too bad, but makes sense now why I can't find one! Thanks



[Zanshin_]

Many builds have been completed since my last submission, but none post worthy until now..

AionFx Penumbra (Wooly Mammoth)

View attachment 5356028 View attachment 5356029

Labelling is stamped and filled.
And yes, the DC label does say "9W". It was late and I was 2 beers in when I mistakenly grabbed the W instead of V.

I built this one too (but not boxed up yet). What a great pedal, the pickup sim is MVP.

Yours turned out fantastic!



[HueyFreeman]

I built this one too (but not boxed up yet). What a great pedal, the pickup sim is MVP.

Yours turned out fantastic!

Thanks. I'm really digging it. It's pretty rad.
I don't think I would've done this build without the pickup sim.
I've gone through about a half dozen enclosures before nailing the stamping. Gotta give thanks to this thread for enlightening me on using a steel block under the box while stamping. Changed everything.



[davelowell2]

The steel block is a game changer for sure.



[Silver Blues]

Many builds have been completed since my last submission, but none post worthy until now..

AionFx Penumbra (Wooly Mammoth)

View attachment 5356028 View attachment 5356029

Labelling is stamped and filled.
And yes, the DC label does say "9W". It was late and I was 2 beers in when I mistakenly grabbed the W instead of V.

Is that pinkish colour of the enclosure real, or just a trick of the light? It's quite cool.

The "9W" is just to confuse your enemies.



[HueyFreeman]

Is that pinkish colour of the enclosure real, or just a trick of the light? It's quite cool.

The "9W" is just to confuse your enemies.

It's a light trick.



[HoHumbucker]

The "9W" is just to confuse your enemies.

Or to make the claim of "Made in northern New Jersey"



[karter2000]

the only physical difference, as far as I know, is the extra resistor in series with C9; other than that, it's just component value changes.

@karter2000 — I'm not sure exactly how to proceed on the PB-LOoMs hybrid, but here's what I'm thinking for mine:
Some things may not be worth switching out, such as the gain pot, B1M vs A1M.
I'll just try them both and see where I prefer to put the sweet spot of the rotation. No switching it.

4PDT ON-ON toggle to swap out:

POLE 1 — R2 & C1 can be swapped out together as one.
POLE 2 — C4 & R6 can also be swapped out as a unit.
POLE 3 — C5
POLE 4 — C6​

The 1k in series with C9: leave it in, all the time, no switching it. It will then be more Blumes-like, or one could skip adding the 1k and the pedal will be a smidge more Plumes-like. I'm willing to bet it'll be hard to tell if this 1k makes much of a difference on its own.
Breadboard it and see which is preferable.

I finished the lazy-man's version of the Blumes on my nearly-populated Plumes board tonight (not enclosed yet). From what I can tell, it sounds like the Blumes I tried at my local music store briefly. It basically sounds like a tube screamer with a big cap in the high pass filter section of the feedback loop. Would explain all the gain that everyone is hearing. I don't mind the gain myself, although I do like Mode 2 (no diodes I'm guessing). It reminds me of the Comp Cut mode on the Fulltone Bassdrive I used to have.

Edit: I didn't bother with the 1k in series with C9.



[Zanshin_]

I finished my Wooly Mammoth clone (Penumbra PCB with pickup simulator). I also finished up a EAE Dagger clone (PPCB Scabbard) that I named 1d4 because I am a nerd



[johnk_10]

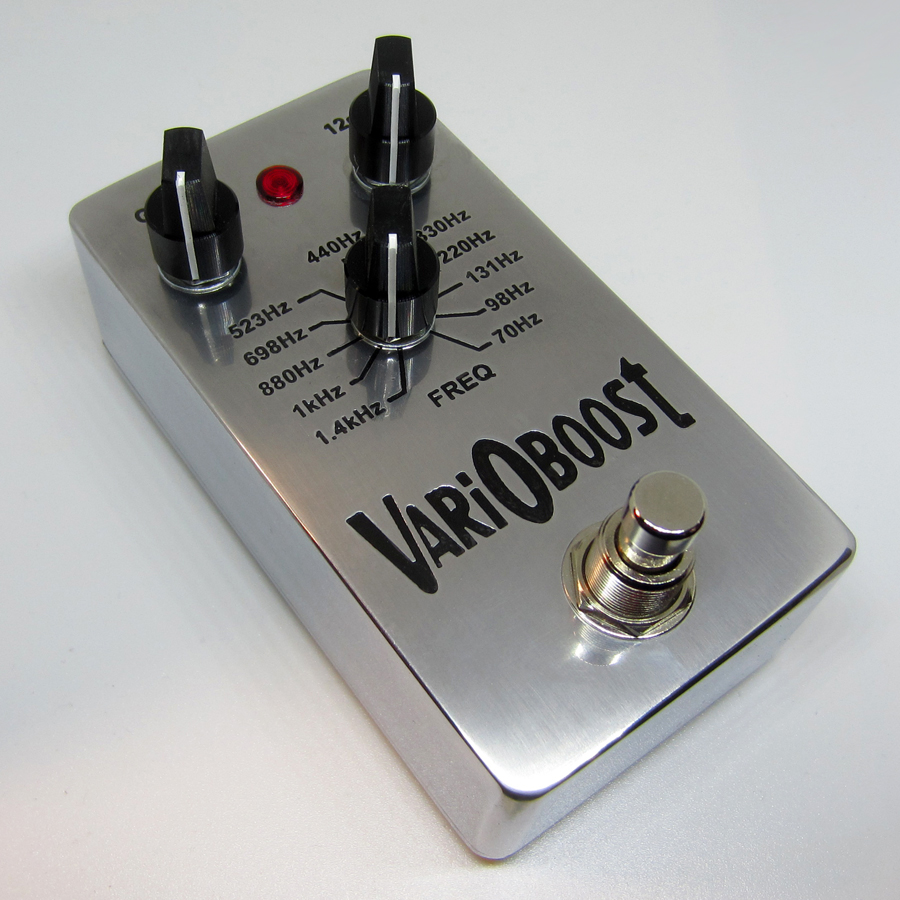

just finished this one about a half hour ago:

i really love this pedal.



[mrperkolator]

Has anyone tried/built a mod electronics phase off kit from amplified parts?



[johnk_10]

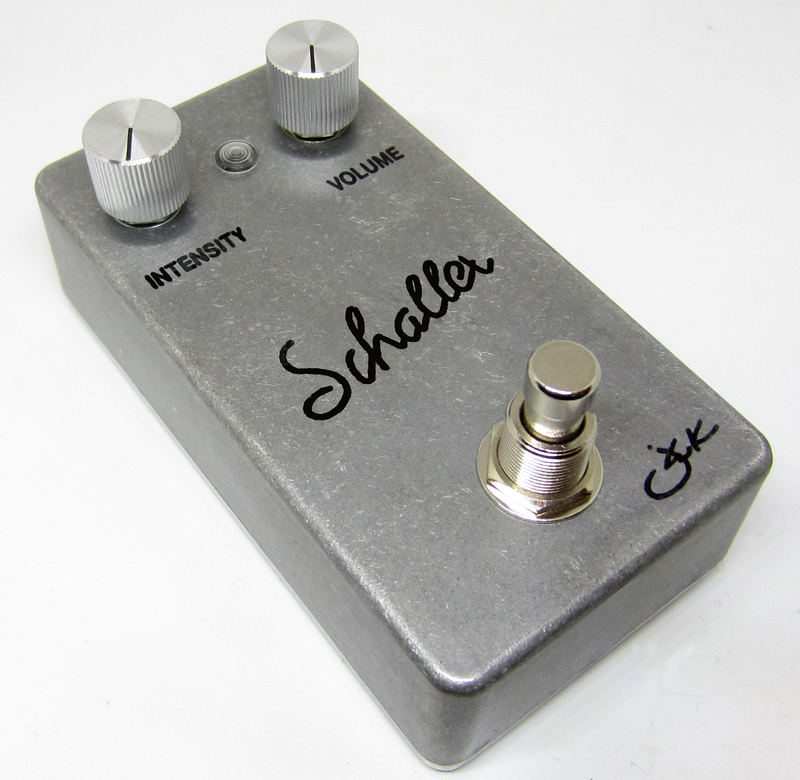

just finished this one: an early germanium Schaller Fuzz with vintage Siemens AC151 V1 transistors:



[mdalamond]

Fresh off the bench today.

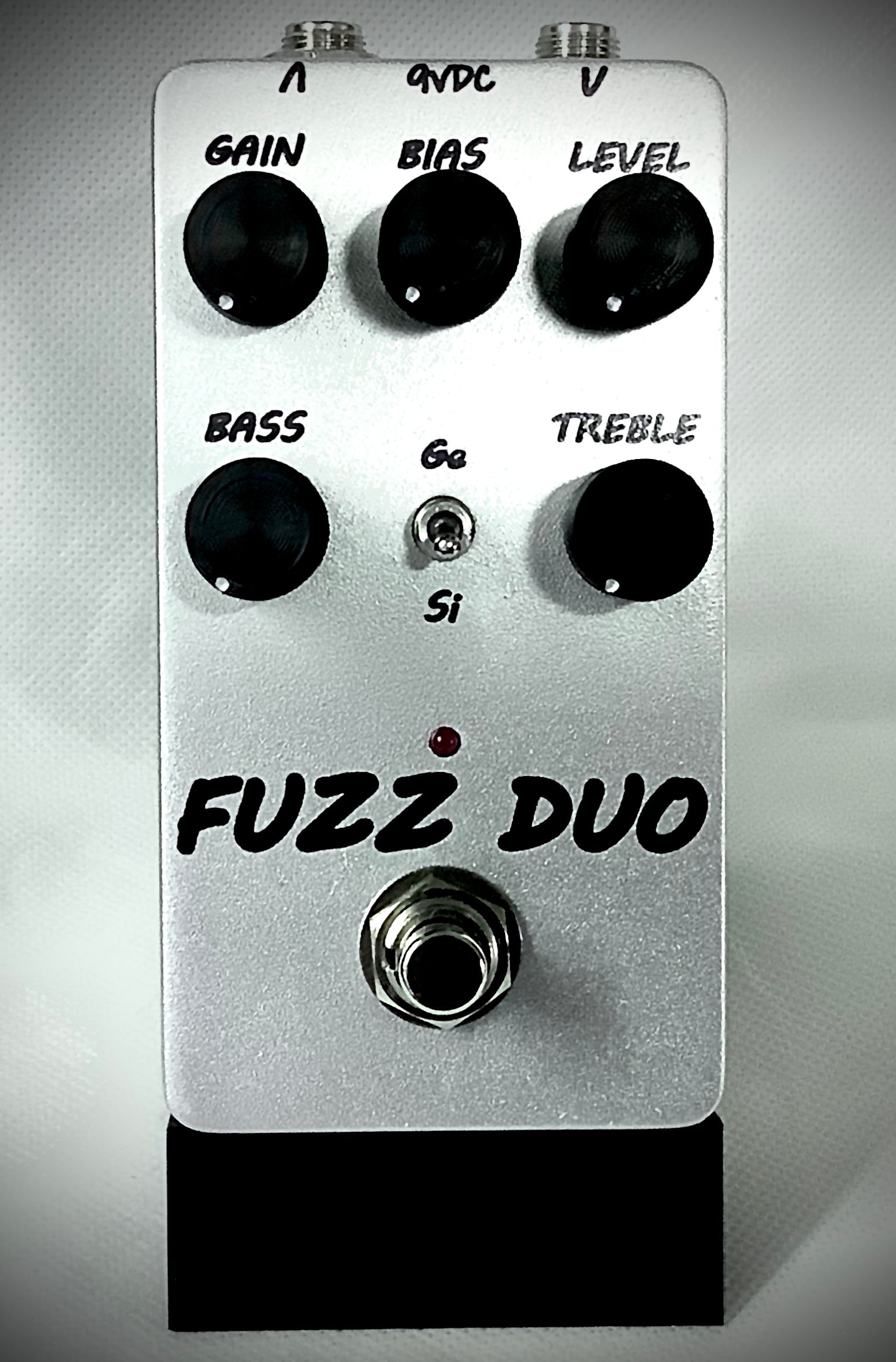

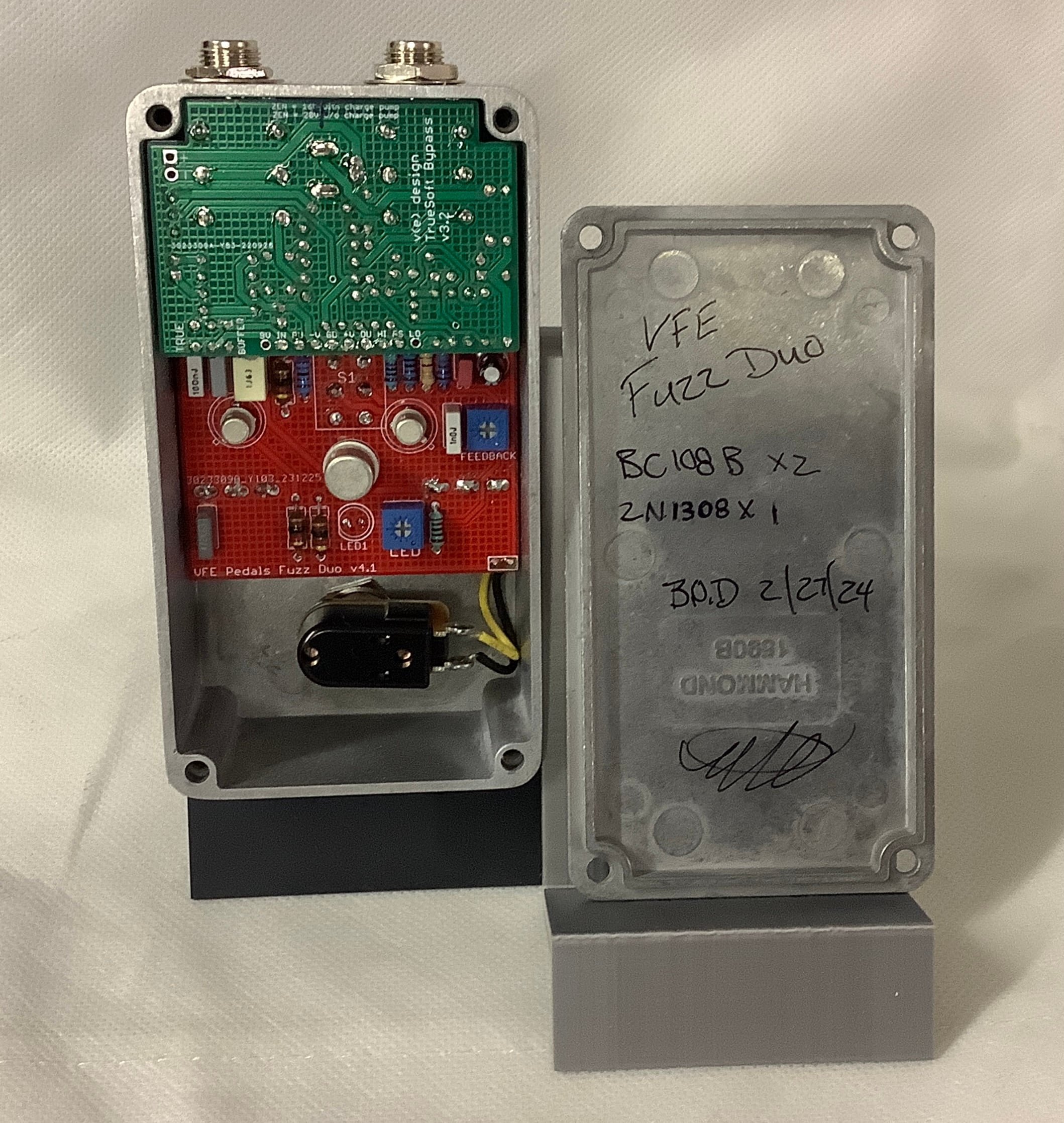

VFE Fuzz Duo V4.1
Switchable fuzz between Germanium and Silicon transistors .
For the Germanium I used a 2N1308 and for the Silicon I used BC108b.
It can do everything from sputtery and gated to smooth.
I like the fact that there a separate bass and treb controls. Sounds great to me.
Matt



[Luke the Fluke]

Fresh off the bench today.
VFE Fuzz Duo V4.1
Switchable fuzz between Germanium and Silicon transistors .
For the Germanium I used a 2N1308 and for the Silicon I used BC108b.
It can do everything from sputtery and gated to smooth.
I like the fact that there a separate bass and treb controls. Sounds great to me.
Matt

View attachment 5367408 View attachment 5367409

dual pcb for a fuzz! I’m guessing it’s the switching and ins/outs on it
