Aria Pro II - SB1000 (1980)

[MHLakland]

Looking for the electronics layout for this bass. A previous owner had rewired a few things, primarily eliminating the active/passive switch. I wanted to restore this back to facotry specs or as close to that as I can. Any help would be greatly appreciated.



[MHLakland]

Ok, figure this might help get some responses. It may be just easy for another SB1000 (orginal) owner to kindly open the electronics cover and give a quick look.

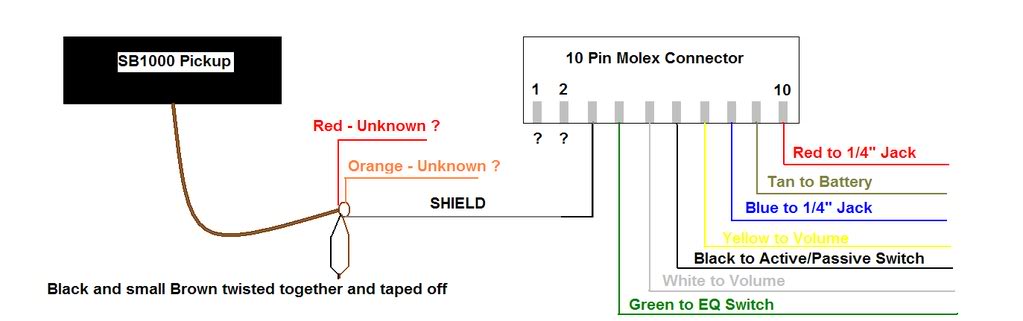

1. The Red and Orange wires from the PUP were connected to the molex connector pins 1 and 2. Although they were soldered and broke off at some point. Looking for where they may go?
2. From the PUP the Black and a smaller brown wire are twisted and electrical taped together.
3. Whatever was done the Active/Passive switch worked in only the Active selection.
4. Lastly, where could one get a 10 pin connector so I can do this properly?

Any help will be greatly appreciated. I'm getting close, but if it looks like anything is wrong feel free to correct it.



[kirnagar]

from what I can tell, my aria is a csb deluxe , see through red with 2 pickups. Why does it sound kinda muddy, is there a pickup upgrade to fit it ?
