B15N Tube Preamp DI Build Report

[nshuman]

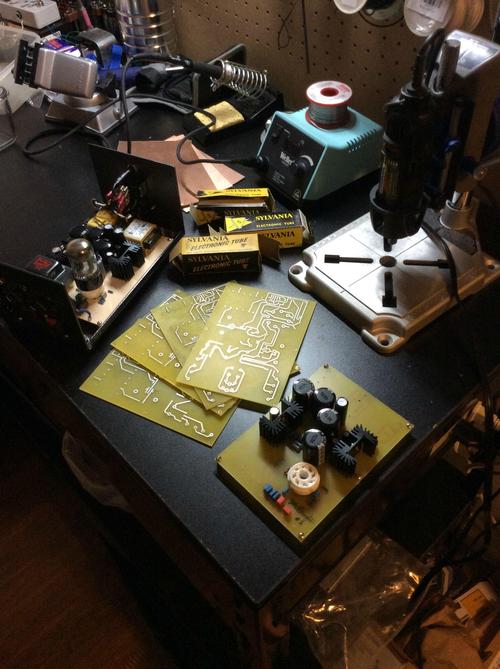

I've been keeping busy...mainly focusing on etching the circuit boards. I now have five boards made, and board #1 is populated sans transformers (they are in the mail heading my way). I'm hoping to have a bunch of these made by the time the cases make it from the fabricator so its a just a quick assembly and then its done.

NICE!



[ddbassGA]

Keep me in mind if you decide to build some. Or send (sell) me the schematic? Thanks.



[ddbassGA]

Does anybody have experience with different 6SL7s? I have this old stock russian tube, but I also have some new production tung sol. The russian tube sounds so good I haven't bothered changing it out yet.

I have quite a collection of vintage 6SL7 including Sylvania's of the type Ampeg used, JAN VT229 (Sylvania and GE), plus red base RCA 5691, my personal fave. Wanna try some?



[Azure Skies]

I have quite a collection of vintage 6SL7 including Sylvania's of the type Ampeg used, JAN VT229 (Sylvania and GE), plus red base RCA 5691, my personal fave. Wanna try some?

I definitely want to try some; I intend to get some of the JAN Sylvanias eventually. I have a source for NOS quality tubes, such as the RCA, GE, etc, so I will get around to them sometime.



[NKBassman]

The first name that came to mind was "The B15ness Tube DI". Seems silly now that I type it out.

PM me if you have a price in mind.



[Feral Feline]

@Azure Skies :: Any chance of 220v compatibility or are these all going to be 110v?



[Azure Skies]

@Azure Skies :: Any chance of 220v compatibility or are these all going to be 110v?

Yep I can do that. What type of AC inlet do you use?



[Jeff Moote]

This is a really cool project and I'm glad to see you're nearby in Toronto. If these are available for sale and the price is right I will most definitely pick one up.



[Mktrat]

I think I need one of these......please.



If and when you ever decide.......... hit me up please.



[Feral Feline]

Yep I can do that. What type of AC inlet do you use?

Just a regular one like on amps/computers/etc.

Next question, sir...

Possible to have a switch between 220 & 110? I'll eventually be moving back to Canada, so would be good to be able to operate it on 220 or 110 (great for world-touring musicians, too!).



[iamthebassplayr]

Just a regular one like on amps/computers/etc.

Next question, sir...

Possible to have a switch between 220 & 110? I'll eventually be moving back to Canada, so would be good to be able to operate it on 220 or 110 (great for world-touring musicians, too!).

There's a post in the Reddi thread about the jumper in the IEC connector.

REDDI Tube DI Mega-thread-III | Page 62 | TalkBass.com

I imagine parts have likely been ordered already though.



[Azure Skies]

Just a regular one like on amps/computers/etc.

Next question, sir...

Possible to have a switch between 220 & 110? I'll eventually be moving back to Canada, so would be good to be able to operate it on 220 or 110 (great for world-touring musicians, too!).

With the materials I've procured, there isn't the possibility of a switch. However, I could make a pcb that could be adaptable to one or the other by changing wires. I would be happy to change the wiring for you when you come back to Canada.



[NKBassman]

Popped in the tung sol and it's really good. I prefer it over the first tube...it seems to have more texture and response to my playing. The basic tone is still there, but this one is, dare I say, "organic"

Some more blues jamming on a p bass:

Flat wound strings?



[Azure Skies]

Flat wound strings?

Yes the P bass has flats, the J bass has fresh SS rounds.



[DirtyDuke]

How did I miss this????????I WANT one.....



[Feral Feline]

Awww who let that ^ guy in here...

Secret's out. There goes the neighbour, hood.

You need two Duke, one for your main board and another one for your other main board.

@iamthebassplayr : thanks for the link.

@Azure Skies :: Cool. I don't think I'll be pond hopping back and forth much, Diana Krall hasn't called me yet to do a world tour with her and her hubby won't return my phone calls to be part of his touring entourage.

I'll send it to you for swapping 220 for 110 when the time comes, but first the time has to come for 220v!



[NKBassman]

Yes the P bass has flats, the J bass has fresh SS rounds.

Oh I missed that post! The Jazz clip sounds great too!



[ddbassGA]

I definitely want to try some; I intend to get some of the JAN Sylvanias eventually. I have a source for NOS quality tubes, such as the RCA, GE, etc, so I will get around to them sometime.

PM me your shipping address and I'll send some different ones to try.



[Azure Skies]

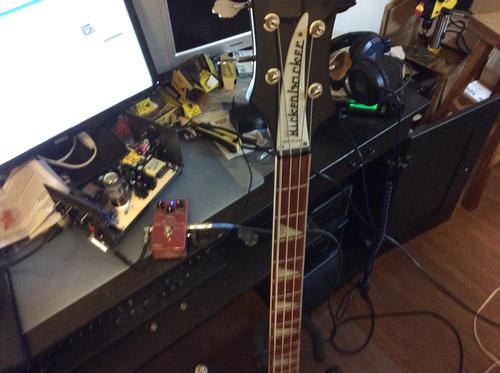

Quick pic of my workshop...



[christw]

Great work and great taste! My hat is off to you.

Keep me in mind if you decide to build some. Or send (sell) me the schematic? Thanks.

This! I've been wanting to build a B-15 preamp for a while and yours looks like the best candidate I've seen.
