Battery powering a Phil Jones Double Four

[lug]

so there is some wiring that is gonna be needed?

Yes, you will need something like this
Amazon.com: ZRM&E 6PCS 5.5x2.1mm DC Power Pigtail Cable Male Plug Connector for CCTV Security Camera : Electronics
to attach the battery wires to the D4. I'm not around my D4 right now but the receptacle for the power should show what the polarity of the plug should be.



[Paul Provins]

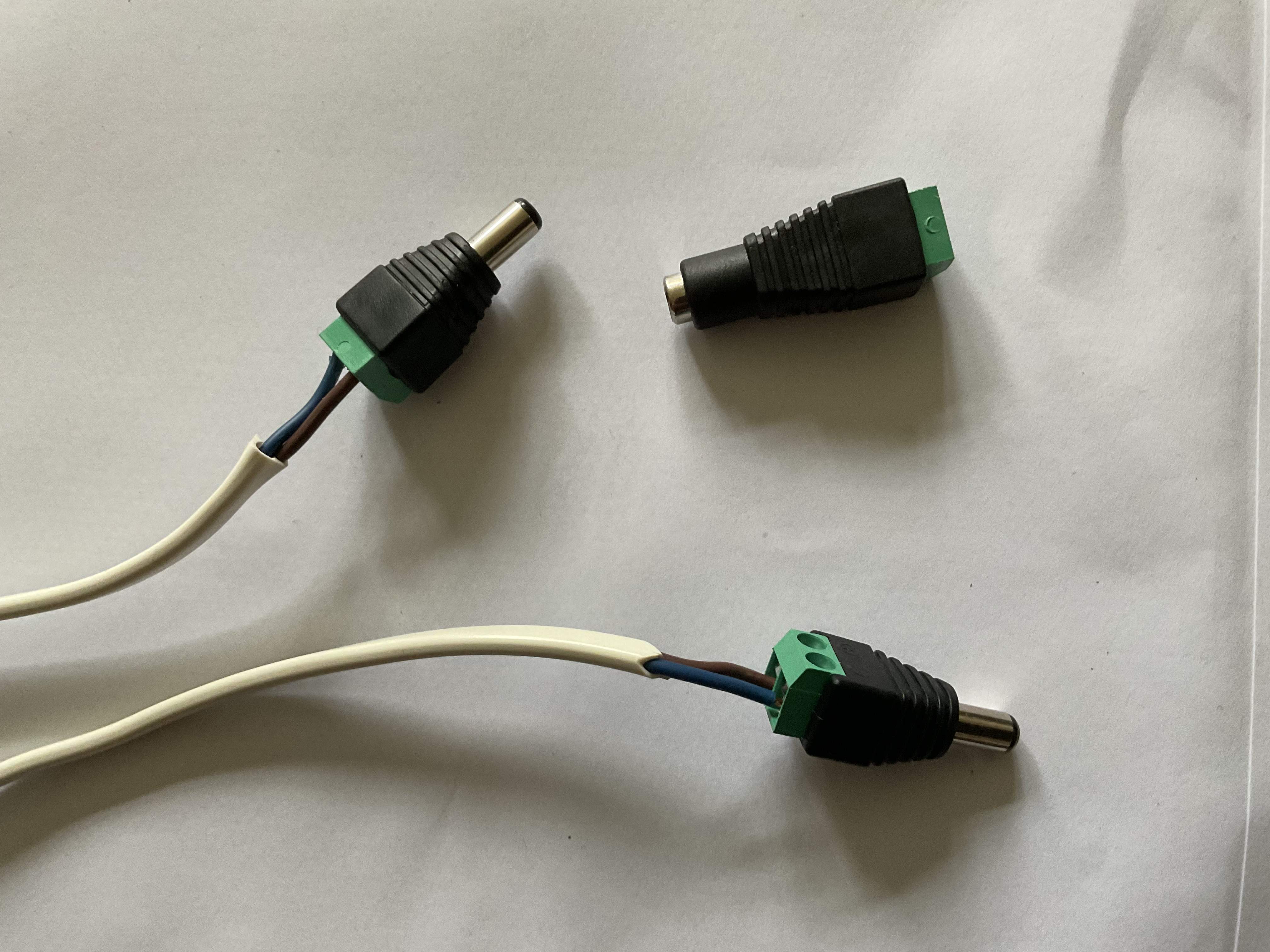

You can buy the plugs and sockets that have screw connections so you don’t have to burn you fingers on a soldering iron.
They are marked with +and -.
+ is the centre connection pin which is the polarity of the D4.
I’ve just knocked up a lead,just waiting for the adapter to go on the battery to arrive.



[polyglot]

I last looked at this discussion back when there were only 1 or 2 pages (2017)...20 pages now!
My Lenmar Powerport has finally died...to all those having kept up with this discussion over the past 6 years,
what is the consensus best replacement that's generally available now?

(amazon links in the past few pages for Krisdonia/powkey/PowerOak show "Currently unavailable. We don't know when or if this item will be back in stock.")



[Aloe]

My Lenmar Powerport has finally died...to all those having kept up with this discussion over the past 6 years,
what is the consensus best replacement that's generally available now?

a 20v DeWalt, I guess (and it's discused just above).

works much better for me than a laptop powerbank.



[KohanMike]

(amazon links in the past few pages for Krisdonia/powkey/PowerOak show "Currently unavailable. We don't know when or if this item will be back in stock.")

I just found the Krisdonia on Amazon in stock: https://www.amazon.com/Krisdonia-Po...fos.f5122f16-c3e8-4386-bf32-63e904010ad0&th=1



[polyglot]

I just found the Krisdonia on Amazon in stock: https://www.amazon.com/Krisdonia-Portable-Charger-50000mAh-Smartphone/dp/B076FSPHKL/ref=sr_1_20?crid=OC43D4V7F74R&keywords=laptop+external+battery&qid=1683227831&sprefix=laptop+external+battery,aps,180&sr=8-20&ufe=app_do:amzn1.fos.f5122f16-c3e8-4386-bf32-63e904010ad0&th=1

I still get not in stock just now...BUT, it may be because I have France shipping address and none are available that ship overseas...just a guess, BUT, it IS avail on Amazon.fr and so I ordered it there (even got free shipping).



[Kipp Harrington]

I am ready to purchase a Double Four. Would getting a power bank with an AC outlet work as well? Like this one?

https://www.amazon.com/Portable-Battery-24000mAh-External-Emergency/dp/B09WK9T1TG/ref=sr_1_2?crid=7YSG0BG72YDO&keywords=battery+power+bank&nav_sdd=aps&qid=1683224913&refinements=p_36:2491158011&rnid=2491154011&s=wireless&sprefix=battery+power+bank&sr=1-2&ufe=app_do:amzn1.fos.18ed3cb5-28d5-4975-8bc7-93deae8f9840

Or this one?

https://www.amazon.com/dp/B08G1KB88...rden&sp_csd=d2lkZ2V0TmFtZT1zcF9kZXRhaWwy&th=1

Also, would it be safe to run the Double Four with a higher wattage rated power source? I know the D4 is rated at 20 watts, but would using a wattage rating greater than 20 watts (like the one above) be ok?

Thanks!



[lug]

I am ready to purchase a Double Four. Would getting a power bank with an AC outlet work as well? Like this one?

https://www.amazon.com/Portable-Battery-24000mAh-External-Emergency/dp/B09WK9T1TG/ref=sr_1_2?crid=7YSG0BG72YDO&keywords=battery+power+bank&nav_sdd=aps&qid=1683224913&refinements=p_36:2491158011&rnid=2491154011&s=wireless&sprefix=battery+power+bank&sr=1-2&ufe=app_do:amzn1.fos.18ed3cb5-28d5-4975-8bc7-93deae8f9840

Or this one?

https://www.amazon.com/dp/B08G1KB88...rden&sp_csd=d2lkZ2V0TmFtZT1zcF9kZXRhaWwy&th=1

Also, would it be safe to run the Double Four with a higher wattage rated power source? I know the D4 is rated at 20 watts, but would using a wattage rating greater than 20 watts (like the one above) be ok?

Thanks!

Yu would still have to use the AC brick that comes with the unit if you want to use an external plug source. This is why most prefer the direct DC battery setup. The D4's output is 70 watts, not 20 but I have no idea what input wattage is required. I'd assume those would probably work but no guarantees.



[Aloe]

Also, would it be safe to run the Double Four with a higher wattage rated power source? I know the D4 is rated at 20 watts, but would using a wattage rating greater than 20 watts (like the one above) be ok?

please don't confuse volts (V) and watts (W). none of your links provide a 20V DC out that's required by the D4 (unless you want to run the power brick via 100-240V AC).



[Kipp Harrington]

please don't confuse volts (V) and watts (W). none of your links provide a 20V DC out that's required by the D4 (unless you want to run the power brick via 100-240V AC).

So, when you stated "unless you want to run the power brick via 100-240V AC", do you mean connecting the D4 power cord to the brick? The D4 needs 20 volts, correct? If a brick operates at, let's say 80 volts (not watts), is that safe to use with the D4? Thank you for your input and patience.



[Kipp Harrington]

Yu would still have to use the AC brick that comes with the unit if you want to use an external plug source. This is why most prefer the direct DC battery setup. The D4's output is 70 watts, not 20 but I have no idea what input wattage is required. I'd assume those would probably work but no guarantees.

I'm a little confused... you mentioned an AC brick that comes with the "unit". You mean the unit being what? I guess I am "THICK AS A BRICK", SORRY! lol.



[lug]

The DC requirements of the US D4 is 19 to 20 volts @ about 4.5 amps.



[lug]

I'm a little confused... you mentioned an AC brick that comes with the "unit". You mean the unit being what? I guess I am "THICK AS A BRICK", SORRY! lol.

The thing that plugs in between the wall and your amp. If you have a battery with the above requirments I mentioned, you no longer need that part.

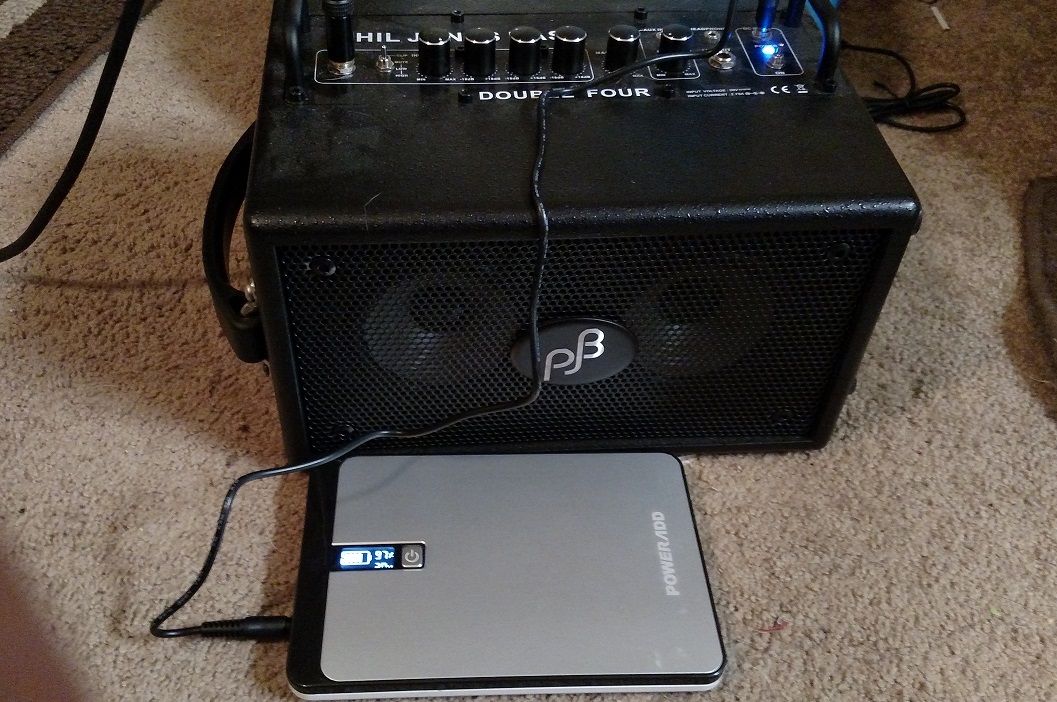

example:


See how th batter goes directly to the amp?



[Aloe]

So, when you stated "unless you want to run the power brick via 100-240V AC", do you mean connecting the D4 power cord to the brick?

yeah, if you use a power bank that has a 110/230V outlet, you can plug the stock power brick in there and you're good, as the power brick will output 20V to the D4.

the D4 comes with an AC to 20V DC power brick, so you can power it in your house.

The D4 needs 20 volts, correct? If a brick operates at, let's say 80 volts (not watts), is that safe to use with the D4?

surely it isn't. 19V DC will work (albeit notably quieter), maybe 21 as well. but not 80 for sure.

it's like powering a 9V pedal with 50V. some won't turn on (due to overvoltage protection), others will just fry.



[Kipp Harrington]

OK. Now I am totally lost! (thick as a brick). I contacted PJB directly (via e-mail) and the rep (Freda) e-mailed me back with this response:

Kipp,
We have no immediate plan to introduce the X4C in the US.
However, the X4 can run on a battery bank. As long as the power can be 60 watts or more the X4 will work on it perfectly. In addition, this type of battery bank is not just limited to the X4 but is also a valuable tool to power any low-wattage device that requires 120-volt AC power. There are many options available on websites such as Amazon, and obviously the larger the unit the more versatility it has including using much larger amplifiers for a longer duration of time.
For example, this one costs less than $80.00

https://www.amazon.com/Portable-Bat...mzn1.fos.18ed3cb5-28d5-4975-8bc7-93deae8f9840
Hope it helps.
Best regards,

Freda Jones
Operation Manager
American Acoustic Development LLC
(Phil Jones Bass)
email: freda@philjonespuresound.com



[Aloe]

OK. Now I am totally lost! (thick as a brick).

probably because this is a thread about the D4 (BG-75) and you're asking about X4, which is a completely different amp that doesn't have a 20VDC input, only the 100-240V AC one.

to run in from a power bank, you'll need a powerbank that outputs 100-240V AC, like the one that Freda referred. I can recommend Jackery power stations as well.



[Kipp Harrington]

probably because this is a thread about the D4 (BG-75) and you're asking about X4, which is a completely different amp that doesn't have a 20VDC input, only the 100-240V AC one.

to run in from a power bank, you'll need a powerbank that outputs 100-240V AC, like the one that Freda referred. I can recommend Jackery power stations as well.

Thank you so much! Sorry for the confusion on my behalf!



[Aloe]

Thank you so much! Sorry for the confusion on my behalf!

glad we sorted this out!

while you're still here, consider the D4 (BG-75) as well (as opposed to the X4), aside from convenient battery powering, it has twice the power and twice the speakers, goes much lower and is still light and tiny. 70W into 2x4" isn’t a that powerful amp, but it's something that can be used with other (not loud) instruments. 35W into 1x4" is a strictly bench amp for you alone and that's it.



[Kipp Harrington]

glad we sorted this out!

while you're still here, consider the D4 (BG-75) as well (as opposed to the X4), aside from convenient battery powering, it has twice the power and twice the speakers, goes much lower and is still light and tiny. 70W into 2x4" isn’t a that powerful amp, but it's something that can be used with other (not loud) instruments. 35W into 1x4" is a strictly bench amp for you alone and that's it.

I just ordered the Double Four from Musician's Friend (along with a carrying case for it). So... I am going to eventually order the power bank that Freda (from PJB) suggested. Just to be clear, this power bank will work with the Double Four, correct? Plugging the D4 power cord plug into the power bank.



[Aloe]

I just ordered the Double Four from Musician's Friend (along with a carrying case for it). So... I am going to eventually order the power bank that Freda (from PJB) suggested. Just to be clear, this power bank will work with the Double Four, correct? Plugging the D4 power cord plug into the power bank.

I'd expect the X4 and BG-75 to have similar power amps, if not the same, so as a guess -- yes. you might want to confirm with Freda if the BG-75 will work with it.

as a side note, Freda Jones is very helpful and I just recently got a replacement part for a discontinued Phil Jones amp through her.
