Battery powering a Phil Jones Double Four

[Kipp Harrington]

Just thought I'd report on the battery I'm using to power my double four.

I have a Dewalt cordless drill that uses the Dewalt 20v Max batteries.
I found an adapter that plugs into the battery and soldered a power plug onto the wires. I can now use my drill batteries to power the PJD4 for hours. Went about 2.5 hours at a rehearsal the other night and it still lit up all 3 LEDs indicating full power.

https://www.ebay.com/itm/1x-battery-adapter-for-DeWALT-20v-Max-18v-dock-power-connector-12-gauge-robotics/142979592702

View attachment 3472414

It's the black piece on top with bare wires. I believe the power plug is a 5.5x2.5 barrel.

I have several batteries for my drill, so I could go all day.

Would you happen to have a pic with the power plug connected to the wires? I only see a positive and negative wire. Is there a ground wire? Thanks!



[Kipp Harrington]

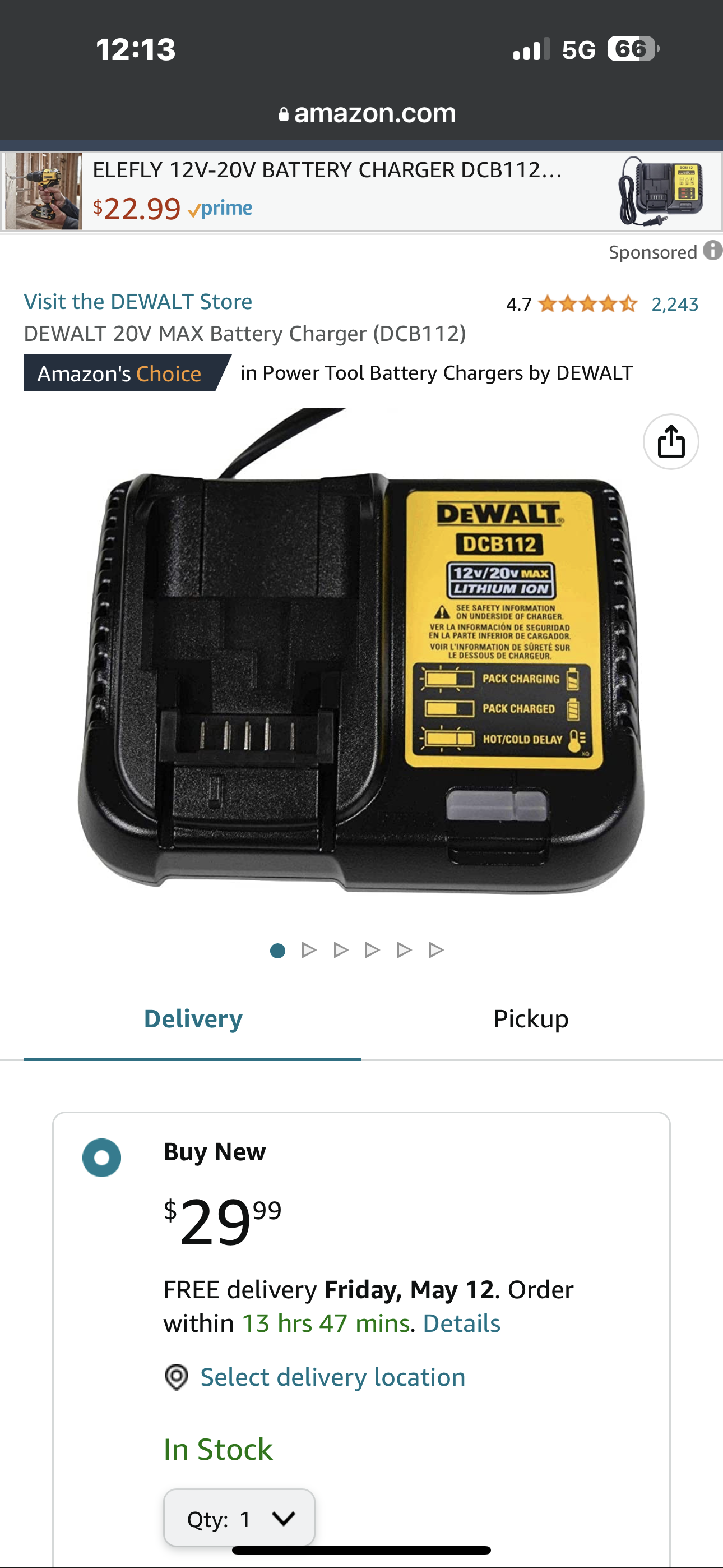

Would this charger work for the Double Four?



[Kipp Harrington]

OMG! I just realized that I am a certified idiot!

I was thinking that the adapter connected to the charger, not the battery… which, in retrospect, makes no sense!

OK, I need a DeWalt battery (or two), the adapter, and the connectors. How does the input connector fit in the DC power port of the Double Four? Thanks!



[DustyBottom]

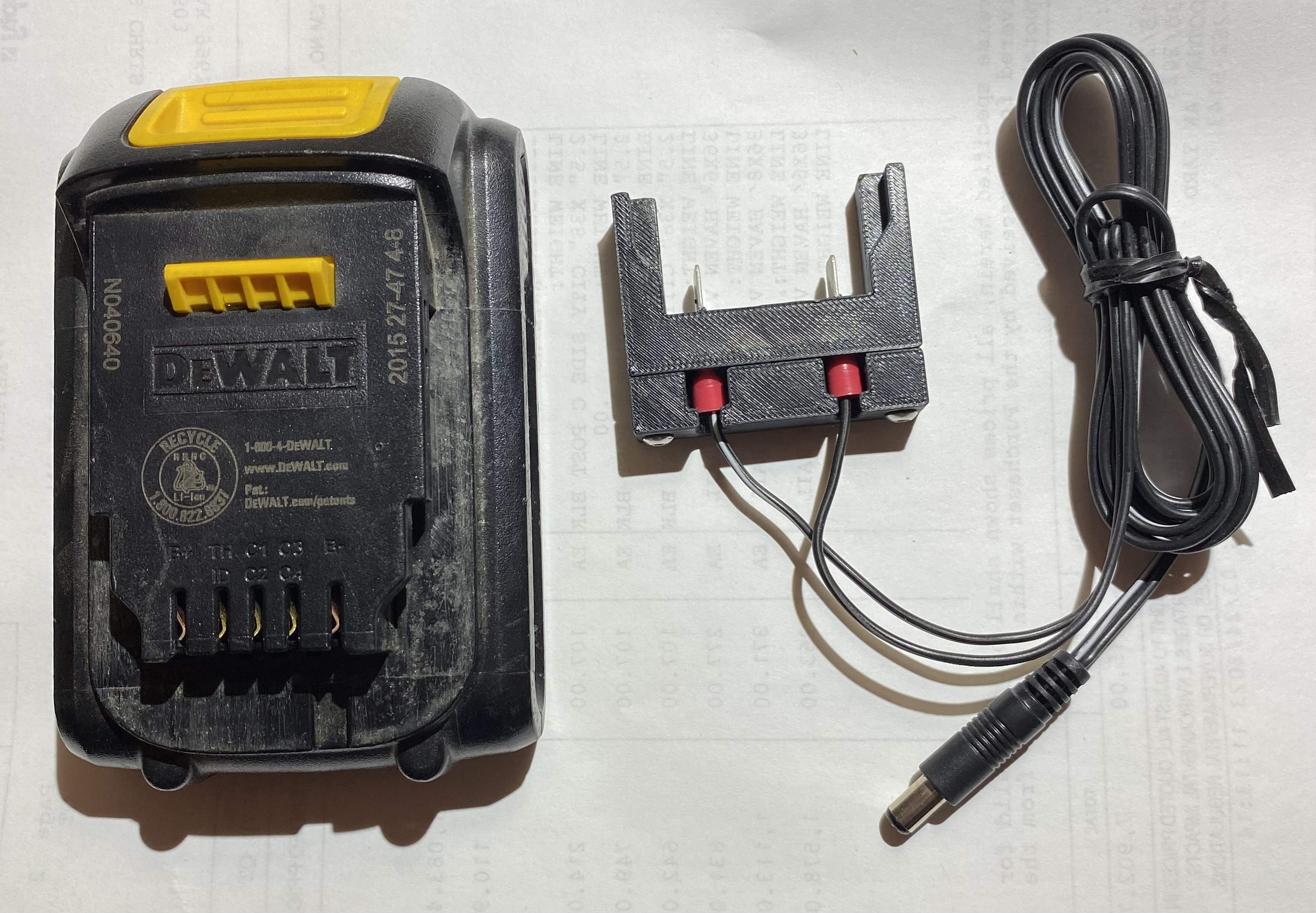

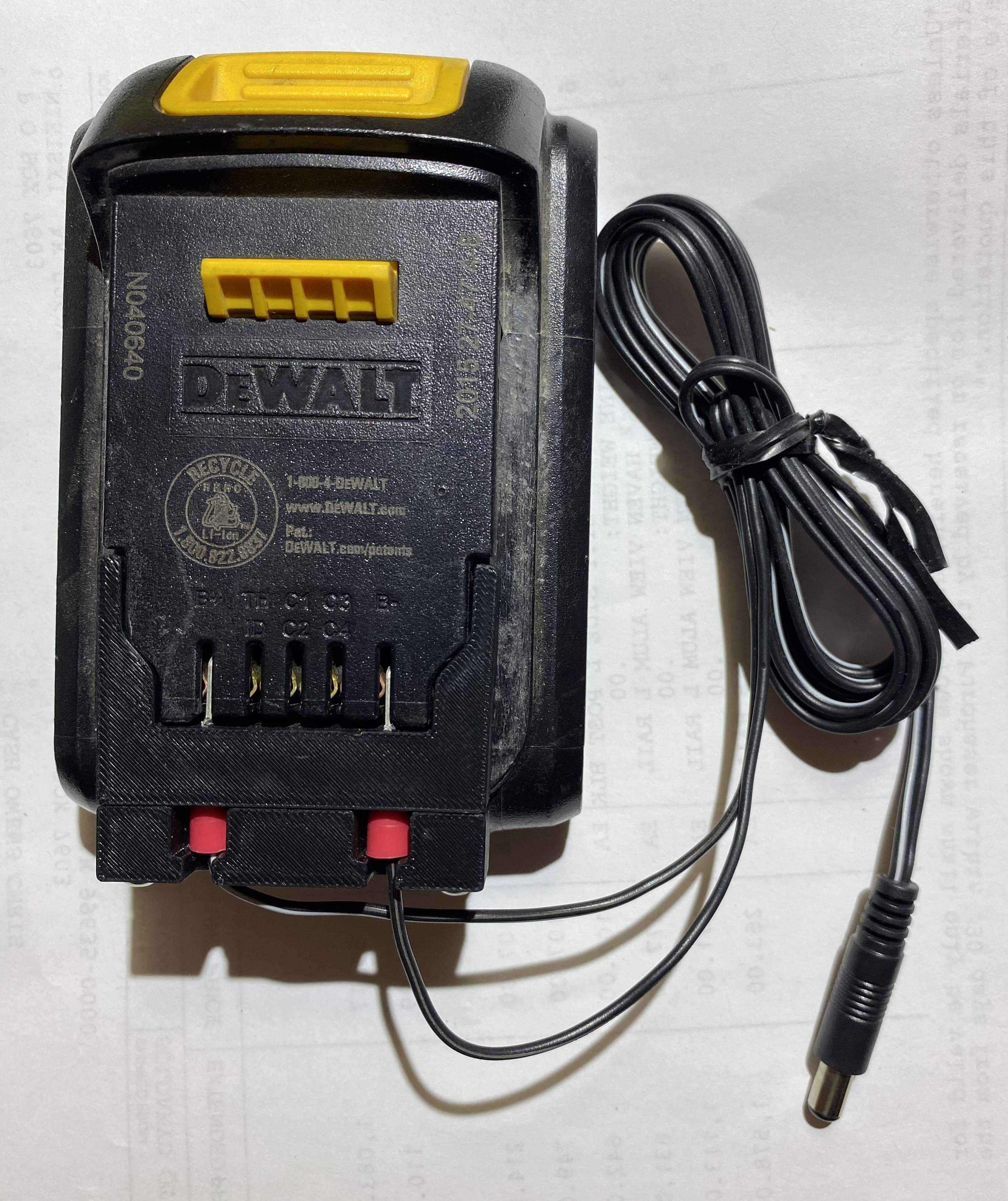

This is literally all there is to it. I was able to 3d print the adapter for free off of thingiverse and had an old bag of random adapters so I found the right plug that matched the double4, cut the cord, crimped on two blade connections and wall-a! There are several adapters you can but online for $10 and same for the plugs.

DIY Adapter for Dewalt 20V MAX Battery to Hyper Tough 20 Volt 20V MAX Power Tool | eBay

This was posted earlier:
https://www.amazon.com/ZRM-5-5x2-1m...2&sprefix=5.5x2.1mm+plug,aps,258&sr=8-16&th=1



[Kipp Harrington]

This is literally all there is to it. I was able to 3d print the adapter for free off of thingiverse and had an old bag of random adapters so I found the right plug that matched the double4, cut the cord, crimped on two blade connections and wall-a! There are several adapters you can but online for $10 and same for the plugs.
View attachment 5056674
View attachment 5056675
DIY Adapter for Dewalt 20V MAX Battery to Hyper Tough 20 Volt 20V MAX Power Tool | eBay

This was posted earlier:
https://www.amazon.com/ZRM-5-5x2-1mm-Pigtail-Connector-Security/dp/B07Y1NLJBX/ref=sr_1_16?crid=30EI5GSYFPVCP&keywords=5.5x2.1mm+plug&qid=1683112932&sprefix=5.5x2.1mm+plug,aps,258&sr=8-16&th=1

Thank you so much for your post!



[polyglot]

I contacted PJB directly (via e-mail) and the rep (Freda) e-mailed me back with this response:
Kipp,
We have no immediate plan to introduce the X4C in the US.

OK, this may be a bit off topic, but since this is a Double Four thread...
Googling X4C that I hadn't heard of before, I found a Japanese video comparing it to a "Double Four Plus", that I've also not heard of, and it is not on the PJB website, but, it looks sounds juicy on this Japanese website (view in Chrome with page translation to english feature)...90W, bluetooth connectivity w/separate mixer, USB power, peacock blue color... [Invalid or Expired Link Removed]



[Kipp Harrington]

OK, this may be a bit off topic, but since this is a Double Four thread...
Googling X4C that I hadn't heard of before, I found a Japanese video comparing it to a "Double Four Plus", that I've also not heard of, and it is not on the PJB website, but, it looks sounds juicy on this Japanese website (view in Chrome with page translation to english feature)...90W, bluetooth connectivity w/separate mixer, USB power, peacock blue color... [Invalid or Expired Link Removed]

Great color, for sure! If that color was available (here in the U.S.), that would be the one for me.



[RodRy]

Great color, for sure! If that color was available (here in the U.S.), that would be the one for me.

Ditto, that blue should be a global color!



[Ferniff]

I read the new Phil Jones Double Four are not able to take external battery power anymore. Anyone know anything about that?



[KohanMike]

I read the new Phil Jones Double Four are not able to take external battery power anymore. Anyone know anything about that?

As far as I've ever known, only the European version uses a standard AC Euro plug, not the DC brick adapter like in USA, which allows a battery. I just looked at the Phil Jones USA website and that's still the case.



[Ferniff]

This is literally all there is to it. I was able to 3d print the adapter for free off of thingiverse and had an old bag of random adapters so I found the right plug that matched the double4, cut the cord, crimped on two blade connections and wall-a! There are several adapters you can but online for $10 and same for the plugs.
View attachment 5056674
View attachment 5056675
DIY Adapter for Dewalt 20V MAX Battery to Hyper Tough 20 Volt 20V MAX Power Tool | eBay

This was posted earlier:
https://www.amazon.com/ZRM-5-5x2-1mm-Pigtail-Connector-Security/dp/B07Y1NLJBX/ref=sr_1_16?crid=30EI5GSYFPVCP&keywords=5.5x2.1mm+plug&qid=1683112932&sprefix=5.5x2.1mm+plug,aps,258&sr=8-16&th=1

How long does the Double Four run off on those 20v power tool batteries?



[KohanMike]

How long does the Double Four run off on those 20v power tool batteries?

It depends on the rated amp hours. My original Lenmar is rated at 5500mAH, which lasts me a good 5-6 hours, probably more since I actually never timed it exactly.



[Kipp Harrington]

Yes. I would expect about 5-6 hours of playing time on a DeWalt 20 volt battery also.



[Kipp Harrington]

OK, this may be a bit off topic, but since this is a Double Four thread...
Googling X4C that I hadn't heard of before, I found a Japanese video comparing it to a "Double Four Plus", that I've also not heard of, and it is not on the PJB website, but, it looks sounds juicy on this Japanese website (view in Chrome with page translation to english feature)...90W, bluetooth connectivity w/separate mixer, USB power, peacock blue color... [Invalid or Expired Link Removed]

I want to get one of these when they finally make it to the U.S. market… if they ever do!



[trickyric]

I want to get one of these when they finally make it to the U.S. market… if they ever do!

it's just another version of the NANOBASS X4

P: X-4 Combo Amp | Phil Jones Bass



[Ferniff]

Yes. I would expect about 5-6 hours of playing time on a DeWalt 20 volt battery also.

That's pretty good. I bought a D4 for busking or park playing, 5-6 hours is plenty more than what I would need. That's good to hear.



[DustyBottom]

How long does the Double Four run off on those 20v power tool batteries?

I have never run it long enough in one sitting to find out but have spent 2-3 hours without changing the battery. I would think 5-6 hours is a good expectation on a full charge. I always bring a backup battery, just in case, and it takes less than 10 seconds to swap…



[lug]

[This invalid link has been removed]
Here ya go....pick depending on gig length. I use Ryobi myself. I find they have more "mojo".



[Shanannigan]

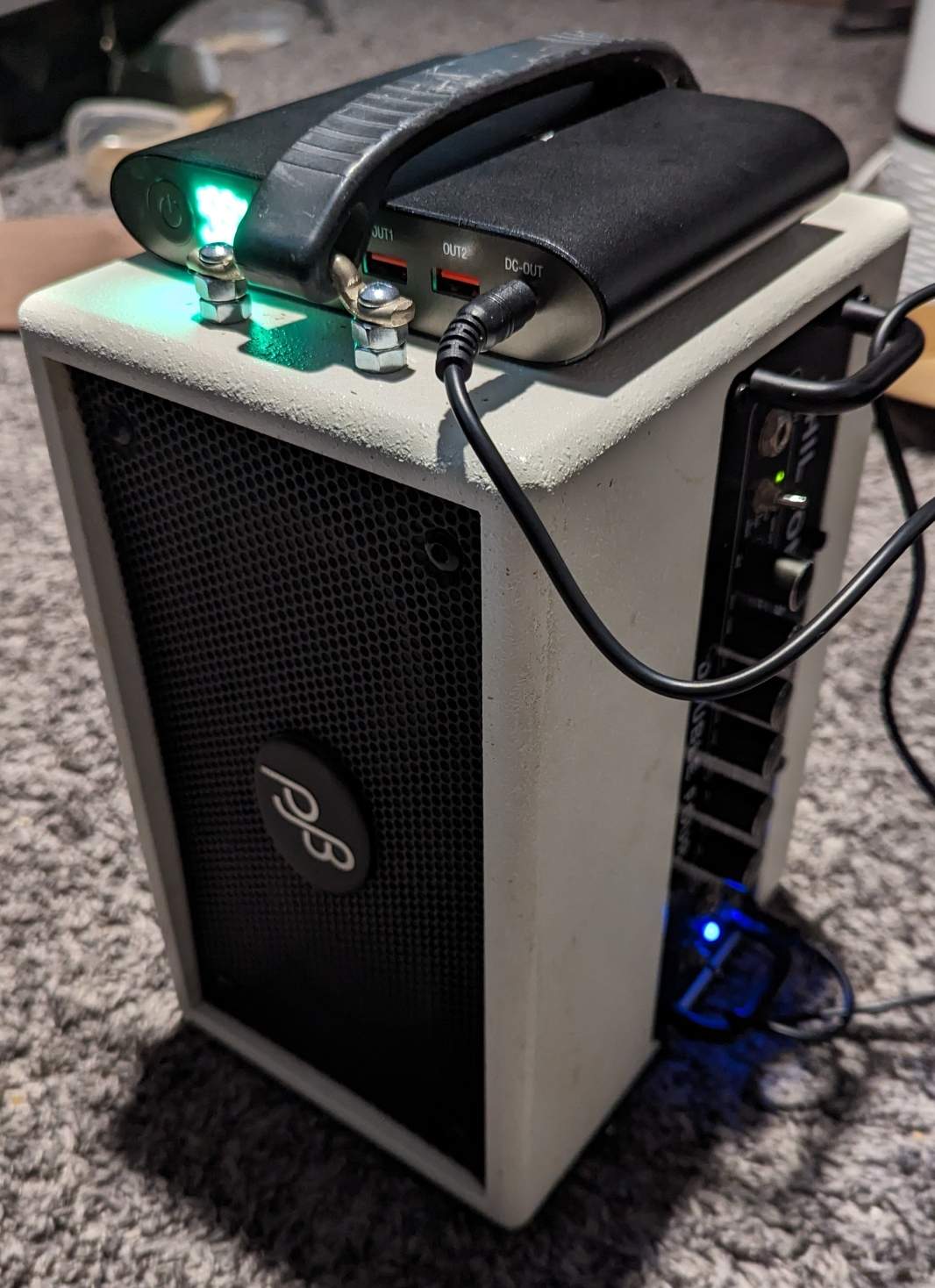

I've been happy since purchasing this battery. It's handy since it can also charge USB devices, which came in handy for a long road trip I recently went on.

It has an adjustable DC output, the PJB works well at 20v. I added a few nuts and longer screws under the handles so I can slip it underneath.



[Kipp Harrington]

I've been happy since purchasing this battery. It's handy since it can also charge USB devices, which came in handy for a long road trip I recently went on.

It has an adjustable DC output, the PJB works well at 20v. I added a few nuts and longer screws under the handles so I can slip it underneath.

View attachment 5115946

Nice. Clean! Thanks for sharing!
