breakdown on my Eden WT800

[bartoli]

Hi all,

First of all let me apologize for my English.

I am investigating on an issue I have on my favorite Amp.
While I am playing the sound decreasses slowly, till I have no volume at all. And then it increases.
Same problem with the DI, so I guess it is a preamp issue.

It is a bit disturbing if I am on stage .
During this, the leds of the equalizer are all lightening red.
I thought it was the tube that was KO but after changing it same problem occurs.
Do you have any idea of where does this come from ? Is it a "typical Eden WT" problem ?
is expensive to fix that ?

Thanks and hope I will get help.

Mich



[FunkHead]

Hi all,

First of all let me apologize for my English.

I am investigating on an issue I have on my favorite Amp.
While I am playing the sound decreasses slowly, till I have no volume at all. And then it increases.
Same problem with the DI, so I guess it is a preamp issue.

It is a bit disturbing if I am on stage .
During this, the leds of the equalizer are all lightening red.
I thought it was the tube that was KO but after changing it same problem occurs.
Do you have any idea of where does this come from ? Is it a "typical Eden WT" problem ?
is expensive to fix that ?

Thanks and hope I will get help.

Mich

Does the problem occur if you are plugged into effects return?



[agedhorse]

Depending on the version, the symptoms point to a power supply issue that is causing symmetry offset of the normally balanced supply. That said, there could also be other causes.

A QUALIFIED service tech should diagnose correctly in order to identify the actual cause and thus the proper repair.



[bartoli]

Does the problem occur if you are plugged into effects return?

I did not checked that, I make it right away and let you know



[bartoli]

Depending on the version, the symptoms point to a power supply issue that is causing symmetry offset of the normally balanced supply. That said, there could also be other causes.

A QUALIFIED service tech should diagnose correctly in order to identify the actual cause and thus the proper repair.

Right , as I said this is far away the best amp I ever had, I will not try to set anything by myself



[bartoli]

I did not checked that, I make it right away and let you know

So, I have juste checked this option.

If I plug in the "pre fx" pb still occurs
If I plug in the "post fx" left or right no problem occurs (no settings possible : bass , trebble , ...)

Does this show that the preamp is sick ?



[jjk2007]

So, I have juste checked this option.

If I plug in the "pre fx" pb still occurs
If I plug in the "post fx" left or right no problem occurs (no settings possible : bass , trebble , ...)

Does this show that the preamp is sick ?

Time to take it to a qualified tech....



[FunkHead]

So, I have juste checked this option.

If I plug in the "pre fx" pb still occurs
If I plug in the "post fx" left or right no problem occurs (no settings possible : bass , trebble , ...)

Does this show that the preamp is sick ?

Plug jumper from effects out to effects return and plug bass in normal input and see if problem is still gone



[bartoli]

Time to take it to a qualified tech....

I guess so



[bartoli]

Plug jumper from effects out to effects return and plug bass in normal input and see if problem is still gone

You mean make a bridge with a jack wire between send and return ?



[FunkHead]

You mean make a bridge with a jack wire between send and return ?

Yes. Any length of instrument cable.



[bartoli]

Yes. Any length of instrument cable.

Doing this am I bypassing the preamp ?



[bartoli]

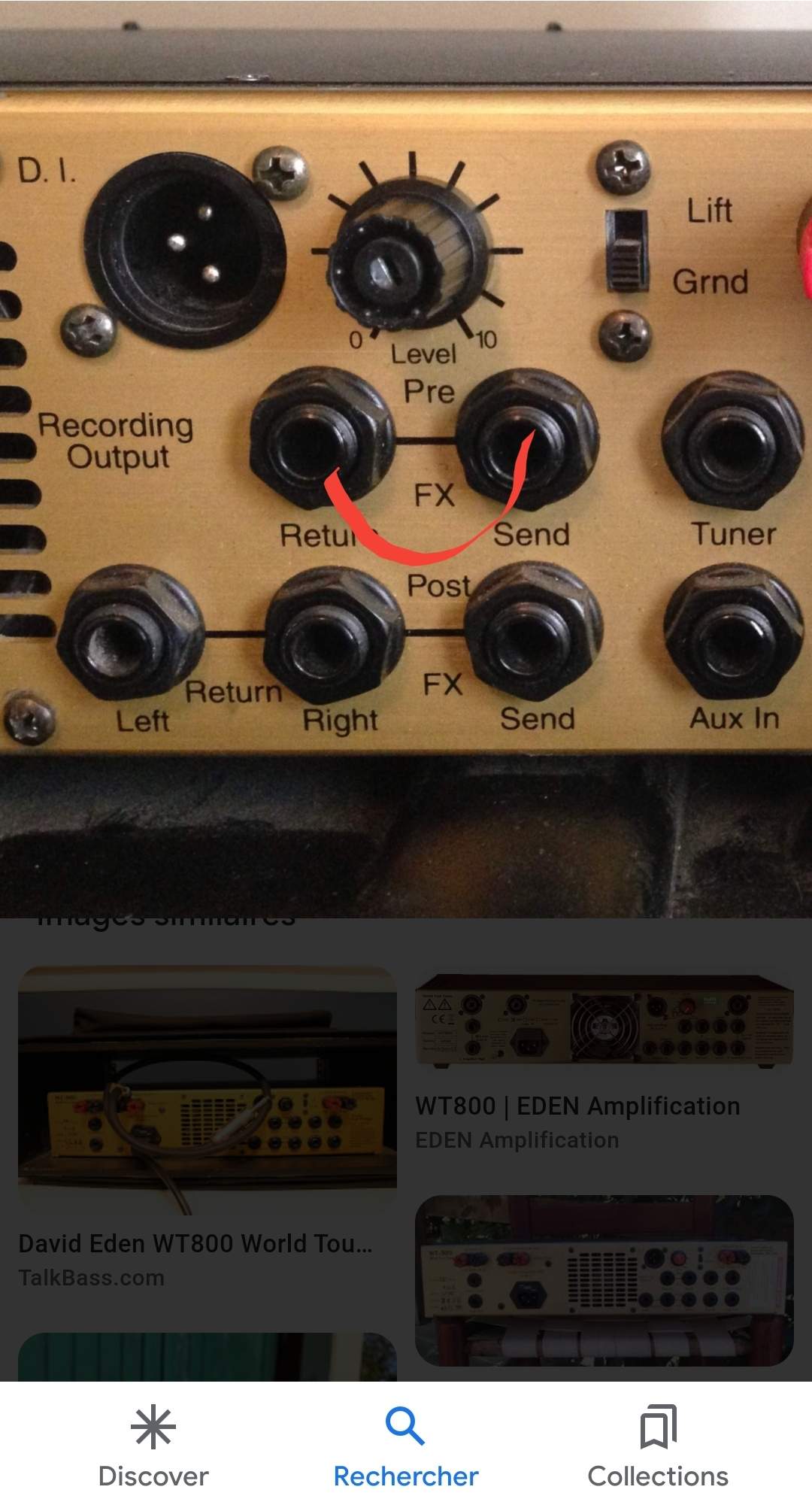

Like this ?



[FunkHead]

Like this ?

Yes sir



[bartoli]

It's nearly 10pm and I want to keep good relationship with neighbours . I ll try tjat tomorrow morning and let you know.
Thanks a lot for your help



[FunkHead]

It's nearly 10pm and I want to keep good relationship with neighbours . I ll try tjat tomorrow morning and let you know.
Thanks a lot for your help

if it’s still having a problem with the jumper, then it’s on the preamp side. Does it have a tube?



[bartoli]

if it’s still having a problem with the jumper, then it’s on the preamp side. Does it have a tube?

Yes it has but i haved already changed it. Thought it was the root cause, but not



[LukeSlywalker]

Hope you can get it fixed. I have a WT550 from 1998 and I still love it. It lives at our band practice space and I get the urge to use it live every time I play it. Multiple amp problems….



[soundsupport1]

Contact Eden on their facebook page: they are very prompt at replying to queries like this: Eden Amplification | Facebook

I had a question, they replied immediately that they were looking into it and I got an answer from the factory engineers 4 days later.

Peace,
SoundSupport



[BobKos]

Video of a problem I had on my WT500 years ago. Reflowing the solder joints for the high wattage resistors fixed the issue. May be helpful.
