Bridging an IPR2 2000

LowEndWooly

LowEndWooly

Sep 3, 2013
1,892
948
37
Indiana
#1
I've scoured the internet and even read through all (that I could find) the threads here to figure out what exactly I need to do to bridge my new IPR2 2000 into my 8ohm Aguilar 412. Here's what I've jumbled together from quotes on here:


"You have to parallel the inputs (no signal inversion or anything, just a straight parallel. Then, you take (+) from channel 1 and (-) from channel 2. Match the gain control on both channels and you're there.


You'll need to make a speakon cable with two speakons at one end and one on the other. You take the positive signal from the A amp to the positive on your speaker end speakon. Then you take the negative from the B amp and that goes to the negative on your speaker end speakon.


You basically create a Y cable.


Then set both attenuators for the same level.


Also: you need to run a cable from one "Thru" jack to the other."


To be honest.. I don't know what this means exactly and I for sure don't know how to do it. Anybody have a video or a step by step to help a brother out? If not, I may just have to sell it and get a Crest Pro Lite.

#3
The input situation is the easiest. A 1/4" pedalboard-type patch cable from CH 1 "Thru" to channel 2's input should work.

As for the speaker "Y"cable, it's not too hard.
Speakon connectors have 4 conductors, and when opened up they are clearly labeled as 1+, 1-, 2+ and 2-.
Peavey (and pretty much everyone else) uses the 1+/-.
(The 2+/- are there for PA applications).

The easiest way to do this would be to buy a pair of male Speakons and a female, plus a normal Speakon cable to go from the short Y to the cabinet.
Run a short heavy gauge wire from a male 1+ to the 1+ on the female, and from the other male's 1- to the female's 1-.
MARK THE MALE CONNECTORS CLEARLY so you always plug the + into the correct channel.

Have someone do this for you, as the tricky part is getting the cable thicknesses right so that the built-in strain reliefs hold your mini Y-connector together so it's safe and robust. Heat-shrink tubing will be required, and a set of small Allen wrenches because these are solderless connectors.
Any competent tech should have no trouble.
Good luck!

  • Like
Reactions: LowEndWooly
#6
LowEndWooly said:
I do have a "bridge" speakon cable that came with a crown xls1000 I had bought from another TBer. It's marked but it looks like a normal speakon, not y'd. I'm assuming I won't be able to use that, right?
Click to expand...


Nope.

You will need to buy a new section of wire, and three ends. One end is wired normally. The other end is wired +1 on one end, and -1 on the other. I will have to double check which is Ch. A and which is Ch. B as it does matter. Yes you have to jump the channels, and set the attenuaters equally.

  • Like
Reactions: LowEndWooly
#10

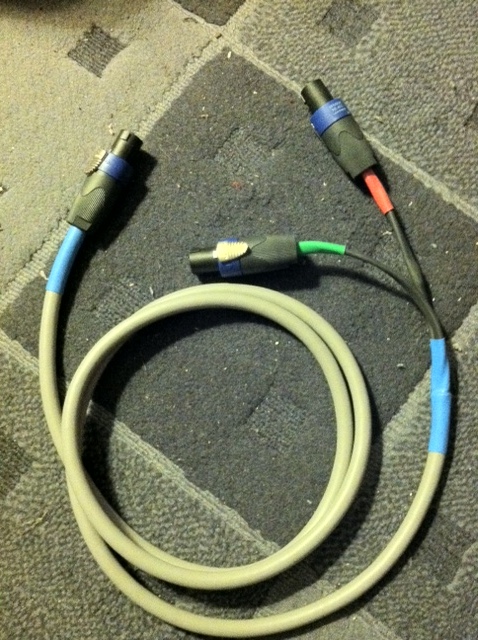

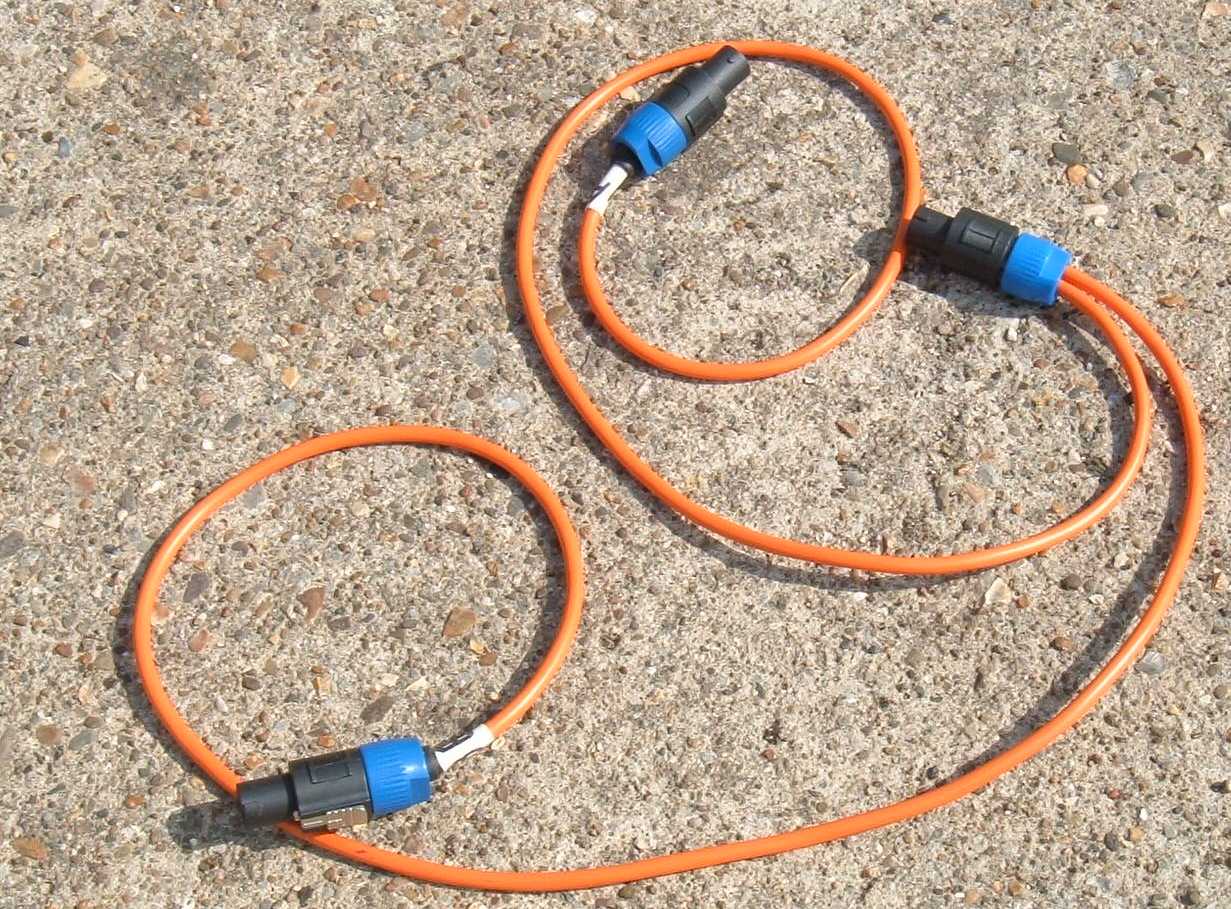

Here's my IPR bridging cable. It has 3 speakon connectors, a length of canare quad cable and a bunch of different kinds of shrink tubing. It took me about 20 minutes to make. All supplies were bought through Redco.

  • Like
Reactions: blip, LowEndWooly and CL400Peavey
#16
Amp output connector A 1+ to Cab connector 1+
Amp output connector B 1- to Cab connector 1-

Mark the amp connectors "A" and "B" and have adequate strain relief where each cable enters it's connector.

You can create a "Y" as BurningSkies did by splitting the cable and applying heat shrink tubing, or run separate cables back to the cab connector as I did.

#17
KeithAlanK said:
The input situation is the easiest. A 1/4" pedalboard-type patch cable from CH 1 "Thru" to channel 2's input should work.

As for the speaker "Y"cable, it's not too hard.
Speakon connectors have 4 conductors, and when opened up they are clearly labeled as 1+, 1-, 2+ and 2-.
Peavey (and pretty much everyone else) uses the 1+/-.
(The 2+/- are there for PA applications).

The easiest way to do this would be to buy a pair of male Speakons and a female, plus a normal Speakon cable to go from the short Y to the cabinet.
Run a short heavy gauge wire from a male 1+ to the 1+ on the female, and from the other male's 1- to the female's 1-.
MARK THE MALE CONNECTORS CLEARLY so you always plug the + into the correct channel.

Have someone do this for you, as the tricky part is getting the cable thicknesses right so that the built-in strain reliefs hold your mini Y-connector together so it's safe and robust. Heat-shrink tubing will be required, and a set of small Allen wrenches because these are solderless connectors.
Any competent tech should have no trouble.
Good luck!
Click to expand...

The bigger siblings Peavey IPR2 5000 and 7500 have the 4-pin connector on Channel A (as mentioned for PA applications). The 2+ and 2- correspond to channel B. Any reason not to utilize this and save a speakON connector? In other words:
  • Wire Channel A 1+ to Speaker 1+ and Channel A 2- to Speaker 1-
Of course, still have to run a patch cable on input side from Channel A thru to Channel B input - just trying to save some money on the output side.
