Broughton RFE VS. Broughton HPF/LPF

[Zbysek]

Then the mid knobs just work like a regular parametric eq? Does anyone know the Q of the mids?

Yes

The Q is 0.9



[confuoco]

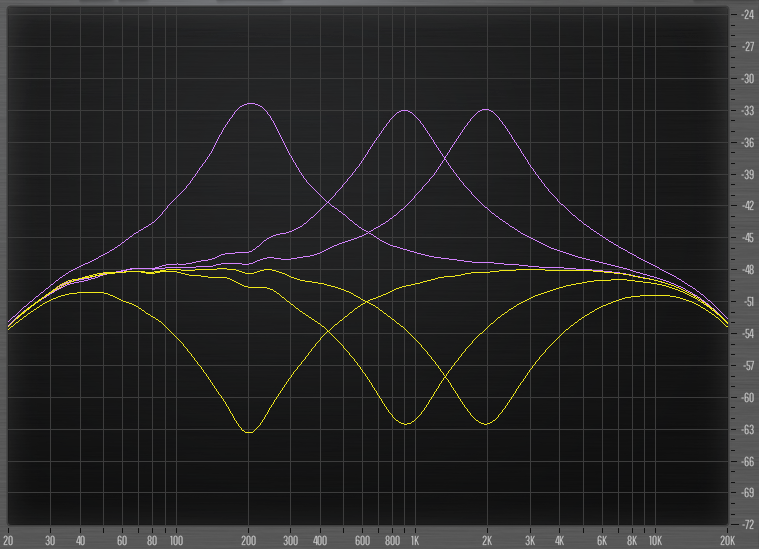

Yes, yes, and I don't know the Q but you may be able to estimate it from these measurements of the Mid control sweep:

View attachment 7157524

Are the other two peaks the HPF and LPF? They’re 12db/8ve right? Thanks for this!



[Zbysek]

Are the other two peaks the HPF and LPF? They’re 12db/8ve right? Thanks for this!

The other two peaks seem like Mid EQ control in two different positions (all the way CW and all the way CCW)...



[MartinB]

Zbysek is correct, the previous graph shows the Mid control at min / 50% / max frequency, and min / max gain

High Pass looks like this:
(purple = max resonance, green = 50% resonance, yellow = min resonance)

And Low Pass:



[Zbysek]

Zbysek is correct, the previous graph shows the Mid control at min / 50% / max frequency, and min / max gain

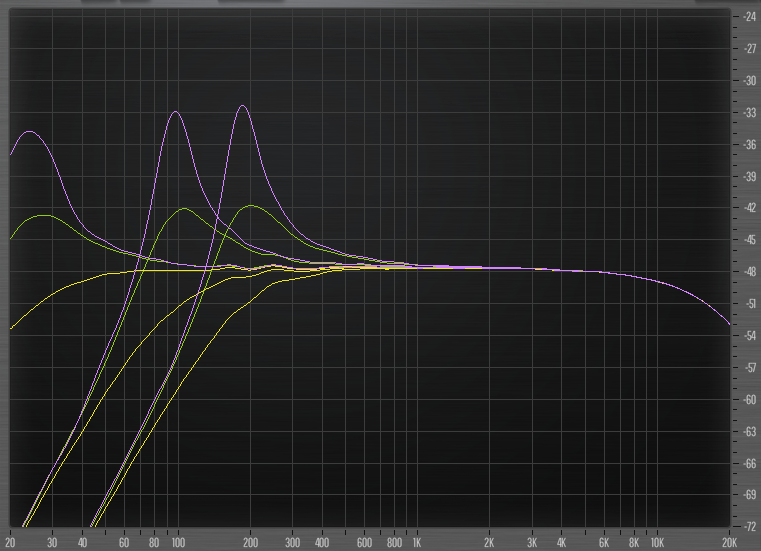

High Pass looks like this:

View attachment 7160288

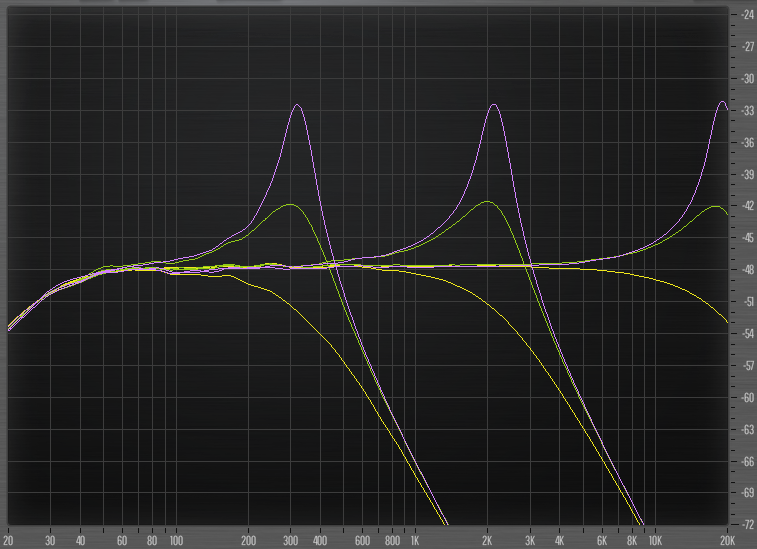

And Low Pass:

View attachment 7160291

Thank you for posting these graphs.

What I take from them is that I will generally boost the resonance only when the HPF is set higher (let's say 60Hz and higher) and when the LPF is set lower (let's 5kHz and lower).
