Club Sandberg (part 2)

#2,401
Maleno1 said:
Hi Mike,

The tube jack is still tight. The problem is that there are no sound coming out. Recently the battery was keeping draining, two 9V for two weeks as it lasted three months before.

As i know it will be difficult for me to find the same circuit so i am willing to buy another preamp from Sandberg to replace the one that i have.
Click to expand...

Hmmmm.....a draining battery means a short, that connects the battery circuit to ground. What´s that black "thing" at the jack? Looks like a battery clip.
Is there also no sound in passive mode? If yes, then I don´t think it´s the preamp. Then it must be one of the parts that are working in passive and active mode (vol-pot, blend-pot or jack)

Do you know an electrician, who´s able to check all connections? and maybe measure some electrical parts?

Best,
Mike

#2,402
SB Service said:
Hmmmm.....a draining battery means a short, that connects the battery circuit to ground. What´s that black "thing" at the jack? Looks like a battery clip.
Is there also no sound in passive mode? If yes, then I don´t think it´s the preamp. Then it must be one of the parts that are working in passive and active mode (vol-pot, blend-pot or jack)

Do you know an electrician, who´s able to check all connections? and maybe measure some electrical parts?

Best,
Mike
Click to expand...

Thank you for the information. My bass only works in active mode. There are no passive mode in it, no push pull switch. The bass is with an electrician, he tested all the pots and changed them apart the balancer, and he told me that the issue must come from the circuit as it is old and some lines are fadding away. The picture of the circuit that i posted is like a brand new one that i found on the internet as i am searching to buy one like that. My preamp is in a very old condition.

The best option for me is to have another preamp to put onboard.

#2,403
Maleno1 said:
Thank you for the information. My bass only works in active mode. There are no passive mode in it, no push pull switch. The bass is with an electrician, he tested all the pots and changed them apart the balancer, and he told me that the issue must come from the circuit as it is old and some lines are fadding away. The picture of the circuit that i posted is like a brand new one that i found on the internet as i am searching to buy one like that. My preamp is in a very old condition.

The best option for me is to have another preamp to put onboard.
Click to expand...

Ah ok, oxidating lines are a problem indeed. I was just wondering about the problems with that "brand new" looking preamp from that picture.
Unfortunately there aren´t any spare preamps left of this type. You can use most preamps for replacement. Only problem you´l have, the pots are mounted on the big circuit board and you will have to do some woodwork to prepare the body to mount the pots itself.

Best,
Mike

#2,404
SB Service said:
Ah ok, oxidating lines are a problem indeed. I was just wondering about the problems with that "brand new" looking preamp from that picture.
Unfortunately there aren´t any spare preamps left of this type. You can use most preamps for replacement. Only problem you´l have, the pots are mounted on the big circuit board and you will have to do some woodwork to prepare the body to mount the pots itself.

Best,
Mike
Click to expand...

Yes, i am willing to do the woodwork for new preamps. Can you please tell me how to buy the preamps from Sandberg?

Regards,
Peter

#2,405
tubatodd said:

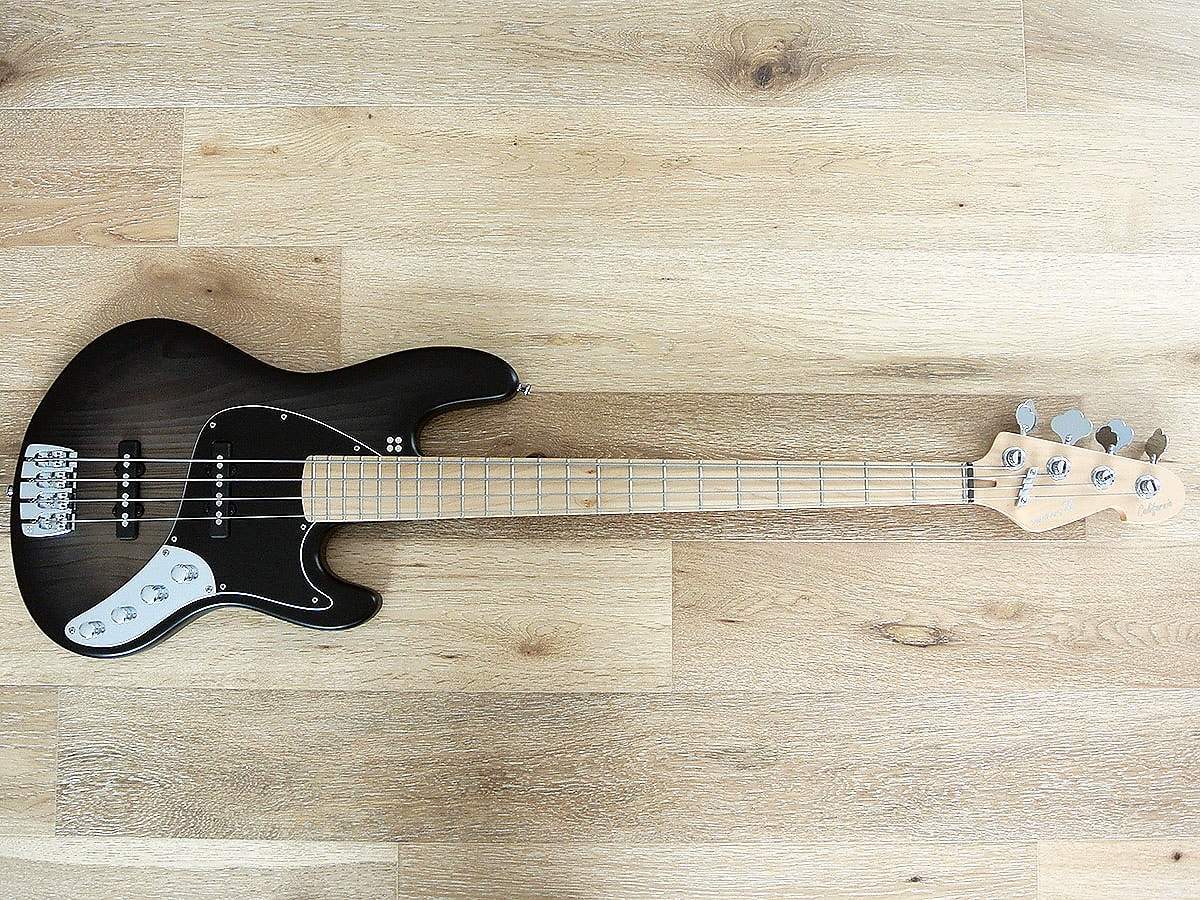

The NEW Electra VS4 in the picture had to go to the repair shop. When I plugged it in for the first time I noticed immediately that the volume knob does not work. It is wide open. Chicago Music Exchange is going to reimburse me to have a local luthier take a look at it. They didn't have another one to ship out.
Click to expand...
The bass is back from the luthier. The volume pot was bad. They put in a mini CTS pot similar to the original.

  • Like
Reactions: DJ '65, Shlabotnik and Jughead6
#2,406
OK, I'm in!




Yeah, I really dig it. 6.5 lbs. Sounds great. But it seems the zero fret is a little high. Otherwise it plays like buttah.

Questions...

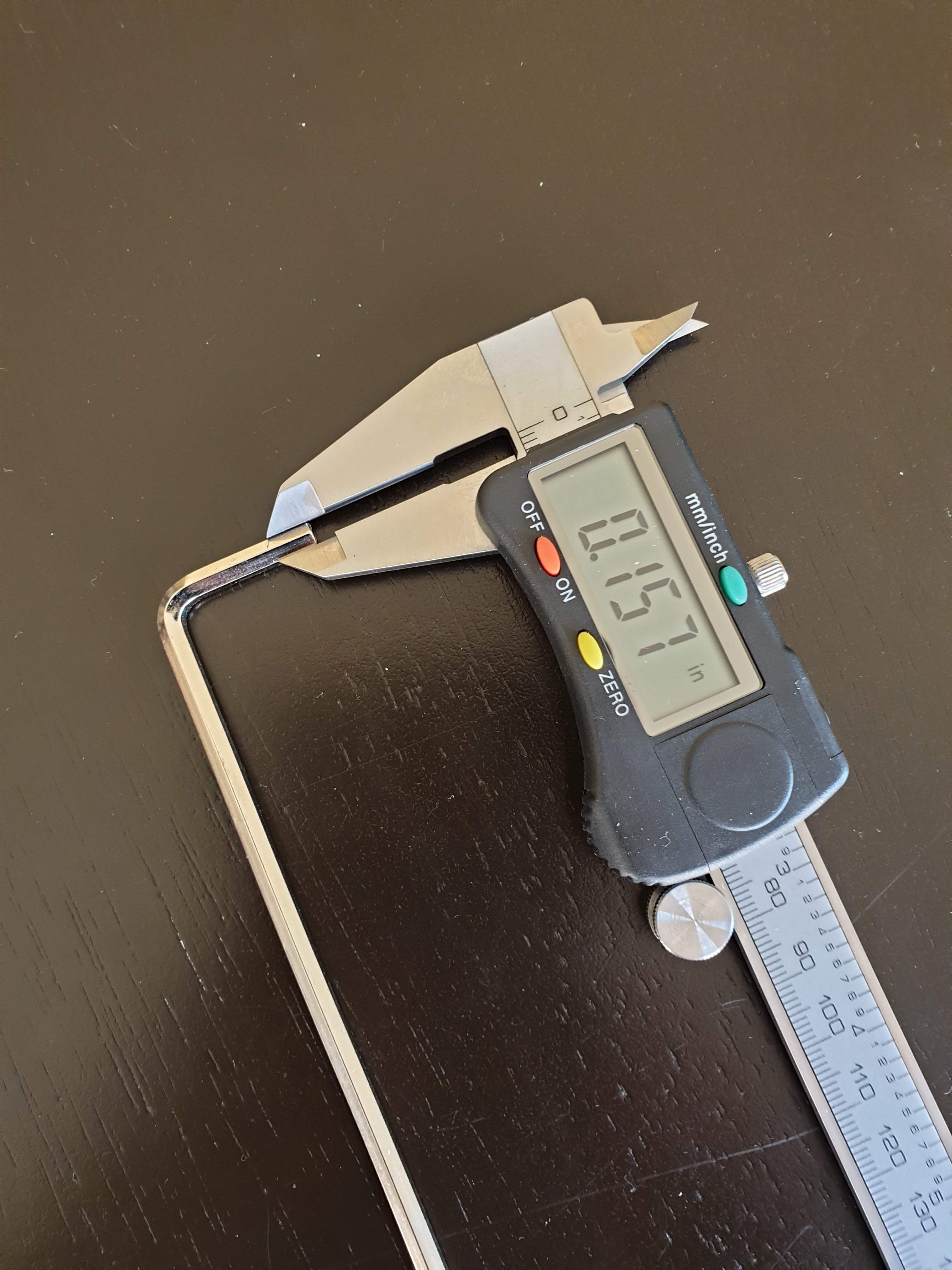

What size is the truss rod? Seems like 4mm, but it feels weird. And, any one have info on what all the set screws do on the bridge? There seem to be 5 of them, I figured out 4 (height left and right, string spacing lock, and one that seems to pitch the saddle fore/aft), but that one behind the string spacing lock screw at the rear... WTH?

  • Like
Reactions: eccles77, BrentSimons, Shlabotnik and 1 other person
#2,407
bdplaid said:
OK, I'm in!

View attachment 3652785


Yeah, I really dig it. 6.5 lbs. Sounds great. But it seems the zero fret is a little high. Otherwise it plays like buttah.

Questions...

What size is the truss rod? Seems like 4mm, but it feels weird. And, any one have info on what all the set screws do on the bridge? There seem to be 5 of them, I figured out 4 (height left and right, string spacing lock, and one that seems to pitch the saddle fore/aft), but that one behind the string spacing lock screw at the rear... WTH?
Click to expand...

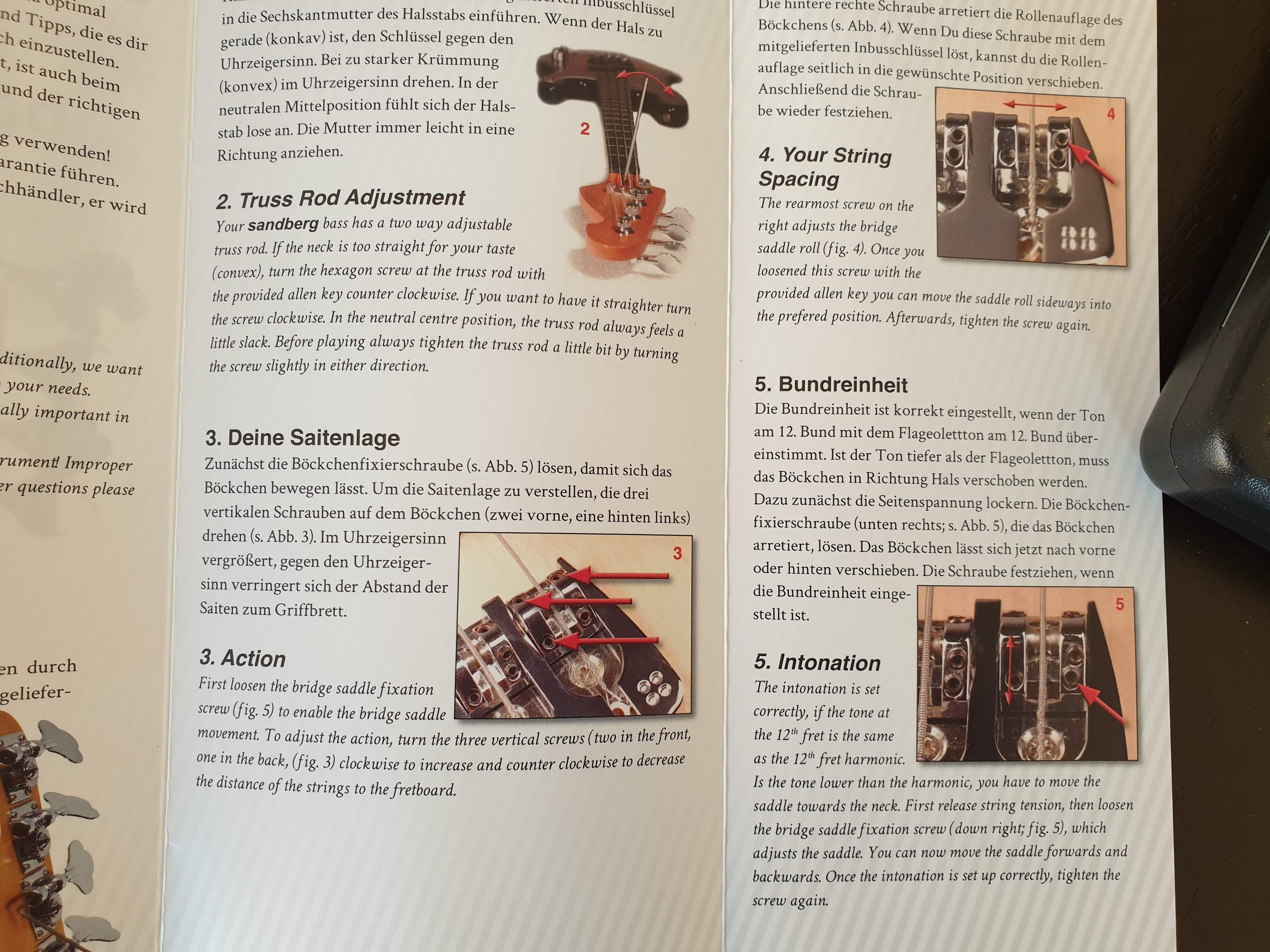

Is it new or used? If new, you should have received a manual and tools. Otherwise, I think the manual has been posted online before.

  • Like
Reactions: bdplaid
#2,411
Jughead6 said:
Is it new or used? If new, you should have received a manual and tools. Otherwise, I think the manual has been posted online before.
Click to expand...

Guess what was in one of the pockets of the very nice gig bag that comes with the bass? I was so excited to play with the bass I forgot all about it. Both manual and wrench, right there. Sheesh...

  • Like
Reactions: Shlabotnik, mcnach and Jughead6
#2,419

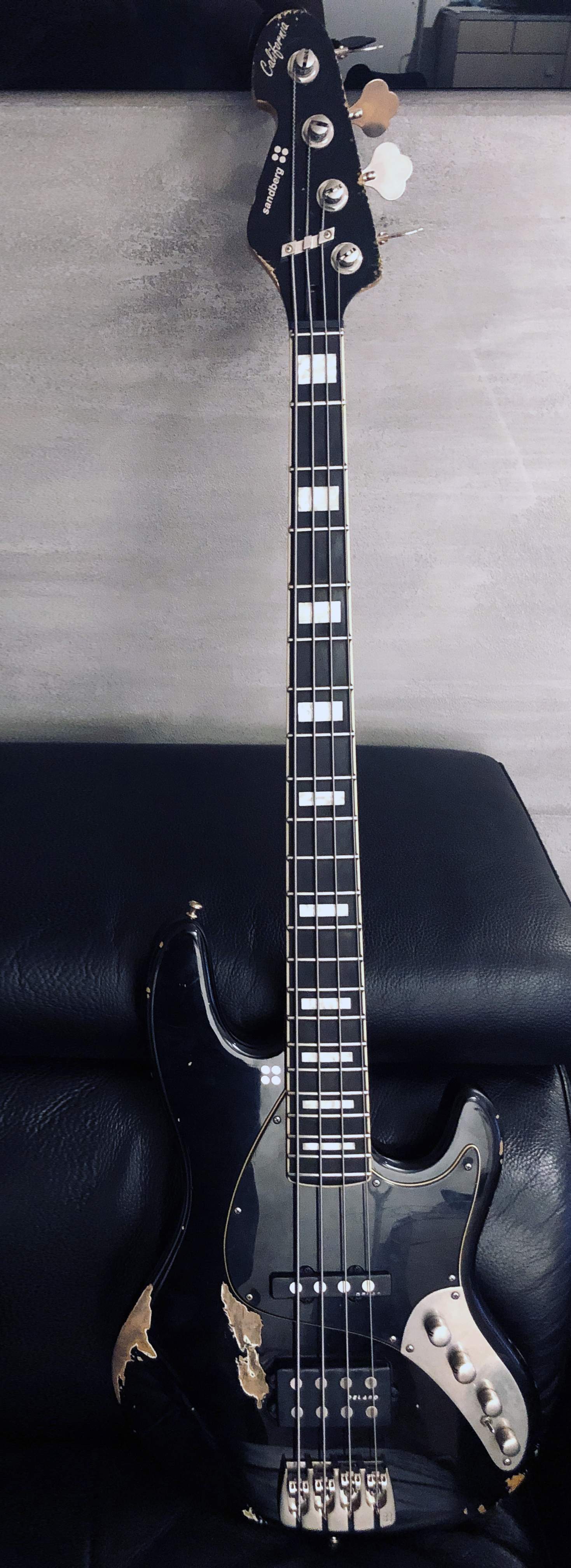

I own a Sandberg VM4 Hardcore aged. It's high time I changed strings, but where can I find info on what gauges it's setup for?

I have a spare set of EBS stainless 45, 65, 80 and 100, but I'm not sure if that's the correct gauges.

I guess I could restring anyway and fix the new intonation myself, but it's still good to be able to access the information.

#2,420
DanielW said:
I own a Sandberg VM4 Hardcore aged. It's high time I changed strings, but where can I find info on what gauges it's setup for?

I have a spare set of EBS stainless 45, 65, 80 and 100, but I'm not sure if that's the correct gauges.

I guess I could restring anyway and fix the new intonation myself, but it's still good to be able to access the information.
Click to expand...

Pics first :)
Stock strings are 40,60,80,100 by Sandberg. I like them a lot and using them also on my Fenders since they arrived with Sandberg.
https://www.thomann.de/gb/sandberg_stringset_040_100.htm

  • Like
Reactions: DanielW
