[aglide]

don't suppose anyone out there has a spare footswitch for the Navigator preamp?

Kinda crazy timing, but someone just posted one for sale in the "Parts, Strings, and Accessories" classified section.



[Dfam2025]

Kinda crazy timing, but someone just posted one for sale in the "Parts, Strings, and Accessories" classified section.

yep, $225. rare doesn't always equate to expensive though...



[Dfam2025]

here it is



[moon-bass]

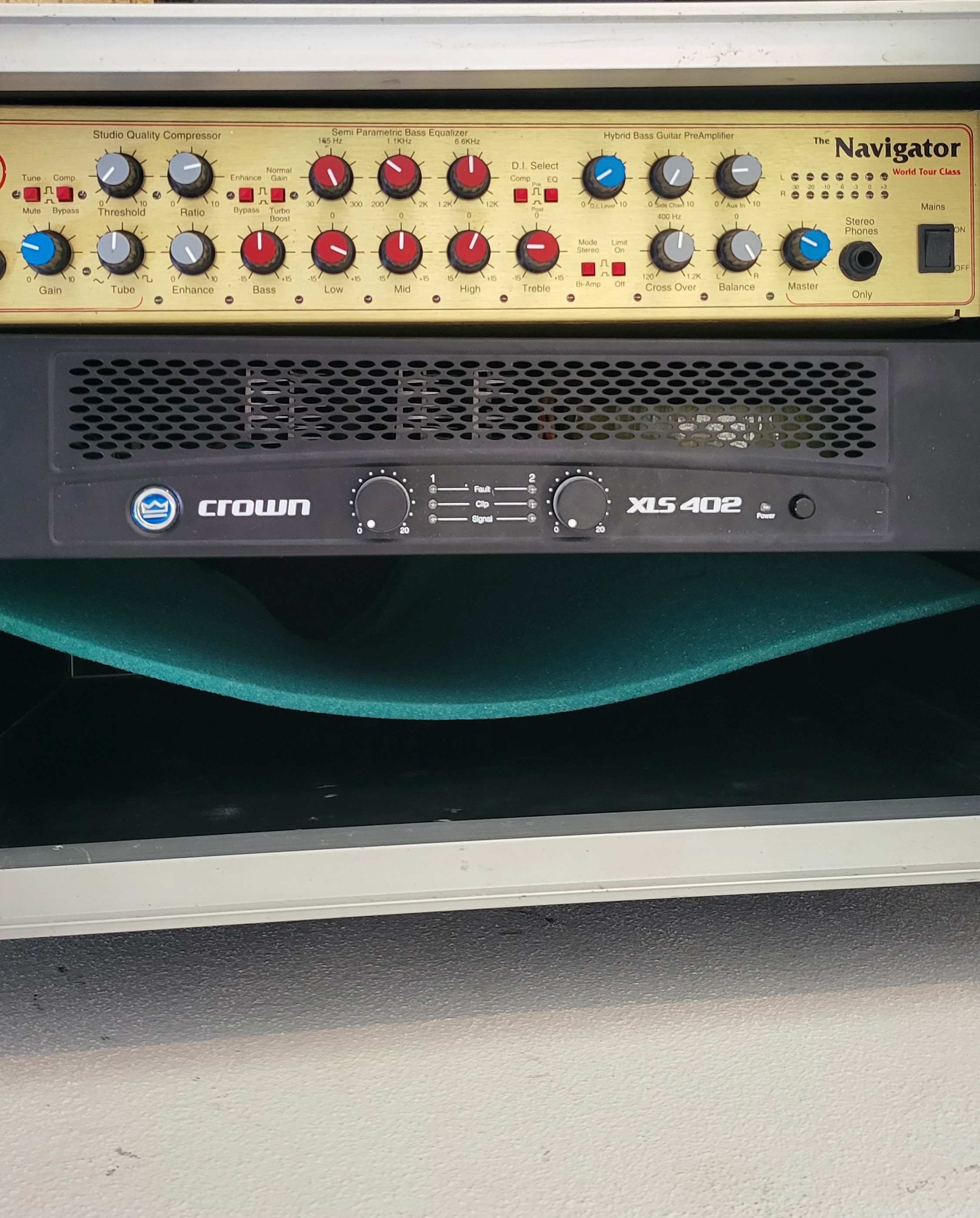

Nope, I've got all three versions of the navigator and know for sure ;-)

Just put of curiosity, what are the differences amongst the three versions?



[Dfam2025]

Just out of curiosity, what are the differences amongst the three versions?



[Bassmann1968]

WP100 Original
WP100B Version with a few improvements
Powered Nav with class D power amps



[Bassmann1968]

Actually, I have 4
I also own the WTP Pre



[Dfam2025]

Actually, I have 4
I also own the WTP Pre

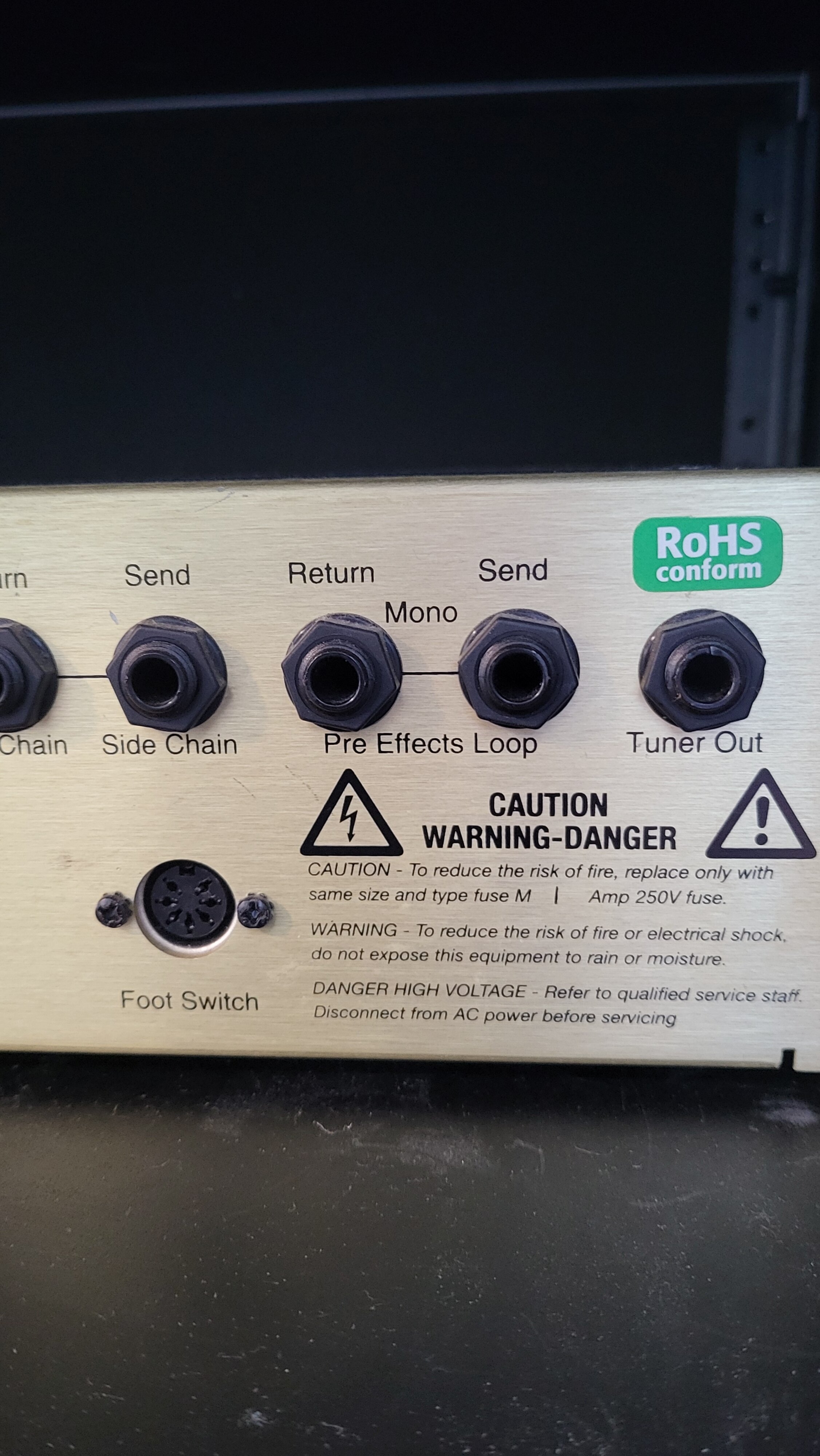

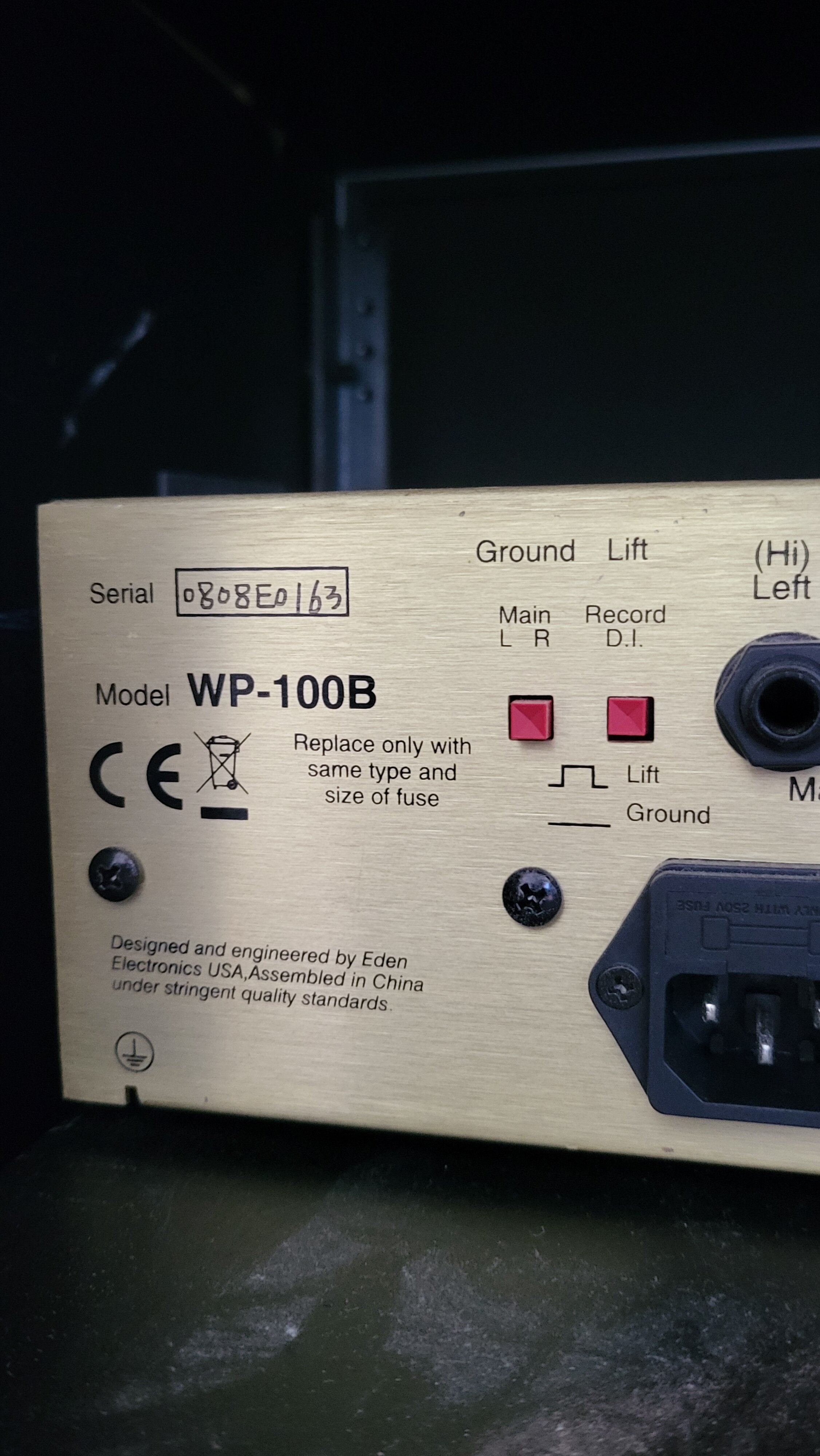

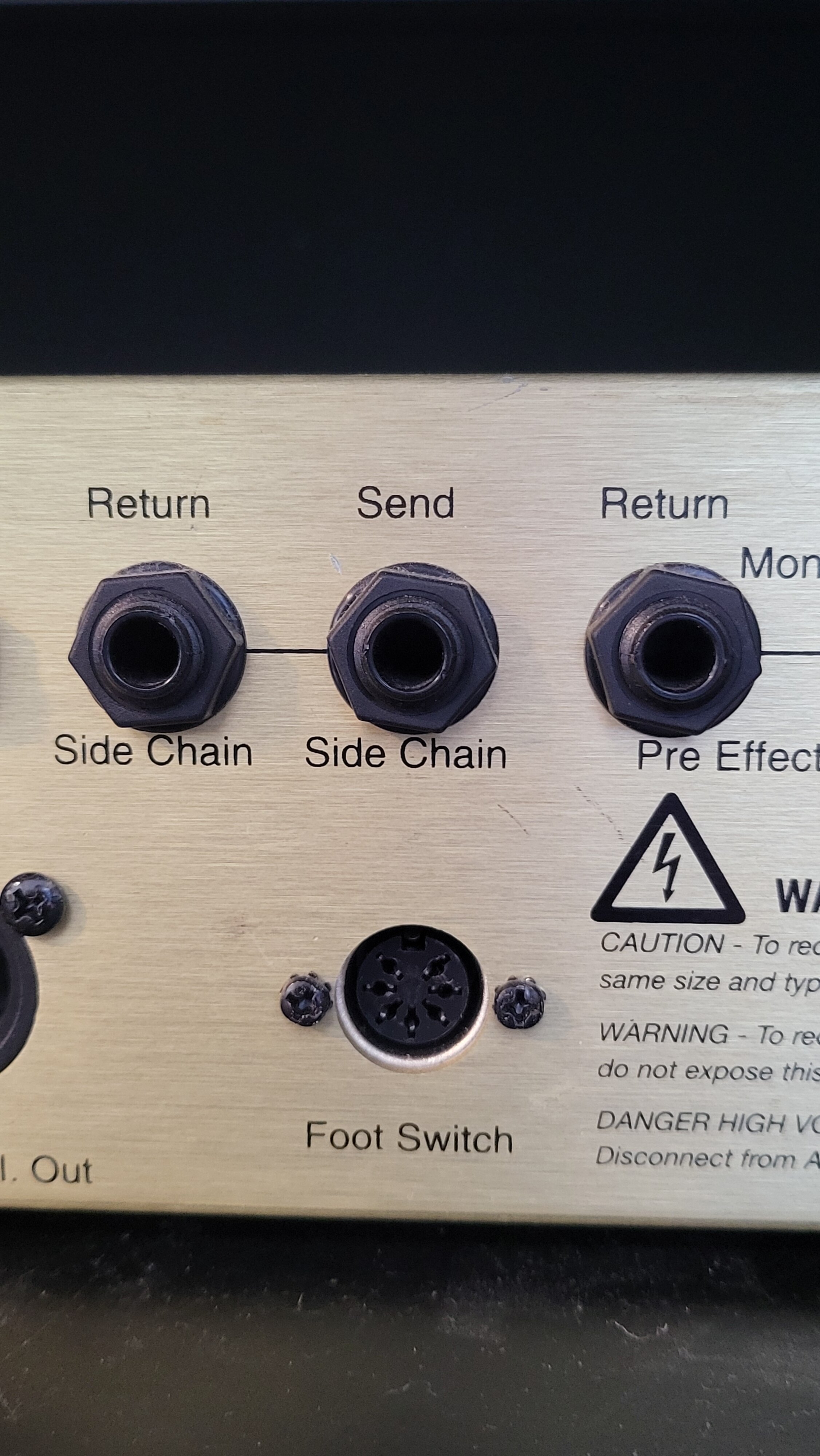

so then, this is the second version? any ideas on something universal I could use for the pedal or is there one in a closet somewhere I can pickup for few bucks?



[Bassmann1968]

No substitute available.
Mine of course will stay with the amps.
If there was a higher demand I could build some.



[Dfam2025]

No substitute available.
Mine of course will stay with the amps.
If there was a higher demand I could build some.

If I provided an empty box could you make a functional substitute?



[Bassmann1968]

Sure I could, but I live in Germany.
So shipping is a pain.



[Dfam2025]

Sure I could, but I live in Germany.
So shipping is a pain.

oh shoot! haha. OK. I would certainly appreciate a picture of the internals if at all possible.



[moon-bass]

yep, $225. rare doesn't always equate to expensive though...

I once bought an entire Navigator, footswitch included, for $250.

$225 for a generic four switch pedal with the Eden name on it? Call me crazy, but the brand appropriate pedal isn't going to function any different than any generic pedal.



[moon-bass]

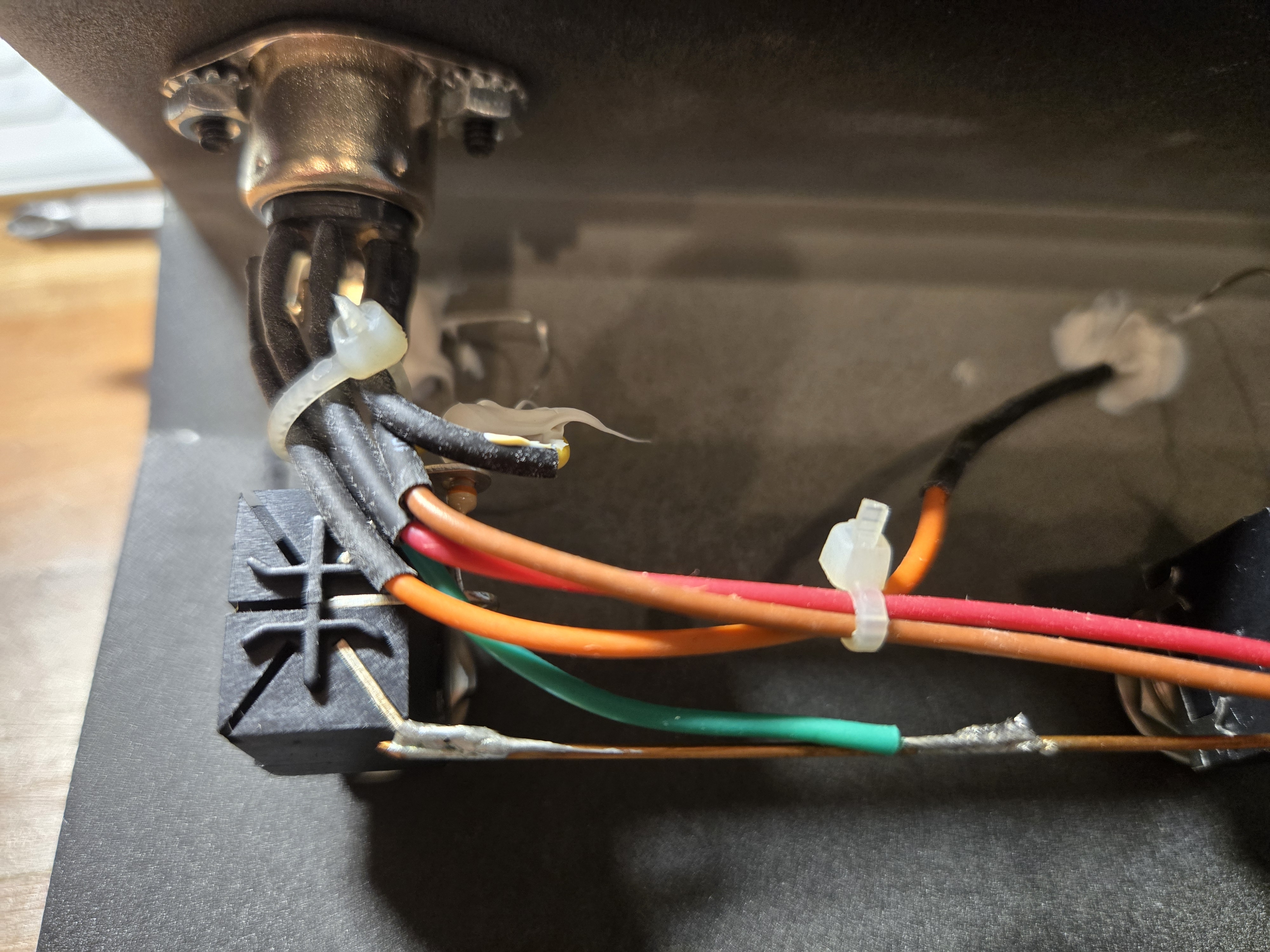

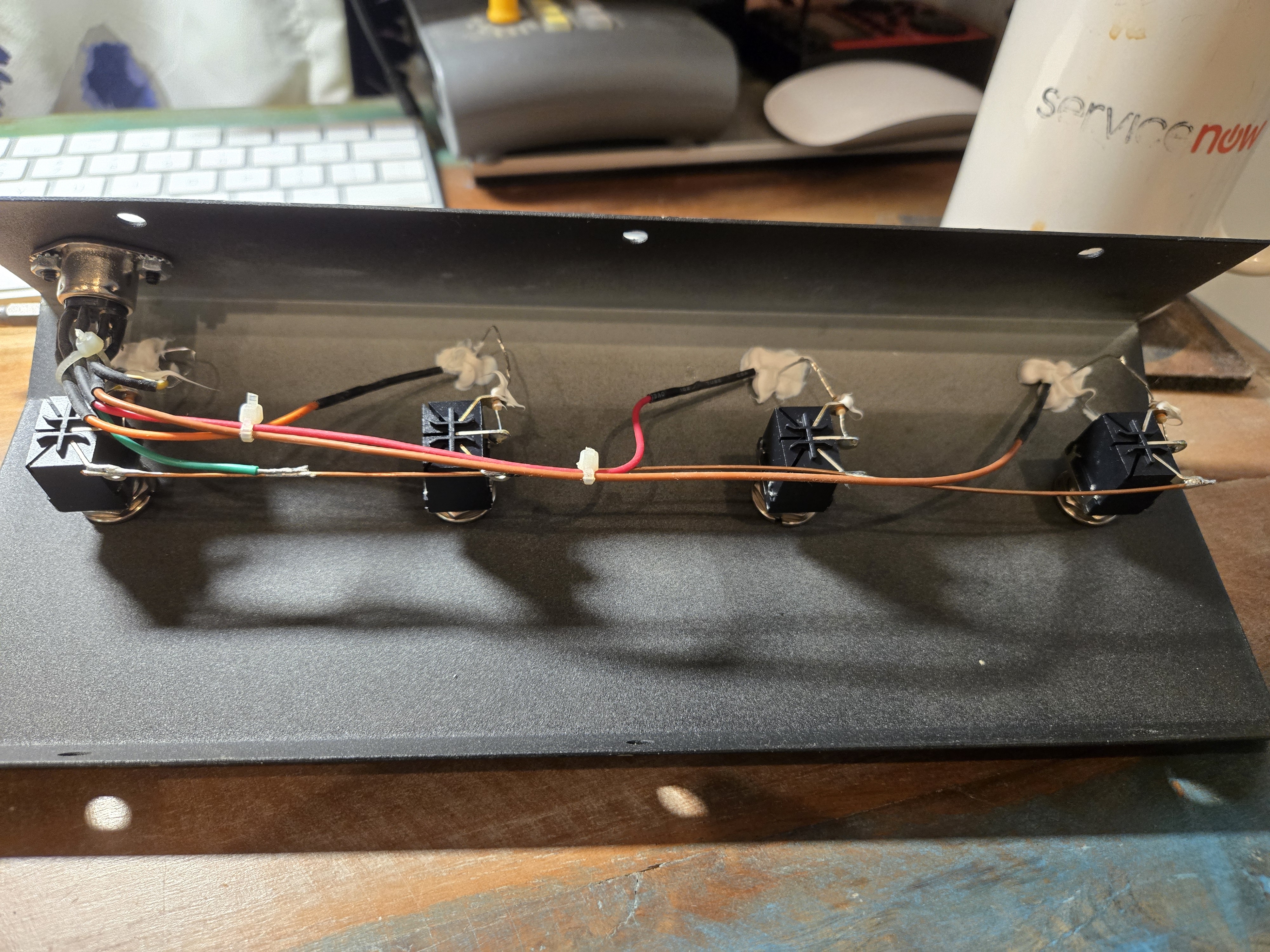

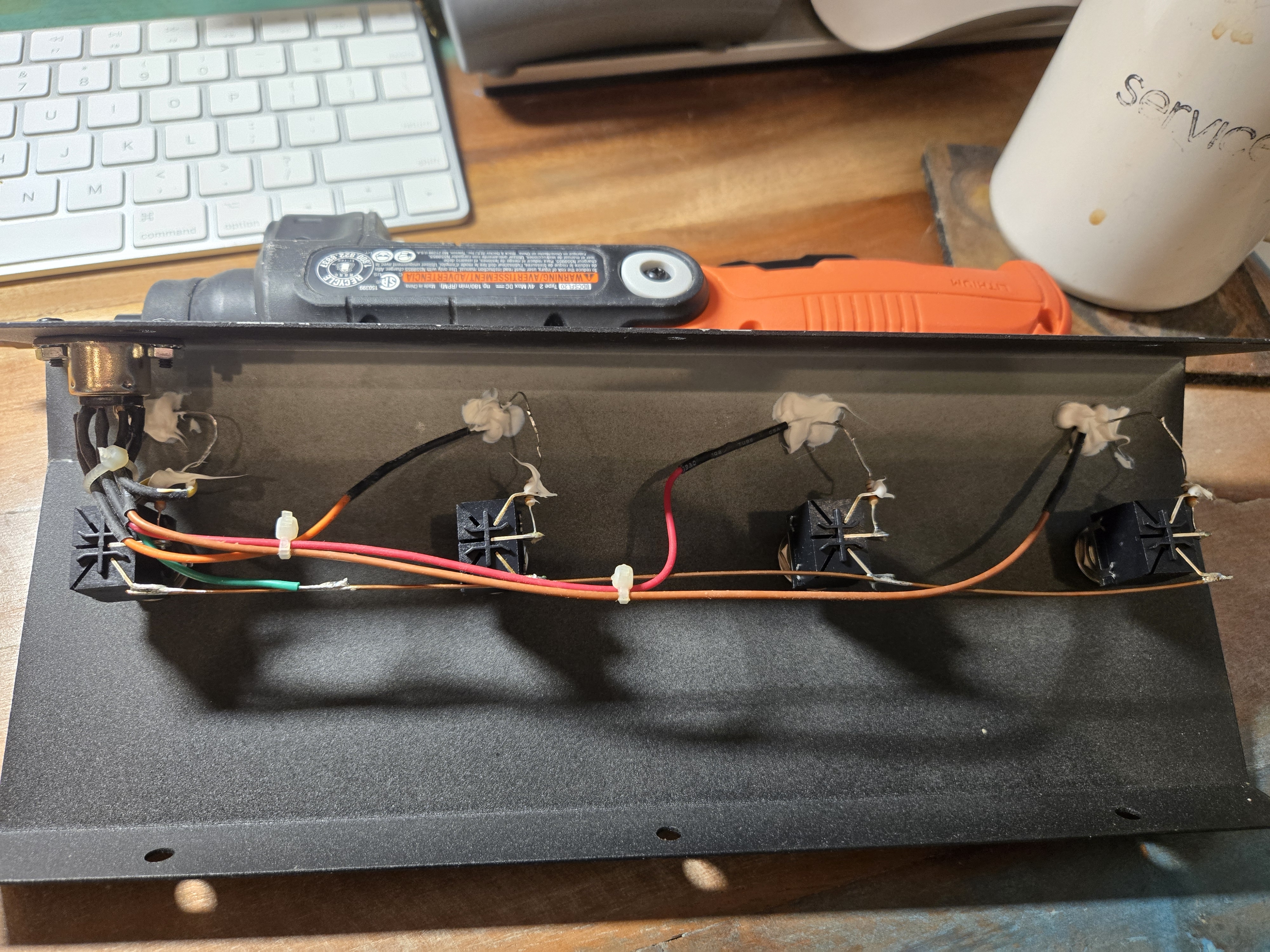

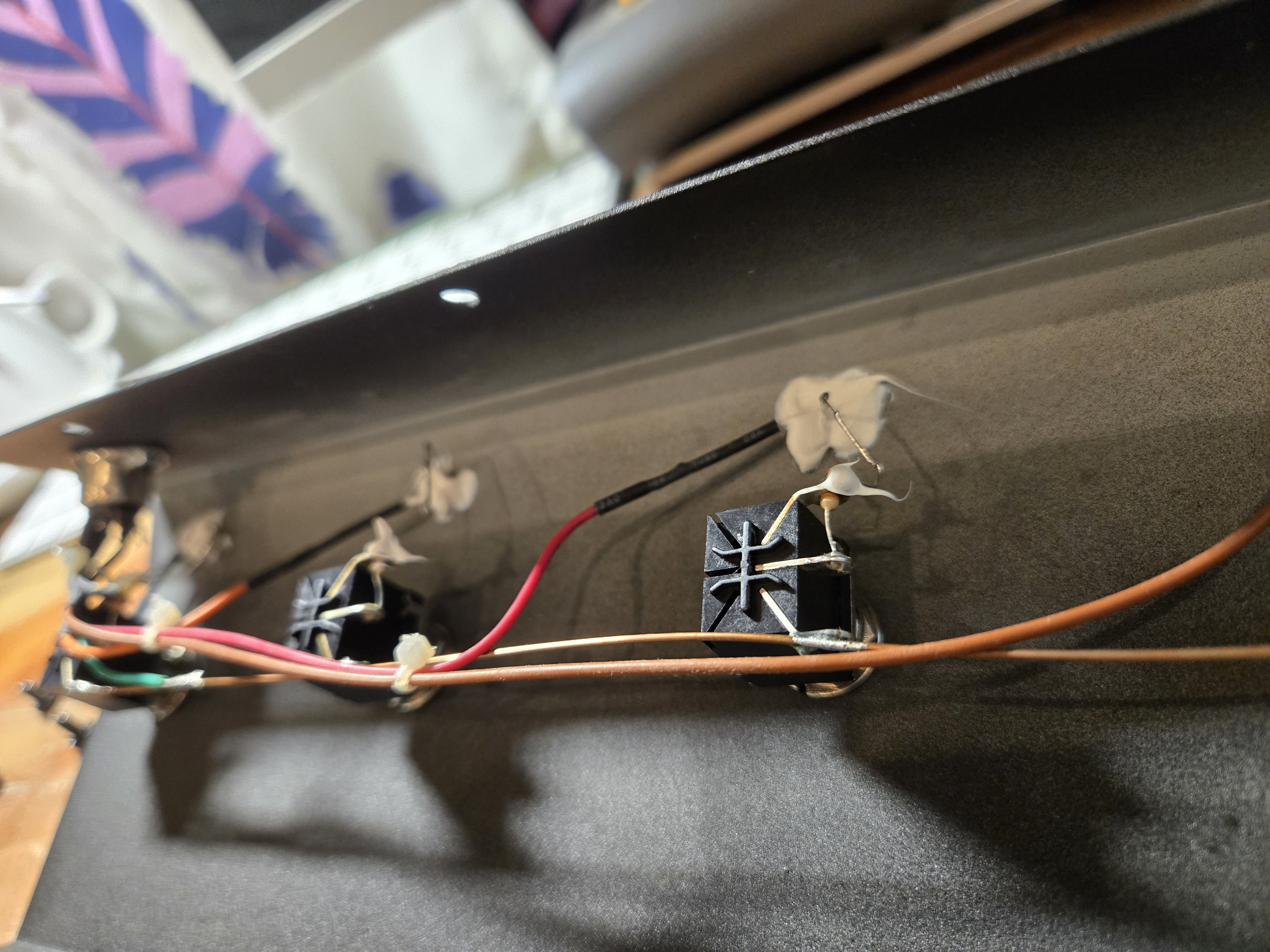

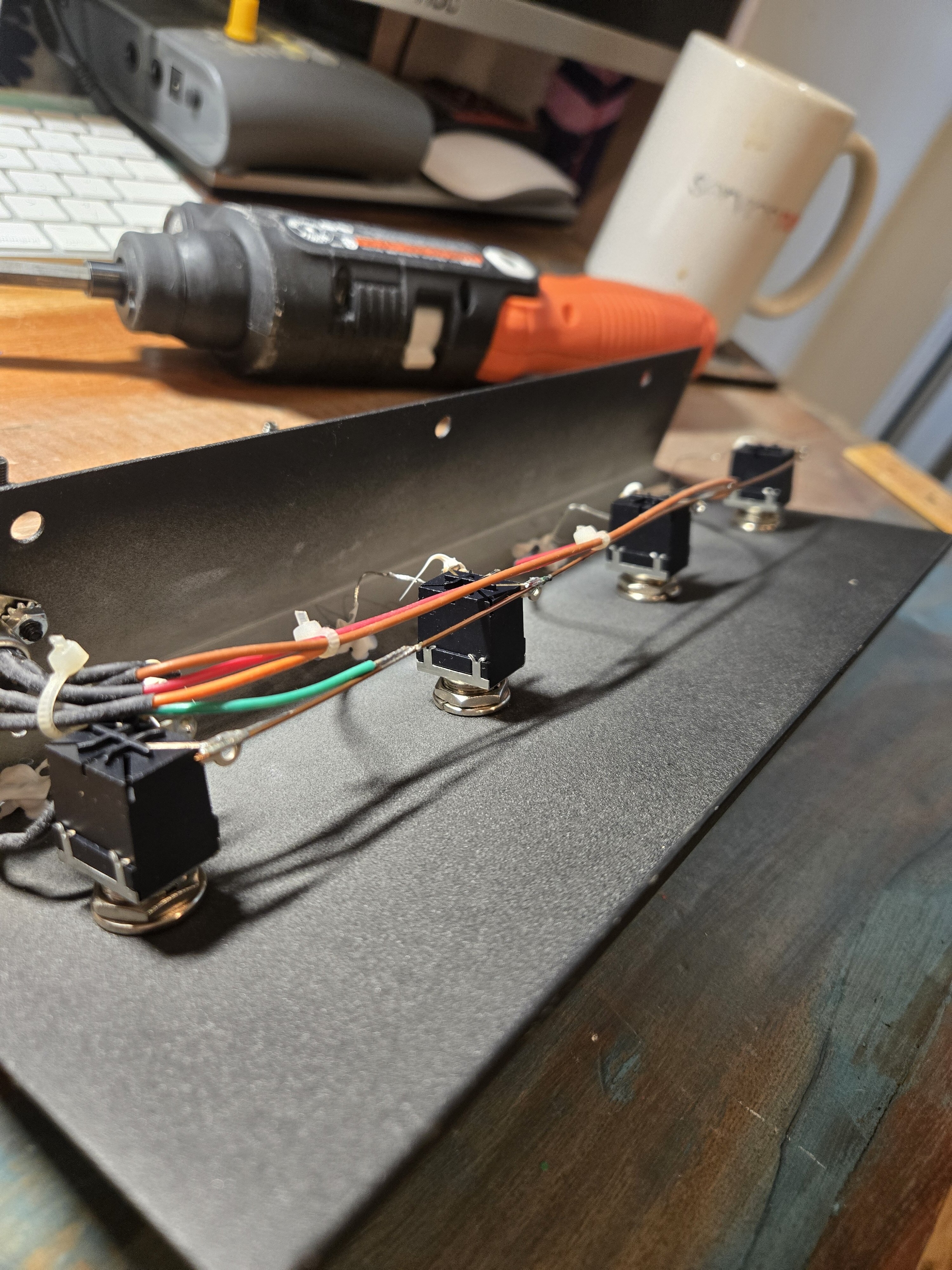

I sent these to @Dfam2025 , but if anyone is curious ...



[Dfam2025]

I once bought an entire Navigator, footswitch included, for $250.

$225 for a generic four switch pedal with the Eden name on it? Call me crazy, but the brand appropriate pedal isn't going to function any different than any generic pedal.

exactly, just four plain on-offs, can't be too complicated. I am hoping I can get someone to rewire the guts of an existing four switch pedal and add the din. maybe like this:



[moon-bass]

exactly, just four plain on-offs, can't be too complicated. I am hoping I can get someone to rewire the guts of an existing four switch pedal and add the din. maybe like this:

For ***** and giggles, I popped a two switch footswitch that I have here open and it looked pretty much the same.



[Dfam2025]

I sent these to @Dfam2025 , but if anyone is curious ...

I think I have someone to wire it up without charging an arm and a leg. could you post a couple more angles of the din? need to confirm how the wires trace to each post and if any lines are ju.ped or grounded in a certain manner. are there any resistors or other components with values that you can see? I'm surprised there's not more in there...



[agedhorse]

YOu mean like the LEDs?



[moon-bass]

I think I have someone to wire it up without charging an arm and a leg. could you post a couple more angles of the din? need to confirm how the wires trace to each post and if any lines are ju.ped or grounded in a certain manner. are there any resistors or other components with values that you can see? I'm surprised there's not more in there...

Sure. Give me a day or so and I'll snap some pics. IIRC tho, I didn't see anything with any values on it. Looked like there was nothing special with the wiring tho.

In the meantime, you can zoom in on the pics - I took them at a high resolution, so you should be able to get quite a bit of detail.



[Dfam2025]

YOu mean like the LEDs

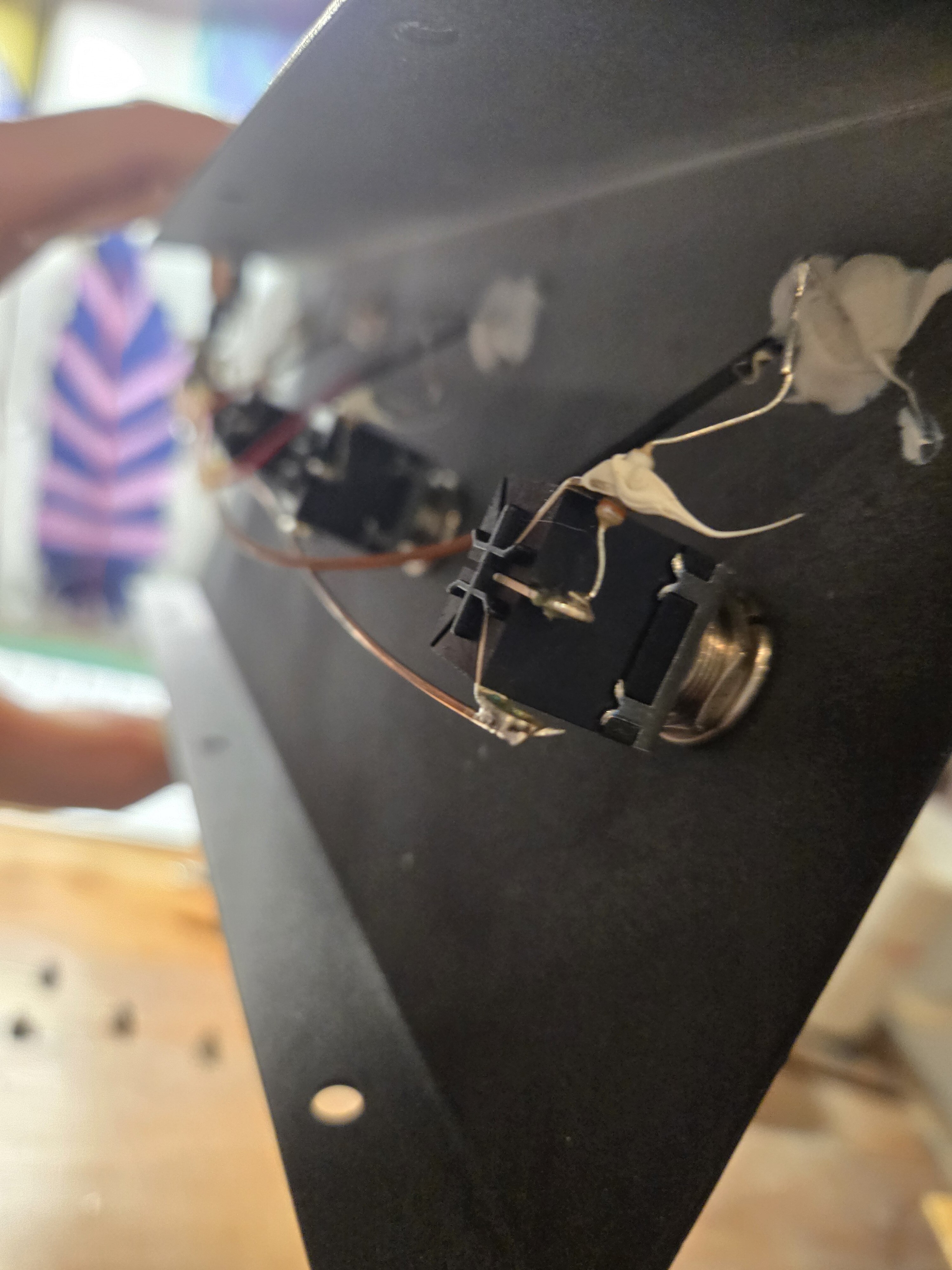

yes, leds look like the only potential unknown. I dont supposed they can vary drastically and even if they do, doubtful that it would affect anything enough to be noticeable in this application. looks like four single footswitches in one box wire independently on positive post led first to the led, then to the first two switch terminals which are jumped, then all four are linked with a direct line on the negative using the green wire to ground the completed circuit. does it look like there is a component directly on the first post? from the side shot it looks like a resistor

Sure. Give me a day or so and I'll snap some pics. IIRC tho, I didn't see anything with any values on it. Looked like there was nothing special with the wiring tho.

In the meantime, you can zoom in on the pics - I took them at a high resolution, so you should be able to get quite a bit of detail.

yes, thanks again ! BTW, I connected with a guy on fb marketplace that says he's friends with David Nordschow... more to come on that point!
