The backplate screws on mine use a star bit (Torx). Not sure why they went with thoseYou know, for something with internal trim pots, you'd think they would make this thing easier to access. Also, at least 1 trillion allen wrenches at my house, and not a single one fits
Long term, they have much less tendency to strip out compared to most more common options. And they cam/slip/pop out less and let you use more torque and are less likely to work themselves out. A zillion times better than Phillps heads, which will strip and cam out much more easily.
Now that I look closer, same here. And I have a torx driver that fits!
In other news, bass player's eyes might worsen with age along with their ears ... Or maybe just mine
Allright, I got pics!

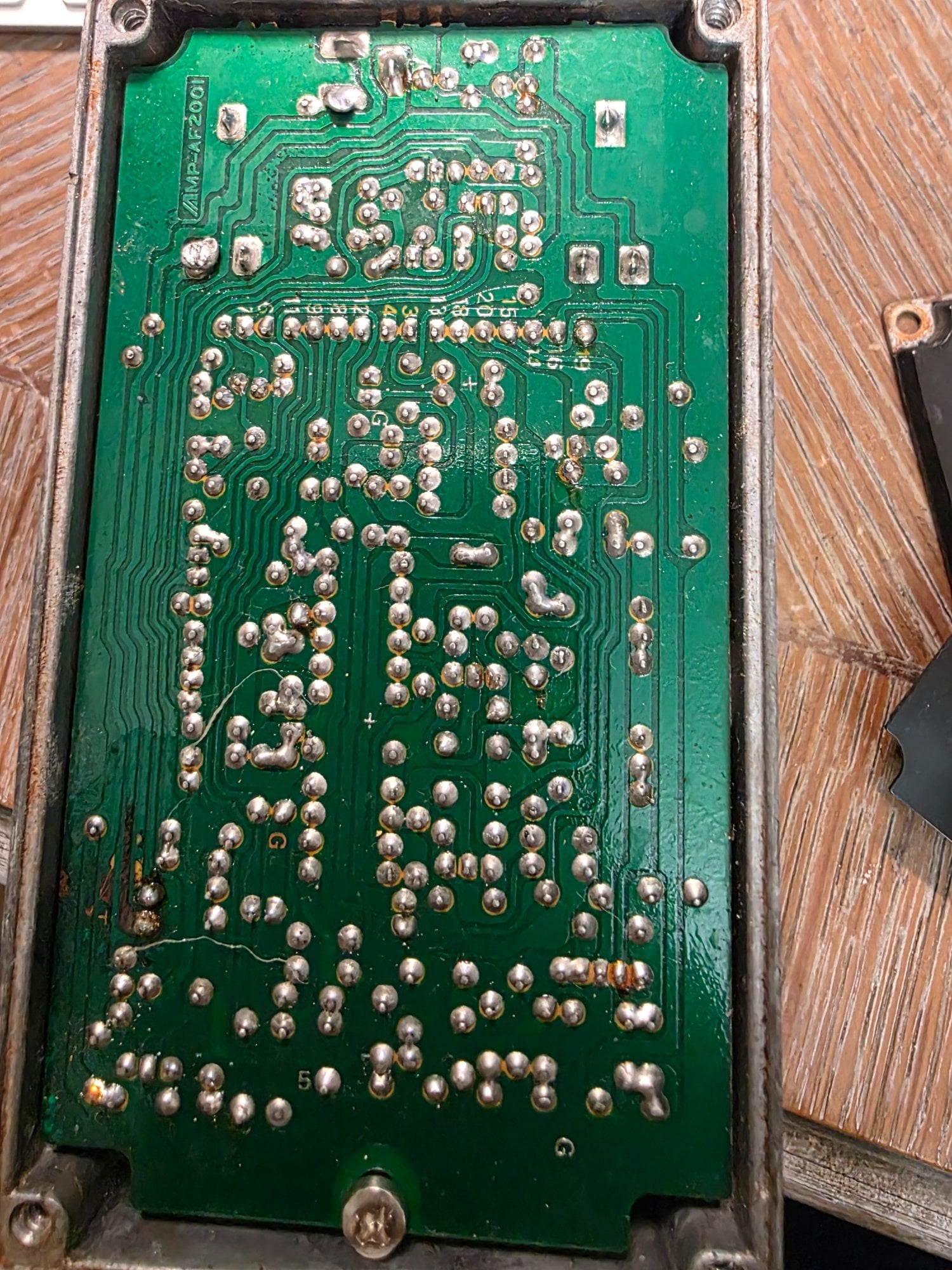

First up is the AF-9. Sure enough, three trim pots inside. Weirdly enough, they are not labeled in any way, nor are they mentioned in the manual at all. Also, I noted that the board inside is labelled AF-9. These are hi-rez pics, so you can zoom in.

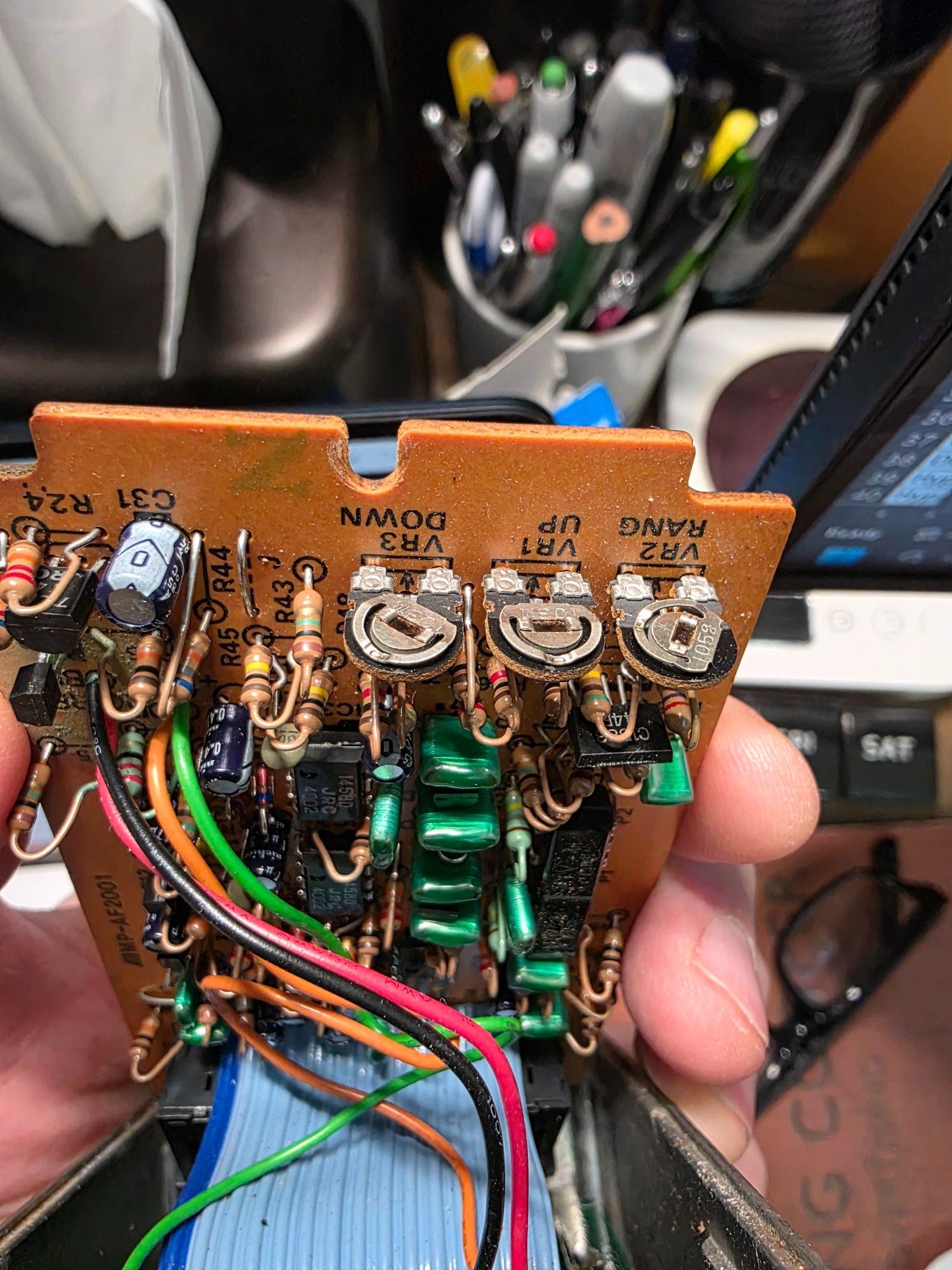

Next up, the AFL. Bigger PCB board, has three internal trim pots, and the pots are labeled. I don't know much about electronics, but the components look very different to me. Also, interesting to note that the Board is labeled AF-2001 ... and there is an Ibanez/Maxon AF-201. Naturally, I'm curious about the AF-201 in comparison, but for some reason they seem to be very overpriced as compared to the AF-9 and AFL/1.
Best I can tell, the AF-201 came first (late 70's, early 80's) and is probably the most expensive out of the three because it is the most vintage, and most rare. The AFL/AF-1 came out mid-80's, and then the AF-9 came out after that. I could be wrong, but this is based on the research I've done on the webs as well as the housing/style of the pedals.
Given that the PCB for the AFL is labeled AF-2001, could be that the AFL/AF-1 is a repackaged AF-201. Maybe, maybe not.
Dammit, do I really want to spend $300 just to satisfy my curiosity?
