EUB project

[-Asdfgh-]

It makes me wonder if taking a broken electric cello and resetting the neck angle (beyond my skills!) and repositioning the bridge for a 34 inch scale would work.



[vmabus]

It makes me wonder if taking a broken electric cello and resetting the neck angle (beyond my skills!) and repositioning the bridge for a 34 inch scale would work.

Or even putting a bass neck on it.



[emjazz]

Pick up wise I've had great success with a piezo pickup from Pick Up The World. Great pickup.



[JIO]

Individual saddles and piezo?

Yes, I think both. I found all these adaptations of standard electric bass pu's designs to get me envisioning how I will go about it. I'd like to assemble my own version instead of buying one of these products, and the spacing on these is for wider upright bass necks anyway.

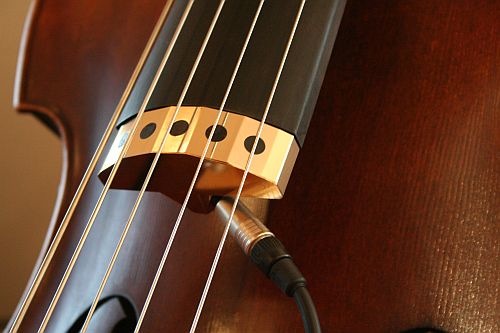

Michael Zadow

Schaller (single coil)

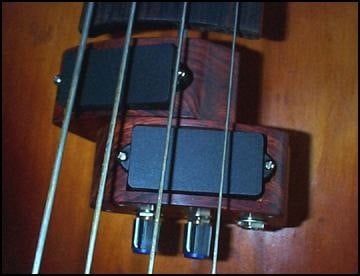

KRIVO humbucker- (Portland)

basically strategically positioned/anchored P-bass/soap bars

Aria - I like this design and can imagine assembling something like this



[JIO]

It makes me wonder if taking a broken electric cello and resetting the neck angle (beyond my skills!) and repositioning the bridge for a 34 inch scale would work.

Or even putting a bass neck on it.

I am moving forward with this hybrid concept and will develop a solution based on primarily electric solid-body technology. So, a 34" scale bolt-on neck w/standard 2X2 hs and a solid body designed to accommodate bridge, string anchoring & pu positioning.

I found this example on eBay - a direction I'm frankly not interested in.



[JIO]

Pick up wise I've had great success with a piezo pickup from Pick Up The World. Great pickup.

I just checked it out, it looks to be geared for a standard carved bridge - more of a contact pu under each foot. I'm probably not going that direction but thanks for your recommendation!



[moonshinegtrs]

I remember seeing somewhere an adaptor for a 3/4 upright bass that replaced the tailpiece and bridge with a one piece assembly that changed the scale to 34" and allowed you to use full scale electric strings... It used a standard bass bridge (I think).

Not sure what this has to do with anything, but this thread reminded me of it.

I'm looking forward to seeing this built.

Sub'd.


Moonshine



[JIO]

A bit more conceptualizing the body. I like the Ampeg Scroll cutaways so will work that into the design. (the pointy dashes) along with sculpting (scallops) and will curve the front to follow the neck curvature. I think the bridge will be a simple curved piece of wood w/the piezo underneath, and the string anchors string-thru (body).



[JIO]

I remember seeing somewhere an adaptor for a 3/4 upright bass that replaced the tailpiece and bridge with a one piece assembly that changed the scale to 34" and allowed you to use full scale electric strings... It used a standard bass bridge (I think).

Not sure what this has to do with anything, but this thread reminded me of it.

I'm looking forward to seeing this built.

Sub'd.


Moonshine

If you run across it be sure and post here - sounds interesting.



[Beej]

You've seen @Big B. 's right?
That's a strange looking bass guitar you've got there...



[wraub]

Curious as ever to see what your fevered imagination cooks up...



[AGH]

I am so Sub'ed. Can't wait to see a Guildaxe EUB!



[JIO]

You've seen @Big B. 's right?
That's a strange looking bass guitar you've got there...

I have now - thanks for the heads up!

Curious as ever to see what your fevered imagination cooks up...

Well, you can always count on it being right-brain off-center!



[n4vgm]

Those pu pix answered my question of matching the fb radius. Great project!



[JIO]

Those pu pix answered my question of matching the fb radius. Great project!

me too!

Started work on the neck/hs - so far so good

right side (penciled line) of the top "soft V" detail isn't started - still have the neck to rasp



[JIO]

Thread awaken! Time to visit the back-burner to see what's cooking. I just ordered a nice slab of variegated/quilted maple to make the body of this UEB thing. I will cut and reassemble it in 3 lengthwise sections arching similarly as the cello fingerboard. It's thin [15/16"] but I think it will work for my needs as maple is a pretty hard wood. I haven't touched it (the neck - still needs a bit more work) since my last post but working on the body will re-energize me to get it going.

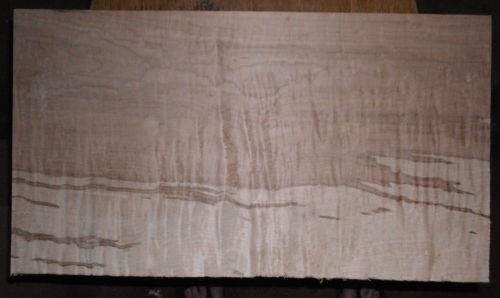

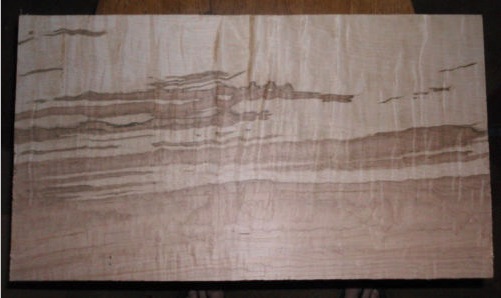

15/16"X 13 "X 23 1/4 "L Brown Curly Maple Guitar body blank top < I still haven't figured out how to grab pics for displaying here so if anyone wants to transfer the 2 pics from my link here I would appreciate it!



[mapleglo]

I couldn't figure out how to get them full size, but here they are.



[JIO]

I couldn't figure out how to get them full size, but here they are.

Good enough Nex - thanks! Pretty huh?



[JIO]

Just ordered 4 black NOS Sperzel locking tuners for the UEB for a nice price. ($16@ eBay) If I decide to incorporate ultra-lite tuners on a build, these are what I use. (made in Cleveland Ohio) I doubt if there are lighter tuners and these work well while looking great. An example, like the Schaller 3D bridge of a really good design both in function and aesthetics. All hardware on the bass will be black (like the ebony board) which should work well as a visual counterpoint to the pretty maple.



[JIO]

The maple and Sperzel tuners both arrived today. Here's a couple pics of the wood mocked-up w/the neck/fb - judging from the rough state, I think it's going to be really cool looking. (hope you can make out the pencil tracing) Will start cutting it out tomorrow.
