Fender JP 90 club?

Discussion in 'Basses [BG]' started by Geroi Asfalta, Apr 11, 2012.


Tags:
  1. dbassd

    dbassd

    Aug 27, 2017
    Thanks! It's one of my favorites.

  2. Michael Eisenman

    Michael Eisenman Supporting Member

    Jun 21, 2006
    Eugene, Oregon
    Found this at Guitar Center Used online. Guessing a 1993 model; S/N N-0145xx. Had to clean the scratchy pots and resolder the replacement pickup switch. The Badass bridge was bleeding green from previous owner’s acid hands(?); I’ll try to clean it up or paint it black when I change strings. Otherwise, pretty clean.


    nixdad, Picton and fretter like this.
  3. Picton

    Picton

    Aug 16, 2017
    Reading, MA
    Nice! I dig the red ones. I've never seen one.

  4. Michael Eisenman

    Michael Eisenman Supporting Member

    Jun 21, 2006
    Eugene, Oregon
    Btw, how is the ground wire connected to the bridge? Is it just jammed beneath it?

  5. Picton

    Picton

    Aug 16, 2017
    Reading, MA
    Most likely?

    I forget. I don't remember having to do anything special when I put on a BadAss, which leads me to think it's the same as most other Fenders: just jammed in there.

    Michael Eisenman likes this.
  6. larrysb

    larrysb

    Mar 23, 2020
    $ilicon Valley
    Checking back in to see my JP-90 brothers and sisters!

    I've been real happy playing mine since doing the minor upgrades 8 months ago at the start of the 'rona lockdown. Upgraded pickups to Fender Yosemite JP set, filled the original pickup screw holes and fixed the factory screwed up placement, put on a WD products thicker pickguard, upgraded to the Bourns 95 series sealed pots and the "grease bucket" tone circuit, lined the routing with copper shielding tape from WD.

    I still have the black BadAss bridge I put on it when I bought the bass new back in the 1990's.

    It never had a case all these years. But I scored a new Fender American Jazz hard case on fleabay.

    Super happy and I play it a good bit. Wish there was opportunity to go jam somewhere.

    Still the most comfortable stage bass I've ever owned.

    kevin wells and Picton like this.
  7. larrysb

    larrysb

    Mar 23, 2020
    $ilicon Valley
    I recently had mine off and can say, nothing special. There's just a wire that pokes out from a hole. Fold it over and slip it under the bridge when installed.

    Michael Eisenman likes this.
  8. Michael Eisenman

    Michael Eisenman Supporting Member

    Jun 21, 2006
    Eugene, Oregon
    Has anyone installed a Hipshot Kickass bridge on their JP-90? It has a large footprint, and based on measurements it seems like the E-string corner might sit very close to the edge of the bass. If you have installed one, can you provide a pic looking down on it from directly above? Thx.

  9. Picton

    Picton

    Aug 16, 2017
    Reading, MA

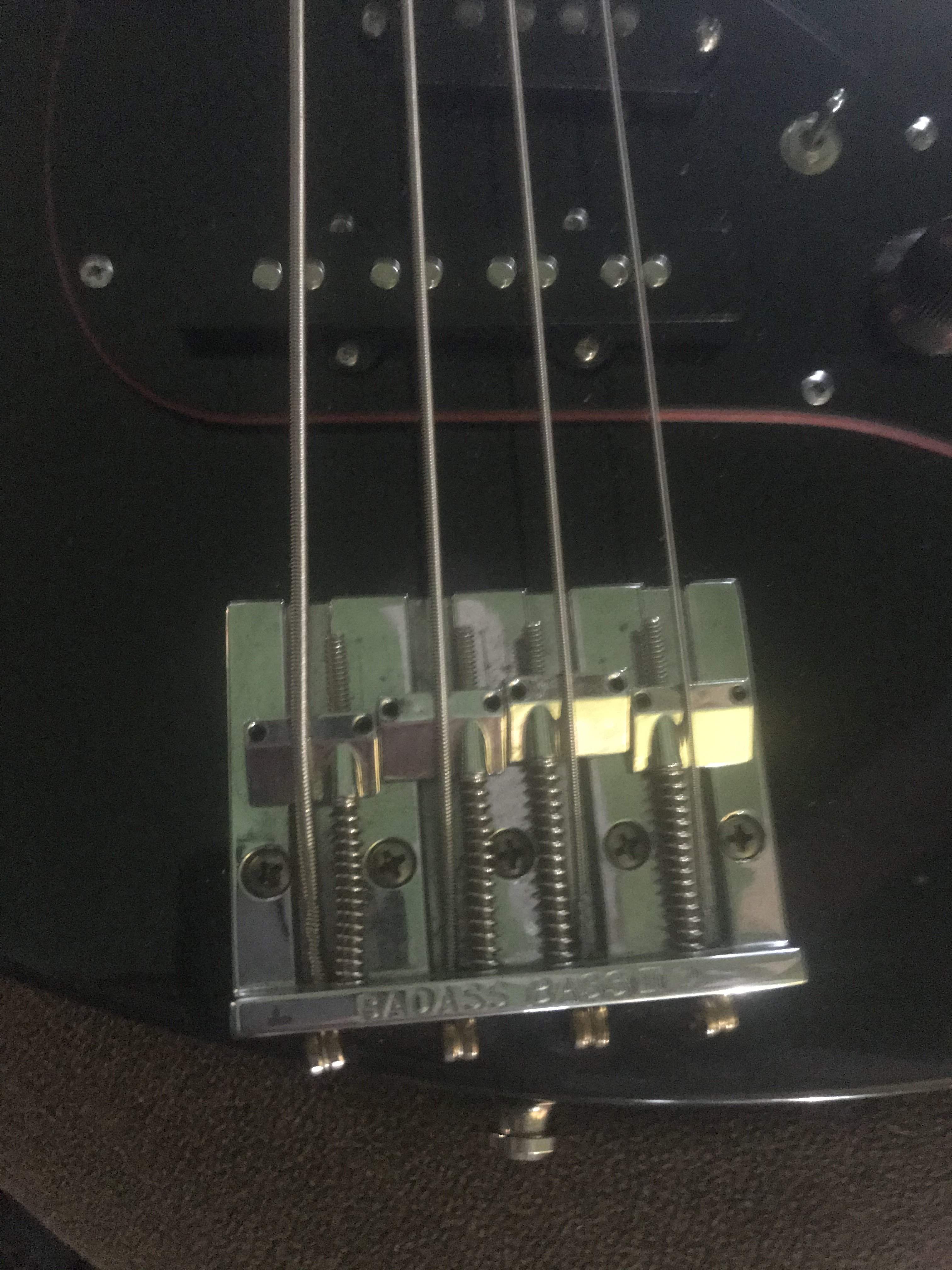

    Obviously this is a Badass and not a Kickass, but I think they're identical or close. Either way, you can look it up and figure it out.

    The E corner is about an eighth of an inch from the edge. The pic isn't QUITE perpendicular, but it's close. If I'd gone directly above, the glare would have blinded you!


    Michael Eisenman likes this.
  10. larrysb

    larrysb

    Mar 23, 2020
    $ilicon Valley
    There's a mechanical drawing of the hipshot:

    http://docs.hipshotproducts.com/5K400_-_4_STG_KICKASS.pdf

    But I haven't found one of the BA-II bridge. I have a BA-2 that I installed when the bass was new back in the 1990s. Like Picton's picture, it is real close to the edge.

    I think it is kind of iffy on the hipshot. You could measure based on the mechanical drawing.

    I like the badass bridge, but I did pull the original bridge out and try it when I did the rebuild months ago. It works fine too. My BA-II is black and I like the way it looks on the black bass.

    Michael Eisenman likes this.
  11. Michael Eisenman

    Michael Eisenman Supporting Member

    Jun 21, 2006
    Eugene, Oregon
    Thanks. I have a BA-II on there now, and it is close. I saw the diagram of the KA on the Hipshot site, and the 1.065” from the mounting holes to the rear puts the rear corner right at the edge of the bass; that’s why I’m asking to see a pic of the KA. I was looking at other bridges, but I can’t really go any smaller than the BA because the finish under it is in less than stellar condition.

    Last edited: Dec 18, 2020
    Picton likes this.
  12. fretter

    fretter

    May 24, 2012
    PA
    Back when I bought my JP90 new, I installed a BA bridge (barely visible in my avatar). According to my measurements, based on The Guitar Handbook by Andy Summers, I decided to drill new holes. Not sure, if that was the right thing to do.

  13. Michael Eisenman

    Michael Eisenman Supporting Member

    Jun 21, 2006
    Eugene, Oregon

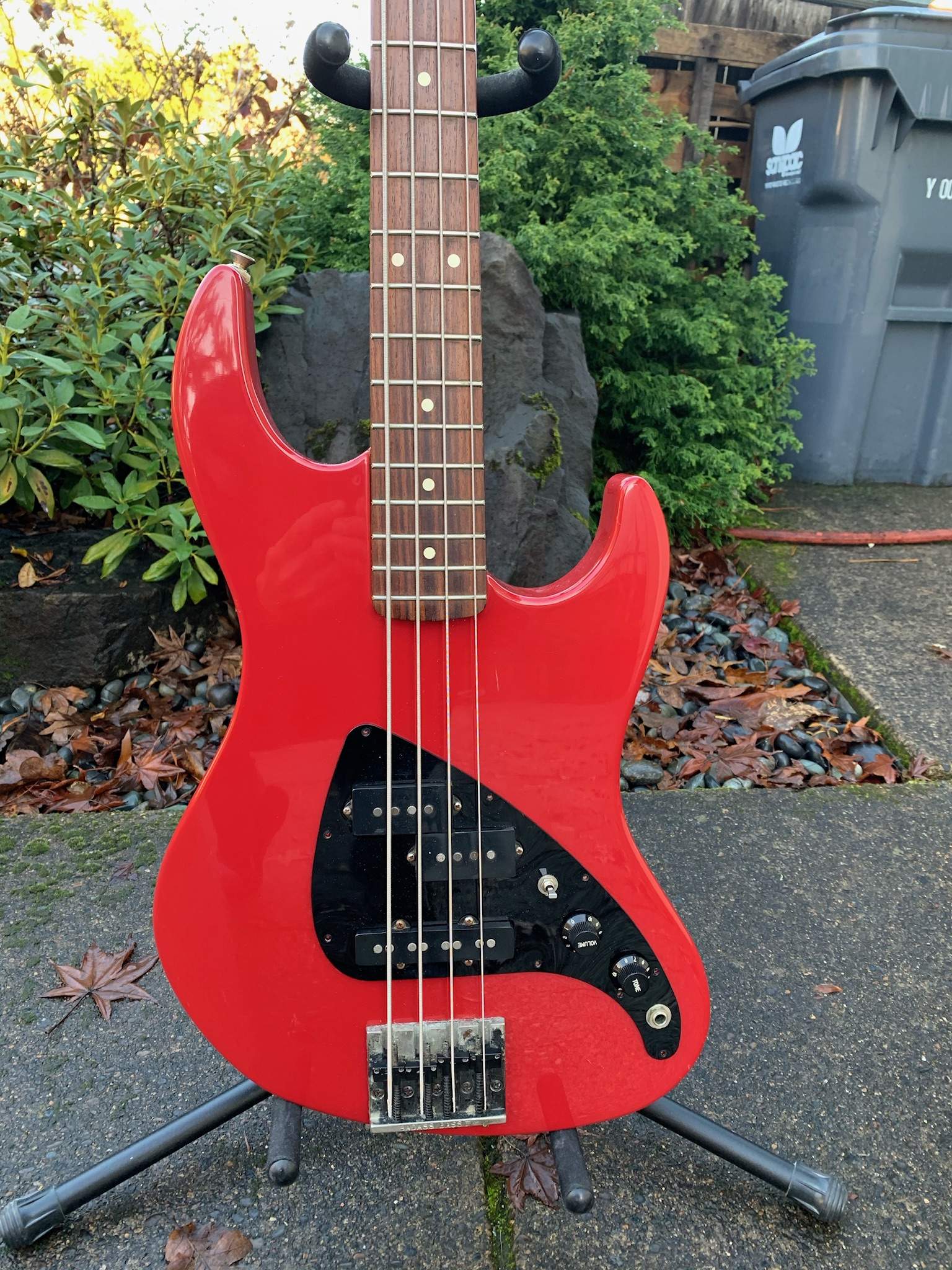

    Before bridge cleanup, full setup

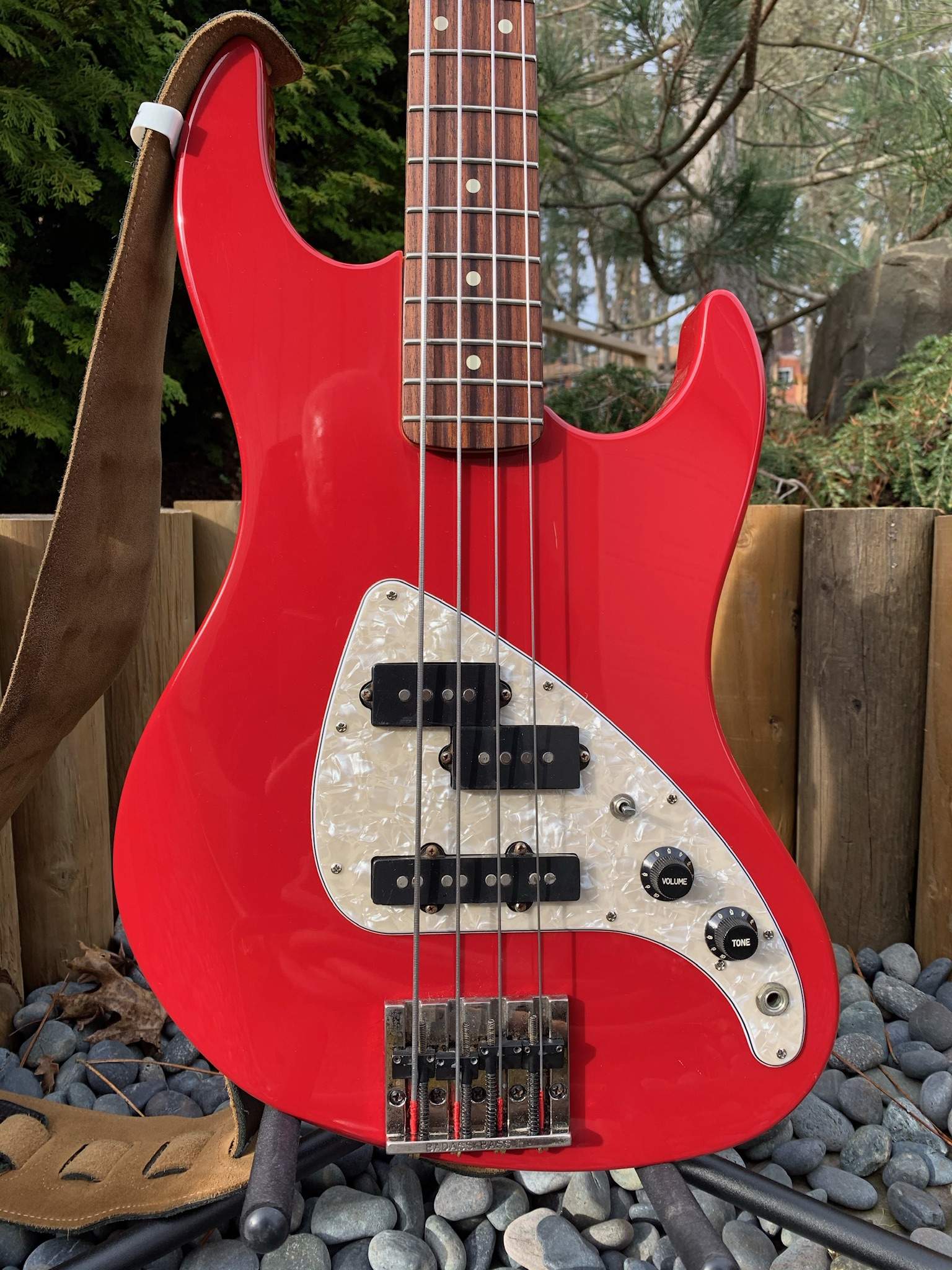

    After bridge cleanup, setup with TI Jazz Flats, new pickguard


    Bridge is still pitted but much better than before. Did you know that you can polish chrome with alumin(i)um foil and water?

    dbassd, RockinRobert, nixdad and 2 others like this.
  14. Michael Eisenman

    Michael Eisenman Supporting Member

    Jun 21, 2006
    Eugene, Oregon

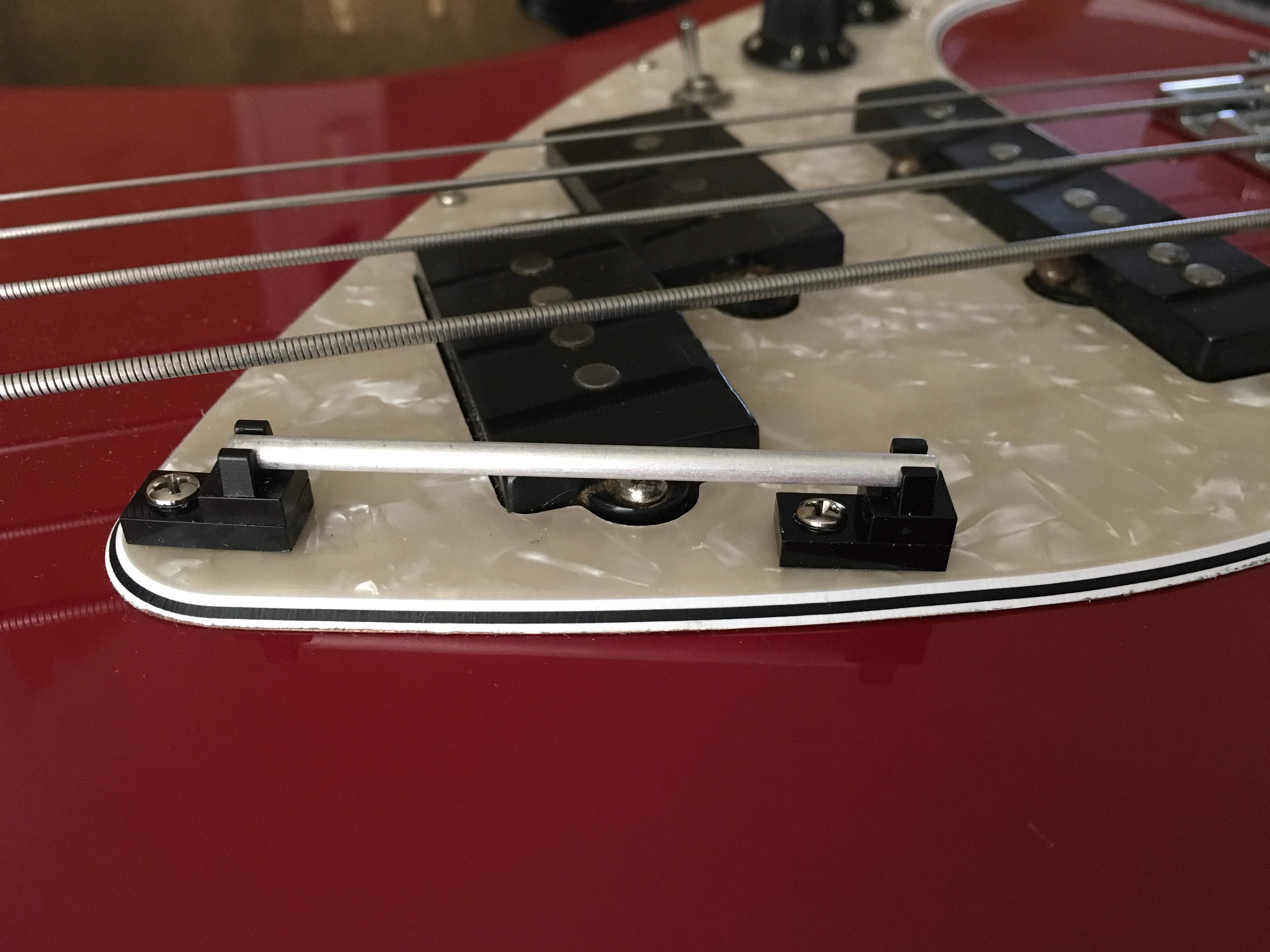

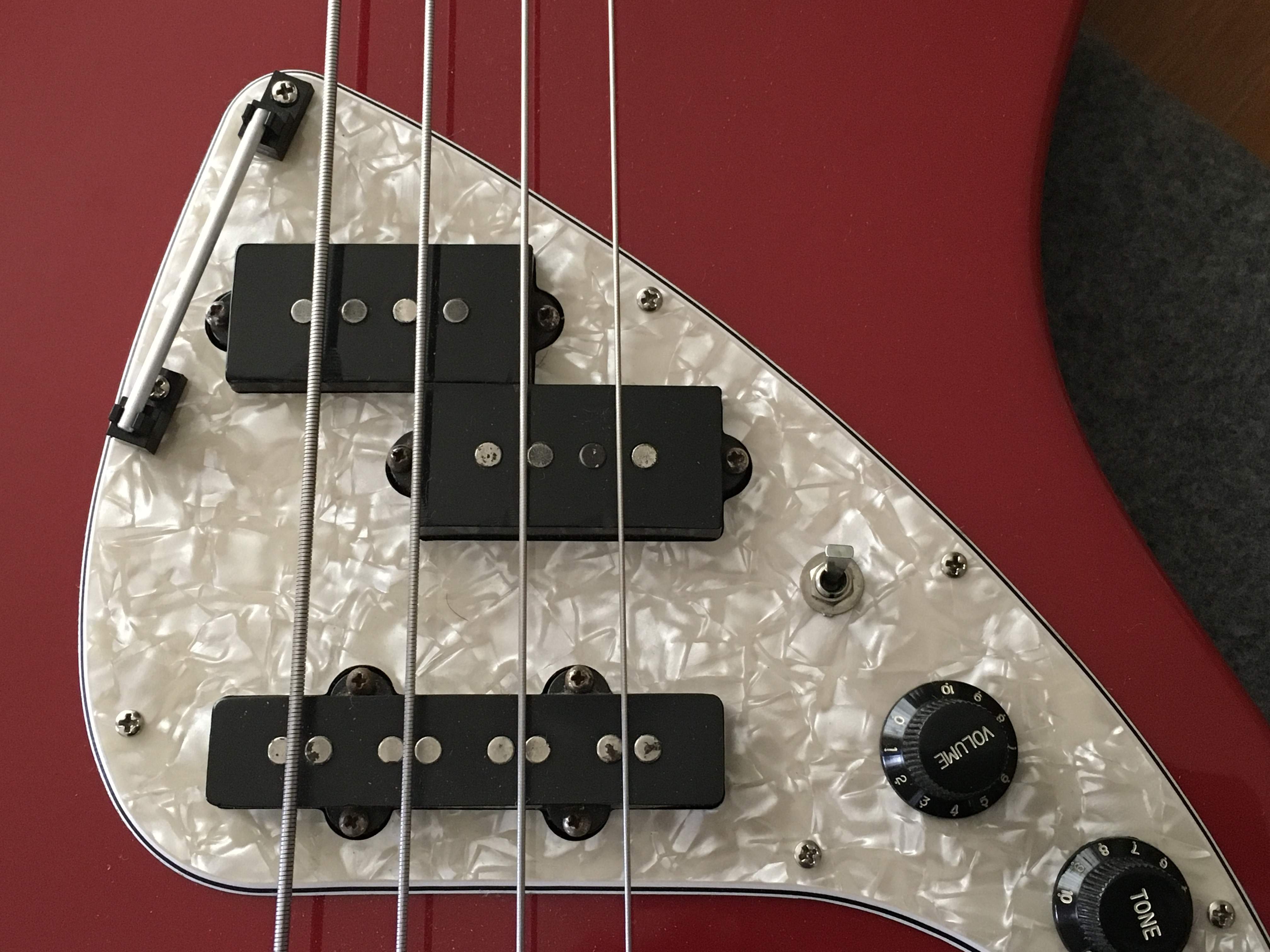

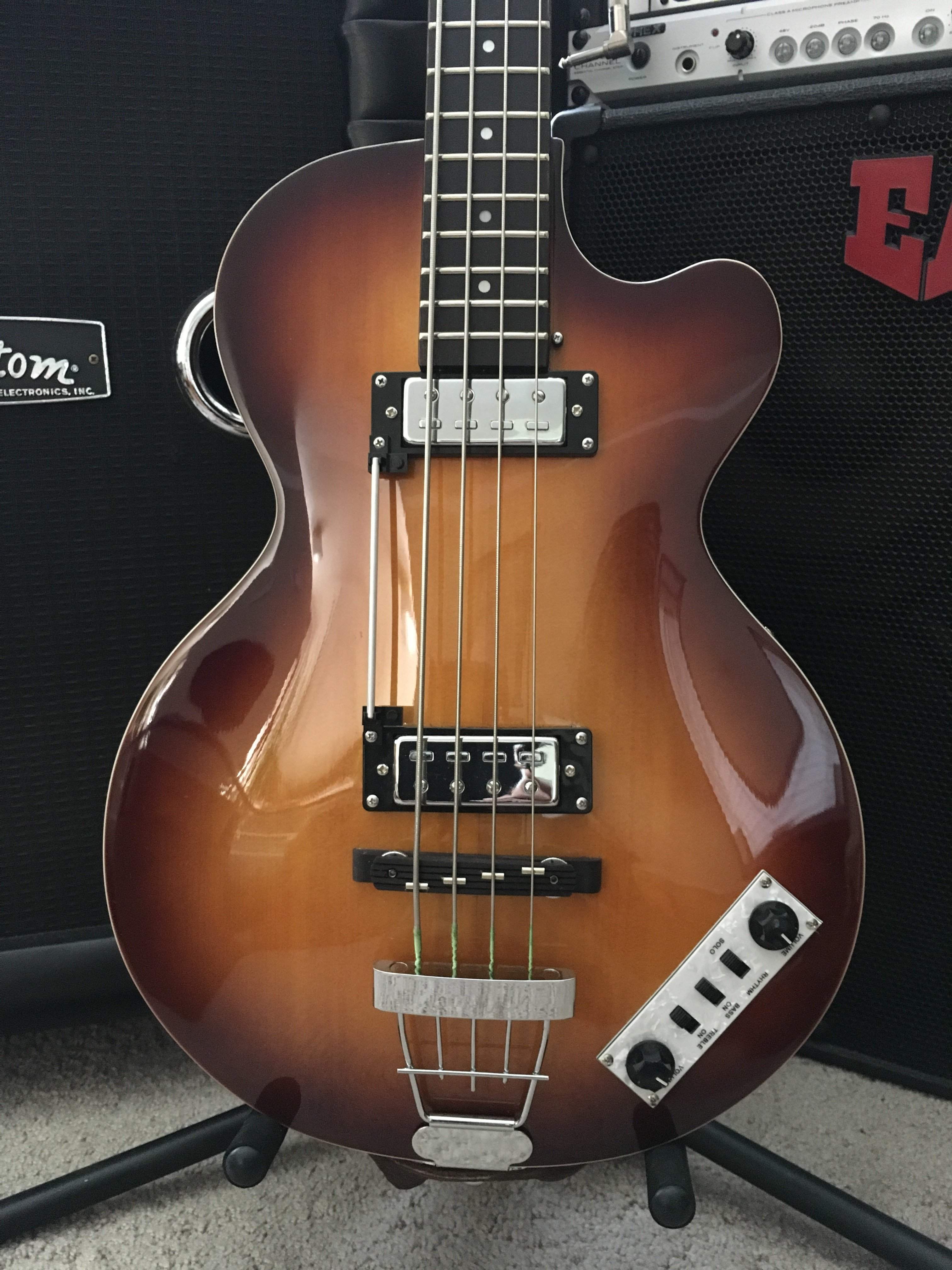

    A few more improvements: new Omega Bass bridge (new version of the Badass II) with better saddles, Dunlop strap locks, and a homemade thumb rest made from, yes, LEGOs, similar to what I did on my Höfner.

    94B1EC35-3143-42D2-B337-1567E9CF3FA4.jpeg 2FB7B6C4-36C4-4D5D-B2C0-9C8DF2E5FC6B.jpeg CDACFA91-DA74-4123-9744-D3B2E8E0B2DD.jpeg

    Picton, larrysb and dbassd like this.
  15. larrysb

    larrysb

    Mar 23, 2020
    $ilicon Valley
    Anyone compare the JP90 neck to the Fender USA Geddy Lee Jazz Bass? I'm told the USA Geddy Lee is 9.5" radius, and "thicker C". But no numbers as to what that might mean. Can't lay hands upon one to see if I like it or not.

    My late production JP-90 is 1.5" wide at the nut, and 0.83" thick, 7.25 radius (or slightly smaller if my gauges are to be believed). My perception of the JP-90 is that it is among the thinnest of J-bass necks.

    I sold my G&L ASAT Bass about a year ago now. I did like the neck on it, with the 9.5" radius and slightly bigger dimensions. The incredibly light ash body and telecaster body made it very neck-dive prone, or I would have kept it. Great pop and sound, but the ergonomics of the weight balance never worked for me in the decades I owned it.

  16. Michael Eisenman

    Michael Eisenman Supporting Member

    Jun 21, 2006
    Eugene, Oregon
    I just replaced the neck pickup on my JP-90 with a Fender Pure Vintage ‘63 Precision Bass pickup. (The wire on old pickup broke off at the base; someone had been inside before I bought the bass, and the wire must have been barely hanging on. I’m amazed at how thin the original wires are.) The new pickup is nice and loud, as is the original Jazz pickup. (Surprisingly for the same volume, the neck pickup is closer to the strings than the bridge pickup.) However, with both pickups selected the sound is weak and thin, unlike before the swap.

    We wired the white lead to the switch as before and as specified in the instructions that came with the pickup. Both white wires are at the switch, and both black wires are grounded. Could it be that the the pickups are now out of phase? Any other ideas?

    I will take it back in on Monday to experiment with with reversing the wires, but first I wanted to appeal to the group mind.

    Picton likes this.
  17. Picton

    Picton

    Aug 16, 2017
    Reading, MA
    I've never touched a Geddy, but I spent a couple years with a MIJ 75RI and now I play a genuine 1975 Jazz. I found those two necks very close in specs. My understanding is that the USA Geddy is a faithful mid-70s copy.
    By contrast, my old '78 Jazz was somewhat beefier.

    My JP90 (an early one) is night-and-day different from those. It feels far, far narrower (despite a nut width that's nearly identical). I haven't got any numbers either, but of the four basses I routinely play ('75 Jazz, '54-spec Precision (1.6" nut), Rick 4001, and my JP90), the JP is by far the fastest neck I've got.

  18. larrysb

    larrysb

    Mar 23, 2020
    $ilicon Valley

    Yeah, in reading up on the Geddy Lee signatures, the made in Japan and Made in Mexico models have the thin-C shaped neck, reflective of the instrument when Lee acquired it. It was a '72, but the neck was sanded down already to a thinner profile.

    The USA Geddy lee signature has a different neck, based on the replacement neck the Fender Custom shop made to replace the original on Lee's 72. This is described as the "thick-C".

    Long ago, I played the Japan version, and I seem to remember it being most like the JP-90's thin and fast neck. But that was a long time ago, I didn't have any money at the time, so JP-90 stayed with me and the Japan Geddy stayed at the store. ;)

    I sort of think I might like the USA version with a little more beef to it, and the slightly flatter radius. I sometimes GAS for a straight up J-bass from time to time.

    Still enjoying the JP-90 after the upgrades I did last spring.

    Picton likes this.
  19. larrysb

    larrysb

    Mar 23, 2020
    $ilicon Valley
    Yeah, that's a thing sometimes. The polarity of the replacement pickups are not always the same. When replacing a two-pickup set, I try to buy them as a set from the manufacturer. I swapped my JP90's with a set of Fender-Yosemite JP pickups. The price was right and they sound good. The "both" setting (neck and bridge) has a great "scooped" sound with lots of bottom, mids kind of thinned out and the highs more prominent.

    I ran into the polarity problem some years ago on a custom-built Telecaster guitar. The custom builder and I wanted to mix brands of bridge and neck pickups. Ordinarily, they're RWRP (reverse wind/reverse polarity) of each other, so the signal is in phase, but they cancel hum when used together. But it turns out that Seymour Duncan telecaster bridge and Fender neck pickups have opposite polarities. Wound up getting one custom wound.

    Moral of the story, buy paired pickups in the manufacturer's set, rather than mix and match.

    Michael Eisenman likes this.
  20. Michael Eisenman

    Michael Eisenman Supporting Member

    Jun 21, 2006
    Eugene, Oregon
    Swapped leads on the J pickup; all is well.

    RockinRobert and Picton like this.
