Fender Rumble Club

Quick question... could someone tell me if, when using this footswitch with a V3 head (or combo)... does it also control the Overdrive's LED light, as well as perform the channel switching? i.e. does it turn the LED on and off? I'm trying to decide if I want to get by with this one, or the footswitch with it's own LED. THANKS!
View attachment 3186849
Yes, I use that same switch for my 500H

I apologize for my ignorance before asking: can the XLR line out on a rumble combo feed another combo amp? I came across an XLR to mono cable, and want a consensus before ruining anything.

Also, has anyone used a Rolls SX21 crossover to split the signal between two amps?

I'm sure you get the gist of what I'm attempting to do here....

I apologize for my ignorance before asking: can the XLR line out on a rumble combo feed another combo amp? I came across an XLR to mono cable, and want a consensus before ruining anything.

Also, has anyone used a Rolls SX21 crossover to split the signal between two amps?

I'm sure you get the gist of what I'm attempting to do here....

To feed another combo, the best option would be to use the effects send. You can use the XLR to feed a power amp, but I would suggest going through a small mixer (or large) first.

I am guessing, judging by you mentioning the crossover, that you would like to send lows to one combo and highs to another. While this is possible, I wouldn't suggest this using full range drivers (those found in combos). If you would like to split highs and lows, you really need to send these to drivers that are specifically designed for those frequencies in order for it to work correctly.

To feed another combo, the best option would be to use the effects send. You can use the XLR to feed a power amp, but I would suggest going through a small mixer (or large) first.

I am guessing, judging by you mentioning the crossover, that you would like to send lows to one combo and highs to another. While this is possible, I wouldn't suggest this using full range drivers (those found in combos). If you would like to split highs and lows, you really need to send these to drivers that are specifically designed for those frequencies in order for it to work correctly.

I was thinking either running through XLR out to a guitar combo and rolling the lows back OR running a crossover after a volume pedal and sending the lows to my new 200 combo and the highs to the aforementioned guitar combo.... if either would be a good idea.

  • Like
Reactions: GonePlaid
I was thinking either running through XLR out to a guitar combo and rolling the lows back OR running a crossover after a volume pedal and sending the lows to my new 200 combo and the highs to the aforementioned guitar combo.... if either would be a good idea.

It would be better to use the effects send to the guitar combo, as the input of the combo will want an unbalanced signal (XLR is balanced).

You could use a crossover, or just a HPF set high enough to remove the dangerous low frequencies that would be sent to the guitar combo.

You could just run lows to the Rumble (by splitting it after the vol pedal like you say) but you will find that the result is less than satisfactory (in my opinion) as you would be removing the overtones that make the bass sound fuller. You will also fond fond the bass signal does not sound very loud (because of the missing overtones).

Lots of people split the signal to send a clean bass tone (or relatively clean) to the bass amp and heavily effected tones to the guitar amp, just make sure you remove the dangerous low frequencies so you don't damage the guitar combo.

Just remember that the bass combo is not a subwoofer.

It would be better to use the effects send to the guitar combo, as the input of the combo will want an unbalanced signal (XLR is balanced).

You could use a crossover, or just a HPF set high enough to remove the dangerous low frequencies that would be sent to the guitar combo.

You could just run lows to the Rumble (by splitting it after the vol pedal like you say) but you will find that the result is less than satisfactory (in my opinion) as you would be removing the overtones that make the bass sound fuller. You will also fond fond the bass signal does not sound very loud (because of the missing overtones).

Lots of people split the signal to send a clean bass tone (or relatively clean) to the bass amp and heavily effected tones to the guitar amp, just make sure you remove the dangerous low frequencies so you don't damage the guitar combo.

Just remember that the bass combo is not a subwoofer.

Thank you for the detailed explanation. You just saved me a lot of frustration due to my inexperience with bass amps.

Tissue paper over the led will diffuse the light so it is visible. So would scoring the side of the led (don't know how doable that is though.)
A cheap and effective solution is to glue some tin foil to a piece of card, and stick it to the back of the amp just behind the LED, so that it reflects the light.

Quick question... could someone tell me if, when using this footswitch with a V3 head (or combo)... does it also control the Overdrive's LED light, as well as perform the channel switching? i.e. does it turn the LED on and off? I'm trying to decide if I want to get by with this one, or the footswitch with it's own LED. THANKS!
View attachment 3186849
The footswitch in you post will turn the LED on and off with the overdrive. I use the footswitch with the LED and really like it. I put my Rumble 200 on a stand and can't really see the LED on the amp. Also, you don't have to turn around and look at your amp to see if it's on or not. I had the extra $25 at the time I bought the footswitch, and sure don't regret it.

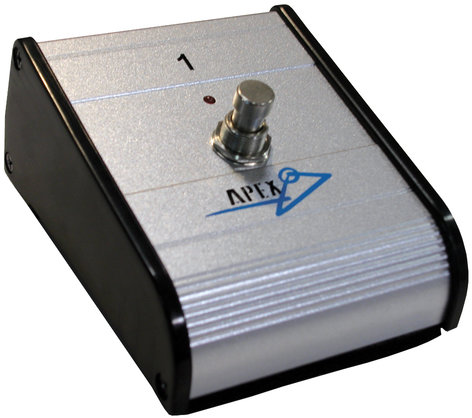

You can get light-up footswitches that aren't Fender branded for about $20.
I had one I used with a G-K amp.

This isn't the particular one, as I got mine from B&H Photo, but it's an example:

Invalid Link Removed


Last edited:
It would be better to use the effects send to the guitar combo, as the input of the combo will want an unbalanced signal (XLR is balanced).

You could use a crossover, or just a HPF set high enough to remove the dangerous low frequencies that would be sent to the guitar combo.

You could just run lows to the Rumble (by splitting it after the vol pedal like you say) but you will find that the result is less than satisfactory (in my opinion) as you would be removing the overtones that make the bass sound fuller. You will also fond fond the bass signal does not sound very loud (because of the missing overtones).

Lots of people split the signal to send a clean bass tone (or relatively clean) to the bass amp and heavily effected tones to the guitar amp, just make sure you remove the dangerous low frequencies so you don't damage the guitar combo.

Just remember that the bass combo is not a subwoofer.

Is it sufficient to use an ABY to split the signal and completely roll off the low end on the guitar combo or zero out the low end with a graphic eq? (Disregarding any phase or ground loop issues of course.) I am having trouble finding a high pass filter in pedal form.

  • Like
Reactions: GonePlaid
If you crank the Gain, I mean really dime it, maybe, but still doubtful.
Coffee House, sure. Sports Bar, no way!

My Rumble 40 is only really loud when I've got the gain all the way up, but then you won't be clean.

Wherz Linnin?

TBH I thought I'd see him tonight.
The local bar was full of musicians, coming to support a covers band.

and that bar is almost literally halfway between my place & his

OMG... I GOT ONE!!! I GOT A 112 CAB!!! OMG OMG OMG....

Yes.. color me excited like a little girl with a spanking new pony! (okay, maybe we don't do little girls and spanking ponies metaphors in the the future.) But hey... I'm excited. I actually just found... and immediately ordered a Fender Rumble 112 v3 cab from Guitar Center's Used 'lot'... coming from somewhere near Minneapolis Minnesota. And it's supposedly in EXCELLENT condition, which they describe as, "...shows little to no signs of use. Free from blemishes, scratches, and user wear." Having it delivered to my 'local' store (about 30 miles away) so I can pick it up without having to worry about missing a delivery while I'm at work. (Isn't it funny how quickly we get used to 'Prime' guaranteed delivery dates?) It should arrive some time middle of next week. Have I mentioned that I'M EXCITED!!

Some of you may remember me from just about this time last year, when I stepped in for the first time with some question about everyone's preferences regarding heads and cab sizes, mixing drivers and so forth. I got a lot of good replies with lots of useful information, and was just about ready to pull the trigger then... but life intruded... like it does... and the whole Rumble minor/Mega-Stack project got put on hold. Well, long story short (TOO LATE!)... I'm back and ready to go again! It's been a great summer, overtime wise, and I'm actually in a much better position to purchase than I was last year. But wait... what's this?? Fender DISCONTINUED the bottom half of my dream stack in the meantime?!? How dare they!!!

But hey, I get it. Despite the love displayed here, the sales weren't there and they had to trim the line, just like any smart manufacturer will do. Of course I learned about all of this in the last few weeks as I've been trying to catch up on reading this forum from where I left off. So I was just about ready to make some compromises and purchase a stack that, while would have been amazing regardless... would also have been waayyy overkill for my needs. But I have been looking for that 'last 112' remaining, just in case... just in case. And so yes, I'm sure you can understand my enthusiasm tonight upon finding that cab. Now I can comfortably order the 200 Head and a 210 cab to top the 112. Thus will be born... my minor/Mega Rumble Stack!

Alas, I will say forgive me if I've interrupted any ongoing discussions and/or flame wars. (Remember all that business about real watts vs. calibration watts vs whatever-that-one-guy-was-yammering-on-about watts? Jeez... what a tedious few dozen pages that was!) But I just wanted to chime in because, well, I'm sure you all understand why completely. Can't wait till next week when everything arrives. Once it's all set up, of course I'll post some pics. Looking forward to getting a number. Are we still doing numbers?!?

C'ya! Phat...
Be aware... this is GC you’re dealing with. I py
Hmm. It's the Rumble Club. I think it'll be OK.:smug:
Fender is associated with pioneering electric music. You know the adage, “coming full circle”. Fender is a rock solid company and that is what I have discovered. Rumble on!
