First Full Build: Drop in a pond ripple effect

[chinjazz]

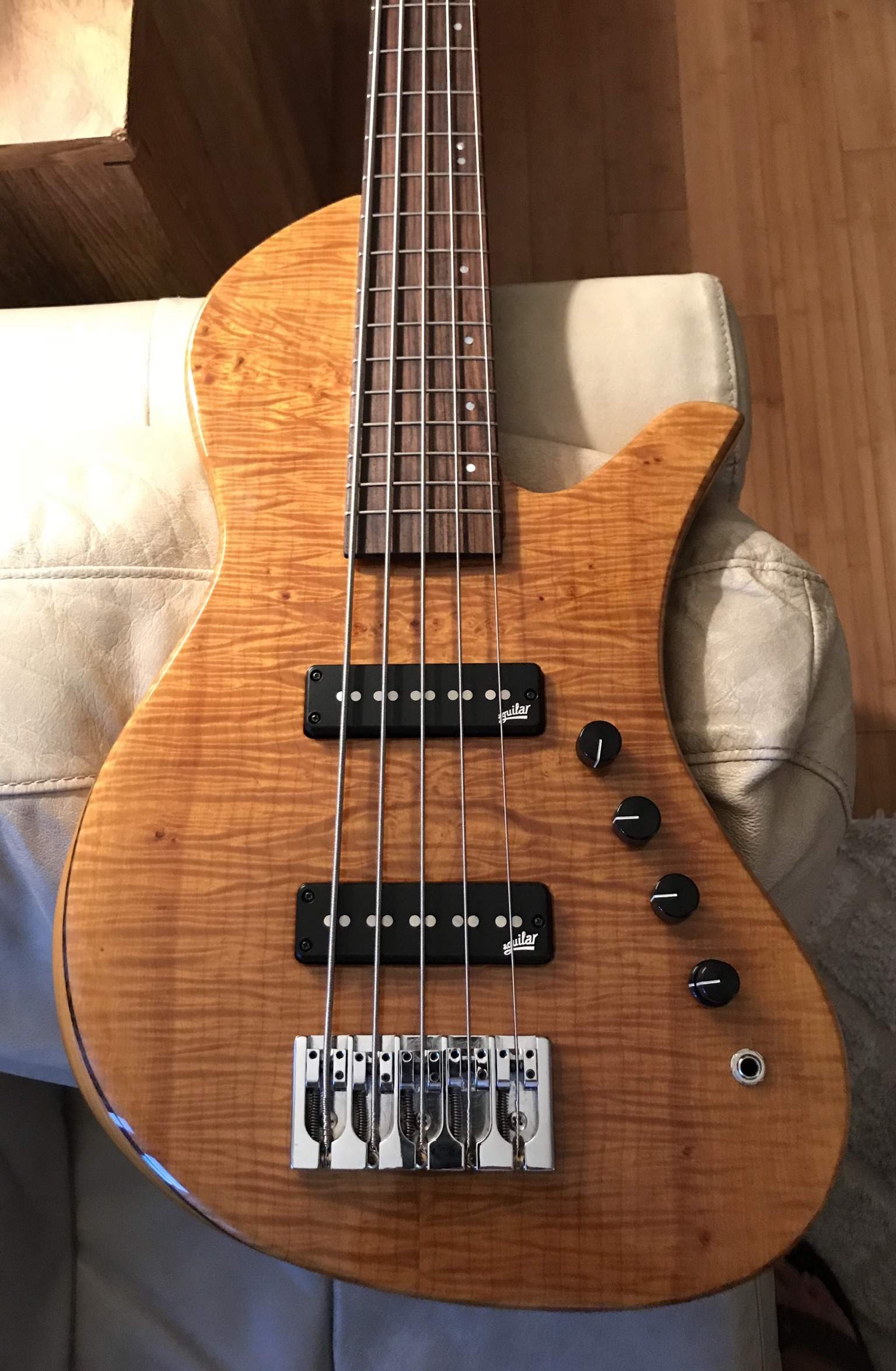

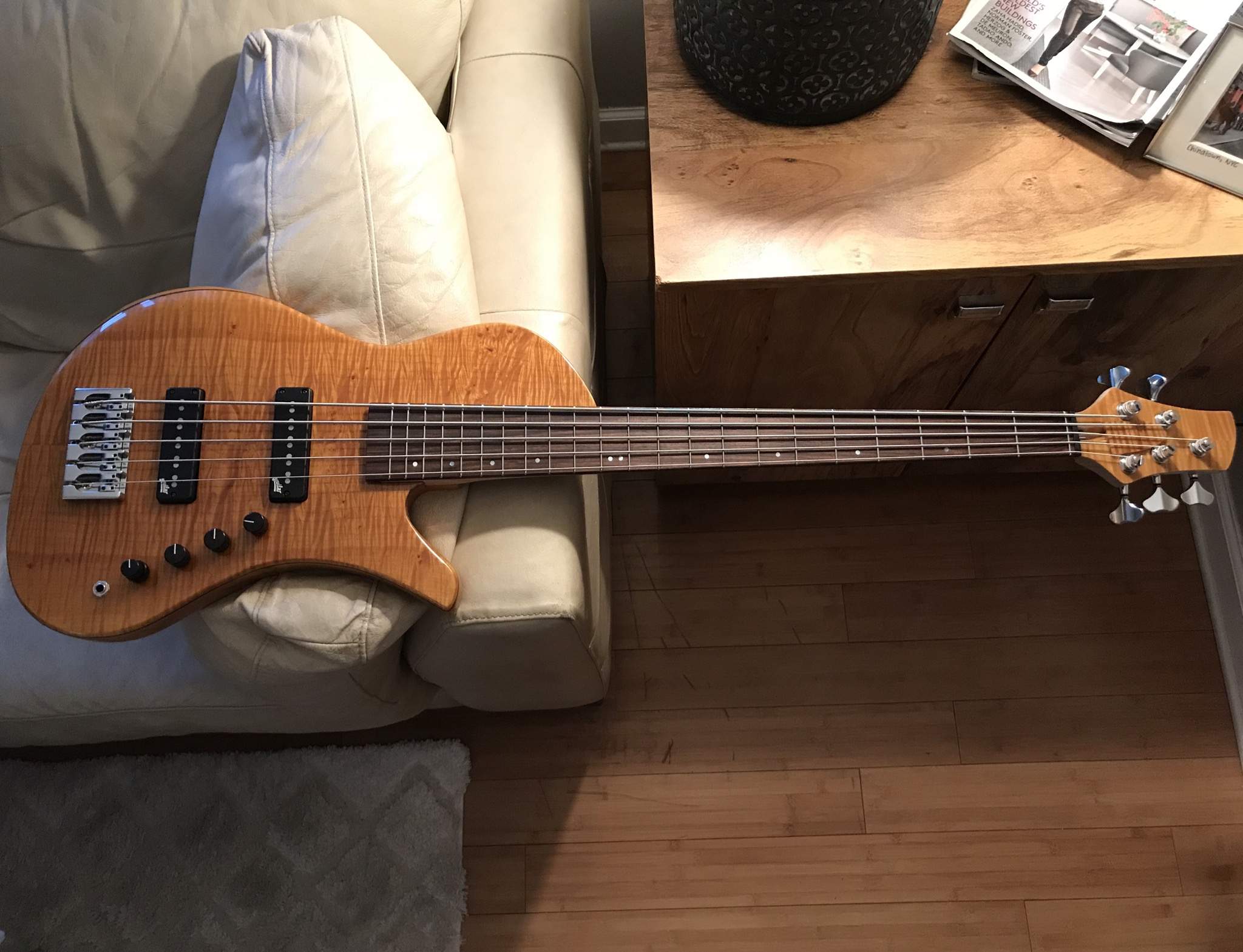

Boom, it’s finally a done bass!

I’ve got the action down low for a pretty impressive bark and growl. I’m still working on the truss rod cover (needs a little thinning).

I’d like to post a video if time permits.

I learned a lot this year, and looking forward to working on building more!

Thanks for all your feedback and support!!!

Cheers!!!



[Reedt2000]

Looks awesome, love to hear it!

Fantastic work



[Lonnybass]

Wow!



[JoeDeF]

Very nice bass! Congratulations!

I like the look of the finish. I lost track of your finishing process after you had the epoxy issues, and sanded/scraped that off. How did you end up finishing the bass?



[chinjazz]

Very nice bass! Congratulations!

I like the look of the finish. I lost track of your finishing process after you had the epoxy issues, and sanded/scraped that off. How did you end up finishing the bass?

A bunch of what I ended up doing was detailed a bit over on the epic water based finishing thread.

I started off with a sealer of West Systems epoxy, then over about a month or two layered on 25 coats of Minwax Waterbased Oil modified Poly. It has a natural darker amber tint. I also went thru having a Harbor Freight turbine kit (the grey one), and didn’t like it so I bought a small compressor and a Husky HVLP gun, and gained the control I felt better with. I experimented with a number of sanding/buffing techniques but ended up wet sanding up thru the many micro meshes.

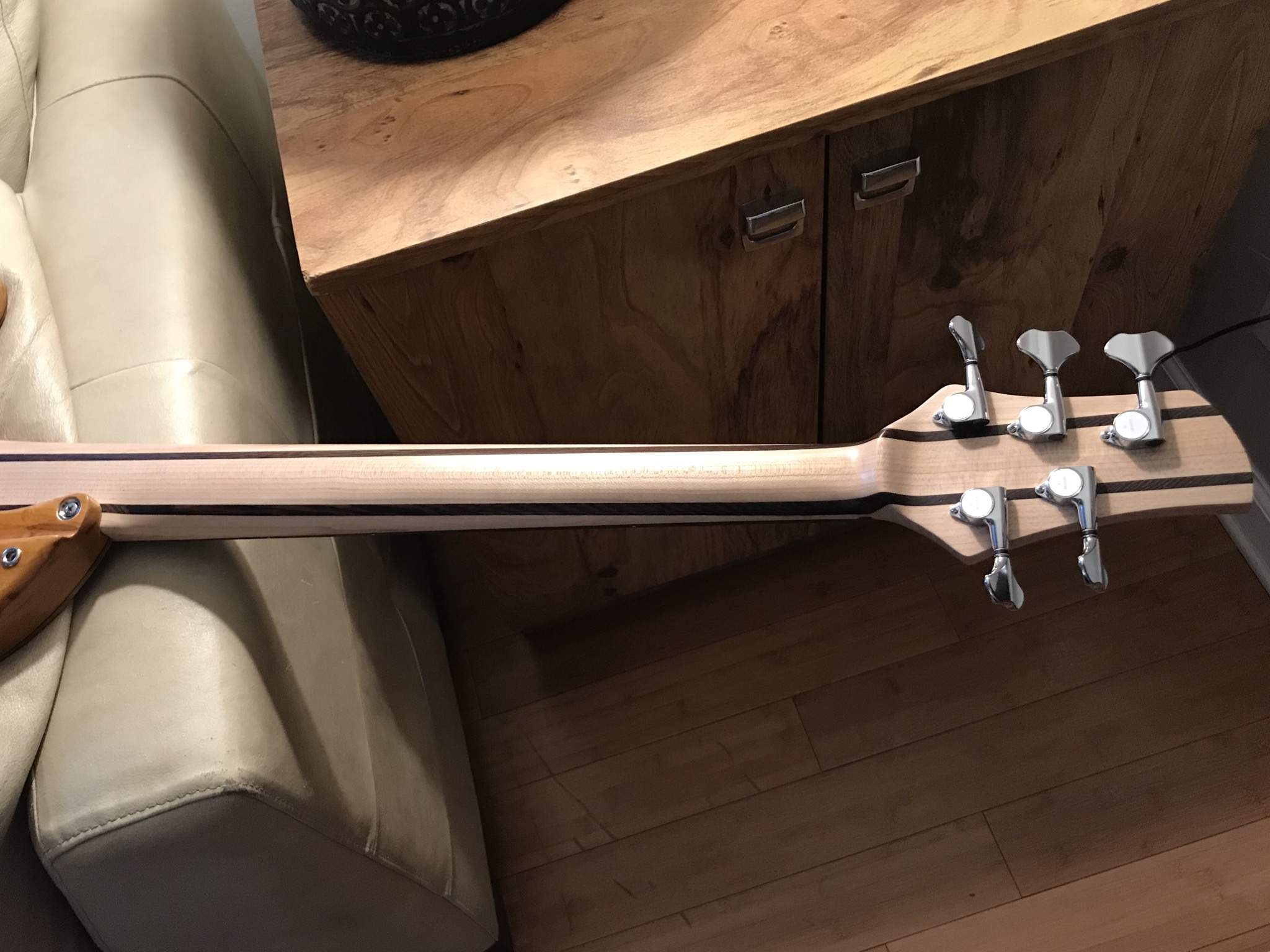

The neck was finished with 1 rattle can - 10 coats of Varathane ultimate gloss poly water based.

I’ll definitely try this in a regular can in my spray gun next time. There’s also the ProFinisher that is on my list to try.

Thanks for the compliments and asking



[Gary_M]

Bravo!!!



[Beej]

Really nice work @chinjazz! Thanks for sharing your in depth process...



[I-Am-The-Slime]



[Gilmourisgod]

Very nice work, and the finish looks great! Steep learning curve on the WB finishes, but you nailed it.



[T_Bone_TL]

Spiffy!

Can you do a shot of the back from further away?

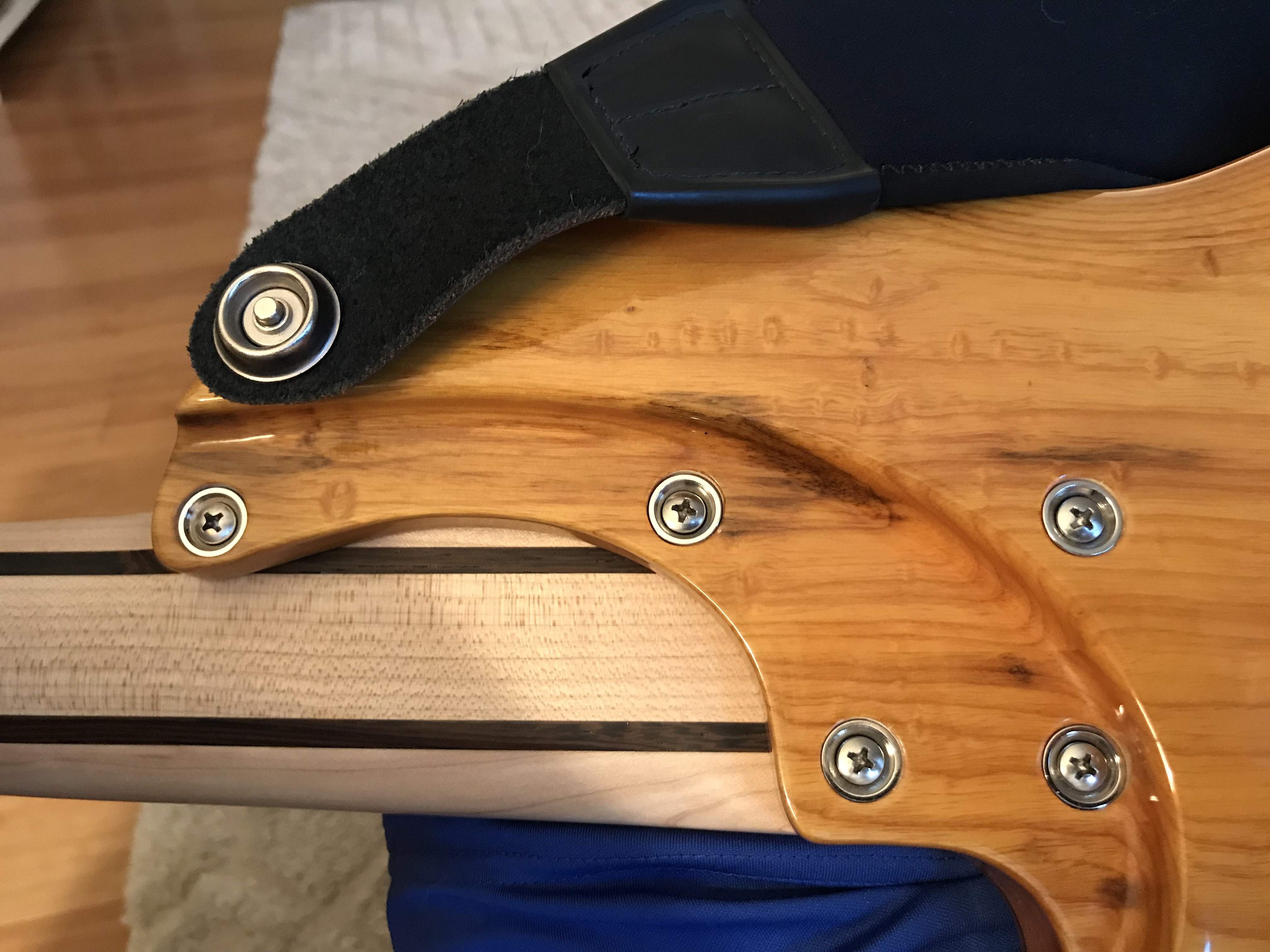

I really liked the way the sculpted area at the neck attachment was looking way back when, and the shot of it here is a bit too close in to give the full effect on the finished instrument.



[Jisch]

Nicely done!



[Joshua]

Outstanding!



[chinjazz]

Spiffy!

Can you do a shot of the back from further away?

I really liked the way the sculpted area at the neck attachment was looking way back when, and the shot of it here is a bit too close in to give the full effect on the finished instrument.

Thanks!

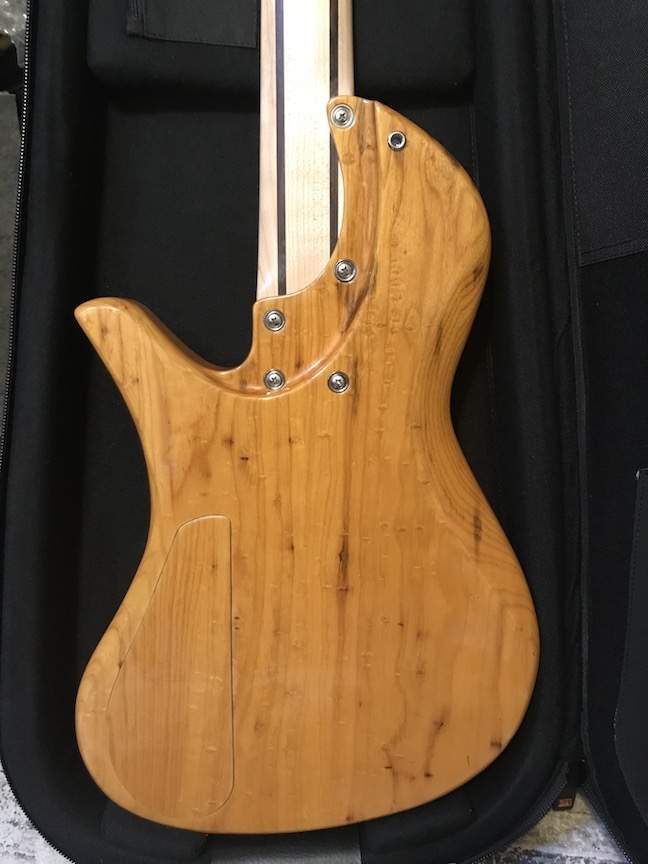

Absolutely, T_Bone_TL:

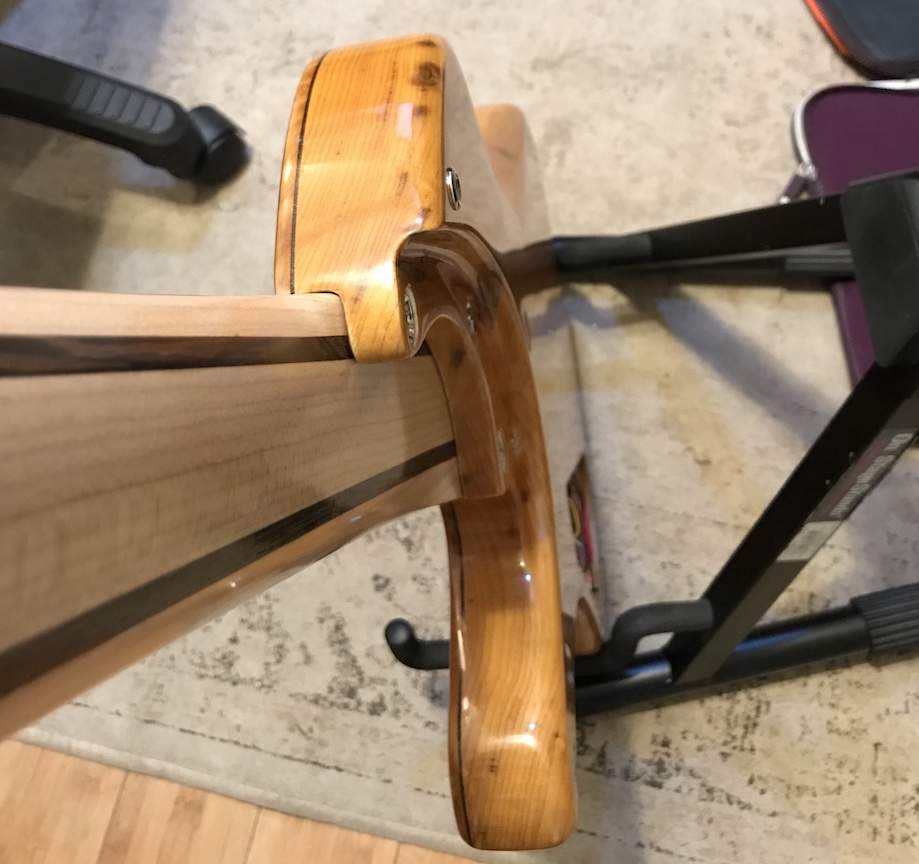

Then here's a top view for a different angle:

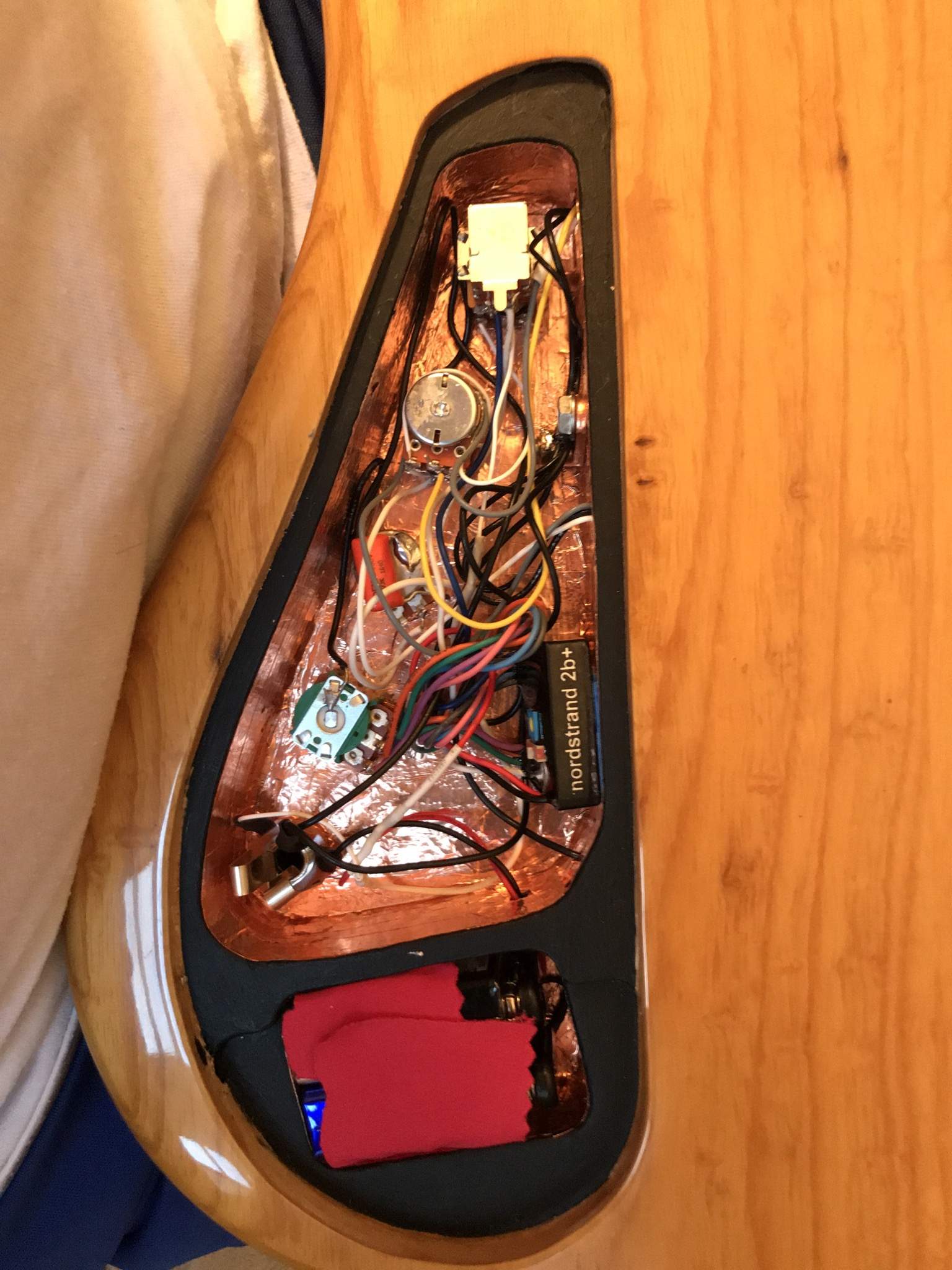

I'm fine tuning a few parts here and there currently (like the control cavity thickness).



[NitroBass]

Looks great Adam! Nice work on the veneer running around the edge... looks sharp!



[chinjazz]

Looks great Adam! Nice work on the veneer running around the edge... looks sharp!

Thanks Chuck!

It plays real nice and sounds great.

I’ve been looking to make a video demo but been so busy at work and making a 2nd neck (and all the other life things).
