G&L Club Part 7

#33,862
N-Bass84 said:

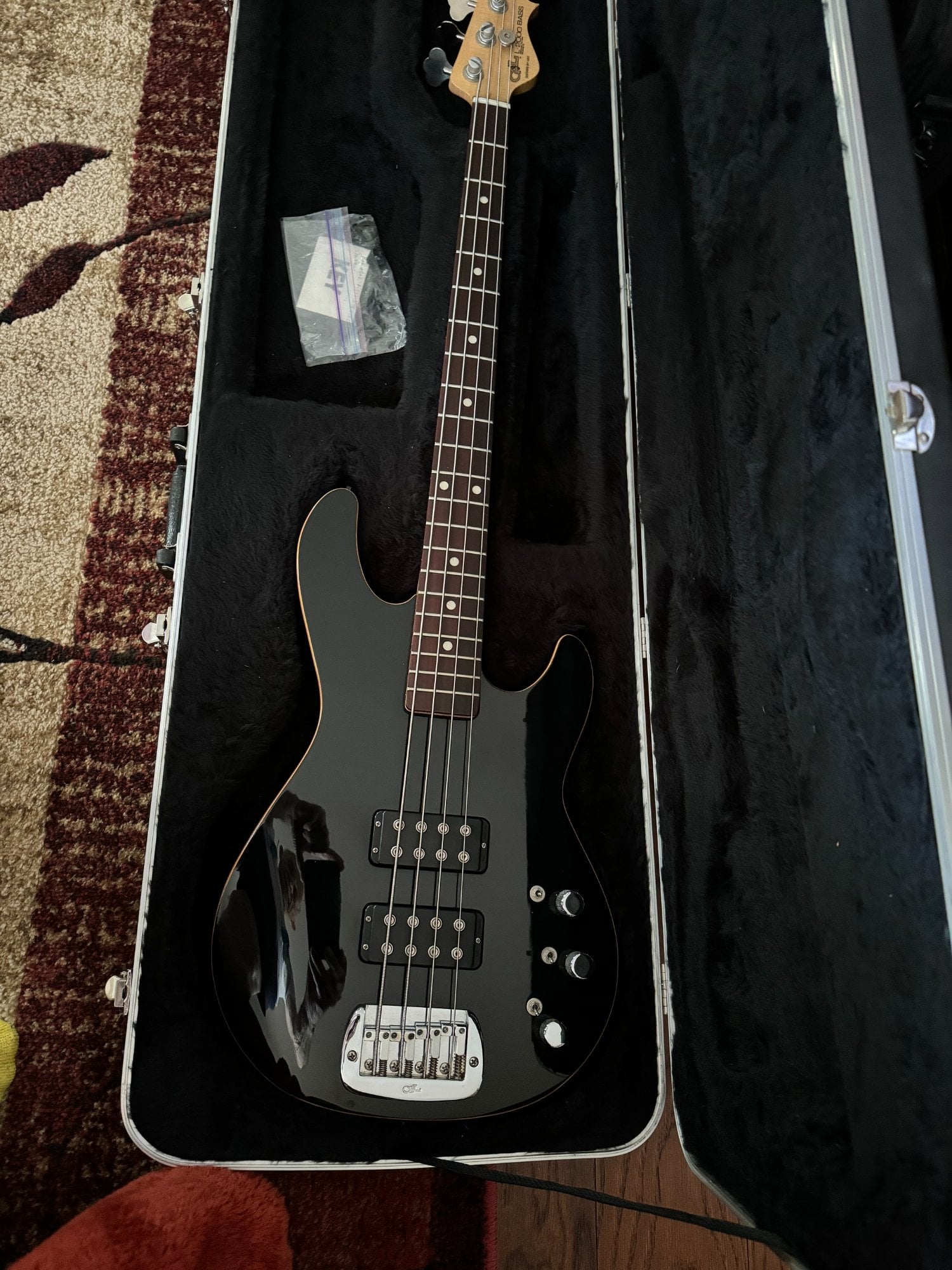

Hallo, das ist mein wunderschöner Fullerton L2K aus dem Jahr 2012.

View attachment 7503437
View attachment 7503438

Now to my question. I love my bass, but I'm always thinking of installing the typical controlplate to this bass. Im from GER and it's extremely difficult to find G&L parts around. Do you know a shop that maybe selbst hardware like this sometimes?
Click to expand...
Beautiful bass, and with my favorite neck specs! Just my opinion, but a chrome plate would greatly cheapen the look.

  • Like
Reactions: Crispus and MrB64
#33,864
-Boscoe- said:

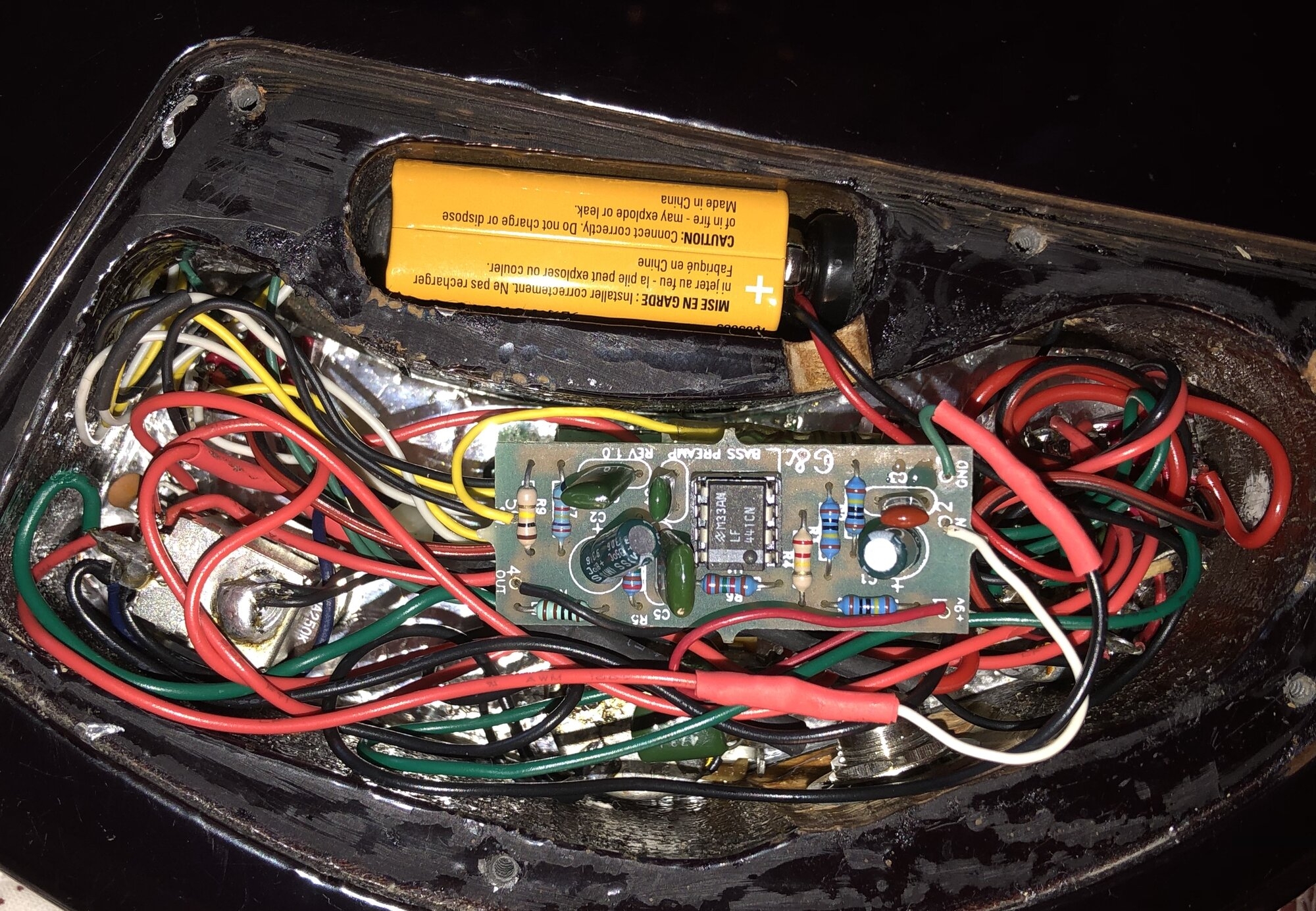

I've started working on an all-in-one PCB solution for L-2000/L-2500/ASAT/etc electronics.
Ideally I'd be able to make one PCB that would work with the Tributes, Fullerton Deluxe, and CLF batwing models. I have a Tribute L2K and a CLF batwing is on its way to me. Hopefully they're the same dimensions, if not I'll probably prioritize making a CLF version first.

Anyhow, here would be the features:
* Incorporates the Boscoe Music GLL2K preamp I put out late last year with LM4250 opamp
* Normal volume / treble / bass potentiometers
* Normal neck/both/bridge pickup selector
* Normal passive/active/bright preamp selector
* K-mod serial/split/parallel coil selector
* Screw terminals for wire attachments

A question I have for the community is this - what kind of split coil is preferred for the K-mod? Inner coils like a P-bass or outer coils like a Jazz? If I can figure it out I may incorporate an internal switch so that folks can have their choice, but most likely it'll be hardwired one or the other.

Any other features wanted? I know some folks have wanted a pre-Paul Gagon 80s style L2K preamp but unless someone can provide a schematic or send me one to trace that's probably not going to happen.

Note that I probably will not have the room to use a push-pull and I will not incorporate any additional external switches as I want it to be a drop-in electronics set - just provide pickups.
Click to expand...
I have done a bunch of modding to my L2500 over the last 20 years, the first of which was adding a 4th switch for Inner/Outer coils.
Background is that my early L2500 came with Parallel and Series Split-Coil wiring (OMG) only. No regular ol' Series. I believe this was how the late 80's- mid-90's L2000's also came wired. It wasn't until about '98 that OMG was removed in lieu of regular ol' Series.
Anyway, my bass also came wired with the OMG coils in a non-hum-cancelling configuration. It was both bridge-side coils or both neck-side coils (I don't remember which), so when in use, there was double the single coil hum. Needless to say, I never used it.

About 20 years ago, I read on the G&L forums that this was an error, and the fix was a simple one-solder joint away. So I grabbed one of the pickup wires and made the repair. Turned out that whichever configuration they began with and whichever pickup wire I moved, I modded the bass to Inner Coils in OMG mode.
This definitely made the bass a "slap machine" and gave it an almost Warwick Thumb-like tone.
About 10 years later, I added the 4th toggle to switch between inner and outer coils. The outer coils sound more like a traditional 70's JB, even though the neck pickup is slightly closer to the bridge than a JB neck pickup (bridge coil of the bridge pickup is in the 70's position).

Then, a couple years later, I actually added a push-pull volume pot that bypasses the OMG caps and gave me regular ol' Series wiring.
And a couple years after that, I fully removed the OMG caps because I prefer the clarity and nuance of regular single coils.

So to answer your question, I actually prefer outer (JB) coils over the inners, but the inners do sound pretty sick when slapped.
Perhaps a push-pull volume for that wouldn't be such a bad idea. If I hadn't drilled a 4th hole for the toggle, I probably would have settled for that rather than Series. I prefer Parallel and SC modes altogether.
And yes, with all the extra wiring I added, my L2500's cavity is a rat's nest for sure…

Last edited:
  • Like
Reactions: tindrum, TomB, jglunt and 1 other person
#33,865
Big Louzer said:
Anyway, my bass also came wired with the OMG coils in a non-hum-cancelling configuration. It was both bridge-side coils or both neck-side coils (I don't remember which), so when in use, there was double the single coil hum. Needless to say, I never used it.

About 20 years ago, I read on the G&L forums that this was an error, and the fix was a simple one-solder joint away. So I grabbed one of the pickup wires and made the repair. Turned out that whichever configuration they began with and whichever pickup wire I moved, I modded the bass to Inner Coils in OMG mode.
Click to expand...
Not an error. Just a poor design choice. They were using the bridge-side coil on both pickups for the full range coil.

I have my '89 L-2000 so that the inner coils are the full-range coils on the OMG mode.

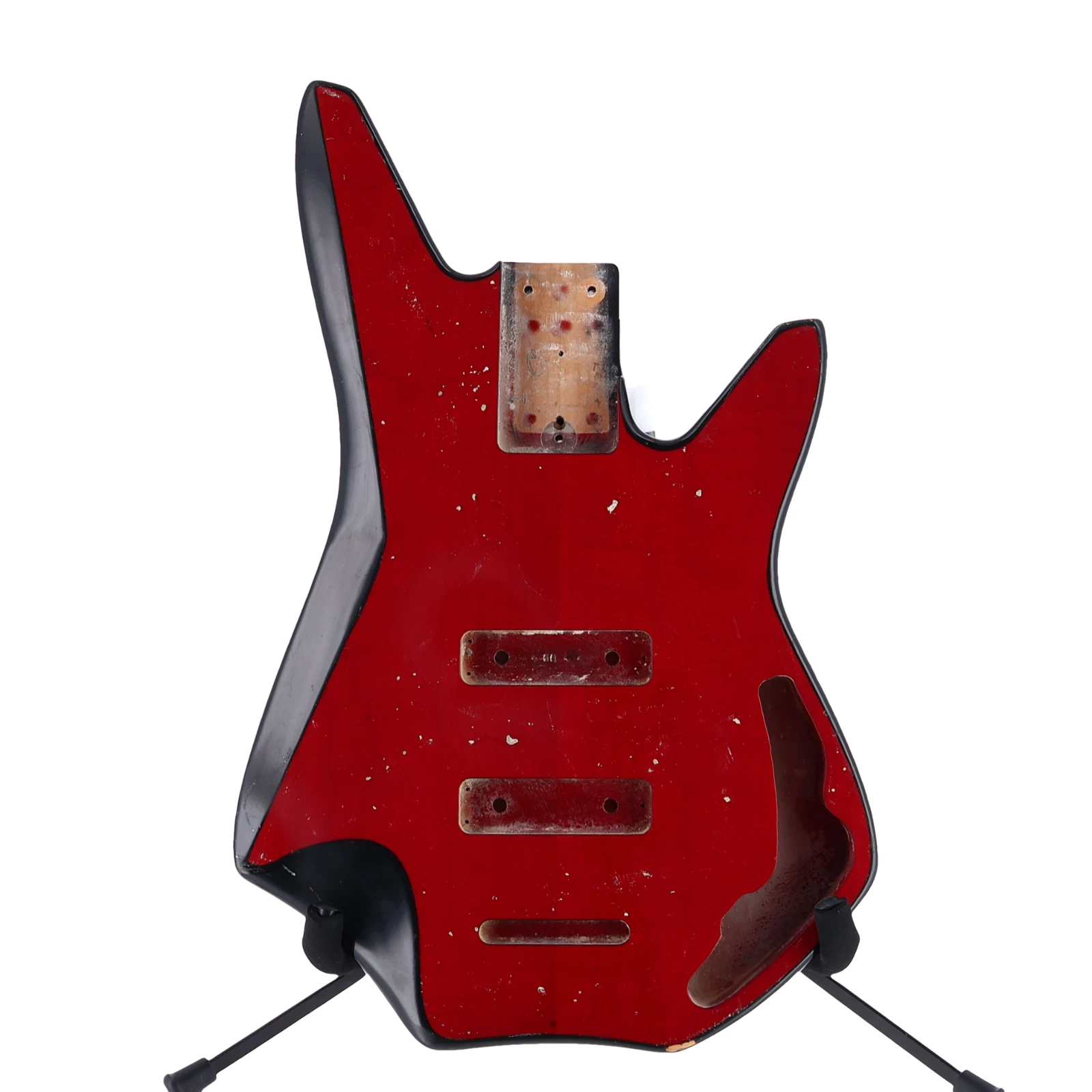

I also had a non-OMG L-2000, which is the one that I tried all sorts of pickup wiring configs on. Here's a fun one: neck parallel + bridge OMG… I always thought it would be cool to use the M-2000 body with L-2000 guts and use the holes for the preamp knobs to put in some rotary switches for various pickup wiring combinations… but that was a rabbit hole I couldn't afford.

  • Like
Reactions: -Boscoe-
#33,867
As an eBay Associate, TalkBass may earn a commission from qualifying purchases.
  • Like
Reactions: DWA2469, tindrum, Glazenn and 2 others
#33,874
So Anyway, wasn't looking for another bass... OK, who's kidding who.... but this JB2 Tribute came up locally for what I thought was a fair price.
I've owned a number of American and Tribute G&L's and found them all to be very good basses.
Set up was perfect for me and the intonation was correct. Nice jazz growl.
I'll use it at a gig I've got with a piano crooner in a couple of weeks.

But I have to admit my buying mechanism is a little off. I usually use a 1/2 of retail for a used bass as a guide, as that's what I use to sell something.
But now that there are no new G&L's, I'm a little lost. :rolleyes:


  • Like
Reactions: Chrome Dome, Glazenn and rok51
#33,875
I think the days of used prices being half of new prices are largely over. You might stumble across such a deal, but mostly they're higher than that. That's a great looking JB-2. I've had a pair of those Tribbies through the years. I now have a couple friends who are rocking them. Note that if you ever decide to change pickups, you cannot use a regular set of jass bass pickups. The size dictates you have to buy two neck pickups. (This is true only of Tribute JB-2 models. The USA JB-2s use a regular-sized jazz bass set). I'm not sure what two neck pickups does to hum cancellation when they're both turned up all the way. Have fun!

  • Like
Reactions: Glazenn and Hurricane Jimmie
#33,876
jglunt said:
I think the days of used prices being half of new prices are largely over. You might stumble across such a deal, but mostly they're higher than that. That's a great looking JB-2. I've had a pair of those Tribbies through the years. I now have a couple friends who are rocking them. Note that if you ever decide to change pickups, you cannot use a regular set of jass bass pickups. The size dictates you have to buy two neck pickups. (This is true only of Tribute JB-2 models. The USA JB-2s use a regular-sized jazz bass set). I'm not sure what two neck pickups does to hum cancellation when they're both turned up all the way. Have fun!
Click to expand...
Thanks for the information! The previous owner took the bridge volume off and replaced it with a 3-way toggle switch. He included the original part, but I doubt if I change it back. Changing out parts is too much like work... and I'm pretty lazy. Didn't notice any hum. The Fender Jazz I owned years ago hummed like crazy.

The 1/2 price of retail is what I use when I sell something. I usually hold on to a bass long enough to where the retail price increases and I end up close to breaking even.

  • Like
Reactions: jglunt
