GK MB115 - How to remove amp head?

[RattleSnack]

My GK MB115 had an accident. I had it tilted, leaning on the wall, vibrations of the wooden floor moved it and it fell on its back. Now, power input jack is damaged and I want service guy to check it, but would like to avoid carrying whole combo. If I could get amp out, it would make my life easier.
The long story short: is it possible to remove amp and how is it done?



[RattleSnack]

Bump - anyone?



[Thornton Davis]

Looks like it's a MB115 Gen 1 combo. The amp is removable but I'd suggest that you leave it in place and take the entire unit to the tech to have it checked out. That way he can make sure that all of the components in it are working correctly and to spec.

If you're unable to send the entire combo to a tech, reach out to GK through their website and ask them for assistance on how to remove the amp section from the cabinet.

TD



[Bill Staudt]

There are two bolts on each side of the cabinet that hold the amp section in place. There is also double sided tape, so you'll have to use something to pry it out once the bolts are removed. You will need to remove the 15" driver to unplug it and the tweeter so you can fish the cabled through the access hole in the cab to the amp chassis.



[tadawson]

I worked on one a bit ago, and there was enough lead length to get the amp back far enough to disconnect on that end, without pulling the grill and drivers.



[RattleSnack]

Thanks everyone! I already tried removing 4 screws, but amp wouldn't budge, so I thought there was another hidden screw.
Double sided tape shouldn't be a problem, I will let you know if I was successfull.



[RattleSnack]

Peace of cake - double sided tape is very strong, but with some screwdriver wiggling and force, I managed to remove the amp.

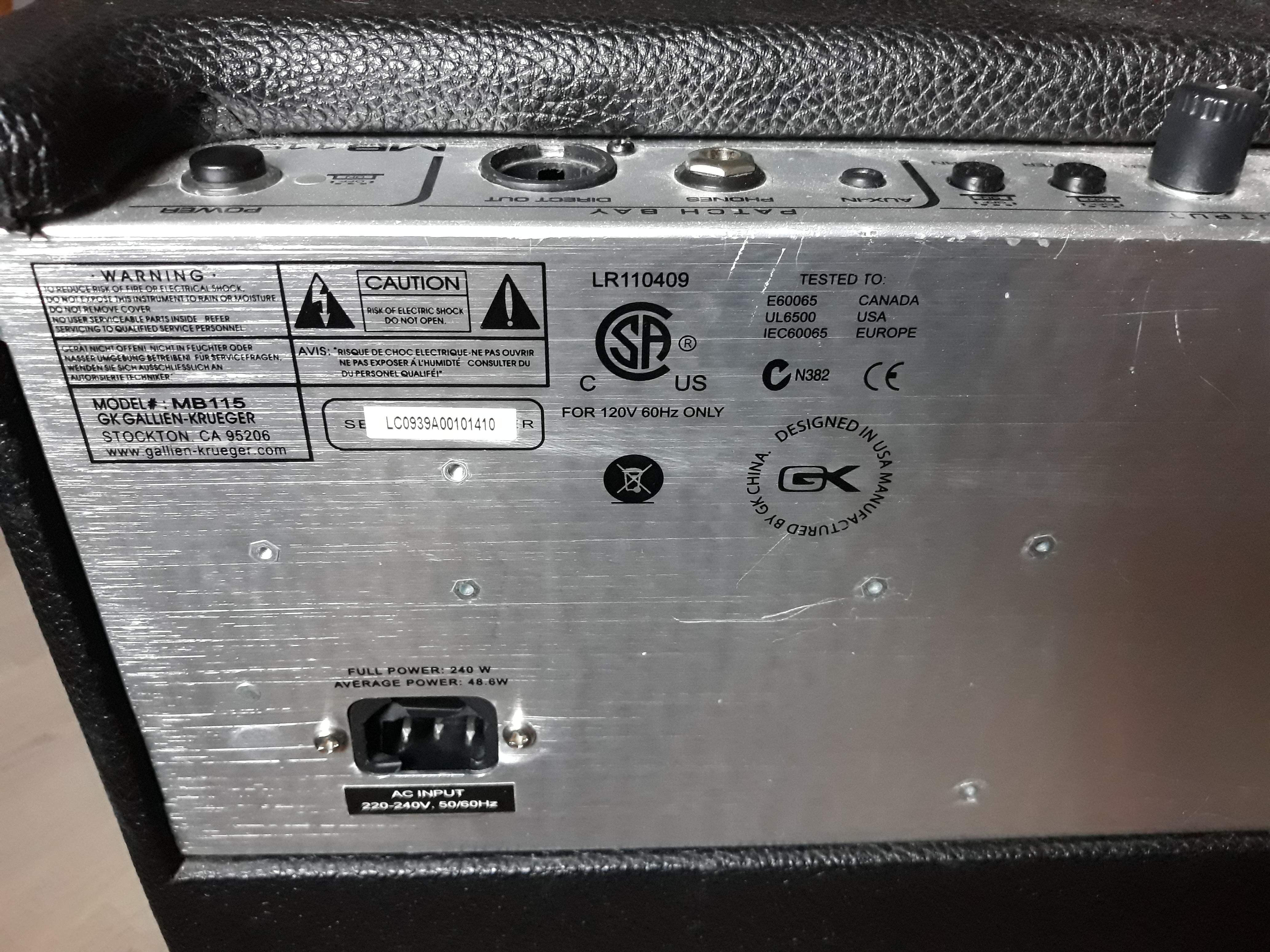

Here are couple of pics, in case someone needs help like I did.



[Stumbo]

Since you have the amp out, you may want to try and straighten the plug out.



[RattleSnack]

Since you have the amp out, you may want to try and straighten the plug out.

Yup, I fixed it and amp works great once again
