GK rails in a pedal?

#922
DuctTapeRiot said:
Amazing, thanks for the quick reply, I have found some on Mouser (along with the transformer for the TransBoost) so am good to go!!
Click to expand...

Cool! Let us know how your pedal builds go.

I don't have a Rails pedal ( I asked John not to send me one, because I didn't want it to influence a design that I am working on:laugh:). But I just love the Transboost pedal that he made for me.

-Frank

  • Like
Reactions: ryansalmond
#923
My Rails pedal has been rock solid since its tune-up. It's now the heart of my pedalboard. I never turn it off, and it just sweetens up any dirt I put before it. Just a reminder to try this last in the chain if you stack dirt. This thing can definitely put some beef back into a bright fuzz that cuts, but loses bass. I'll have my first test in the mix Wednesday, but it looks promising so far.

  • Like
Reactions: boomertech
#924
kleinenenten said:
My Rails pedal has been rock solid since its tune-up. It's now the heart of my pedalboard. I never turn it off, and it just sweetens up any dirt I put before it. Just a reminder to try this last in the chain if you stack dirt. This thing can definitely put some beef back into a bright fuzz that cuts, but loses bass. I'll have my first test in the mix Wednesday, but it looks promising so far.
Click to expand...

Thanks for the feedback!

-Frank

#926
kleinenenten said:
Verdict is in - Rails pedal helped pretty much everything cut the mix better. All would have been perfect, but the guitarists kept creeping up the volume. Oh well, it just speaks to the Rails pedal that even at significantly lower volume than the guitars I could still hear myself fairly well. Good stuff!
Click to expand...


I keep trying to take it off my main board, I can't. It doe snot sound like any other dirt pedal. It's just different. Can somebody make a version that fits in a 1590a with SMD and a toggle switch for the boost? :)

  • Like
Reactions: Dominic DeCosa
#928
kleinenenten said:
I'd just love one with standard pedal orientation, maybe top jacks? I'd take muff-sized enclosure and top jacks, too! Basically, the only drawback for me is how wide the dang thing is. It's never leaving the board, it's now my "clean" sound.
Click to expand...

Well, 125B with all top jacks would more than work. With two foot switches at the edges, like the Chase Bliss pedals.

#930
If you're like me, and don't think of the obvious stuff until much later than you should, here's something to consider if you're using the Rails pedal last in a stacked chain of dirt. Up the "Boost" to cut. I upped mine recently, and I should be able to cut through with just about any fuzz now. The mix will tell on Wednesday, but it certainly seemed like a big difference in ALL my dirt when I upped the boost. Just FYI. Keep rocking!

#932
leomilani said:

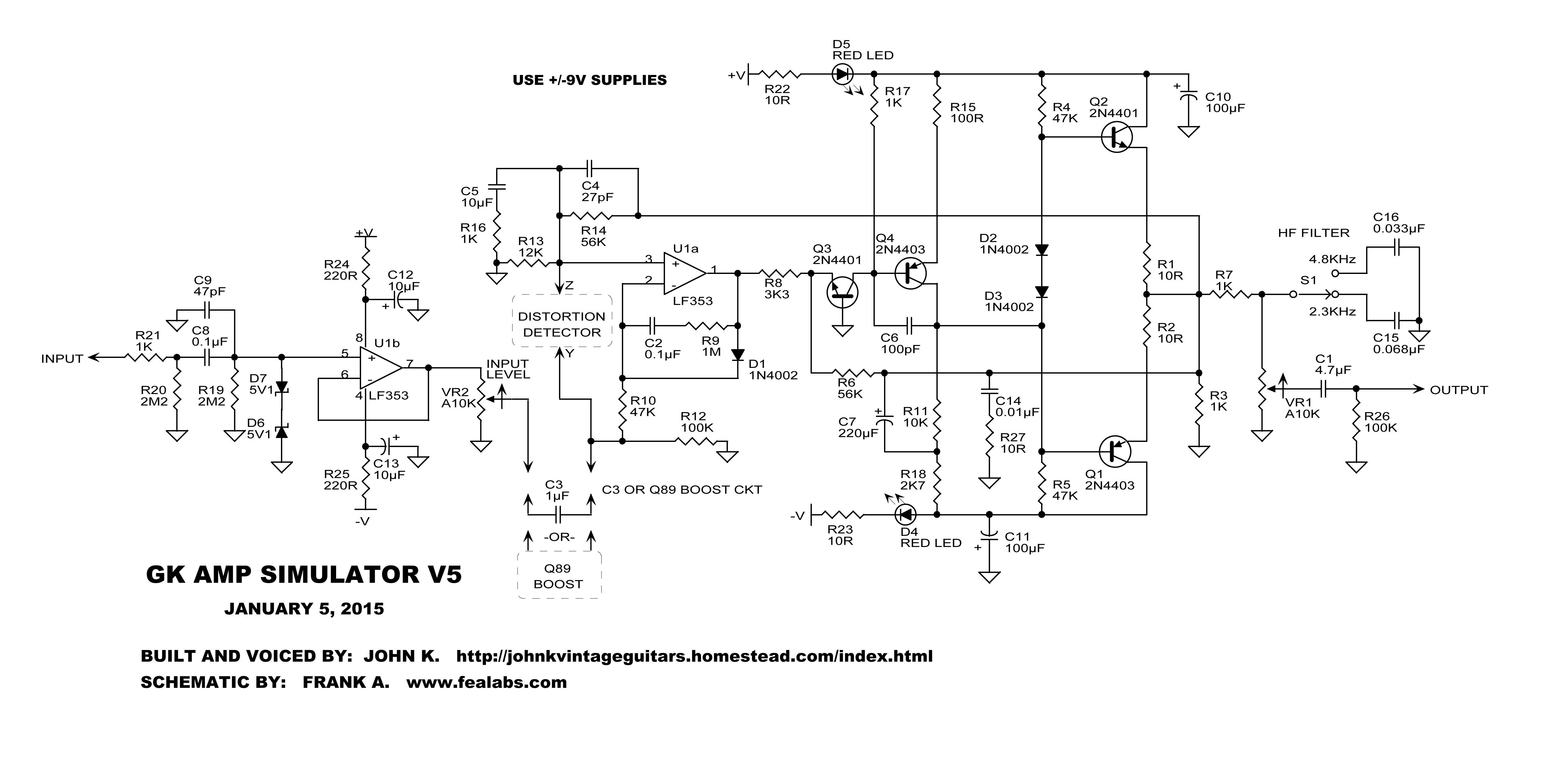

Guys, I'm having a hard time finding the final v5 schematics. The PDF file isn't on johnk site anymore... :(
Am I too late to this party?

Thx!
Click to expand...

is this it?


Attachments

  • 00001-GK_V5_Complete_.jpg
    414 KB · Views: 328
  • Like
Reactions: leomilani
#936
After weeks of being lost in the mix, I tweaked my Rails Pedal again tonight. Found the tone! Just a tiny bit of dirt, but so much more present in the mix than the other times I've used more dirt. Guess I just need to dial it back. Anyway, here are the settings:

Input - Noon
Output - 2:30
Boost - 7:30
No Hi-Cut
Boost engaged

Sounds great, just a bit of dirt. I ran JohnK's Gamma Bass OD in front for more dirt (still not a whole lot, comparatively), and the combo really killed! Guess that JohnK guy knows his stuff...

  • Like
Reactions: ryansalmond, aphexafx, boomertech and 1 other person
#937

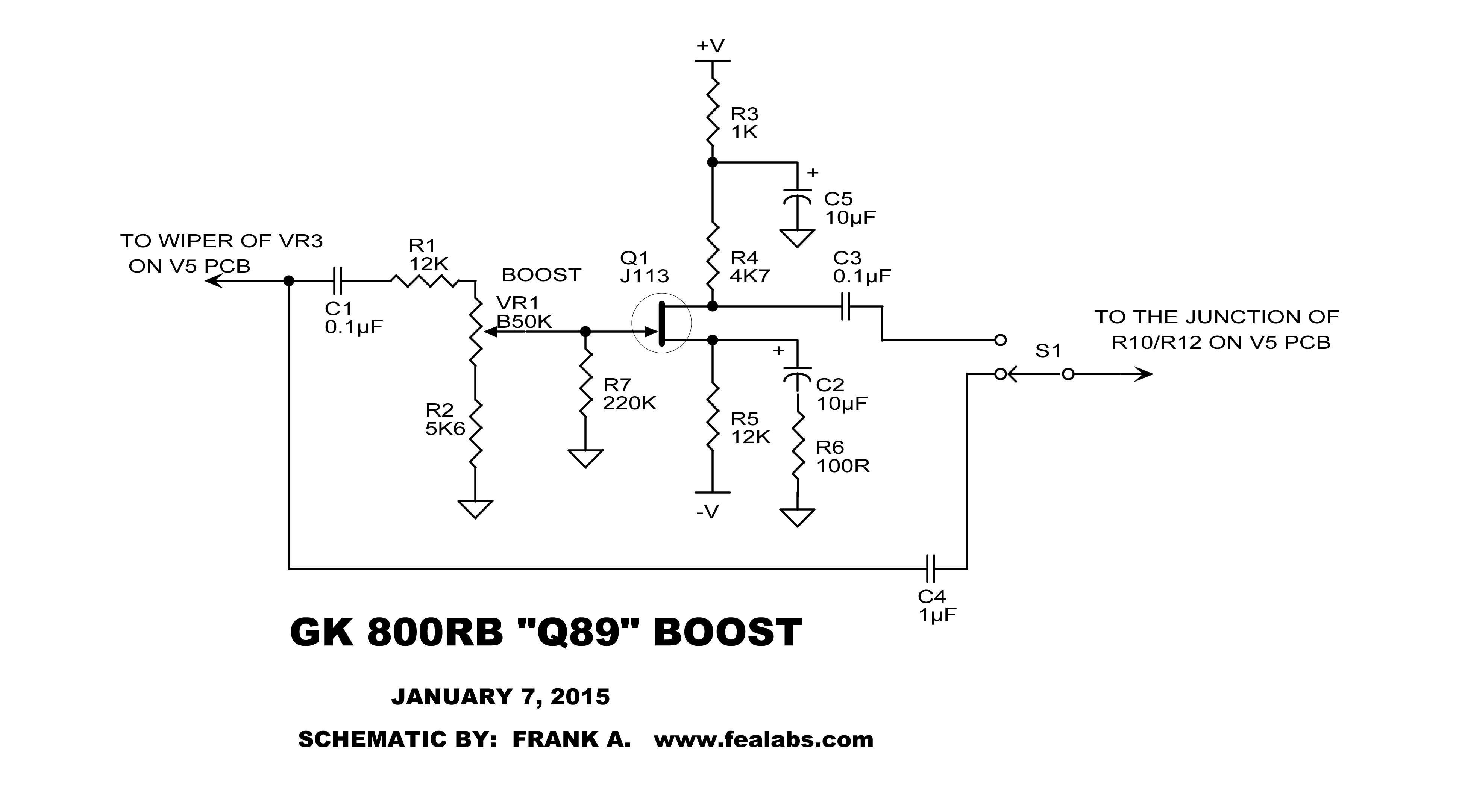

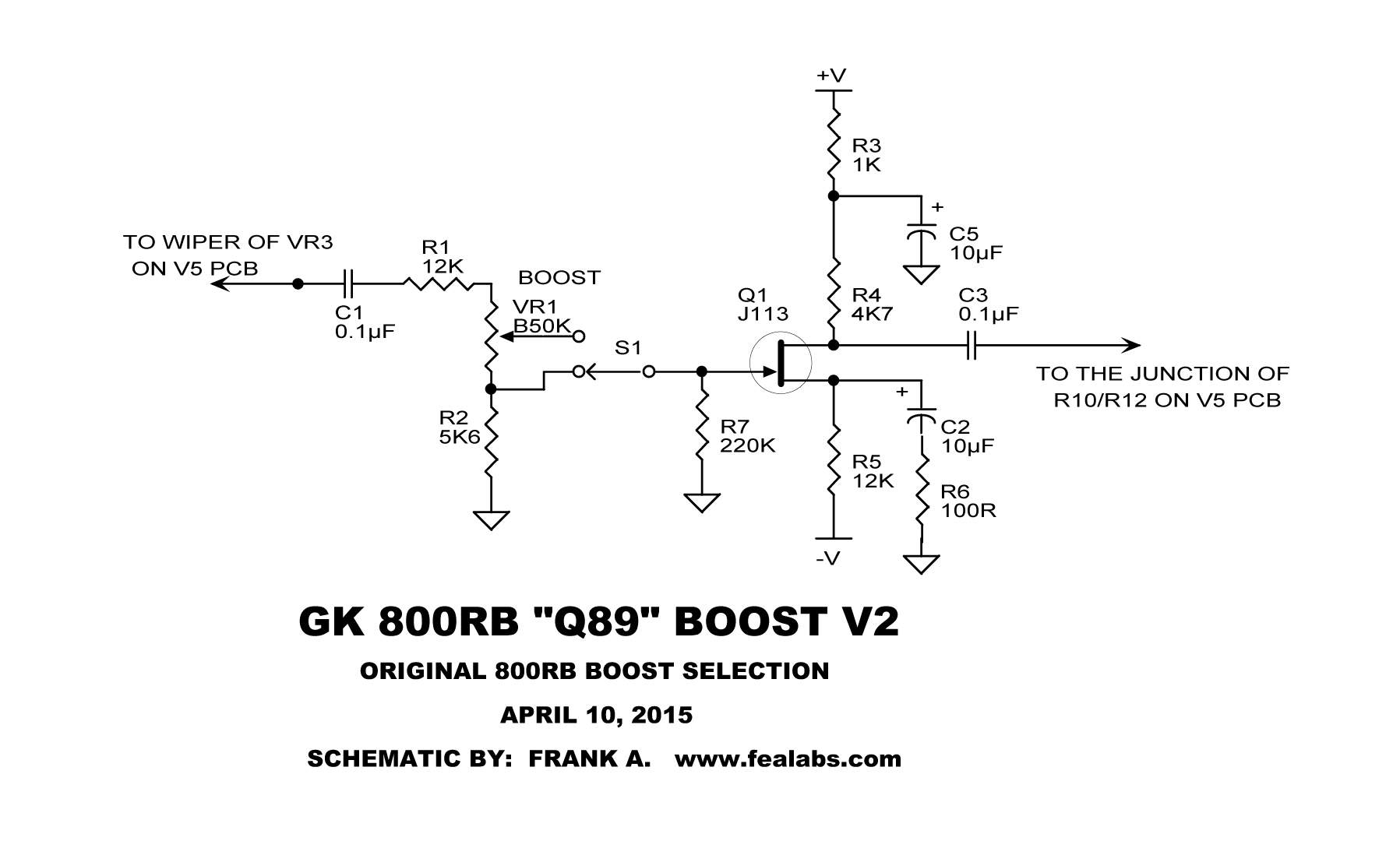

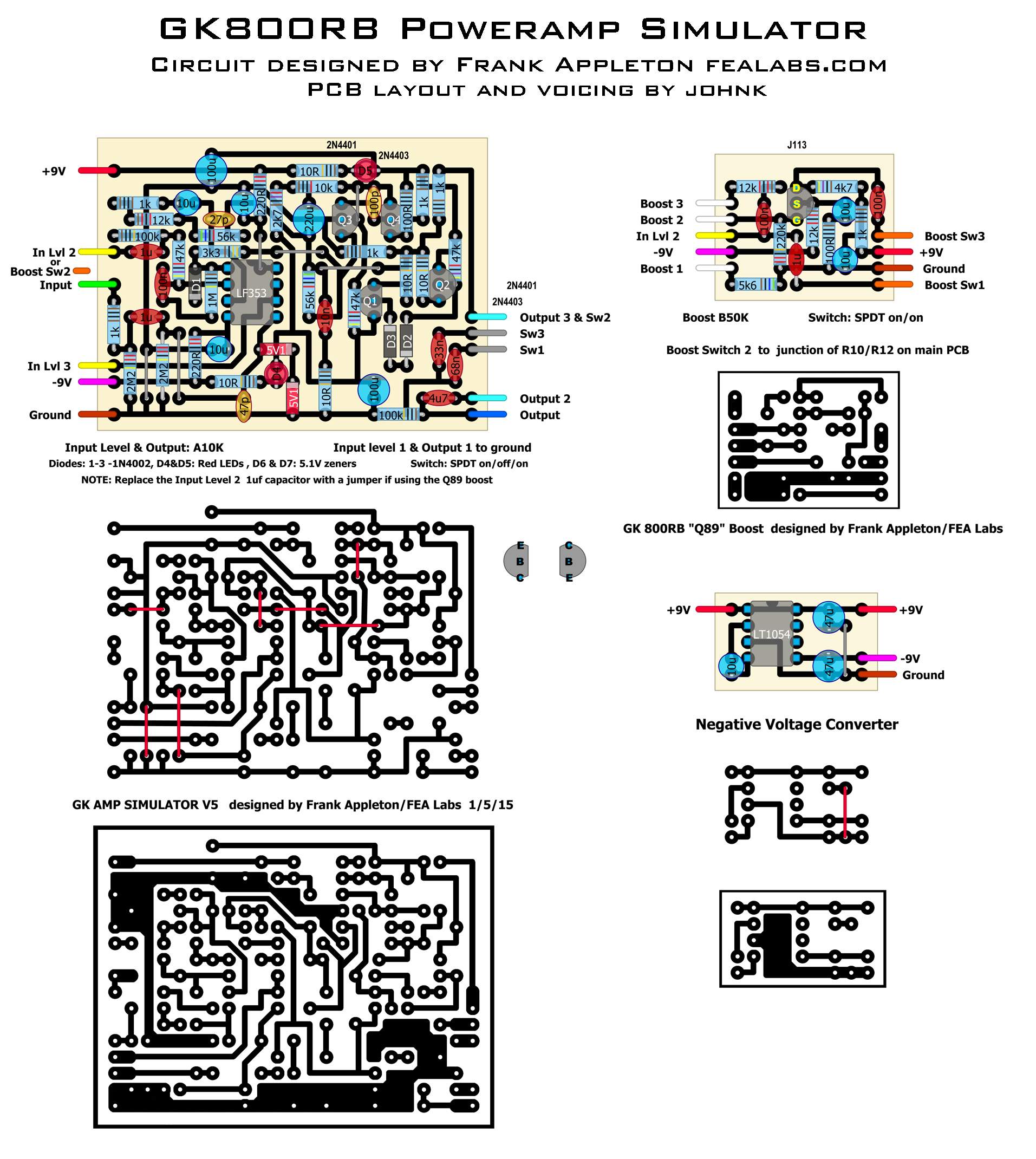

so i was looking over the schematic and the layouts. i noticed the layout for the boost had an extra cap (1uf) that is not present in the schematic for the boost. i assume this is to take the place of the c3 from the drive circuit, right? so the boost circuit is ran in parallel with the jumper in place of c3.

#938
vigor&kandor said:
so i was looking over the schematic and the layouts. i noticed the layout for the boost had an extra cap (1uf) that is not present in the schematic for the boost. i assume this is to take the place of the c3 from the drive circuit, right? so the boost circuit is ran in parallel with the jumper in place of c3.
Click to expand...

Look at the boost schematic again. C4 on the boost schematic is 1uF.

-Frank
