Was watching the Grateful Dead movie and in their live footage they use strange looking mics. Looks like two small mics attached to a little box. Never seen those before. Anyone know about them? This is just out of sheer curiosity.
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Grateful Dead mic question.
- Thread starter dreads311
- Start date
BurningSkies
CRAZY BALDHEAD
- Feb 20, 2005
- 27,956
- 20,348
- Disclosures
- Endorsing artist: Dingwall Guitars
Yes, the second mic was used out of phase from the first, then they used it to cancel out and leakage from other sources, like monitors or the stage amps. This is part of how they kept the Wall of Sound so clean.
Thanks for asking and thanks for answering. I watched part of that and wondered the same thing. They look like laser pointers and sound great!
The '70s were a strange trip.
Lots of strange equipment, like Gene Rayburn's long mic.
The '70s were a strange trip.
Lots of strange equipment, like Gene Rayburn's long mic.
BurningSkies
CRAZY BALDHEAD
- Feb 20, 2005
- 27,956
- 20,348
- Disclosures
- Endorsing artist: Dingwall Guitars
Did they use Macintosh amps to power the wall? I can't remember where I read that or if I even really did.
I'm sure every cabinet in the wall was hooked up also, unlike the phony cabs of today.
I'm sure every cabinet in the wall was hooked up also, unlike the phony cabs of today.
BurningSkies
CRAZY BALDHEAD
- Feb 20, 2005
- 27,956
- 20,348
- Disclosures
- Endorsing artist: Dingwall Guitars

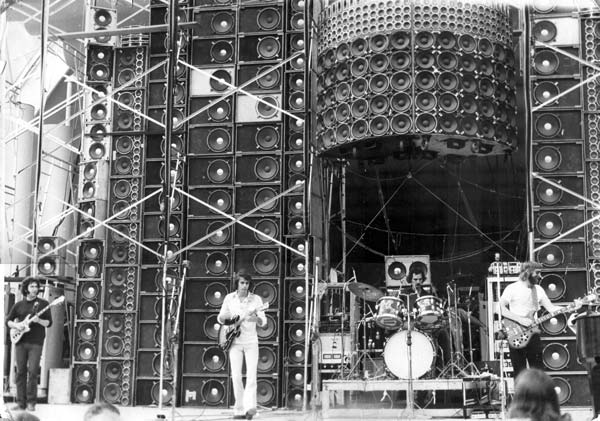

If you look at the Wall of Sound, while it had the distinction of being one of the most advanced sound systems of the time, it has one problem it's BEHIND the band, and the mics are pointed at it. This is how they got around it...noise cancelling at a basic level.
BurningSkies
CRAZY BALDHEAD
- Feb 20, 2005
- 27,956
- 20,348
- Disclosures
- Endorsing artist: Dingwall Guitars
They used Macintoshes along the way. Let me see if I can dig up my WOS spec sheet and see what it says.
If you look at the Wall of Sound, while it had the distinction of being one of the most advanced sound systems of the time, it has one problem it's BEHIND the band, and the mics are pointed at it. This is how they got around it...noise cancelling at a basic level.
Greatest pic ever! New wallpaper!
BurningSkies
CRAZY BALDHEAD
- Feb 20, 2005
- 27,956
- 20,348
- Disclosures
- Endorsing artist: Dingwall Guitars
Bah. I have a PDF of the documentation around somewhere, but I can't find it right now...but here:
http://deadsources.blogspot.com/2012/12/1974-wall-of-sound-technical-specs.html
http://deadsources.blogspot.com/2012/12/1974-wall-of-sound-technical-specs.html
BurningSkies
CRAZY BALDHEAD
- Feb 20, 2005
- 27,956
- 20,348
- Disclosures
- Endorsing artist: Dingwall Guitars
Here's the part about two vocal mics:
"A major improvement in the quality of the vocal sound is due to the use of differential microphones. Each singer has a perfectly matched pair of Bruel and Kjaer microphones hooked up out of phase, only one of which he sings into. Any sound which goes equally into both microphones is cancelled out when the two signals are added together. Therefore leakage of instruments and background noise into the vocal channel is minimized."
"A major improvement in the quality of the vocal sound is due to the use of differential microphones. Each singer has a perfectly matched pair of Bruel and Kjaer microphones hooked up out of phase, only one of which he sings into. Any sound which goes equally into both microphones is cancelled out when the two signals are added together. Therefore leakage of instruments and background noise into the vocal channel is minimized."
BurningSkies
CRAZY BALDHEAD
- Feb 20, 2005
- 27,956
- 20,348
- Disclosures
- Endorsing artist: Dingwall Guitars
Actually, there are more full-scale pics out there, and one has been my wallpaper for the past year or so. A truly monumental achievement that was overly impractical.
I counted 180 speakers (60 woofers, 120 mids) above the drum riser. The whole setup is ridiculous yet sofa king cool.
I don't listen to enough Dead. We have a one hour radio show on Sunday morning that's been on for years. It starts up with "Rise up! Wake and bake!" and being one to follow directions...
I don't listen to enough Dead. We have a one hour radio show on Sunday morning that's been on for years. It starts up with "Rise up! Wake and bake!" and being one to follow directions...
BurningSkies
CRAZY BALDHEAD
- Feb 20, 2005
- 27,956
- 20,348
- Disclosures
- Endorsing artist: Dingwall Guitars
The Wall of Sound was laudable yet foolish. It basically acted as a bunch of different PA systems for each instrument. It was well ahead of its time (vertical linear arrays, fairly sophisticated crossovers, etc.), but it was HUGE, hard to move and took a lot of manpower to set up, tear down and get working correctly. Each player had their own completely controllable monitor mix as well. So, really, think about it as Bob having a column of 30 12's behind him, plus part of a column on the other side of stage. Jerry having a similar setup, then Phil having his own column of speakers plus matching set across stage.
Passinwind
I know nothing.
- Dec 3, 2003
- 23,042
- 45,890
- Disclosures
- Designer/Toaster Tech @ Passinwind Electronics
I saw several indoor shows using bits of the WOS and a few outdoor ones using the whole thing. It never sounded the same, ranging from absolutely great to pretty mediocre -- same as could be said for the Dead.
The differoid mics were a nice idea that rarely translated all that well, IME. Here's another one of many Web pages devoted to the WOS, spec'ing 500+ drivers: http://www.dozin.com/wallofsound/index.html
I found the entire thing fascinating. It is a great example of truly out-of-the-box thinking, and was far more successful than you would expect, in theory.
The idea of the band hearing the real mix is a great idea, and one that was abandoned a very long time ago. As for the Dead, I saw them live at the St. Paul Civic Center; a venue that was known for sucking the life out of everybody's sound.
The Dead sounded pretty good there, compared to most acts, and they were spot on for that show. So the one time I heard the real Dead live, they were fantastic. For my money, they were one of the all-time top acts in the history of rock.
The idea of the band hearing the real mix is a great idea, and one that was abandoned a very long time ago. As for the Dead, I saw them live at the St. Paul Civic Center; a venue that was known for sucking the life out of everybody's sound.
The Dead sounded pretty good there, compared to most acts, and they were spot on for that show. So the one time I heard the real Dead live, they were fantastic. For my money, they were one of the all-time top acts in the history of rock.
Love the Dead, but with as many shows as they had they pretty much ran the gamut from great to terrible.
