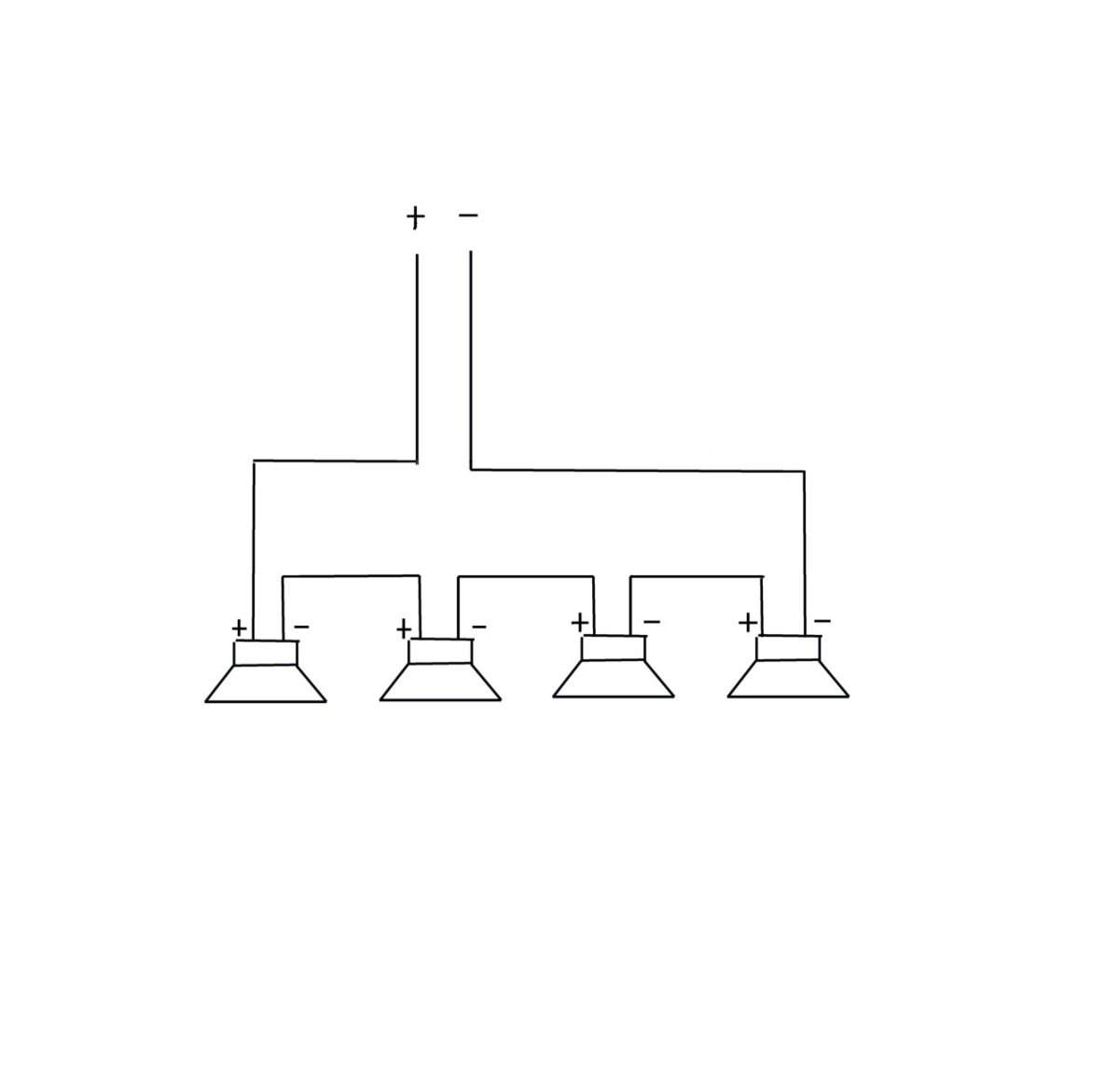

Can someone please post a simple drawing for me ? I need to re-wire a 4x10 8 ohm cab to 16 ohms. Each speaker is 4 ohms. My brain is not working tonight : ) Thanks!
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Having a Brain Fart. Need Help Wiring a Cab.
- Thread starter Fender4Me
- Start date
billfitzmaurice
Commercial User
- Sep 15, 2004
- 16,860
- 278
- 76
- Disclosures
- Owner, Bill Fitzmaurice Loudspeaker Design
You can't rewire an 8-ohm cab to 16 ohms. As Bill mentioned, either the cab is not an 8-ohm cab, or the drivers are not 4-ohm drivers. You should resolve that issue before you proceed.
Speakers in a 4x10 are usually wired "series-parallel" and this give a total impedance equal to the impedance of a single speaker:
8+8 //(<-parallel) 8+8 gives a total of 8 ohm or
8 //8 + 8 //8 still gives 8 ohm.
So what you want to do is not possible unless you change the speakers (or you use only two speakers wired in series).
Regards,
Roberto
8+8 //(<-parallel) 8+8 gives a total of 8 ohm or
8 //8 + 8 //8 still gives 8 ohm.
So what you want to do is not possible unless you change the speakers (or you use only two speakers wired in series).
Regards,
Roberto
