help! Where's this wire connected???

[steak'n'roll]

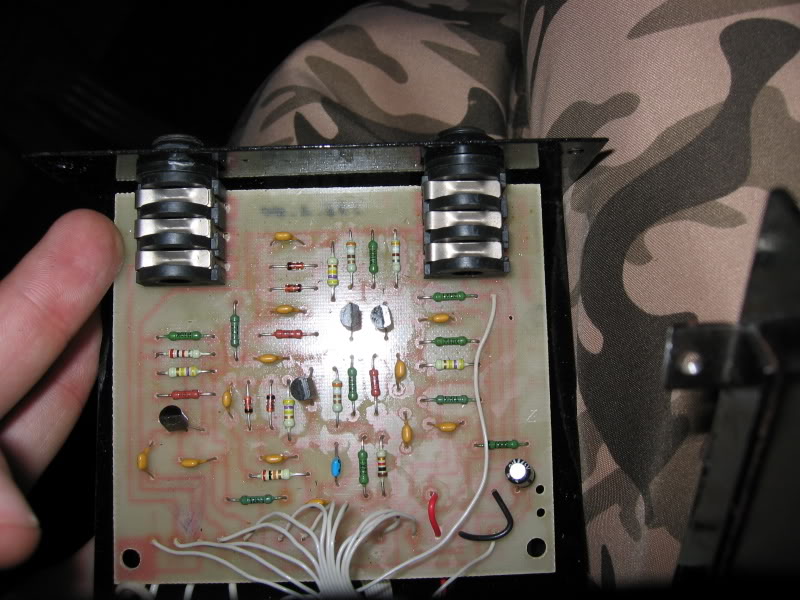

I am modifying my russian big muff pi and an unexpected wire disconnected. It is the black one on the upper right part of the pic. Do you know where the other end goes??

many thanks



[rustynuts]

Black one? Upper left?

Am I missing something here? There's no wire in the upper left, black or otherwise.



[steak'n'roll]

My mistake: upper right



[WayneS]

Look closely at the resistor leads for tiny bits of solder or flux. It may have been attached to one of those. The end of the wire looks like it was bent (around a resistor lead maybe?) before it was soldered.



[steak'n'roll]

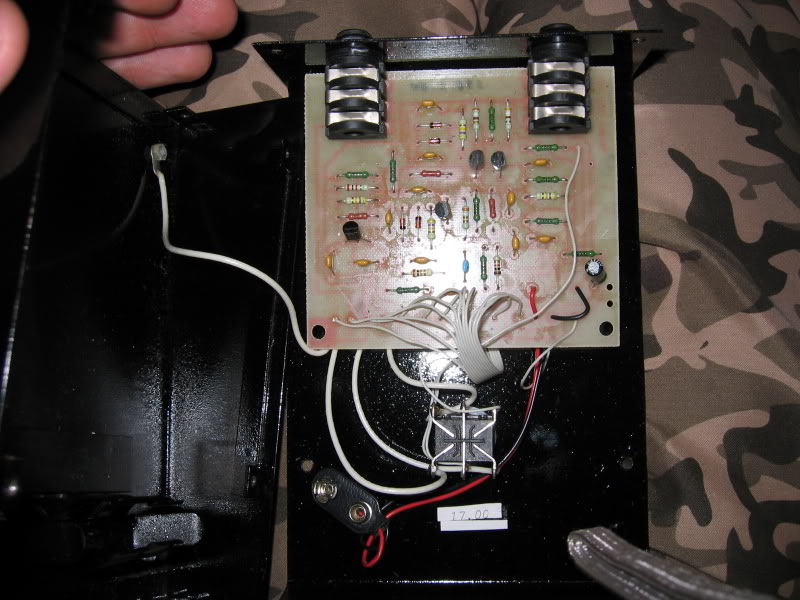

I think I found where it goes: on one pole of the switch. If someone could confirm it, it'd be formidable!



[rustynuts]

What's the other end connected to?



[KarateKid25]

Pulled my muff apart for ya...



[KarateKid25]

It just goes through the PCB. Its not directly soldered to anything other than the PCB



[KarateKid25]

oops...wrong end... wait up



[rustynuts]

Pulled my muff apart for ya...

Did it hurt?



[KarateKid25]

Top right hand leg of the switch looking into the muff the same way as your photo



[KarateKid25]

Did it hurt?

surprisingly not...



[KarateKid25]

Better shot that shows the end of the wire your actually interested in

As said before, it goes to the top right hand leg



[Sean S]

That's not your green Big Muff, is it?



[KarateKid25]

That's not your green Big Muff, is it?

No

The green one is still sitting safely on my Pedal train
