How Stupid is This Idea?

[atquinn]

Ooh, it looks like Nash make these and with a rosewood fretboard to boot (I'm not a maple fretboard fan).

[This invalid link has been removed]



[Water buffalo]

I found one...



[atquinn]

I found one...
View attachment 5462845

Who's the builder? I can't make out the headstock.



[fjbolebruch]

I'm for it! I love a P bass, but I also like having two pickups, so most my instruments are JJ or PJ configuration, so I would rock that



[KevInDaBassment]

Psshh...how about a single coil 50's P in the neck, and a split coil P in the bridge position?

NOW we're gettin' screwy



[atquinn]

Psshh...how about a single coil 50's P in the neck, and a split coil P in the bridge position?

NOW we're gettin' screwy

The classic superstrat SH pickup configuration in bass form. That might be one step too far



[micguy]

If the two single coils were not opposite wound from each other, the result would be the equivalent of a noisy Jazz bass….

But, if the two single coil pickups were reverse wound from each other, and you put the two pickups in series, the result would be the equivalent of……a Pbass (with the two pickup halves separated a couple inches and wide enough to pickup all strings).

The possibilities are “limitedless”……

Two pickups listening to each string at different points gives you comb filtering that is VERY different than what you get from a split P (which listens to each string at only one point). They won't sound at all alike.



[Crackle]

Eddie Jackson from Queensryche has been doing this for a long time. Like 20 years now. A Mike Lull P5 with two J pickups.



[atquinn]

Eddie Jackson from Queensryche has been doing this for a long time. Like 20 years now. A Mike Lull P5 with two J pickups.

J pickups are not the same as singlecoil P pickups.



[Tim Skaggs]

Two pickups listening to each string at different points gives you comb filtering that is VERY different than what you get from a split P (which listens to each string at only one point). They won't sound at all alike.

My Jazz with the pickups in series sounds very similar to my PBass with the Jazz having very slightly less high end. They sound even more alike if both basses have flat wound strings on them.



[kodiakblair]

it looks like its been done?

I'd go one step further and suggest a PP (both P's being single coil)!

This!

Now we're talking!

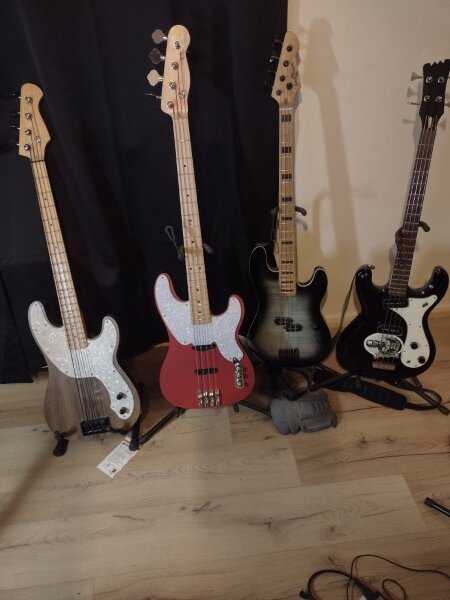

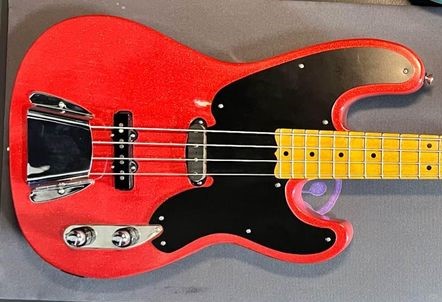

I built this one earlier this year. Slab body as is my wont

Dual poles per string of a jazz single coil easy span the wider string spacing at the bridge but they don't have the same attack as a 51 single coil. I like 51 single coils so had a pair made

Single coil at the neck is the standard 54mm pole to pole, ALNICO 5 wound to 8.5k OHM.
At the bridge pole to pole is 58mm, again ALNICO 5 but reading 9.5k OHM; it's also RWRP for hum cancelling.

Still WIP.

Stock Fender scratchplate is off Need to cut one that fits correctly Thinking a mini switch pickup selector might better than the V/V/T set up it has now.



[Clark W]

PJ with a singlecoil P instead of a split P

Must be good enough for Ferner's in Memphis. They offer a custom PJ Deluxe using that exact layout using Lollar pickups and a John East preamp.



[SteveFromBerlin]

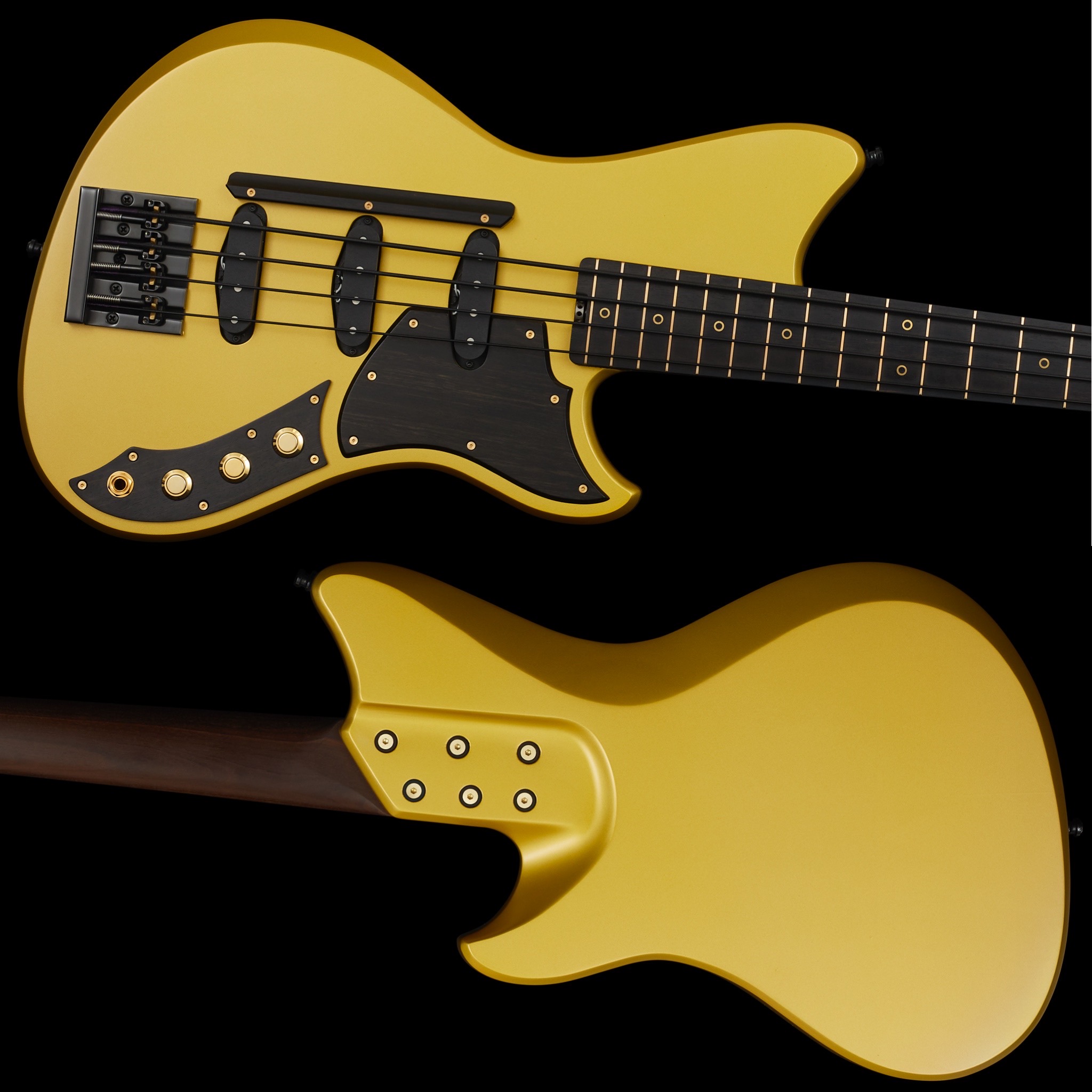

That's a Tribe signature model for a bassist called Shob.



[VegasCustom]

PJ with a singlecoil P instead of a split P

I have a 54 P bass in production and I REALLY want to add a J pup near the bridge. DOOOOO IIITTTTTTTTTT. Why not? Its just just a J bass. It will have subtle differences tho be very close.



[Wyrdlow]

I built this one earlier this year. Slab body as is my wont

Dual poles per string of a jazz single coil easy span the wider string spacing at the bridge but they don't have the same attack as a 51 single coil. I like 51 single coils so had a pair made

Single coil at the neck is the standard 54mm pole to pole, ALNICO 5 wound to 8.5k OHM.
At the bridge pole to pole is 58mm, again ALNICO 5 but reading 9.5k OHM; it's also RWRP for hum cancelling.

Still WIP.

Stock Fender scratchplate is off Need to cut one that fits correctly Thinking a mini switch pickup selector might better than the V/V/T set up it has now.

View attachment 5463053

It looks great! I look forward to a report when it's done. What's the story of wee Jimmy no-pick-ups on the left? Under the scratchplate? Piezo, maybe?



[Gervais Cote]

Alpher makes a double P51 :

And a demo :


And triple :

And a demo if you swipe to the 8th clip :

The double p 51 sounds like a jazz bass with big balls to me…….………very interesting !



[kodiakblair]

What's the story of wee Jimmy no-pick-ups on the left? Under the scratchplate? Piezo, maybe?

It's piezo.

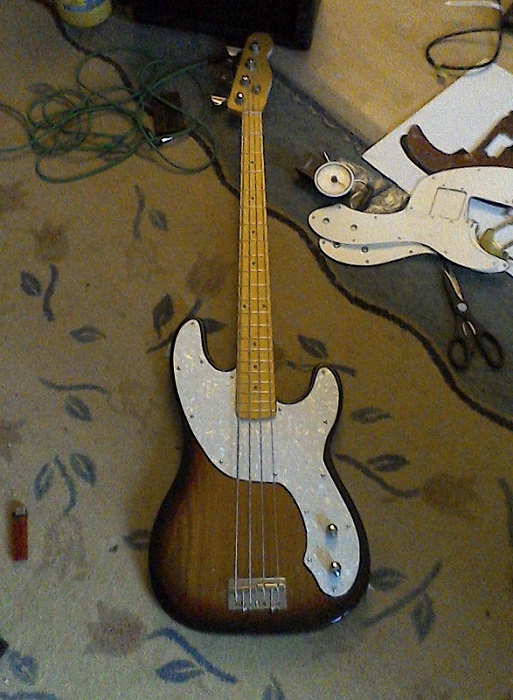

Did the 'under the scratchplate' thing a good while back, oddly enough using the same scratchplate

Under the pearloid was a Josi Warman 'jazz bar', now it sports a black scratchplate and Lakland ChiSonic.



[atquinn]

I built this one earlier this year. Slab body as is my wont

Dual poles per string of a jazz single coil easy span the wider string spacing at the bridge but they don't have the same attack as a 51 single coil. I like 51 single coils so had a pair made

Single coil at the neck is the standard 54mm pole to pole, ALNICO 5 wound to 8.5k OHM.
At the bridge pole to pole is 58mm, again ALNICO 5 but reading 9.5k OHM; it's also RWRP for hum cancelling.

Still WIP.

Stock Fender scratchplate is off Need to cut one that fits correctly Thinking a mini switch pickup selector might better than the V/V/T set up it has now.

View attachment 5463053

Very cool! I had thought about the spacing being an issue for a singlecoil P in the bridge. Who did you use for the pickups?



[funkifiedsoul]

I didn't vote because I don't think it's "secretly genius" but I don't think it's stupid either.



[micguy]

My Jazz with the pickups in series sounds very similar to my PBass with the Jazz having very slightly less high end. They sound even more alike if both basses have flat wound strings on them.

The Jazz will always have a scoop in the low mids that the P won't. Yes, putting two J pickups in series will make the high mid peaks more similar, so that may be what your ears are keying on. Of course, putting flats on them kills a lot of the harmonics (where the scoop is), so it'll make them sound more similar. I have a bass that has a mode with the "J's in series" sound, and the mids are very different than a P using rounds.

You may not hear the same things I do, and that's OK.
