Ibanez Blazer Bass Pickguard

[Nethron1924]

Hello,
I am desperately searching for a tracing of the original pickguard of an 1981 Ibanez Blazer Bass. Can anyone here help me out?



[Steve McCready]

Hi,

I've just purchased one and need to get the pick guad replaced. I'm in contact with someone who is looking for one, if not, the current pick guard was taken from a trace of it's original.

If you've already found one, can you let me know.

Cheers,

Steve
stevermccready (at) gmail (.) com



[Nethron1924]

No i haven't found one. But i hope you can see my problem in the picture. I haven't even got a matching one so i need to find a tracing or the original.



[dalkowski]

[Invalid or Expired Link Removed]
Scroll down to item #147.



[sjhs]

No i haven't found one. But i hope you can see my problem in the picture. I haven't even got a matching one so i need to find a tracing or the original.

Did you find one in the end? I've decided to necro-bump your thread as I found it while looking for info on a new pickguard for my 1981 Blazer, so figure someone else might find it looking for the same...

Here's a tracing of my pickguard - for scale, the lined paper it's traced on to is A3 sized (420mm x 297mm or 16.5in x 11.7in)

It looks like my bass has a different bridge than yours... I don't know if there are slight variations in bridge/body sizings, but for comparison here's my bass:

If anyone is aware of other sources for a pickguard, other than Dalkowski's suggestion above, then feel free to chime in... I'm always happy to look at more options



[Nethron1924]

Did you find one in the end? I've decided to necro-bump your thread as I found it while looking for info on a new pickguard for my 1981 Blazer, so figure someone else might find it looking for the same...

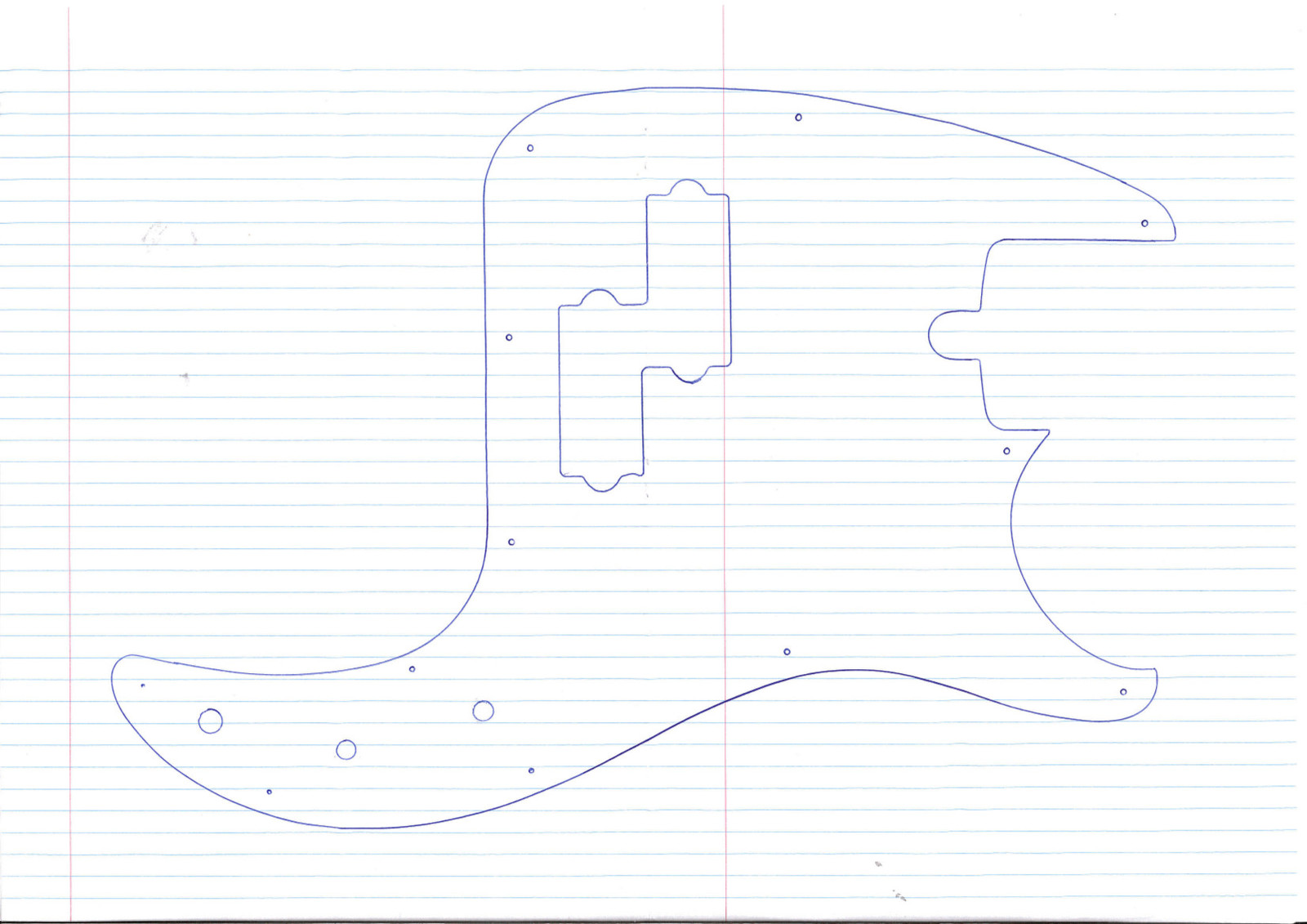

Here's a tracing of my pickguard - for scale, the lined paper it's traced on to is A3 sized (420mm x 297mm or 16.5in x 11.7in)

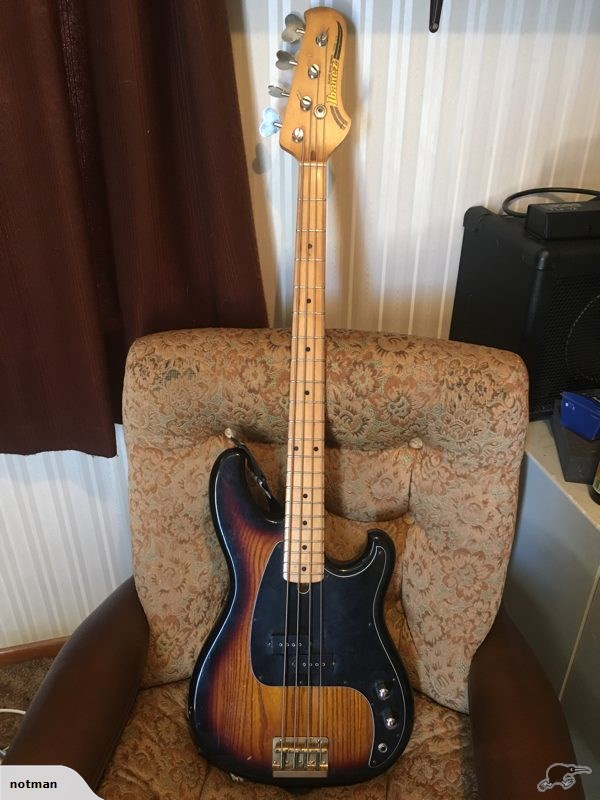

It looks like my bass has a different bridge than yours... I don't know if there are slight variations in bridge/body sizings, but for comparison here's my bass:

If anyone is aware of other sources for a pickguard, other than Dalkowski's suggestion above, then feel free to chime in... I'm always happy to look at more options

Thank you so much. No i didn't find one. All the guys who had a tracing only would sell it with a pickguard for arround 90€.
You solved my problem. Big thanks to you

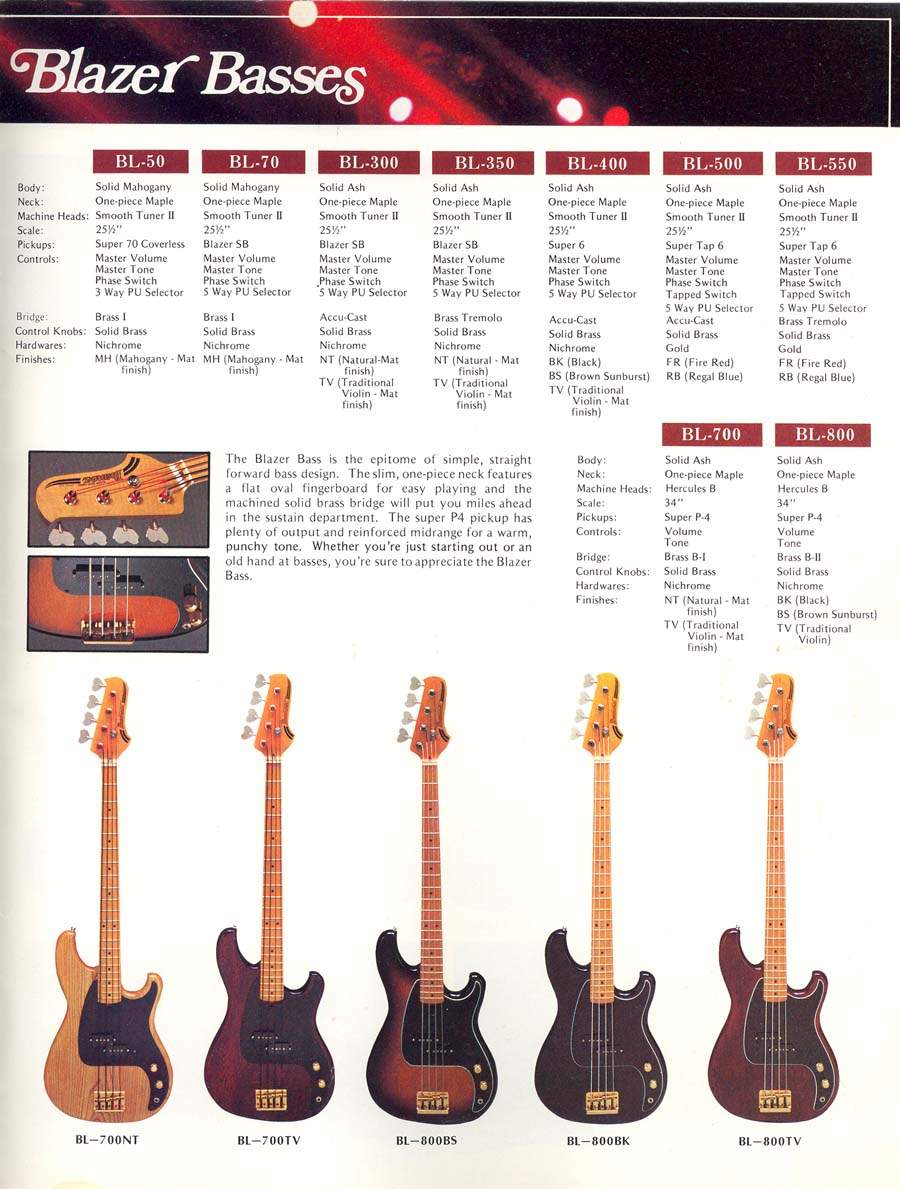

The picture i found there might help you.



[Nethron1924]

Little Update on the pickguard. The tracing fits perfectly. I put the image of the tracing in a PDF file and had to scale it up to 104% thats the size that worked for me.

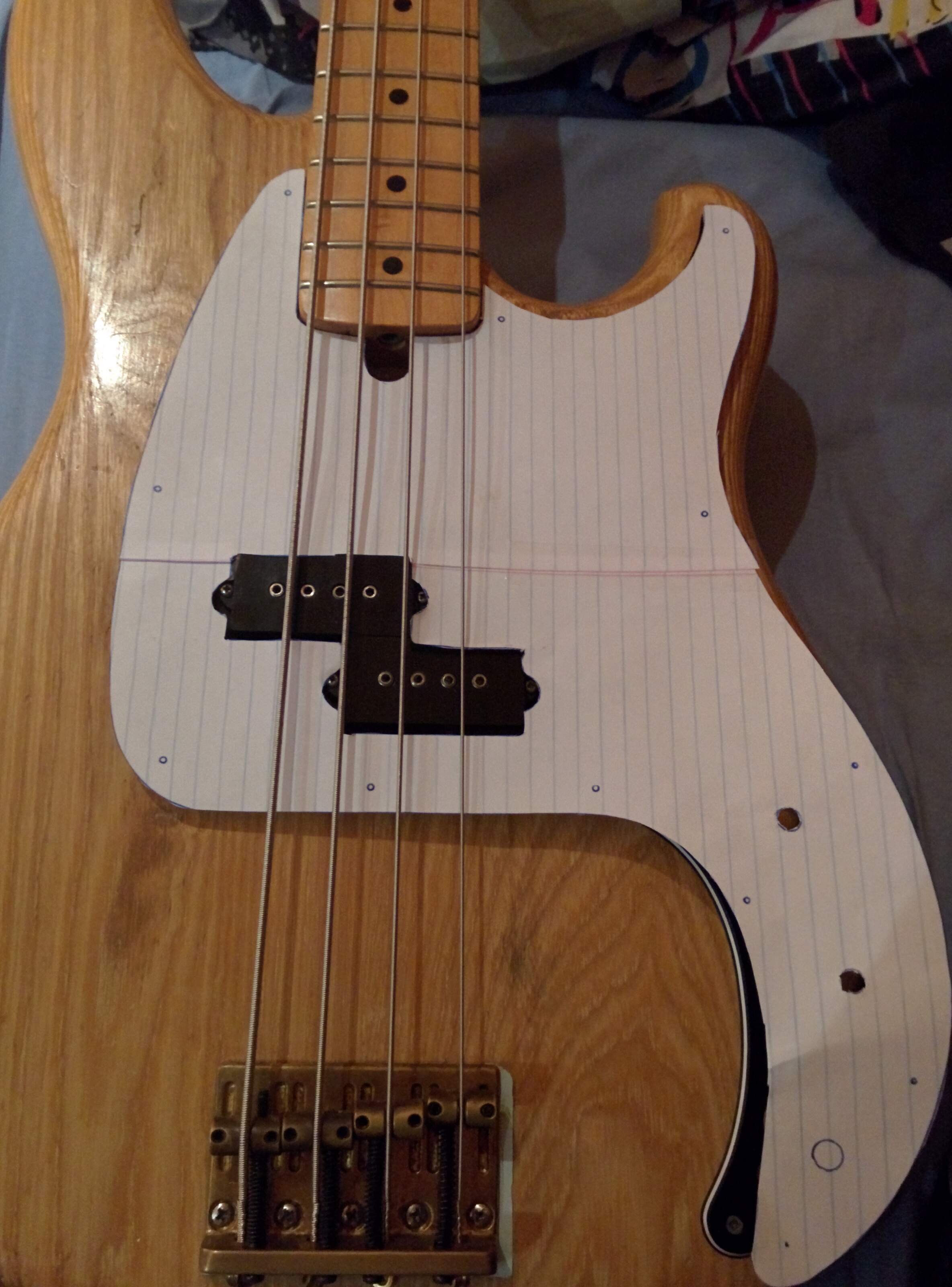

I cut a pickguard out of paper and I fits nice. Only my cutting was not very good. You can see it in the picture.



[Mofuzz]

For the next person who is looking to make an Ibanez Blazer pickguard, I scanned mine and cleaned it up. Here’s an SVG that I was able to laser cut out of acrylic. It’s a bit thicker than the original pickguard material but there are some really snazzy acrylic designs available!
