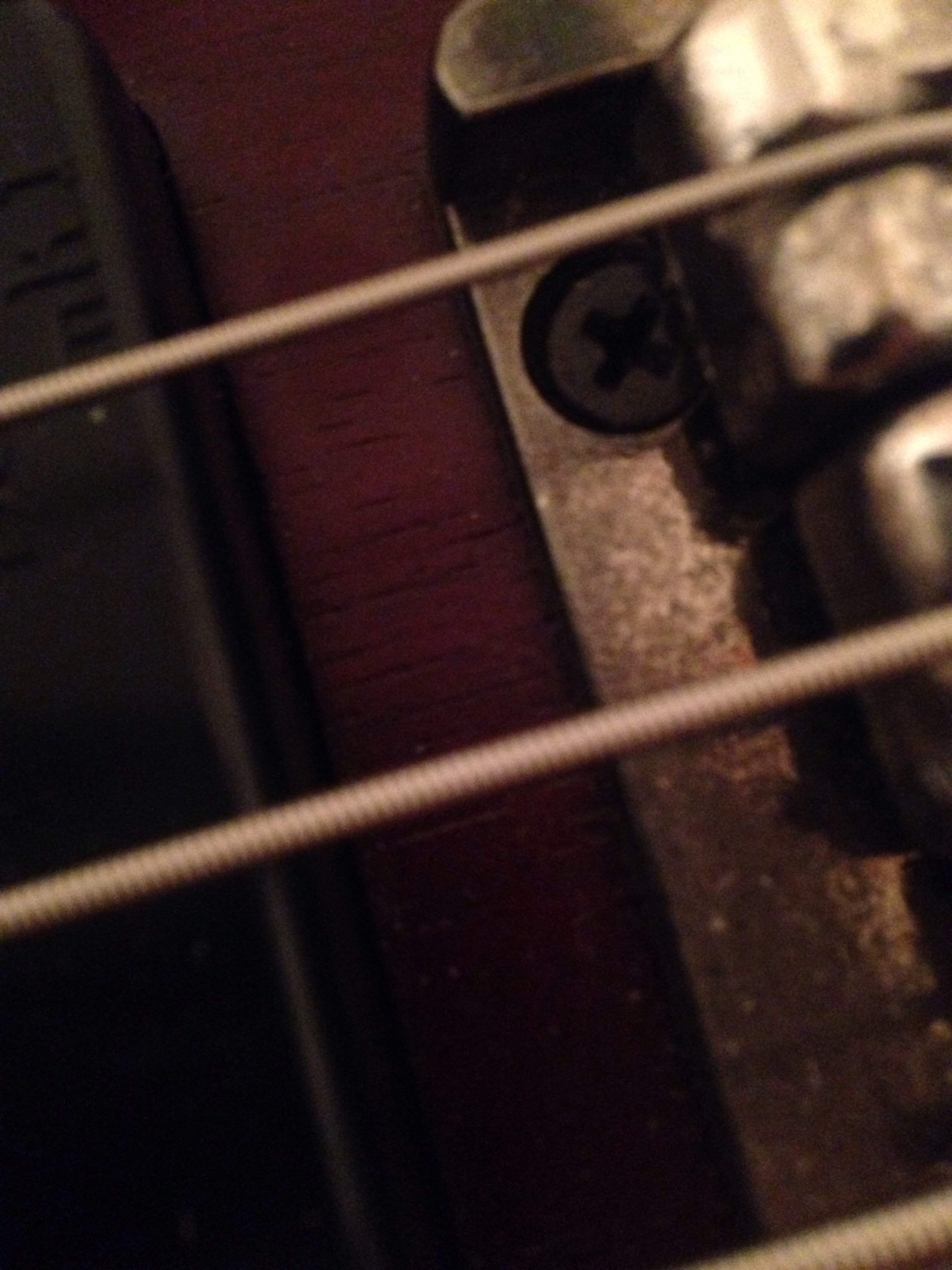

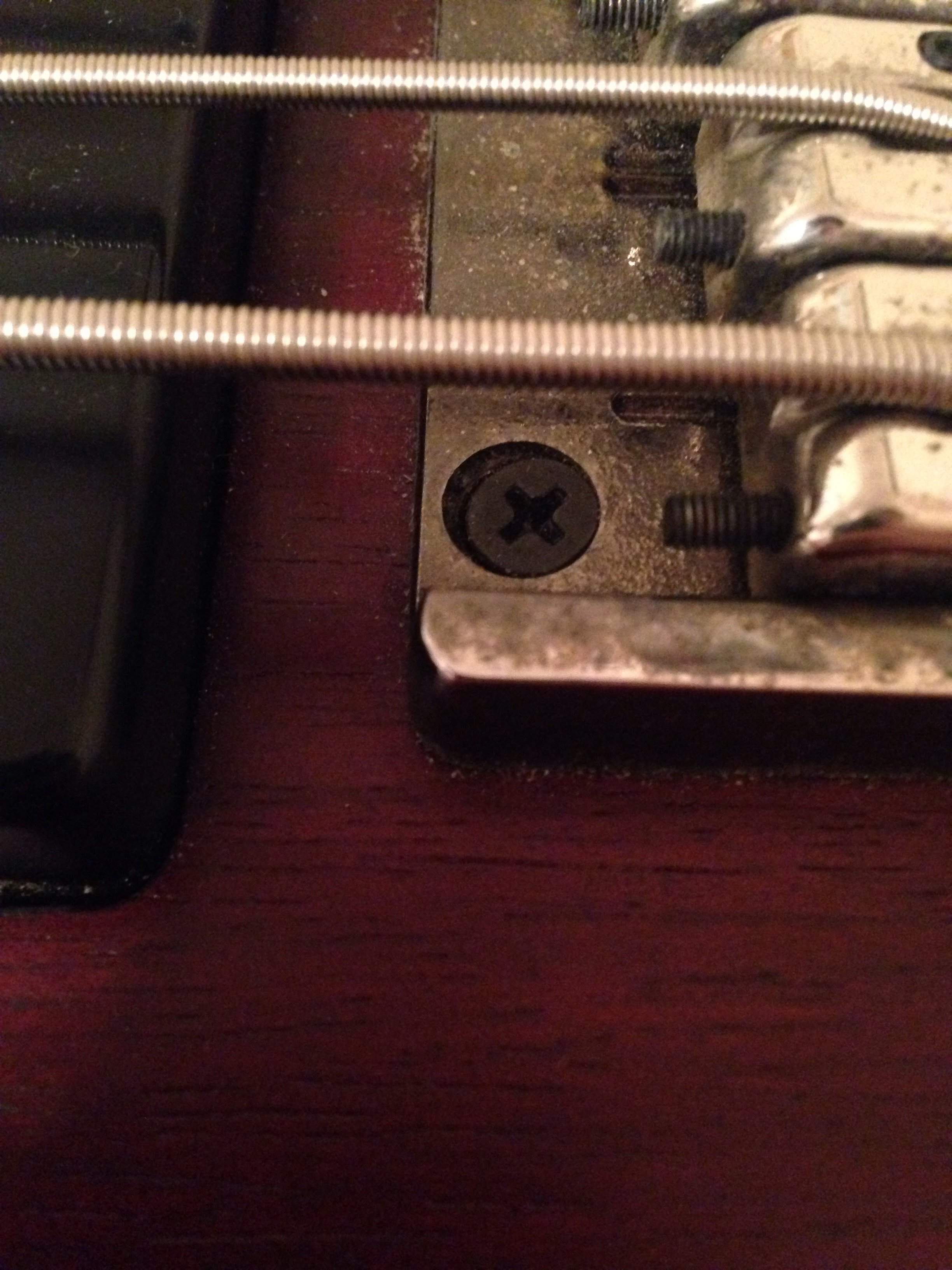

Bought a used ibanez sr505 recently, everything was fine with it until i noticed that two bridge screws looked a little crooked, as you can see an uneven gap between the screw head and the hole in the bridge. Is this a problem? or is it just normal with these bridges?
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Ibanez bridge screws
- Thread starter Chezpop
- Start date
While it won't cause any problems it might indicate that they were not drilled / screwed in at a precise 90 degree angle.
I wouldn't see this affecting anything at all, but if it were mine (and with my chronic OCD) I would have them out, refilled and redrilled asap!
I wouldn't see this affecting anything at all, but if it were mine (and with my chronic OCD) I would have them out, refilled and redrilled asap!
If it was mine and there weren’t any issues with it, I’d leave it alone.
That answer would really depend on the new bridge's mounting points.
And yes, without seeing the thread, those look like drywall or wood screws
And yes, without seeing the thread, those look like drywall or wood screws
Looks like they offset them to help hold the bridge down, let the head of the screw act as an anchor.....at least in the one photo. The other photo shows a screw that looks way to small a diameter for that bridge. They do not look stock, at least not to me.
I’m definitely like the aged look of the bridge. My guess is that’s legit wear.
I’m definitely like the aged look of the bridge. My guess is that’s legit wear.
With all the people saying the screw aren't stock, I would take one out and check the length. That'll also clue you in as to whether they are the right diameter--do they come out super easy or normal tension?
They don't look stock to me either, but length and diameter are what matters.
As for the way that first one sits to one side of the hole in the bridge base, I wouldn't worry one bit.
If it came from the factory that way I would say it's a bit sloppy, which is unusual from Ibanez but stuff happens.
As long as the bridge is tight to the body it won't make a bit of difference.
They don't look stock to me either, but length and diameter are what matters.
As for the way that first one sits to one side of the hole in the bridge base, I wouldn't worry one bit.
If it came from the factory that way I would say it's a bit sloppy, which is unusual from Ibanez but stuff happens.
As long as the bridge is tight to the body it won't make a bit of difference.
Looking at them again, the screws do look a bit smaller than the holes, and they are not flush with the body. I think taking to a professional and getting their opinion on it may be a good idea, especially im not too knowledgeable about this style bridge. As for now, the bridge is tight on the body, I just dont want future issues
Those screws are absolutely not a problem.
This thread, on the other hand, will separate those that merely flirt with OCD from those who truly suffer.
This thread, on the other hand, will separate those that merely flirt with OCD from those who truly suffer.

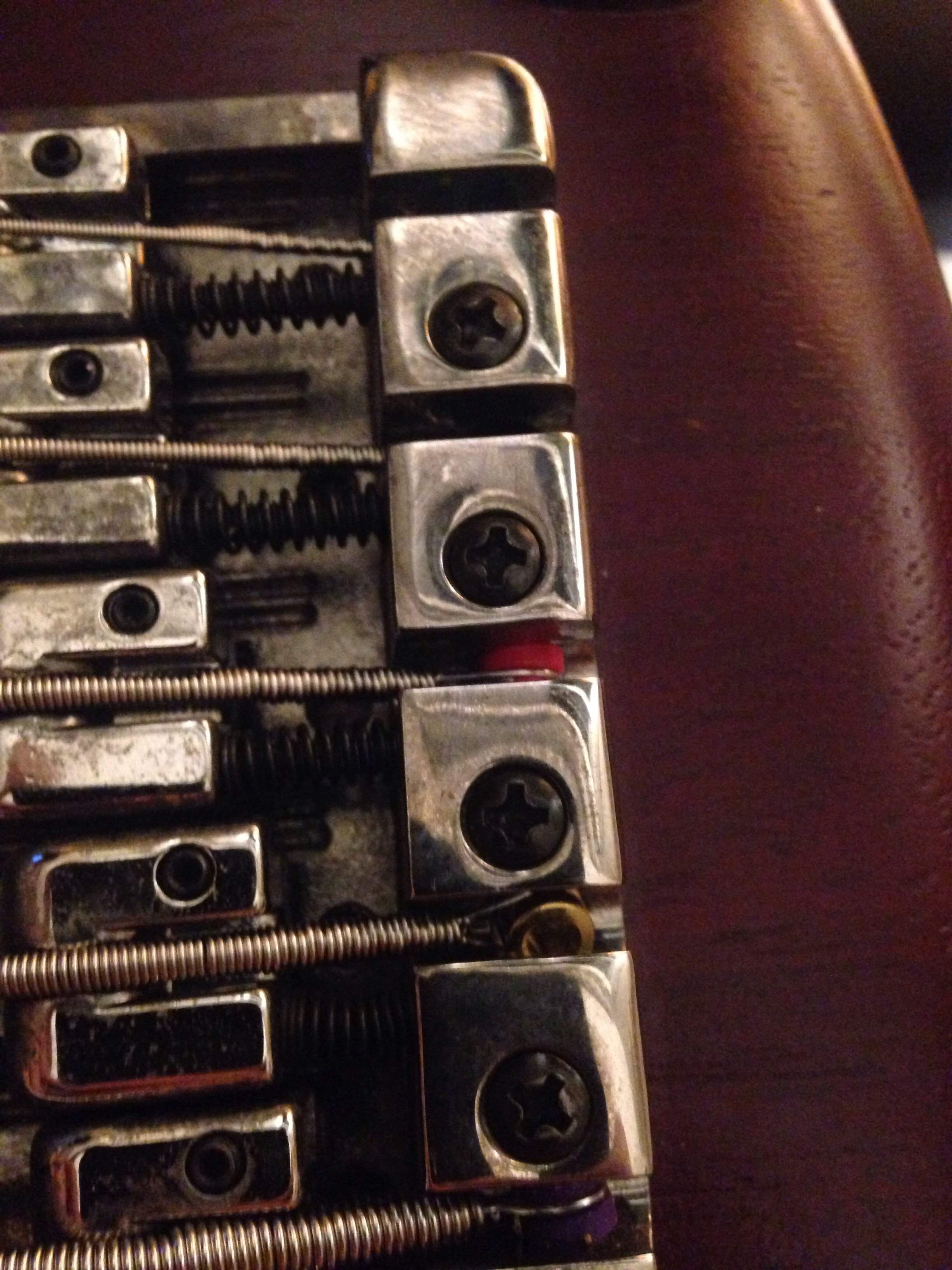

The rear screws look good. They are the ones you need to be the most concerned with. If they fit properly, hold properly, you’re good to go.
I believe someone replaced the two front screws, for whatever reason, with what look to be drywall screws. Could be wrong, but they certainly look incorrect for that application, but they are probably doing the job of holding the bridge down, preventing front lift.
To fix it, if you ever get the urge to, all you have to do is get some toothpicks, wood glue, and the proper screws. Fill the holes with a bit of wood glue, insert a toothpick, let it dry completely, pilot hole it with a slightly smaller diameter than the new screw shaft, insert new screws. Takes very little time (minus the dry time wait). Or, you may just be able to find more proper screws, put them in, call it a day. Or, you can just leave it be.
I believe someone replaced the two front screws, for whatever reason, with what look to be drywall screws. Could be wrong, but they certainly look incorrect for that application, but they are probably doing the job of holding the bridge down, preventing front lift.
To fix it, if you ever get the urge to, all you have to do is get some toothpicks, wood glue, and the proper screws. Fill the holes with a bit of wood glue, insert a toothpick, let it dry completely, pilot hole it with a slightly smaller diameter than the new screw shaft, insert new screws. Takes very little time (minus the dry time wait). Or, you may just be able to find more proper screws, put them in, call it a day. Or, you can just leave it be.
There is no way those are drywall screws. There is also no way this is an actual problem.
If you think they are, you probably aren't getting the sense of scale - those screw heads are pretty small. A quick Google image search shows that those are most likely the original screws. Additionally, those screws are on the front of the bridge; you could simply remove them and the bass would also be just fine; many bridge designs simply omit these front screws.
There is nothing wrong with the OP's bridge; it isn't the least bit screwy.
If you think they are, you probably aren't getting the sense of scale - those screw heads are pretty small. A quick Google image search shows that those are most likely the original screws. Additionally, those screws are on the front of the bridge; you could simply remove them and the bass would also be just fine; many bridge designs simply omit these front screws.
There is nothing wrong with the OP's bridge; it isn't the least bit screwy.
That was a problem with cheap pot metal used on 2012 bridges; my 2012 SR705 had one, and after 4 years it started bending, so Ibanez sent me a whole new bridge.
OP - Those 2 front screws are clearly not the right ones, but you can get by without them -or- just go to the hardware store, and get a couple the right size.
Lots of strange hostility in this thread.
Again, they LOOK like drywall screws due to the flat head and relatively small diameter, matte finish and cut. Only way to be 100% sure is to actually remove the screw and look at the threads. And, as I’ve previously stated, they are forward screws, so they are probably performing the function well enough.
Anyway, good luck with your bridge.
Again, they LOOK like drywall screws due to the flat head and relatively small diameter, matte finish and cut. Only way to be 100% sure is to actually remove the screw and look at the threads. And, as I’ve previously stated, they are forward screws, so they are probably performing the function well enough.
Anyway, good luck with your bridge.
