Ibanez GSR205: Stock Wiring

Discussion in 'Pickups & Electronics [BG]' started by bluesguy62, Jan 26, 2012.


  1. Bought this GSR205 in 2006. This is the stock wiring scheme, which includes the Phat II circuitry.

    Instrument: Ibanez GSR205
    Production Date: February 2004
    Factory: Saein, Korea
    Serial Number: A04021168

    Information sourced from The Guitar Dater Project.

    Details:
    Neck: 1 piece GSR5 Maple Neck
    Body: Agathis
    Frets: Medium
    Bridge: B15 (16.5mm string spacing)
    Neck PU: DXS-1
    Bridge PU: DXS-2
    Equalizer: Phat II EQ
    Controls: Neck PU Volume, Bridge PU Volume, Phat II EQ, Master Tone.

    Front View

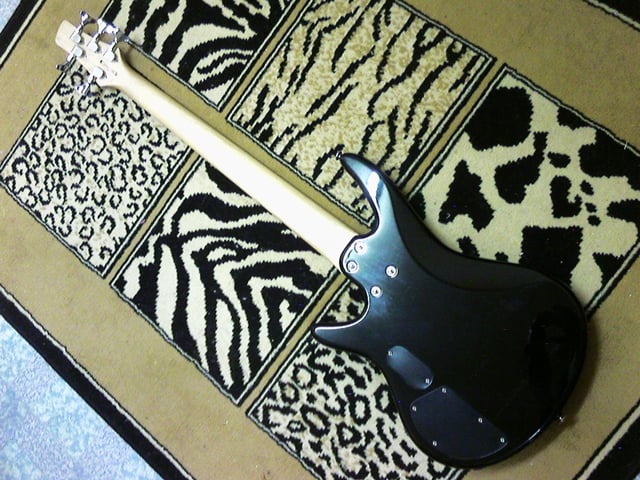

    Back View

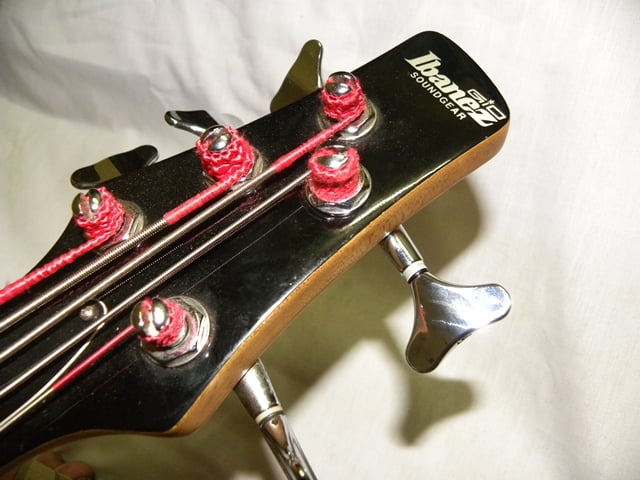

    Front of Headstock

    Back of Headstock

    Stock Controls Layout

    Stock Wiring Diagram

    Mockup of Stock Wiring Layout

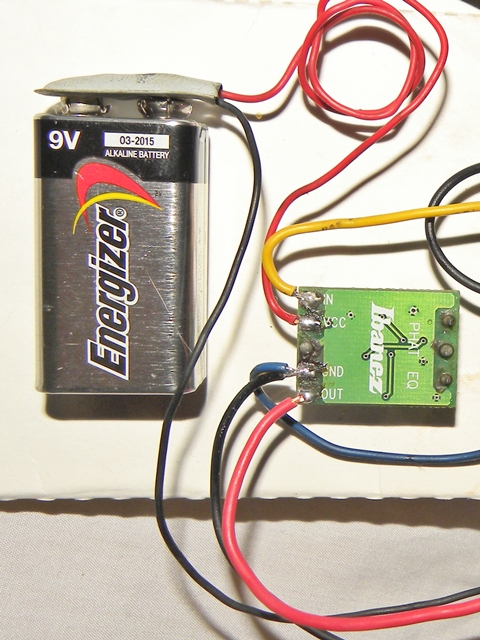

    9V Battery and Phat II Circuit Board

    Neck PU Volume Pot (B500K) and Master Tone Pot (D500K).

    Bridge PU Volume Pot (B500K) and Output Jack.

    Thanks for reading :)
