Installing a Jaguar mute on a P-Bass

Discussion in 'Hardware, Setup & Repair [BG]' started by dvlmusic, Oct 9, 2013.


  1. dvlmusic

    dvlmusic

    Jul 24, 2010
    Alameda, CA
    There was another thread here about the Fender Sean Hurley Signature P and how it has a flip on/flip off mute from a Jaguar guitar installed on it.

    I've been wanting to put a mute on my P/J for a while and I love the idea of being able to flip it on and off. I've looked into the BassMute (www.bassmute.com) but they don't seem to ever have any in stock (and they are pretty expensive) so I'm looking for alternates. I would be super down with having a Fender branded mute on my P.

    Anyway - I found that I can order the parts online but I wanted to see if anyone has any experience installing one of these on a P bass. It's designed for a Jag bridge - how well does it fit? What are the parts I need? When it flips up/on, what keeps the mute engaged? How much space does there need to be between the bridge and the bridge pickup? Does anyone have close-up shots of this installed?

  2. dvlmusic

    dvlmusic

    Jul 24, 2010
    Alameda, CA
    Bump

  3. Grissle

    Grissle

    May 17, 2009
    Talk to guitar people maybe?

  4. wvbass

    wvbass

    Mar 1, 2004
    I did this.

  5. dvlmusic

    dvlmusic

    Jul 24, 2010
    Alameda, CA
    Did what - talk to a guitar player?

    paddydaddyo likes this.
  6. dvlmusic

    dvlmusic

    Jul 24, 2010
    Alameda, CA
    Regardless - anyone out there have any insight into this?

  7. wvbass

    wvbass

    Mar 1, 2004
    Yes, but I also installed a Jaguar mute on a P bass.

  8. I believe the OP is looking for a little more detail.

    I know I am....

    organworthyplayer337 likes this.
  9. wvbass

    wvbass

    Mar 1, 2004
    What do you want to know? The jag mute is a very simple design with four parts. There is the mute plate, the spring, the plunger, and the mute pad. (I used weatherstripping for the pad.)

    A hole is drilled under the center of the mute plate. In the hole is a plunger that rests on a spring. The bottom of the mute has a bolt that extends into the hole, depressing the plunger. A screw on either side of the hole hold the mute in place,and they double as a means to adjust the mute. Muted and unmuted is essentially just the result of rocking the mute plate so that the bolt slides from one side of the hole to the other. Tension from the spring keeps the mute in place.

    The downside is that pressure from the mute pulls notes slightly sharp. However, palm muting does the same thing. It works surprisingly well.

  10. wvbass

    wvbass

    Mar 1, 2004
    2013-10-12_20-06-22_911_zps283b32fe.

    2013-10-12_20-05-31_261_zps583fb9dd.

    2013-10-12_20-05-55_107_zps8a2d262a.

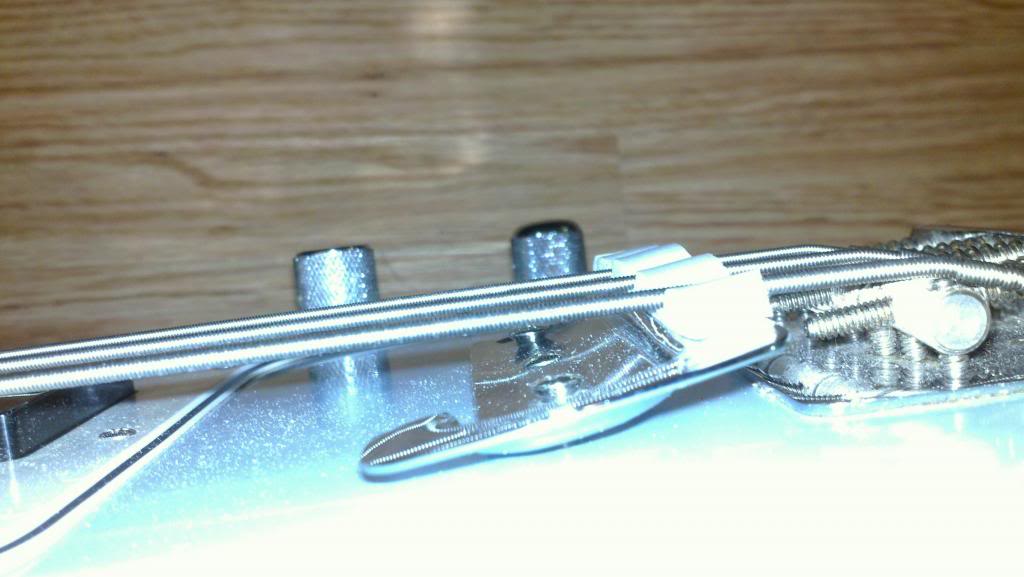

    571c842f-eae6-4210-8d28-3500f26c1962_zpse944fd58.

    ELynx, fourtet102 and Splods like this.
  11. depalm

    depalm Gold Supporting Member

    Apr 22, 2004
    Rio
    Intonation issues for sure.

  12. THANKS, WV. Pics was exactly the kind of details I was hoping for. You rock! (you know, eventually) :p


    As far as intonation, I would presume one would have some control over that with the foam you used: the softer the foam, the less intonation impact. Of course, probably the softer the foam, the less muting as well. This is just educated (I hope) guessing. I've never used a foam mute myself, but I'm very interested in trying it out.

  13. wvbass

    wvbass

    Mar 1, 2004
    Aren't you just a ray of sunshine?

    Again, the effects on tuning and intonation are really no different than when palm muting. It is not my ears telling me this; I tested this with an accurate tuner. Yes, it pulls you ever so slightly out of tune; it is not significant. If you have golden ears though, you might not like it.

    You do have to adjust it carefully. I found that the thickness of the pad is not the most significant issue. I had to play around with the depth of the pivot hole as well as the height of the mounting screws. I went through a few iterations of this, and actually ended up with the hole ever so slightly to deep. There is part of a lid from a Bic pen in the bottom shallowing up the depth just a bit. I also tried a couple different kinds of mounting screws. Flat machine screws didn't allow enough pivot; I ended up with beveled/countersunk screws instead.

  14. dvlmusic

    dvlmusic

    Jul 24, 2010
    Alameda, CA
    That's super helpful - thanks for the detail. I'll take a closer look at the pics when I have a chance. This definitely is worthy of further exploration... I wish I had a cheap bass to try it out on first.

  15. dvlmusic

    dvlmusic

    Jul 24, 2010
    Alameda, CA
    How many screw holes did you have to drill? It looks like there's three screws in the mute - did you have to drill all three? Also, how big a hole did you have to drill to accommodate the plunger?

    I want to make sure I'm 100% sold on this before drilling any holes into my precious.....

  16. iiipopes

    iiipopes

    May 4, 2009
    If the mute is adjusted so it takes the sustain out, but doesn't kill the "bloom" of the note, in other words, just barely does its job without pressing too hard on the strings, then there are no intonation issues. But it is a fine balance: too little, and the mute is not effective; too much, and then the pressure on the strings does cause intonation issues. That's why the throw of the mute is adjustible.

  17. wvbass

    wvbass

    Mar 1, 2004
    I drilled three holes. Two are screw holes, but the center on is large. I think it is about 3/8" in diameter and around 1" deep.

    Edit: might be 1/2 in diameter. It is a big hole.

  18. dvlmusic

    dvlmusic

    Jul 24, 2010
    Alameda, CA
    And this may be the deal breaker right there. I'm not sure I'm 100% sold on drilling a huge hole in my bass.

    Yet.

  19. iiipopes

    iiipopes

    May 4, 2009
    Nice install.
