Jaco Tribute Bass Build

#62
you've probably heard it about 100 times in this thread but this is REALLY cool!!

just coming off the back of my first build of a bass ever, i was so excited all throughout the proccess to be building it. and i can't imagine how excited you are!!

i'm gonna be building soooo many more basses once i have the money and a job!! (i'm still only in high-school)

i'm subscribed to this thread and i can't wait to see it finished!!
gonna upload some videos of you playing it once its done??

#63
felix.jbasscstm said:
you've probably heard it about 100 times in this thread but this is REALLY cool!!

just coming off the back of my first build of a bass ever, i was so excited all throughout the proccess to be building it. and i can't imagine how excited you are!!

i'm gonna be building soooo many more basses once i have the money and a job!! (i'm still only in high-school)

i'm subscribed to this thread and i can't wait to see it finished!!
gonna upload some videos of you playing it once its done??
Click to expand...

I will probably record some audio files for the TB community.

#64
Last night was an experiment to see if I could relic knobs. I have failed miserably in the past, so I was crossing my fingers.

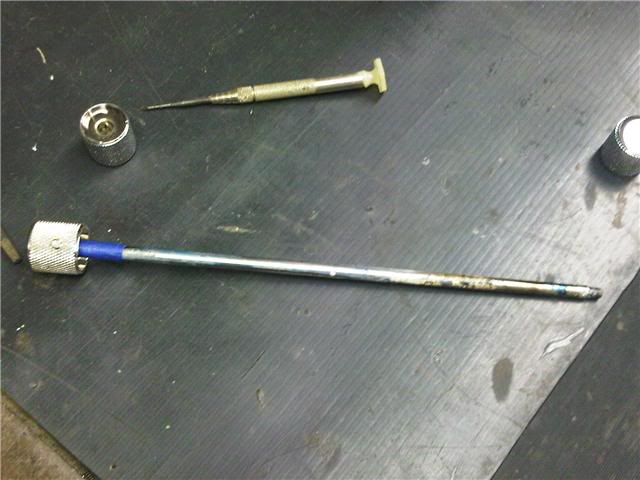

First, I needed something to mount my knobs on so my fingers wouldn't be exposed to any hazards. I found my answer in a metal rod wrapped in tape.

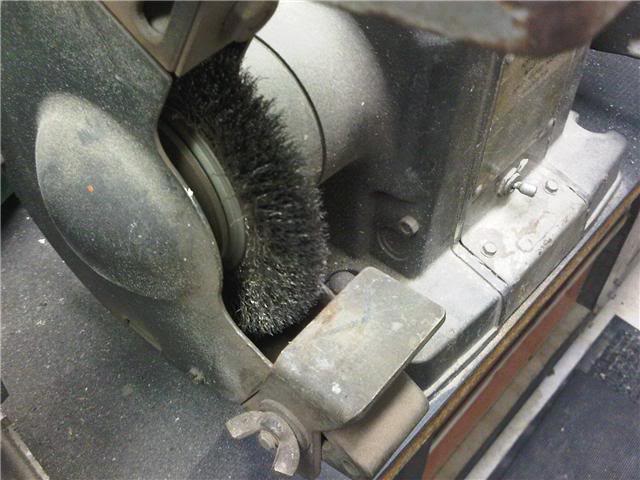

Then, I fired up the wire bristle grinder. I felt that this tool would remove the chrome, while maintianing the knob's surface. It was a gamble that paid off.

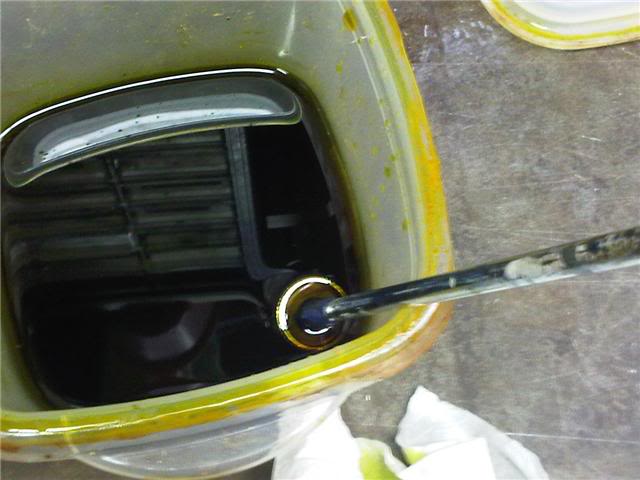

To induce more of a corrosive look, I used etchant after the nickle was exposed.

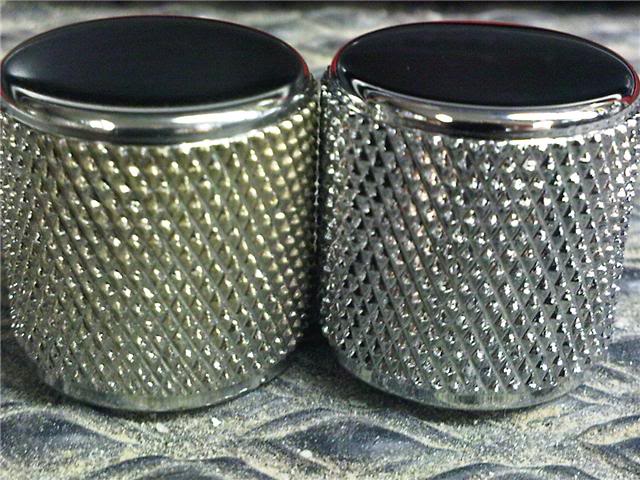

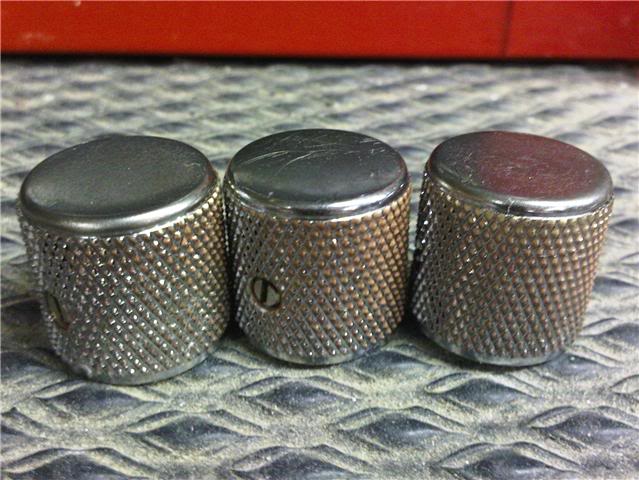

Here are some before and after shots.





You can see the yellow from the exposed nickle. The grinder would remove the chrome, and the etchant would tarnish the metal, giving it a slight copper look.

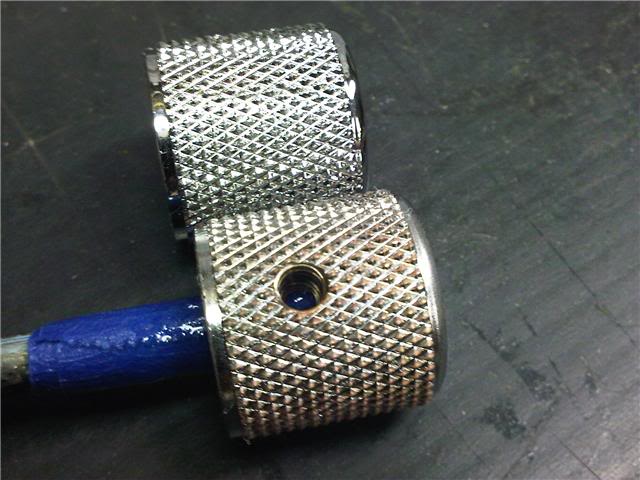

After the grinder

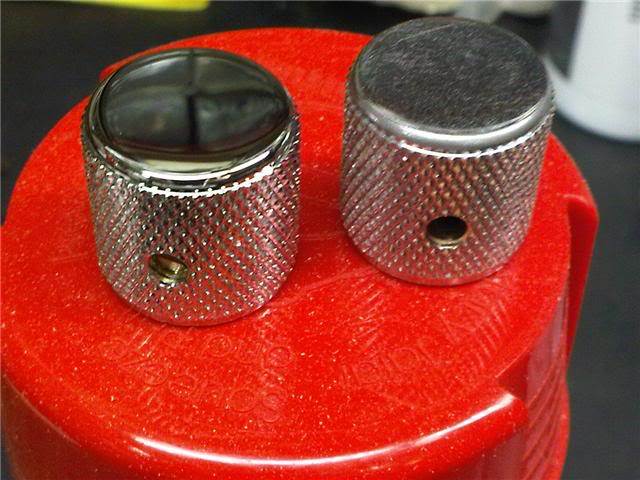

After the etchant

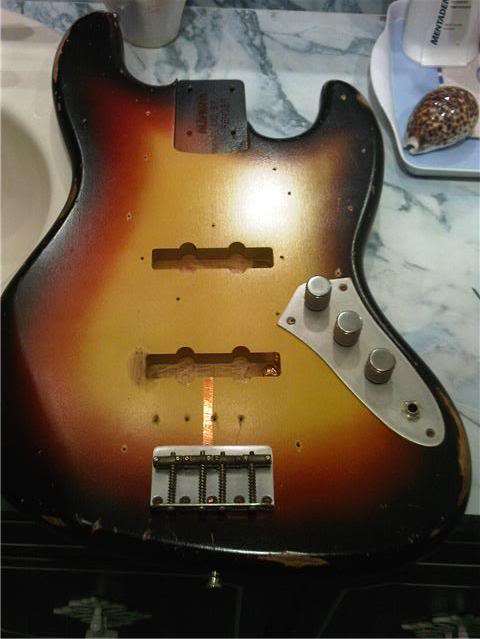

Mounted on the body. Looks pretty good.

#67
GreggBummer said:
I have never been a real fan of "relic" instruments. Watching this bass go through it's transformation has changed my opinion. You are doing a great job... please be sure to post a clip of you playing that beauty.
Click to expand...

I may not have a video clip. Seeing me on video sometimes makes me nauseous. However, I will upload a WAV file.

#69
bassgod76 said:




Click to expand...

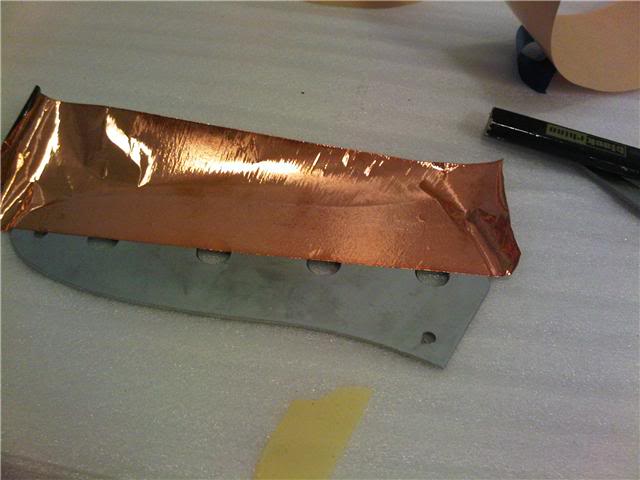

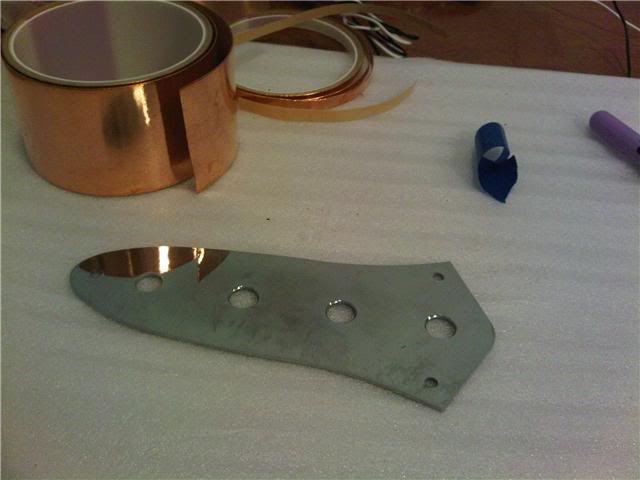

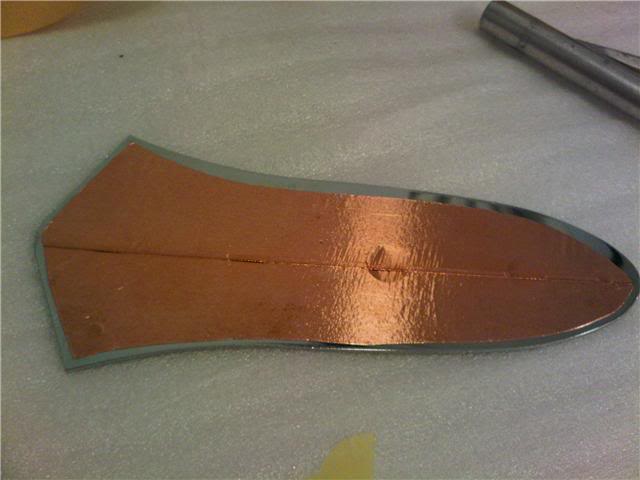

Very nice work, but I am absolutely baffled at why you are trying to shield the control plate??
The plate is already made of metal, so it's conductive. There is no need to shield it.

Unless you have conductive adhesive, you might be creating a small amount of capacitance between the two layers of conductive material with the insulating adhesive material between them.
I don't think it would cause any problems though, both materials should be shorted together to ground when the pots and jack are mounted.

Also, why didn't you shield the pickup cavities???

#70
line6man said:
Very nice work, but I am absolutely baffled at why you are trying to shield the control plate??
The plate is already made of metal, so it's conductive. There is no need to shield it.

Unless you have conductive adhesive, you might be creating a small amount of capacitance between the two layers of conductive material with the insulating adhesive material between them.
I don't think it would cause any problems though, both materials should be shorted together to ground when the pots and jack are mounted.

Also, why didn't you shield the pickup cavities???
Click to expand...

You are absolutely correct about the usefulness of shielding the control plate. I shielded the control plate because of my OCD. No rhyme or reason, but it would bug me if it was naked, underneath. It is my sickness. :(

There will be no resistance via the adhesive because that StewMac shielding is made with conductive adhesive. The stuff is great because the user doesn't have to solder pieces together. :)

Thanks for your interest in my project. :hyper:

  • Like
Reactions: jebmd
#75
line6man said:
Also, why didn't you shield the pickup cavities???
Click to expand...

As I stated before, I have to wait until pay day to order the pickups. Knowing my luck, I'd shield the pickup cavities, my pickups would arrive, and there would be a fit issue. After I'm sure the pickups will fit without additional sanding, I will shield the pickup cavities.
