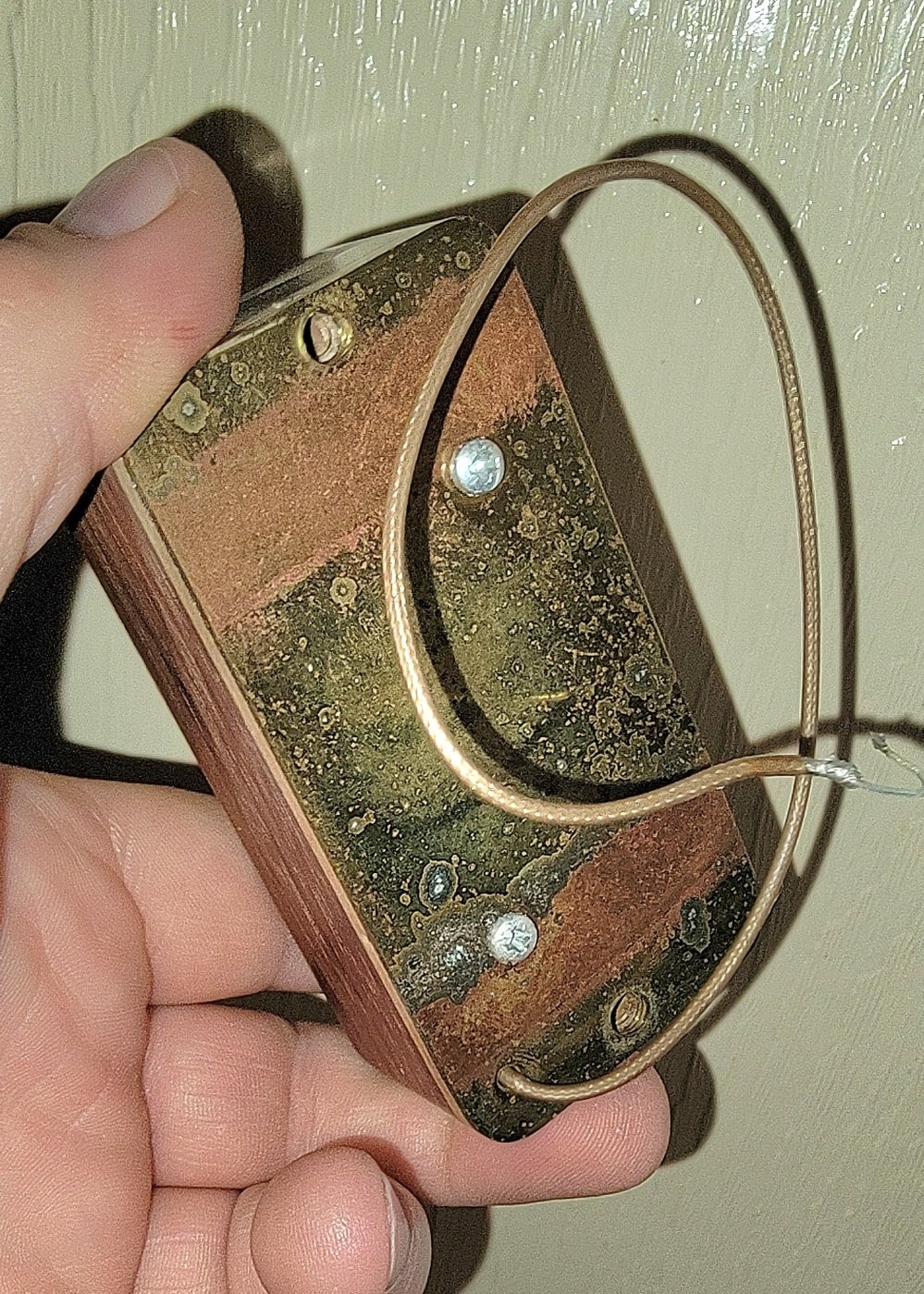

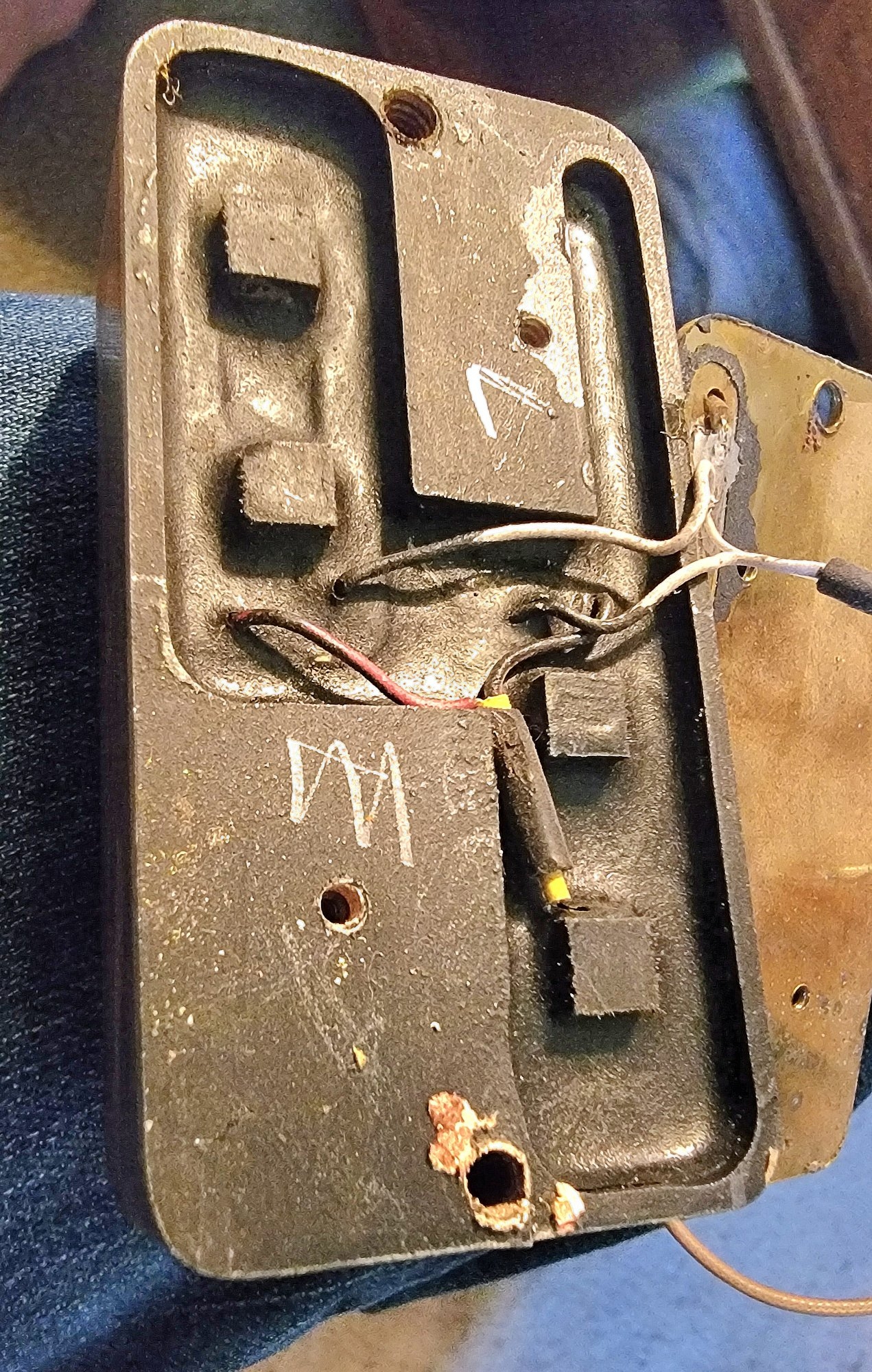

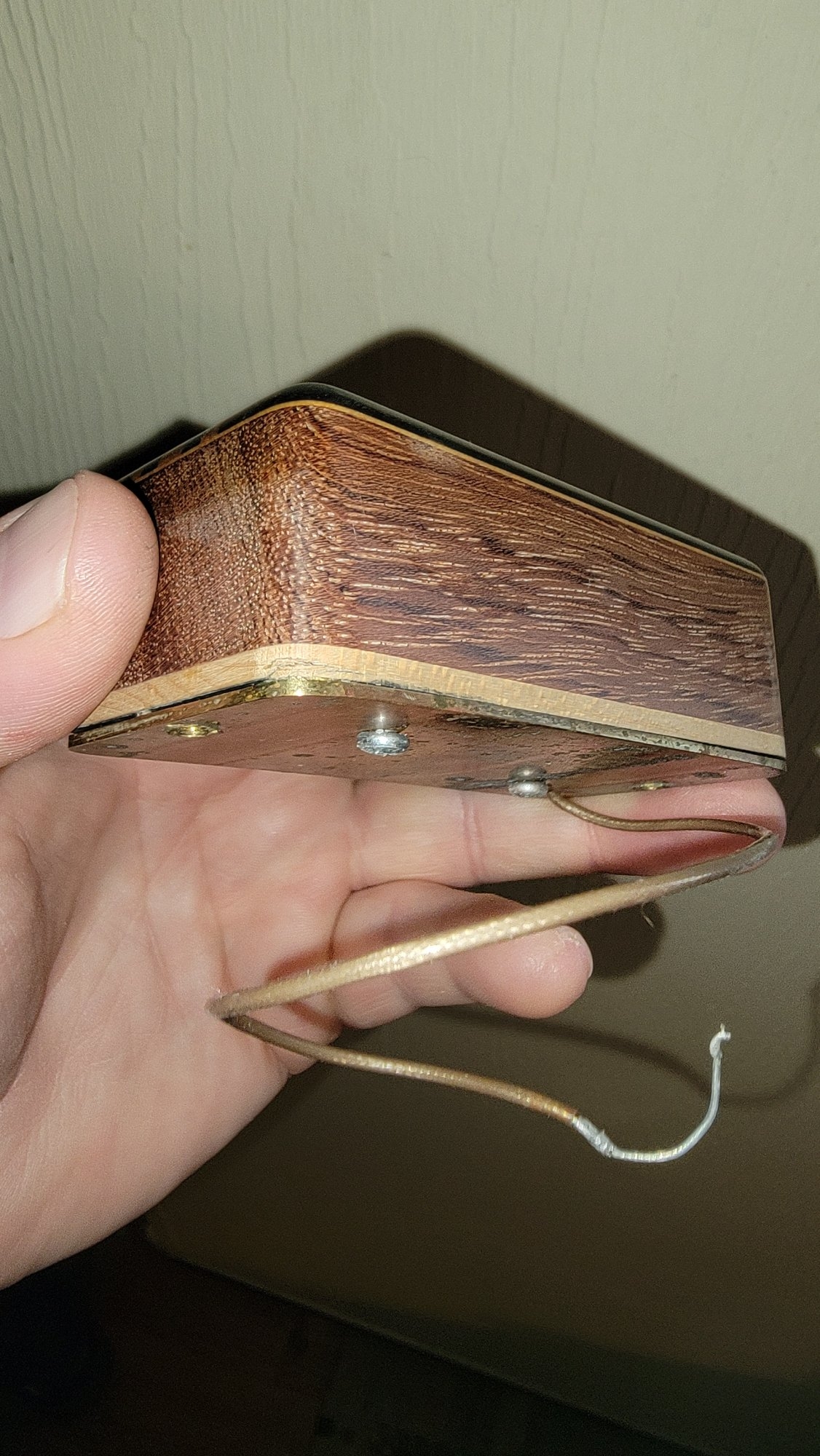

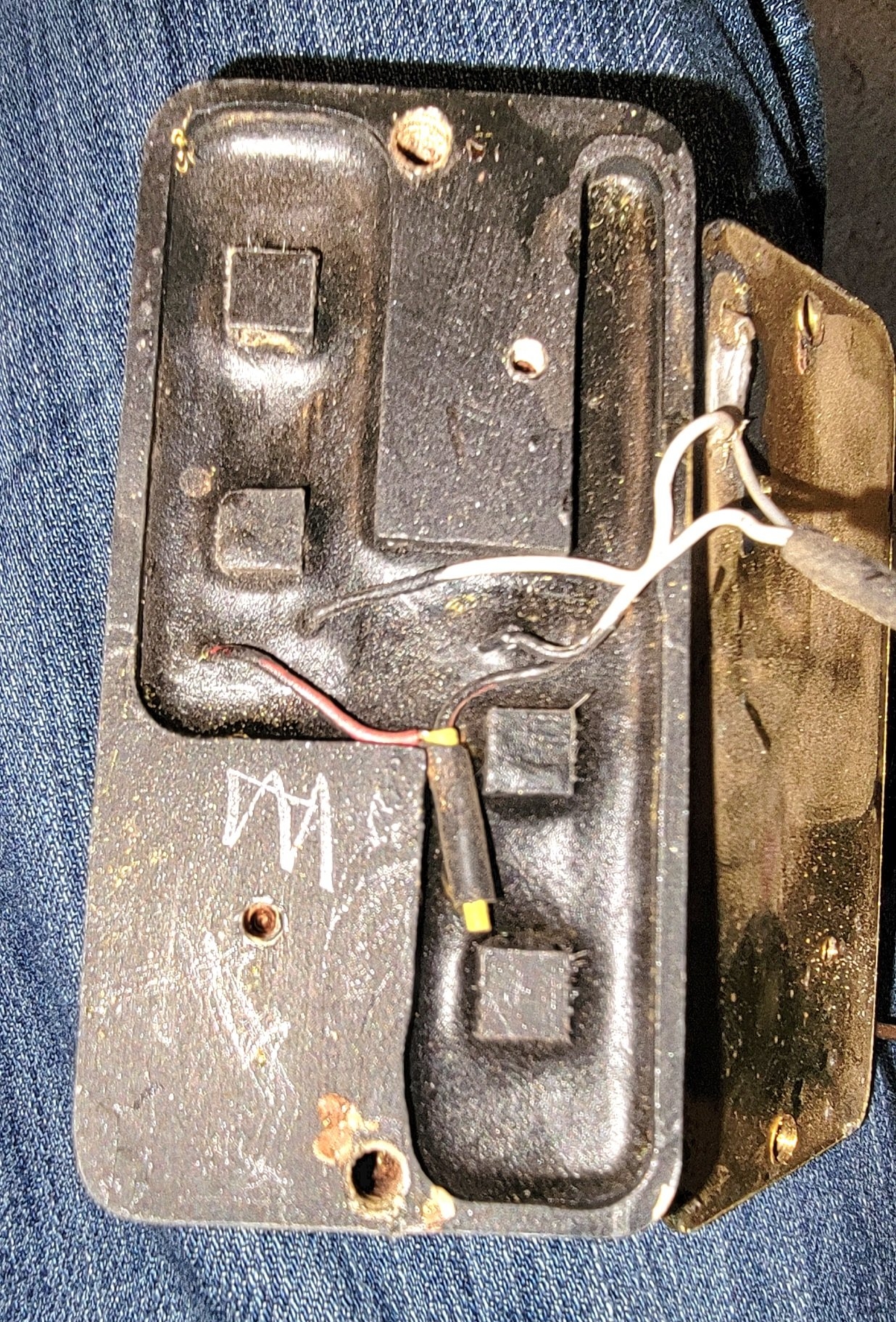

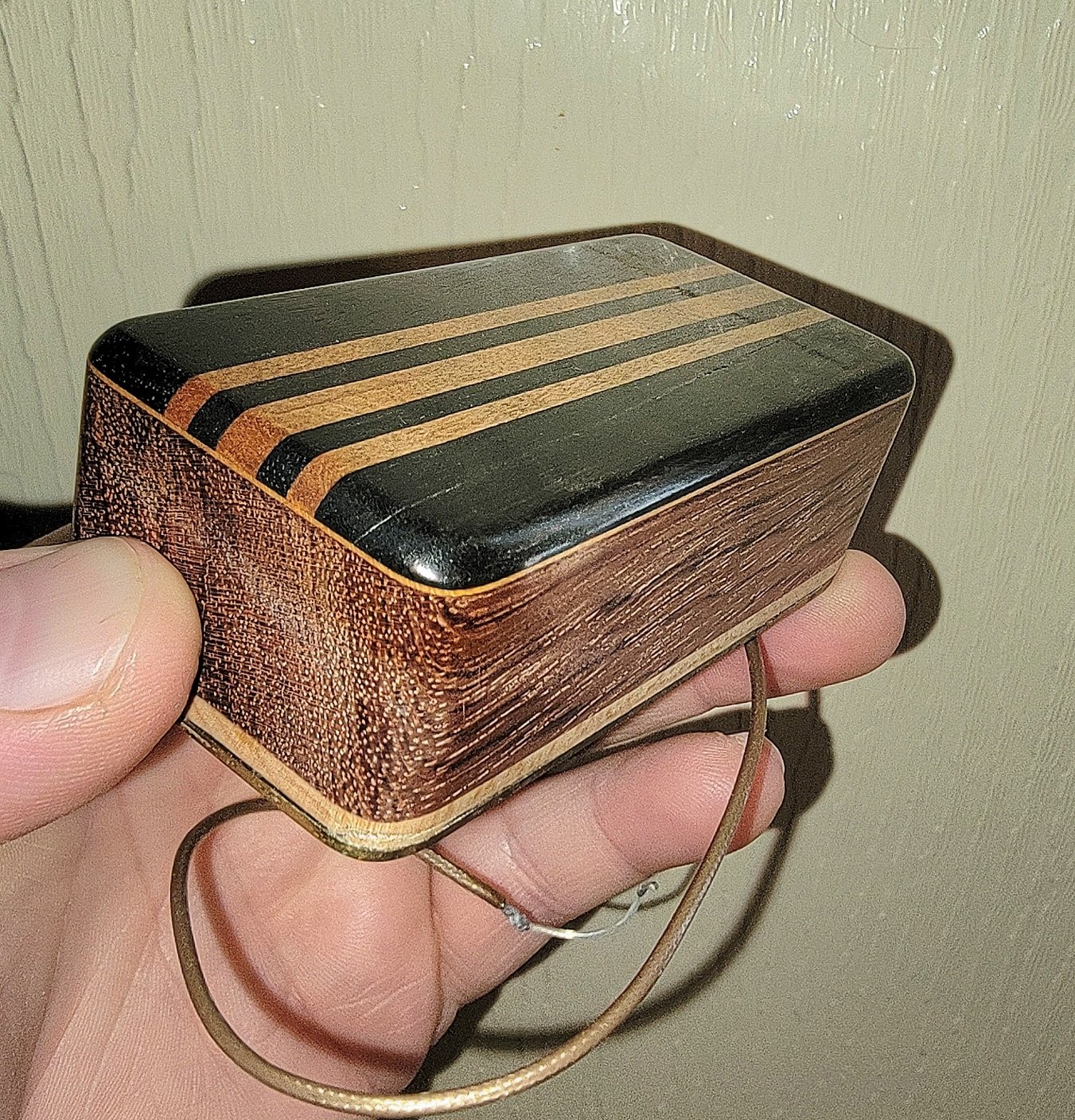

Many Jaydee enthusiasts in the past have hit me up with questions regarding original Jaydee bass pickups. I recently documented the inside of an actual pickup from my 1987 Series 2 Mark King bass. It is a clean and interesting design. Basically, you have a mini 'P' pickup configuration fabricated into one handmade soapbar housing.


Attachments

  • 20251005_105502.jpg
    1.2 MB · Views: 11
  • 20251005_105514.jpg
    870.3 KB · Views: 14
  • 20251005_105902.jpg
    1.4 MB · Views: 13
  • 20251005_105750.jpg
    1.4 MB · Views: 9
  • 20251005_105532.jpg
    903.1 KB · Views: 12
  • Like
Reactions: Nanu991, Jaymi, simisker and 1 other person
#363
relayer66 said:

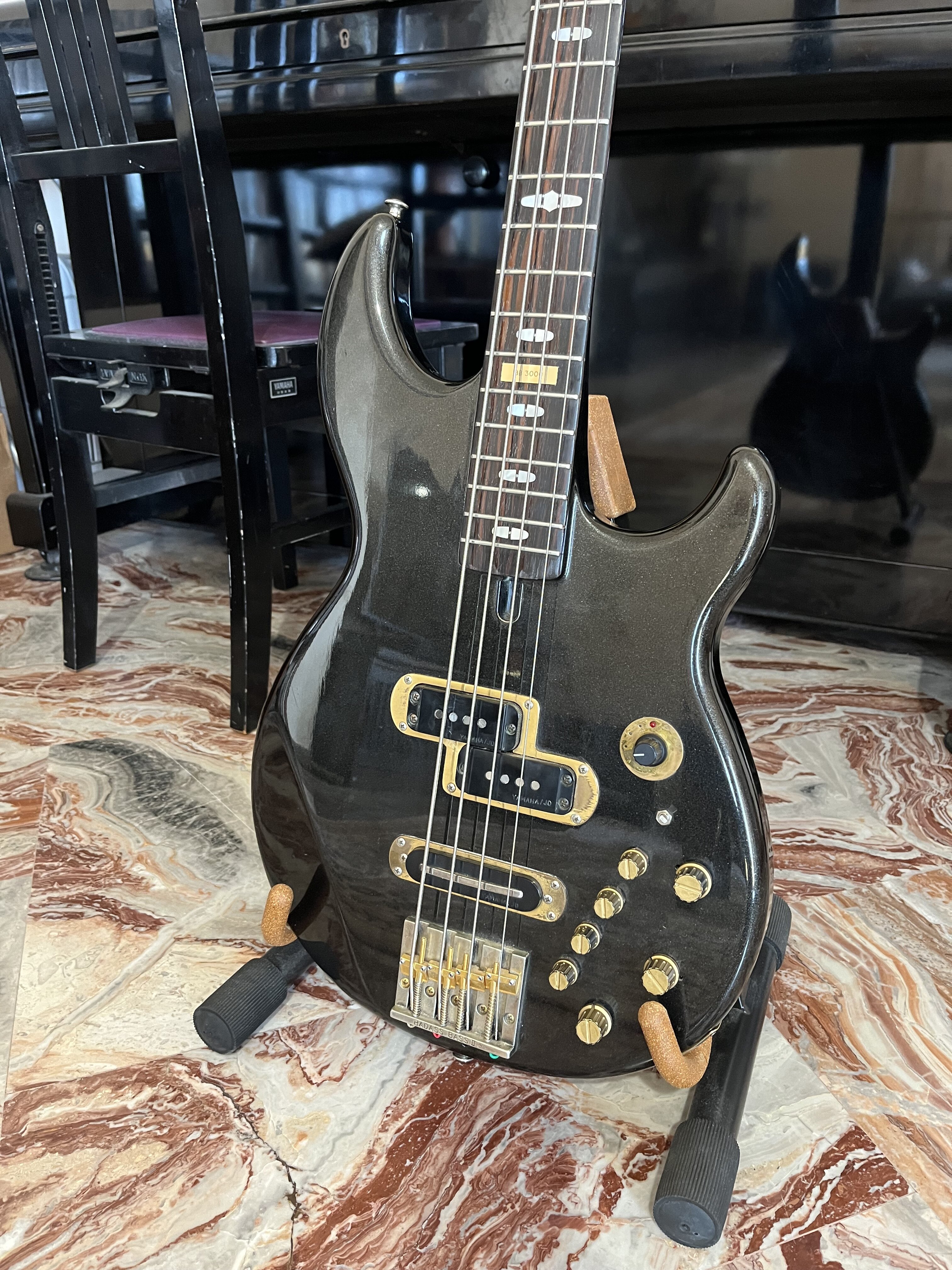

A little unusual request here. I just picked up this Yamaha BB3000 that was customized by Jaydee in the mid-90’s. Can anyone explain the controls layout to me, or provide a diagram or schematic for this system? I think I have most of it figured out, I would just like more detail. Also, the toggle switch…is that a series/parallel switch? If so, which side is which?View attachment 5278577
Click to expand...
From my observation based on this layout,....... you have a four-band active e.q., with a master tone, pickup balance, and volume. The rotary switch is three way meaning that it is bridge/bridge-neck/neck and an OFF position. The toggle switch is ACTIVE/PASSIVE. However, if you have a four position rotary switch, then I don't think you would have a functional BALANCE control.
