NBD: Burnside Crossbow by Guild

My first thought is not that it's inherent in the headless design, but rather that the bridge strap position has been moved 7 to 10 cm away from where a more traditional strap button would be
You're probably right. But I found out that I can run the strap around the horn instead of the back of the horn, and this seems to move the bass a little.

Last edited:
  • Like
Reactions: BunchyMutt
My first thought is not that it's inherent in the headless design, but rather that the bridge strap position has been moved 7 to 10 cm away from where a more traditional strap button would be
It is a very curious choice to put it there. It seems that the resulting balance would sort of negate the advantages of a headless bass. I’d move it to the outside of the lower horn but that’s just me.

  • Like
Reactions: Eli_Kyiv
^^ It's not where I'd put it either, but with that shape there are few other options. Still with the two buttons on an almost horizontal line it's better than the more trad bass positions of body centre behind bridge and top horn which wants the bass to rotate neck towards floor. This is worse with a head.

  • Like
Reactions: Eli_Kyiv
^^ It's not where I'd put it either, but with that shape there are few other options. Still with the two buttons on an almost horizontal line it's better than the more trad bass positions of body centre behind bridge and top horn which wants the bass to rotate neck towards floor. This is worse with a head.
I think you're wrong, by putting the back button near level with the front button you have put the majority of the weight in front. The bass will hang at best level, even a headless bass I imagine. The best place IMO is underneath the body, roughly where your right hand hangs, beneath the controls. That doesn't seem like it would work here, so why not use a classical style guitar strap or put a center pin in the back and clip it to a harness?

What a far out looking bass!...and a stark contrast from the instrument in your avatar! Playing that thing sitting down would be really silly IMO...I'm just guessing here but me thinks that thing was built for thrashing!

I love the wig, a bit of make-up and you could do a good Gene Simmons for Halloween!

Cheers and congrats on the new bass!

  • Like
Reactions: Eli_Kyiv
Previous topic here:
A strange beauty keeps popping up in a local marketplace

Well, now I'm a proud owner of this quite exotic and rare bass, so I can share my first impression.

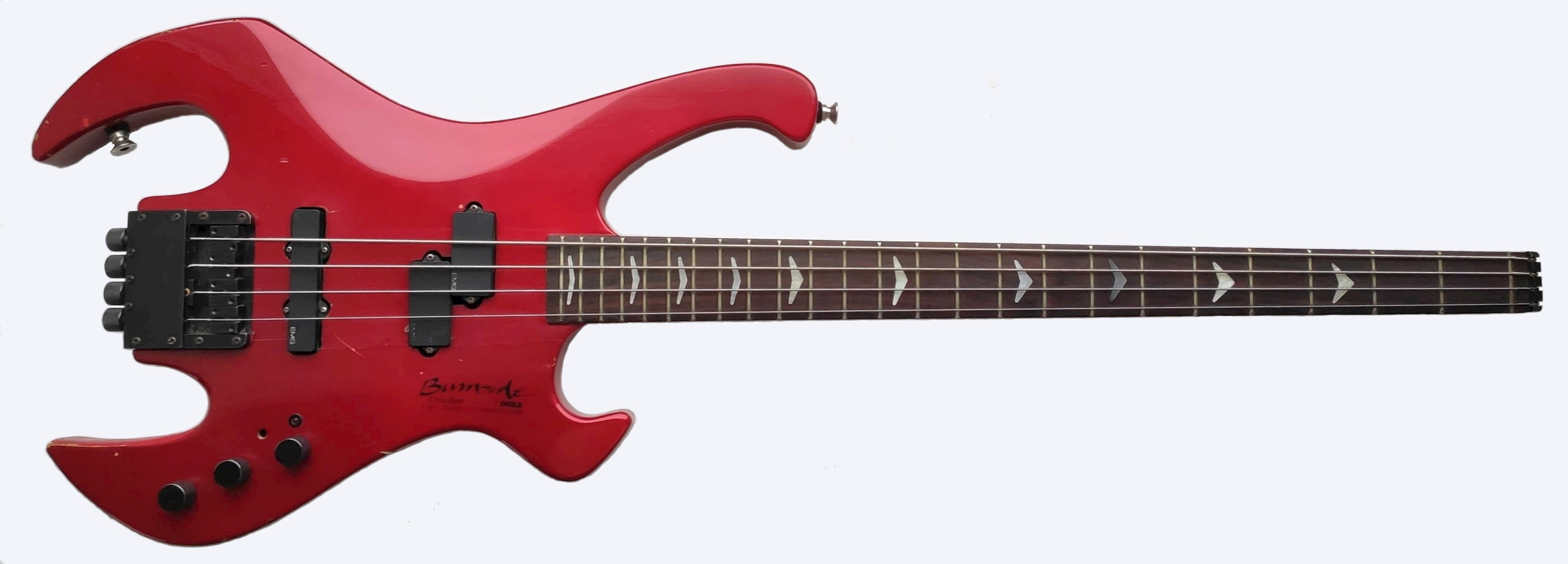

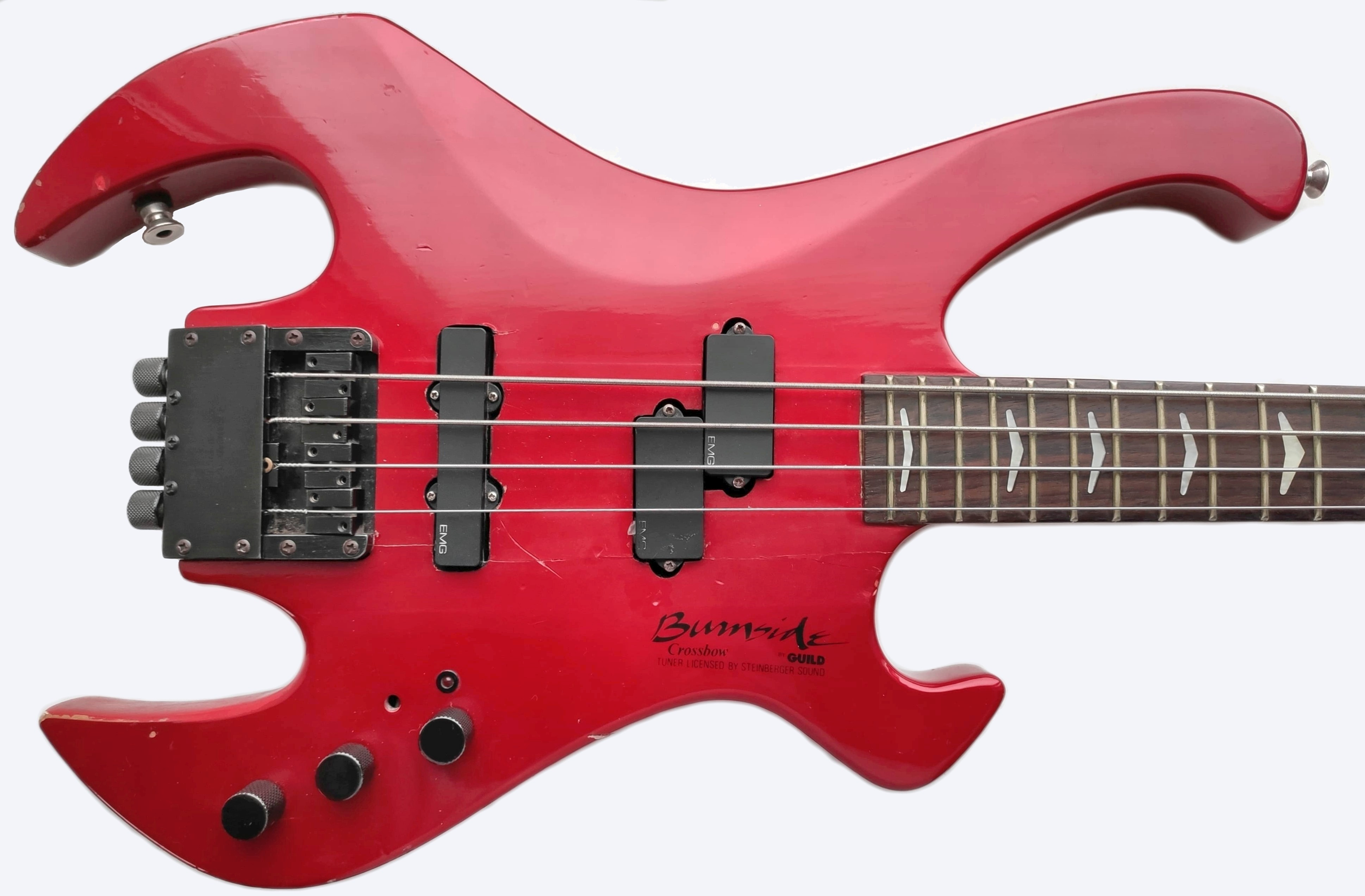

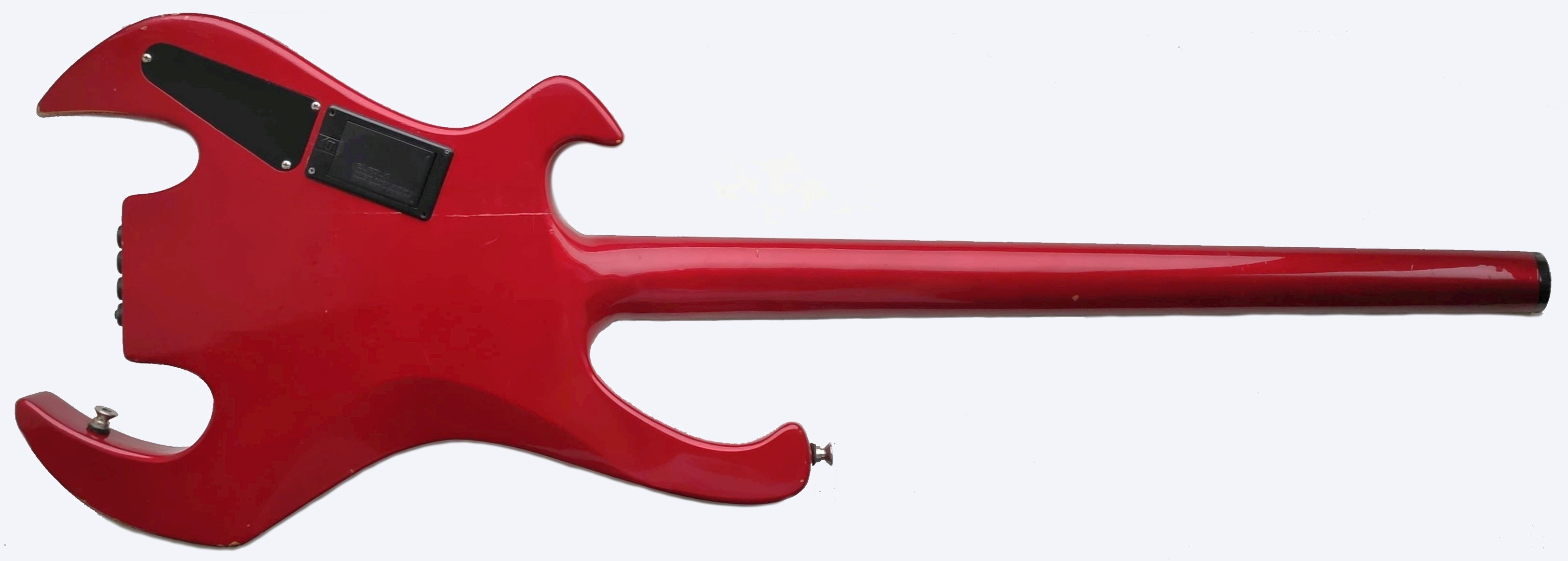

First of all, pics. Cuz you know, no pics - did not happen.
View attachment 4116688
View attachment 4116689
View attachment 4116690
Appearance
It turned out that cosmetically this bass is, should I say, far from perfect (more on this later), so the price dropped to $250. The guy who brought it (a seller's friend, for seller lives in another city) told me that this bass for a long time was a main touring axe of some well-known local bassist, who played in a support band of some well-known local singer, so it has seen the whole former Soviet Union. Well, in this case it becomes "road-worn", which adds some glory. ;)

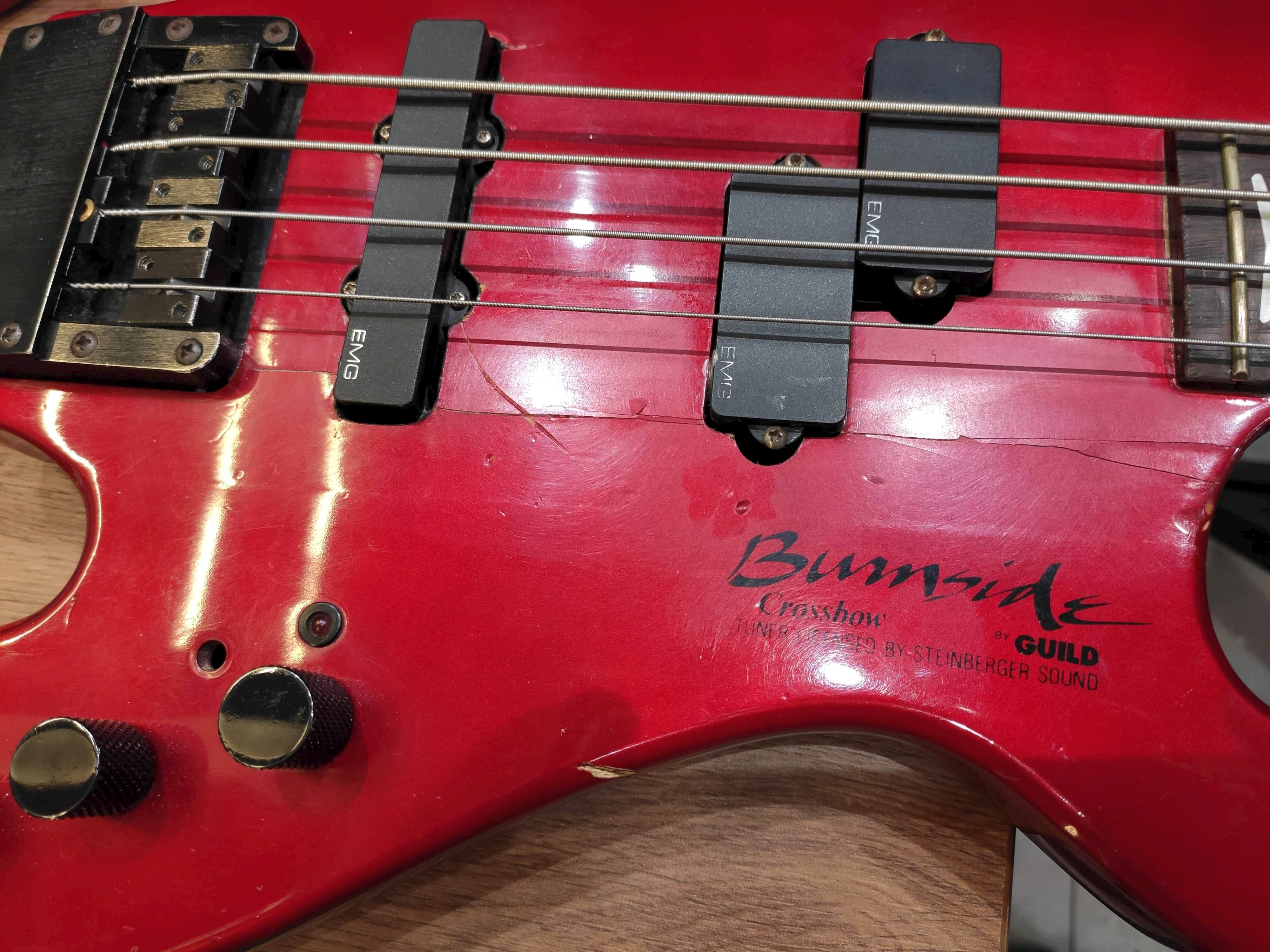

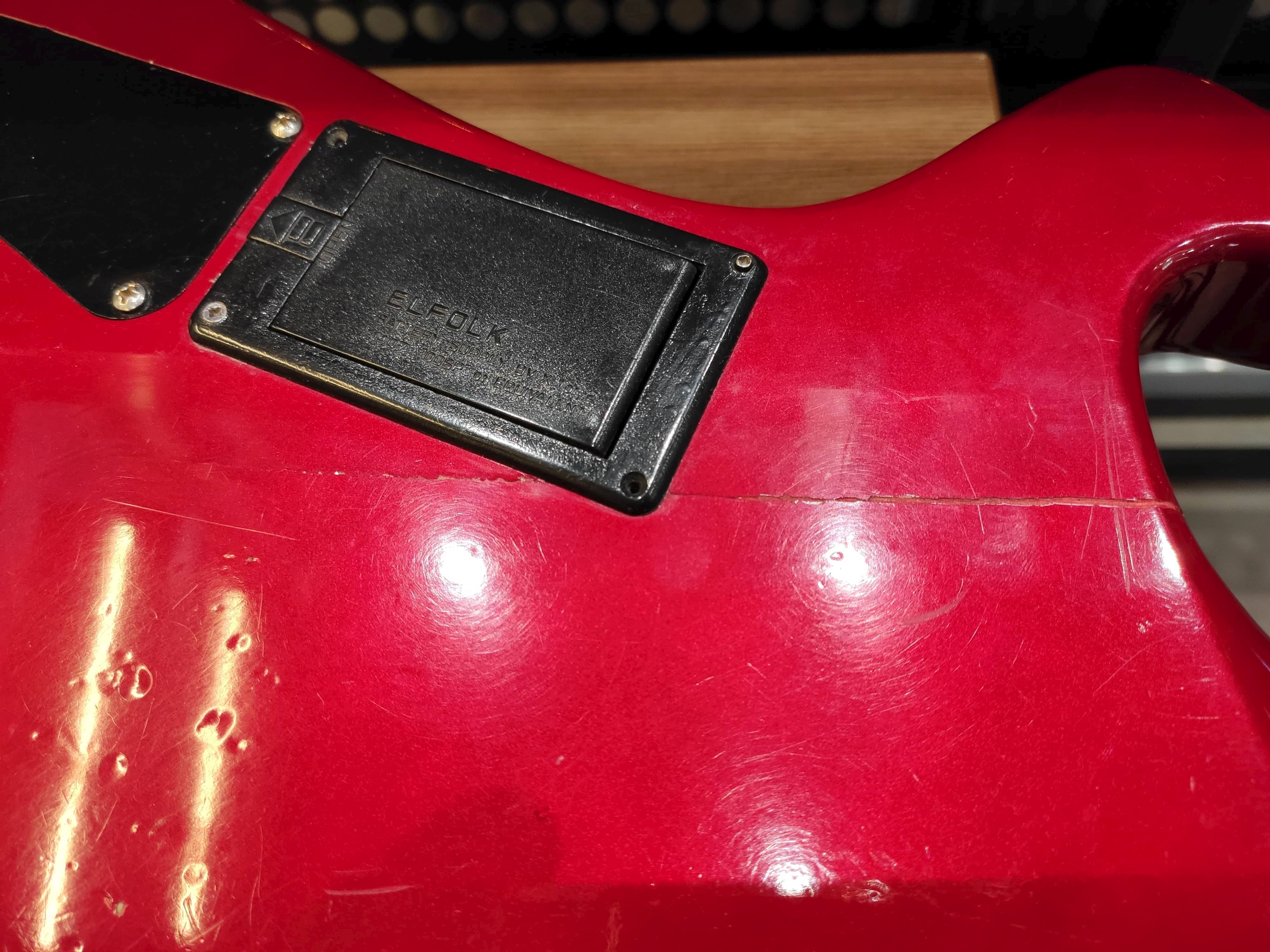

The main worry is a long crack on both sides of the body. I don't know if it is even possible to do something about it save full refinish.
View attachment 4116706
View attachment 4116708
Setup
Almost perfect. Neck is straight, action is low, neck relief is small but exists, truss rod works, tuners work, saddles move. There's some fret buzz when I play with a lot of force, but this is to be expected with a low action.
Intonation is not perfect, but I'm going to work on it, maybe tomorrow.
Ergonomics and playability
Very convenient bass. The only thing I noticed is that the natural position to play fingerstyle seems to be over a bridge pickup, while usually I play mostly over a neck pickup. Well, this is my first headless - maybe they all are like this. I think this is a question of time.
Strings are double-ball end (Steinberger licensed). I may get an adapter for single-ball end strings, or replace a nut, or leave it as is. For now I'm inclined to latter.
It's not good to play sitting without a strap though. But since I always play with a strap, this is not gonna to be a problem.
Sound
Sound is very good. Growly, fat, heavy… some would say "ballsy". I don't know if headless basses were popular in hairy metal bands, but the sound of this bass seems to be just what's needed for the genre. I don't play a lot of this kind of music, but anyway. Slap sound is very impressive, too.
Electronics

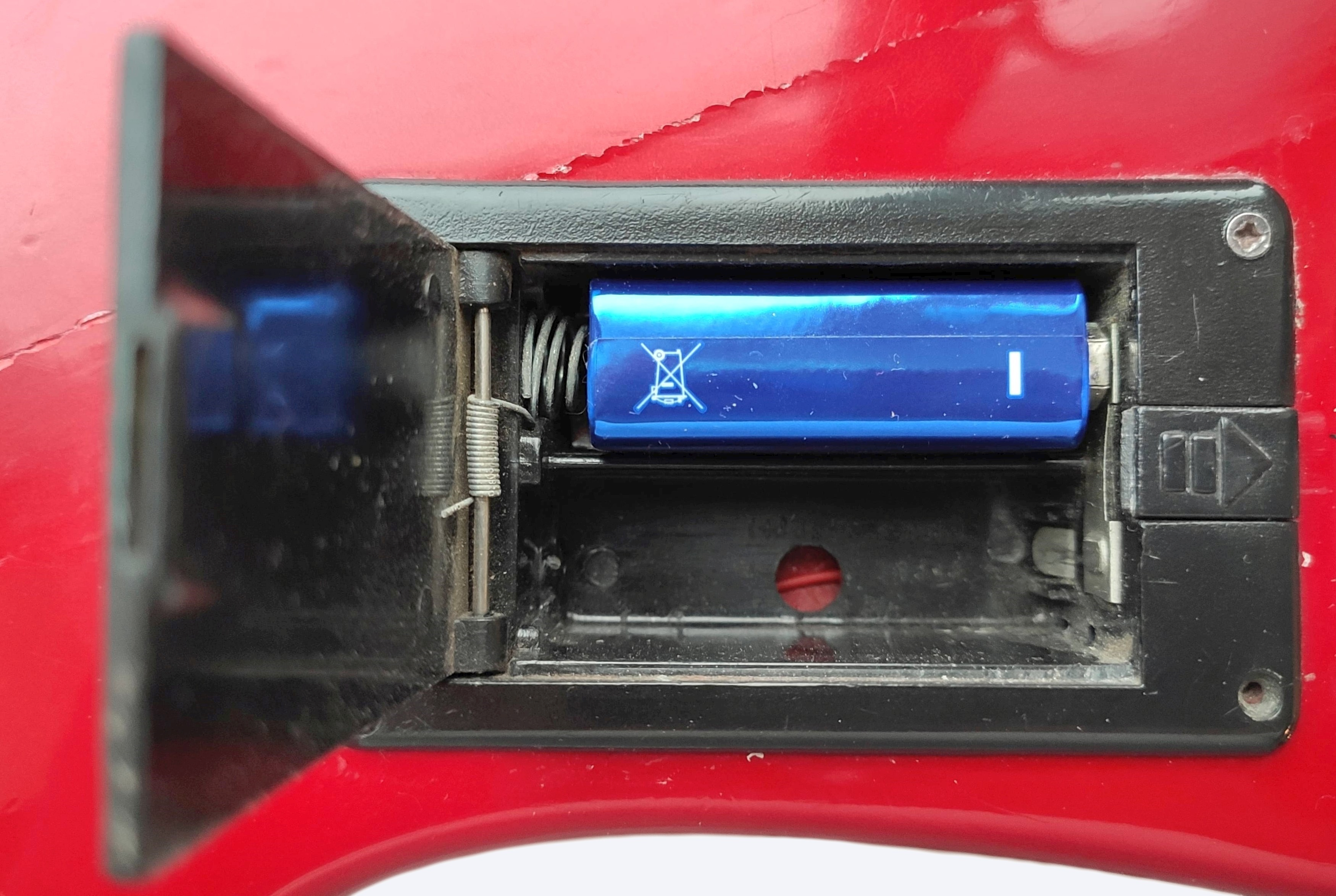

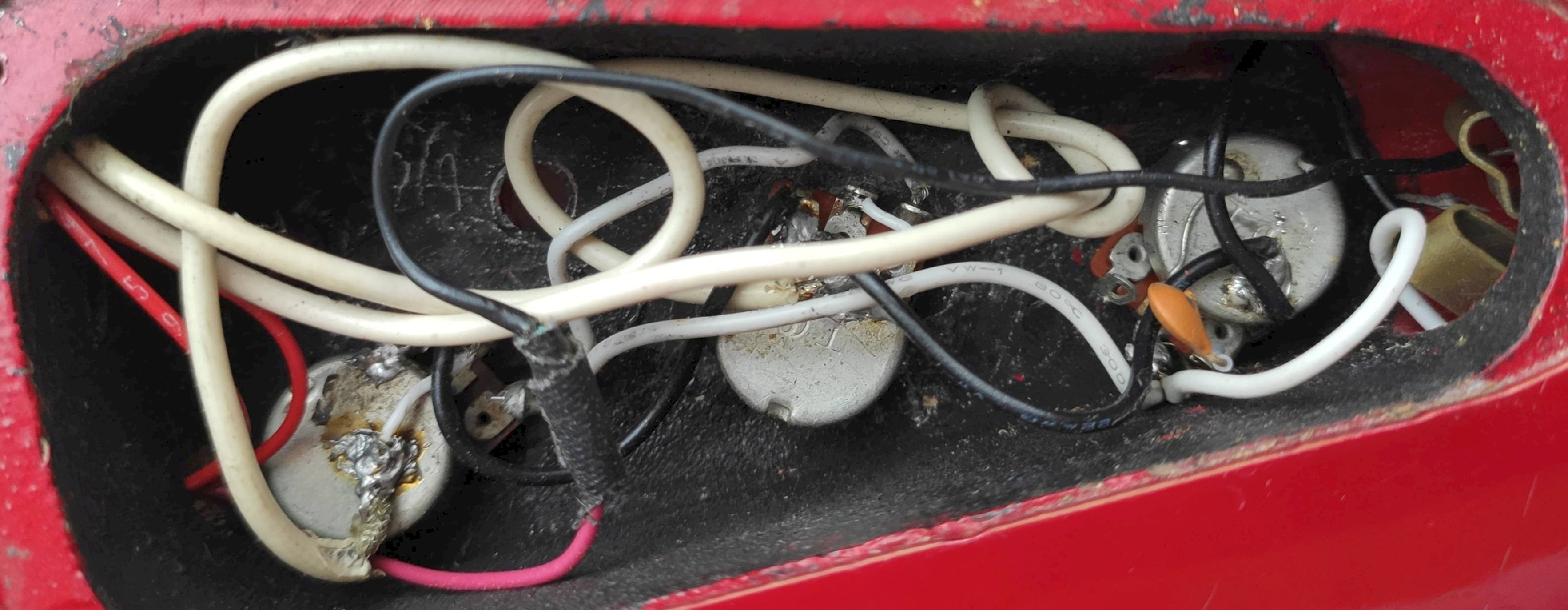

Looks like somebody messed up with it. There's only one battery in a double battery compartment, a pot instead of a big switch, and an empty hole instead of a small switch. Pots are V-V-T. I did not notice any sign of preamp, but no battery - no sound. Probably active pups.
I've noticed that the bridge pickup is much quieter than the neck one. Also strings D and G sound quieter (and maybe duller) than E and A. Maybe pickups height should be adjusted.
View attachment 4116737
View attachment 4116738
So this is all for now. If somebody has an original wiring diagram of this bass, I would greatly appreciate it.

$250?? Congrats! Along those lines, I doubt it will ever bring a huge return on a resale down the line. I’d fix what ever needs fixing, body cracks, electronics, and nut, and not worry about any mods devaluing the instrument.

  • Like
Reactions: Eli_Kyiv
I have no idea, but I've had or played a lot of clones over the years, and unless they've obviously been BO, they've been NT. Not a definitive answer, but if I was to bet it would be on NT and not SN.

  • Like
Reactions: Eli_Kyiv
I have one stashed in an odd corner of the living room I don't use - I think it's stock, I haven't messed with the electronics. I'll dig it out and see what I find, pics if it looks stock...

  • Like
Reactions: Eli_Kyiv
An update:

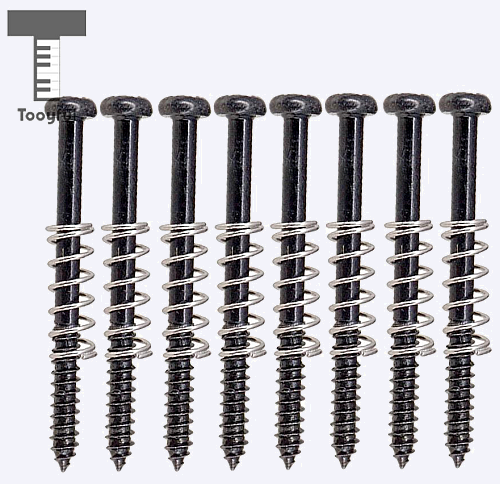

To get rid of pickups/strings volume inequality I've replaced original pickup screws with these from Aliexpress:

Now they are as level as should be.
Also a new string set has been installed. Not cheap ($40), but double-ball end strings are never cheap. In this case China doesn't offer any inexpensive alternative.

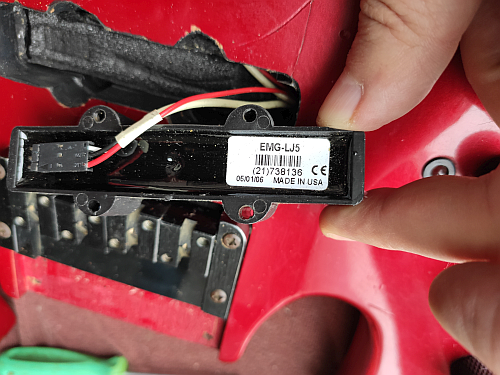

As for pickups, now I know that they are EMG-LJ5.

  • Like
Reactions: Bill Whitehurst
I've had one of these for 35 years. In fact, it's going to be in my lap here shortly. FWIW, if yours came with EMGs, those are not original equipment iirc. Also, you're missing the passive/active switch next to the LED. That said, I put EMGs in mine about 34 years ago and I've never looked back. I use la bella nylon wrapped flats on it, the black tapes. Sounds great even now.

I did discover that roundwond strings really chewed through the saddles, to the point that they made razor sharp protrusions that ate strings until I put a smidge of 2000 grid sandpaper under there. However, since I moved to flats, zero problems and I play it pretty much every day now (memory lane.).

I once heard there were fewer than 40 of these made, but I can't verify that's true.
