New UV clear coat finishes for instruments?

I saw that video and it’s an interesting finish. The down side is it’s $154 a quart. I get that a quart will go much further then a quart of solvent paint and all that and I would like to try it, that’s just a decent amount for a quart of finish.

Interesting. One of the resellers is instrument focused.

It’s $140 per gallon

  • Like
Reactions: Matt Liebenau
Looks really good. I wonder how this compares to other UV cure finishes. The prices are out of this world. Like more than double the cost of very high quality industrial 2 part finishes. I'm curious though and want to learn more... :D

  • Like
Reactions: Barticus

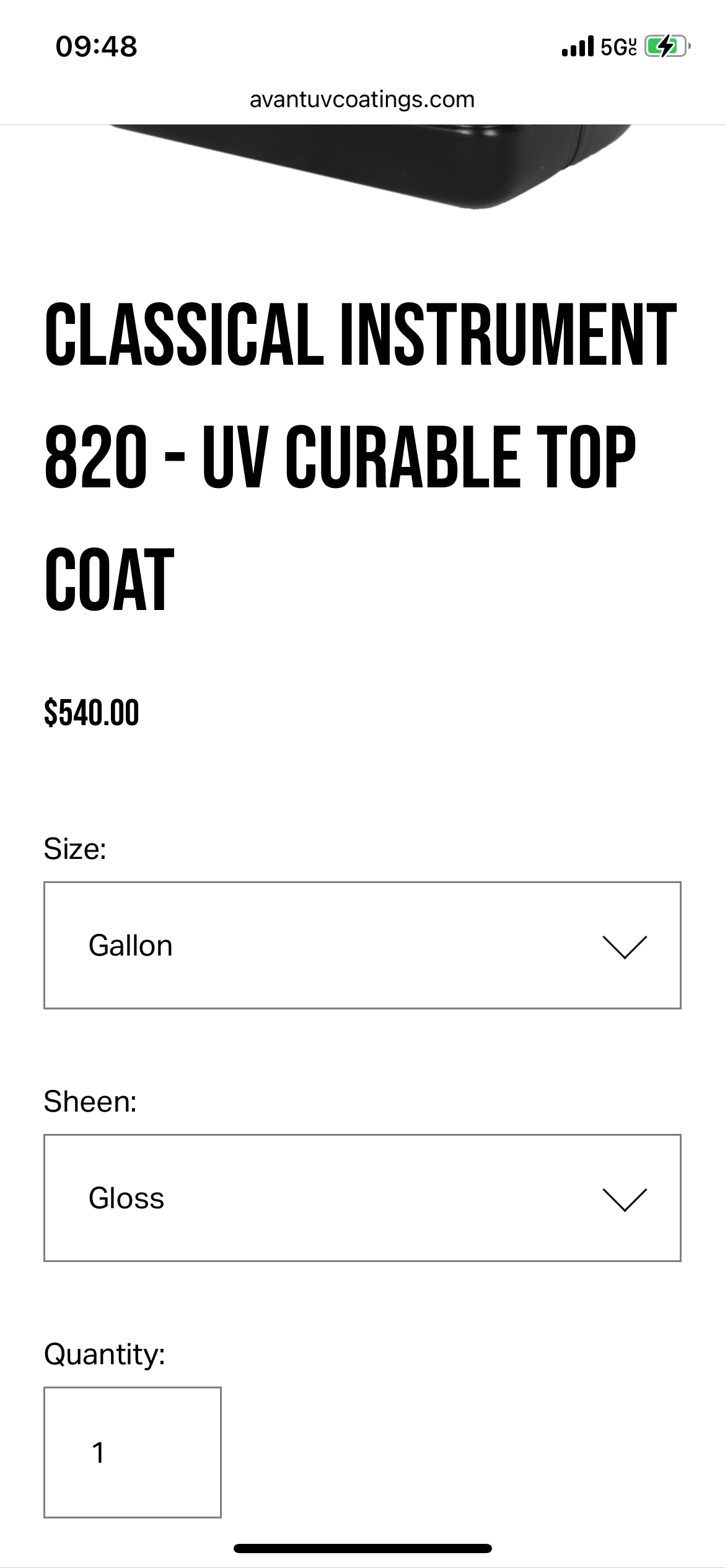

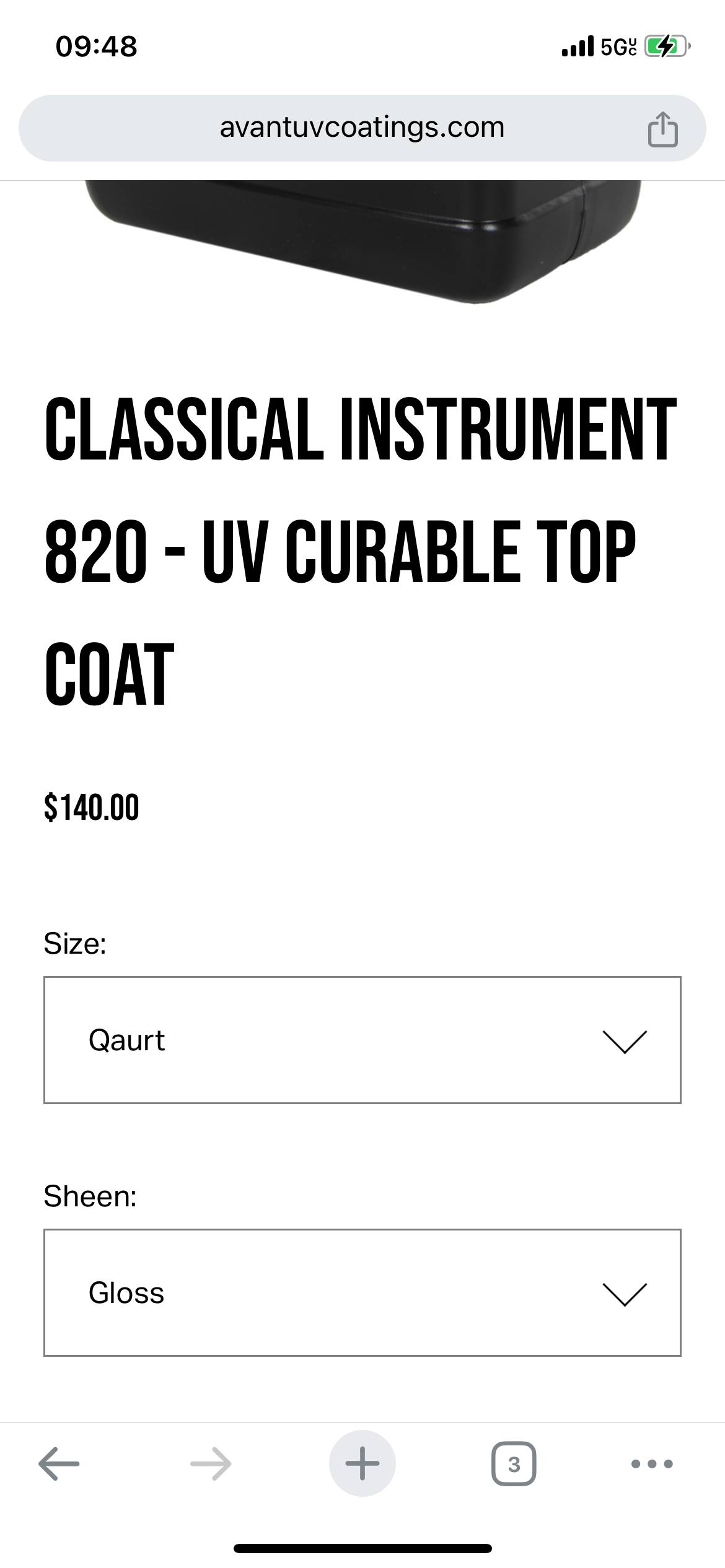

Sorry the quart, or apparently qaurt, is $140. A gallon is $540.
Wow, well that was very misleading!
Thanks for providing that harsh reality 😂

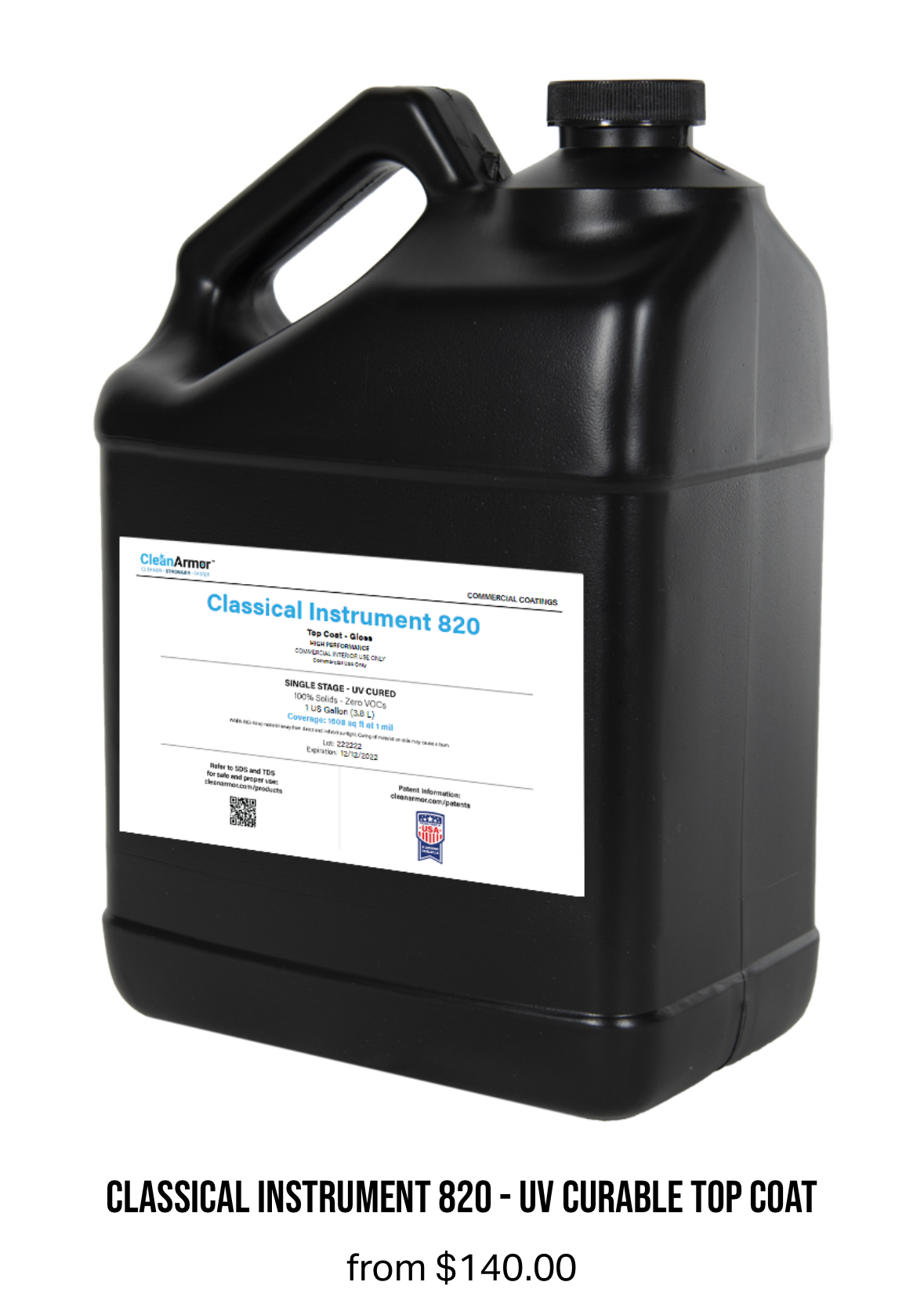

They used the ole’ “from $140” bait and switch approach 😀

I wonder how far a quart will get me?
I buy Mohawk instrument sealer for about $40/qt so at nearly 4x the cost it might be worth a try.

I suppose if it makes it to market past these little speciality sellers (early adopters) the cost may come down… maybe?

  • Like
Reactions: Matt Liebenau
My general reaction is that it's just not worth that much extra money. With the EmTech EM9300 that I use, I spray coats an hour apart, and a group of coats is fully cured in 12-24 hours. That's a nice working schedule for painting an instrument in a small shop. Taking each coat to full cure in 2 hours isn't really an advantage to me. And the EM9300 is $130/gallon.

UV cure paint is great for factory operations, where you have carousels of instruments being sprayed and passed through banks of UV lamps. The labor savings per instrument justifies the high cost of the paint.

But I don't think it does for a small shop.

My general reaction is that it's just not worth that much extra money. With the EmTech EM9300 that I use, I spray coats an hour apart, and a group of coats is fully cured in 12-24 hours. That's a nice working schedule for painting an instrument in a small shop. Taking each coat to full cure in 2 hours isn't really an advantage to me. And the EM9300 is $130/gallon.

UV cure paint is great for factory operations, where you have carousels of instruments being sprayed and passed through banks of UV lamps. The labor savings per instrument justifies the high cost of the paint.

But I don't think it does for a small shop.
Not two hours, but TWO MINUTES! I'd agree with your cost/benefit analysis, though.

I cringed spending $32 on a QUART of General Finishes "milk paint"!!! 💲:(

You have factor in purchasing the U.V. bar lights, too. According to Stumpy it goes 3 to four times farther since there's no volatile carrier to flash off or evaporate. I can see an advantage to that, as well as improvement in shop air quality. I'm less and less enamored with having that stuff in the shop air that I breathe. A two minute fully cured finish also means less surface dust in the final finish.

It also might be a great option for hard surfacing fret and fingerboards.

I'd wonder about how it compares to two part epoxy, too. There is no doubt some hard and fast data for that out there somewhere.

Last edited:
I think all three of these products (CleanArmor, SolarEz and UV-cured 3D resin) are similar basic chemistry: Water-base polyurethane with UV-curing additives. But they are different mixes, with different viscosities, made to be used in different ways. The 3D resin is a thicker liquid, to be pushed out a tiny nozzle and immediately cured. SolarEZ is made to be brushed on, allowed to flow out, then hit with the UV. CleanArmor is made to be sprayed, atomized into fine droplets, allowed to remix and flow out, and then hit with controlled UV.

There's a lot of complicated chemistry in these water-base polyurethanes. It's taken many years to develop this stuff, and new variants are coming onto the market every year. You can read about it on Target Coating's web site. They seem to be the company who has done the most R & D on water-base polyurethanes over time, and are still leading the way. They make the EmTech EM9300 that I currently use.


Howdy, I have been experimenting with it a good bit. Sorry I don't don't post much I am in the middle of making some big changes with my company and we are saving to run 400 amp service to our second shop while learning Fusin360 and completing builds. While working day job as well.
I will only speak for myself and the results we are looking for from finishing products. I do not like so much for my own personal basses but a high gloss finish I was, am, always seeking to find the absolute most durable, chem resistant, absolute water clear, scratch resistant clear that works well with guitars. Cost, VOCs, I did not care I wanted to have that old pre nitro PRS poly system or as close as we could get ability in our shop for the future. I don't have anything against anything anyone uses as long as it works for them. I had several instances of shipping new commissioned instruments and the finishes were marred by packing material, or something similar in years past. I wanted a more non reactive finish.
So is it worth it....? Depends on what boxes you want to check. I think it's is and I am just in testing stages. I spent 2 times on the phone with the owner and both times almost 15 minutes he was super helpful and he called me back! The owner! Great guy..
To clarify I am not our sprayer. I do all the prep, dyes, sanding and buffing. I am learning how to spray currently. My partner has decades of experience and finally was the one to convince me that if I want Fender custom shop/PRS clear coat results you need to find out what they use and get it (and quit wasting money). I have an account with TCP Global and we use House of Kolor candies, paint and a filler sealer polyester like most going for this type of finish. It's no PPG but the inner coat HOK for any pear, paint, or candies. Then a 2K urethane for top. Pretty mush standard procedure for that type production without UV. Some of the products I buy or did buy from there are dual cure. UV and or MEK for polyester.
For some reference for costs. The products I buy and most guitar builders buy from them in relative terms to the high end automotive products are cheap. I have a good friend and he completely rebuilds old Porsches down to the metal frame and back up again. Lots of the paint/clear he sprays the old school Porsche colors are single stage color and clear mixed. The last 2 gallons was $3,000 a gallon. The clear he buys is around $700 gallon and of course he has to use $2,000 Iwata guns. I have a over a pint of a Porsche 70's mint green metallic mist he gave me I have been saving like a good scotch or something.

HOK clear we have been spraying for a few years is about $300 and would guess about 40% solids. We lay down 3+ mills in a session, next day 1.4 tops left.

He offers a vintage instrument clear (softer), and 2 others for wood super hard (this is Polyester hard UV like G&L and MusicMan UV coatings. They are extremely durable. I even find the sealer filler more durable than the anything I have bought from TCP.

It is 100% solids there is not shrink, I can tell you as far as previously mentioned products it's not even in the same ball park IMO if you want anything like I have described. I tried all those products and did not perform as well as I hoped or if I did get them to work it wasn't consistent results. Never hard enough to polish to glass either IMO.

He is the first guy to get the same hardness and durability in his UV finishes without a high pressure sodium bulb flame throwing out the harmful spectrum of UV rays. I was just about to spend about $4G on a hand held cancer bulb and all that goes with it.

It plays well with all the HOK products. No solvents in to lift anything. I can use the filler sealer. Then spray all traditional urethane based pigments, colors in carrier coat, then use the UV coating on top. You can use it on top of epoxy or MEK cured polyester. It all plays well together.

Thin coats take 2 min of UV to cure yes but to be sure and with all the curves and faces I give it double or more.

Solvents to clean you can use 91% alcohol and mixing up to 10-15% 99% alcohol. No VOC nothing.

Absolute must to have you gun at 70-80 degrees and the product the same. I would say it acts more like thin epoxy then a euro or high solids 2K polyurethane as far as how it moves.

Anyway all depends on you needs. I have to buy gallons of the polyester and clear and most of it has a 6 to 12 month shelf life. I have thrown product away due to our output currently is so small. This stuff you pour back in the bottle.

I think it very well may be the cheapest way you could get to the level of hardness, gloss, durability of the pro clear coats once you factor everything you need and time let alone the environment.

I'm not 100% sold on it yet. We have to finish some more instruments and spray it more. Also I would say if you get the harder version the traditional wheels and compound bars he doesn't recommend. He suggests liquid and cotton wheels. Says the bar compound scratches. I haven't tried to buff out a large area yet with the clear but I can tell already it's like sanding and polishing diamonds.

I don't have anything for sale at the moment and we are booked out for over a year but I still don't know without a commercial status if posting is okay. My next two builds I am working on I thought of using the sealer filler and our normal clear until we get more experience with it. FWIW

You can do a hand rubbed oil feeling finish on a raw neck in 10 minutes that you can pour acetone over and it won't touch the finish. You can dye it with aniline dyes as well like Transtint or Keda. That I tried and it was perfect. I added a drop of orange and med brown and did neck that was great in 30 min. I even sanded some in that time.

Howdy, I have been experimenting with it a good bit. Sorry I don't don't post much I am in the middle of making some big changes with my company and we are saving to run 400 amp service to our second shop while learning Fusin360 and completing builds. While working day job as well.
I will only speak for myself and the results we are looking for from finishing products. I do not like so much for my own personal basses but a high gloss finish I was, am, always seeking to find the absolute most durable, chem resistant, absolute water clear, scratch resistant clear that works well with guitars. Cost, VOCs, I did not care I wanted to have that old pre nitro PRS poly system or as close as we could get ability in our shop for the future. I don't have anything against anything anyone uses as long as it works for them. I had several instances of shipping new commissioned instruments and the finishes were marred by packing material, or something similar in years past. I wanted a more non reactive finish.
So is it worth it....? Depends on what boxes you want to check. I think it's is and I am just in testing stages. I spent 2 times on the phone with the owner and both times almost 15 minutes he was super helpful and he called me back! The owner! Great guy..
To clarify I am not our sprayer. I do all the prep, dyes, sanding and buffing. I am learning how to spray currently. My partner has decades of experience and finally was the one to convince me that if I want Fender custom shop/PRS clear coat results you need to find out what they use and get it (and quit wasting money). I have an account with TCP Global and we use House of Kolor candies, paint and a filler sealer polyester like most going for this type of finish. It's no PPG but the inner coat HOK for any pear, paint, or candies. Then a 2K urethane for top. Pretty mush standard procedure for that type production without UV. Some of the products I buy or did buy from there are dual cure. UV and or MEK for polyester.
For some reference for costs. The products I buy and most guitar builders buy from them in relative terms to the high end automotive products are cheap. I have a good friend and he completely rebuilds old Porsches down to the metal frame and back up again. Lots of the paint/clear he sprays the old school Porsche colors are single stage color and clear mixed. The last 2 gallons was $3,000 a gallon. The clear he buys is around $700 gallon and of course he has to use $2,000 Iwata guns. I have a over a pint of a Porsche 70's mint green metallic mist he gave me I have been saving like a good scotch or something.

HOK clear we have been spraying for a few years is about $300 and would guess about 40% solids. We lay down 3+ mills in a session, next day 1.4 tops left.

He offers a vintage instrument clear (softer), and 2 others for wood super hard (this is Polyester hard UV like G&L and MusicMan UV coatings. They are extremely durable. I even find the sealer filler more durable than the anything I have bought from TCP.

It is 100% solids there is not shrink, I can tell you as far as previously mentioned products it's not even in the same ball park IMO if you want anything like I have described. I tried all those products and did not perform as well as I hoped or if I did get them to work it wasn't consistent results. Never hard enough to polish to glass either IMO.

He is the first guy to get the same hardness and durability in his UV finishes without a high pressure sodium bulb flame throwing out the harmful spectrum of UV rays. I was just about to spend about $4G on a hand held cancer bulb and all that goes with it.

It plays well with all the HOK products. No solvents in to lift anything. I can use the filler sealer. Then spray all traditional urethane based pigments, colors in carrier coat, then use the UV coating on top. You can use it on top of epoxy or MEK cured polyester. It all plays well together.

Thin coats take 2 min of UV to cure yes but to be sure and with all the curves and faces I give it double or more.

Solvents to clean you can use 91% alcohol and mixing up to 10-15% 99% alcohol. No VOC nothing.

Absolute must to have you gun at 70-80 degrees and the product the same. I would say it acts more like thin epoxy then a euro or high solids 2K polyurethane as far as how it moves.

Anyway all depends on you needs. I have to buy gallons of the polyester and clear and most of it has a 6 to 12 month shelf life. I have thrown product away due to our output currently is so small. This stuff you pour back in the bottle.

I think it very well may be the cheapest way you could get to the level of hardness, gloss, durability of the pro clear coats once you factor everything you need and time let alone the environment.

I'm not 100% sold on it yet. We have to finish some more instruments and spray it more. Also I would say if you get the harder version the traditional wheels and compound bars he doesn't recommend. He suggests liquid and cotton wheels. Says the bar compound scratches. I haven't tried to buff out a large area yet with the clear but I can tell already it's like sanding and polishing diamonds.

I don't have anything for sale at the moment and we are booked out for over a year but I still don't know without a commercial status if posting is okay. My next two builds I am working on I thought of using the sealer filler and our normal clear until we get more experience with it. FWIW

You can do a hand rubbed oil feeling finish on a raw neck in 10 minutes that you can pour acetone over and it won't touch the finish. You can dye it with aniline dyes as well like Transtint or Keda. That I tried and it was perfect. I added a drop of orange and med brown and did neck that was great in 30 min. I even sanded some in that time.
This is excellent. A lot of info to unpack here.

Are you able to get a thick, hard finish like a PRS or Spector?
What light are you using to cure?

Last edited:
yes, like I said in my first post it is even harder actually. This is not always a great thing mind you. My next purchase from them will be the softest clear they offer. It is easier to sand, buff and polish. I am currently only using a couple 100 watt UV lights for night clubs. Resist the urge to go heavy it will not cure evenly. Still think thin layers and build it up. It melts into itself when it's new so no witness lines. The other reason I have the system is to repair clear coats in repair shop. Works great.

  • Like
Reactions: Barticus
yes, like I said in my first post it is even harder actually. This is not always a great thing mind you. My next purchase from them will be the softest clear they offer. It is easier to sand, buff and polish. I am currently only using a couple 100 watt UV lights for night clubs. Resist the urge to go heavy it will not cure evenly. Still think thin layers and build it up. It melts into itself when it's new so no witness lines. The other reason I have the system is to repair clear coats in repair shop. Works great.
I’ve been checking out your YT, good stuff.

Two quick questions for you:
1. Which of the resellers are you purchasing through, they all seem to have fairly hefty shipping fees, so I’m looking for a recommendation where to purchase

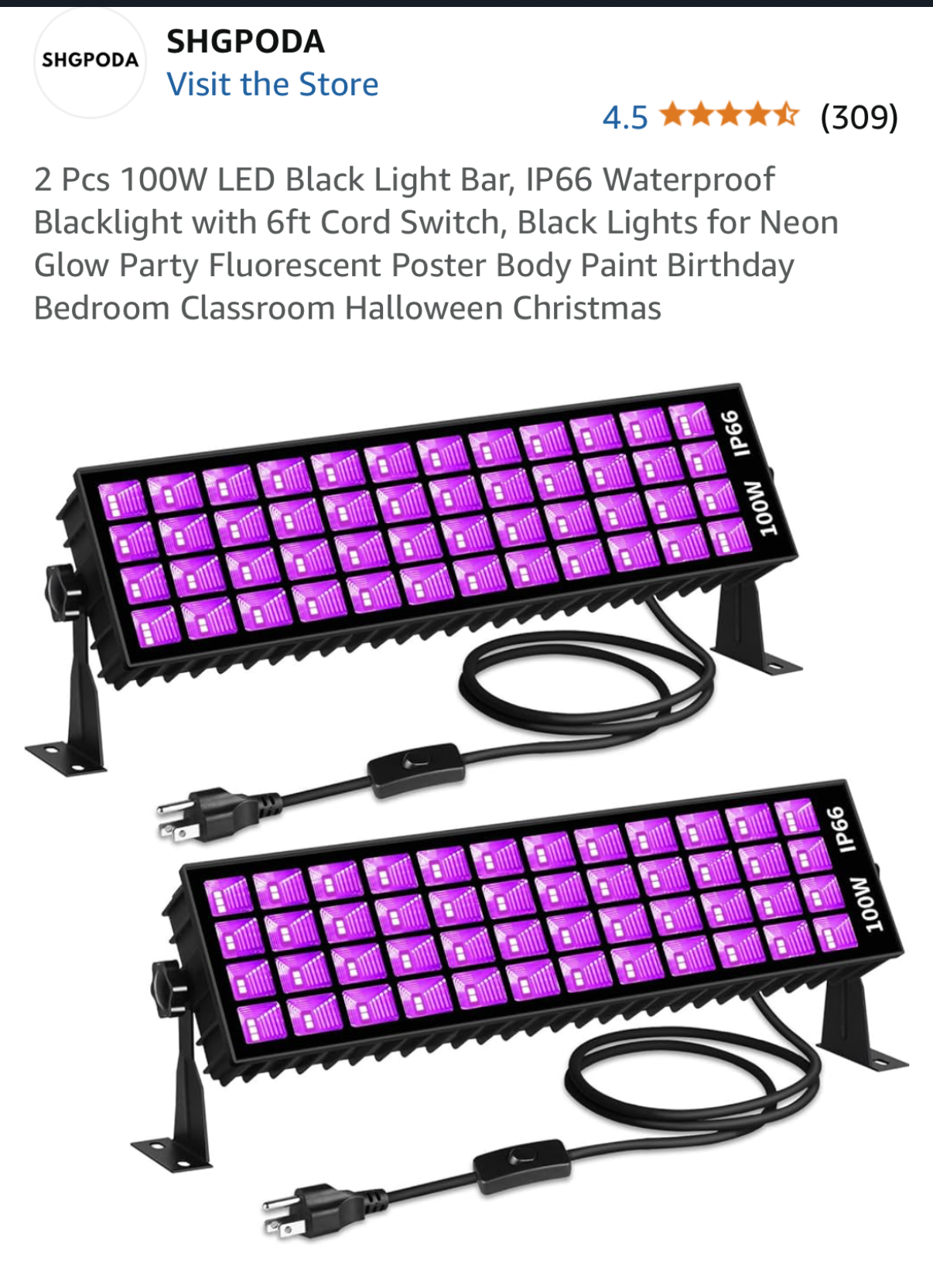

2. Same thing with the lights I found these on Amazon will these work or is it something else?

yes, like I said in my first post it is even harder actually. This is not always a great thing mind you. My next purchase from them will be the softest clear they offer. It is easier to sand, buff and polish. I am currently only using a couple 100 watt UV lights for night clubs. Resist the urge to go heavy it will not cure evenly. Still think thin layers and build it up. It melts into itself when it's new so no witness lines. The other reason I have the system is to repair clear coats in repair shop. Works great.
I’ve connected with Matt at Avant and ordered some of the 830 to test. He was great to talk with and had deep finishing knowledge (30yrs) on everything from guitars, pianos, and high-end woodwork for planes and automobiles. He answered all my questions on the finishing, blocking sanding, buffing, and the proper spray nozzles to use for best results. Also recommended just using the sun to cure, for now, vs lights as he felt that gives a better cure, even though it’s cold outside in my area right now.

I’m looking forward to testing this out next week, I’ve got 2 unfinished bodies to spray for my testing.
