[Zoot H Rollo]

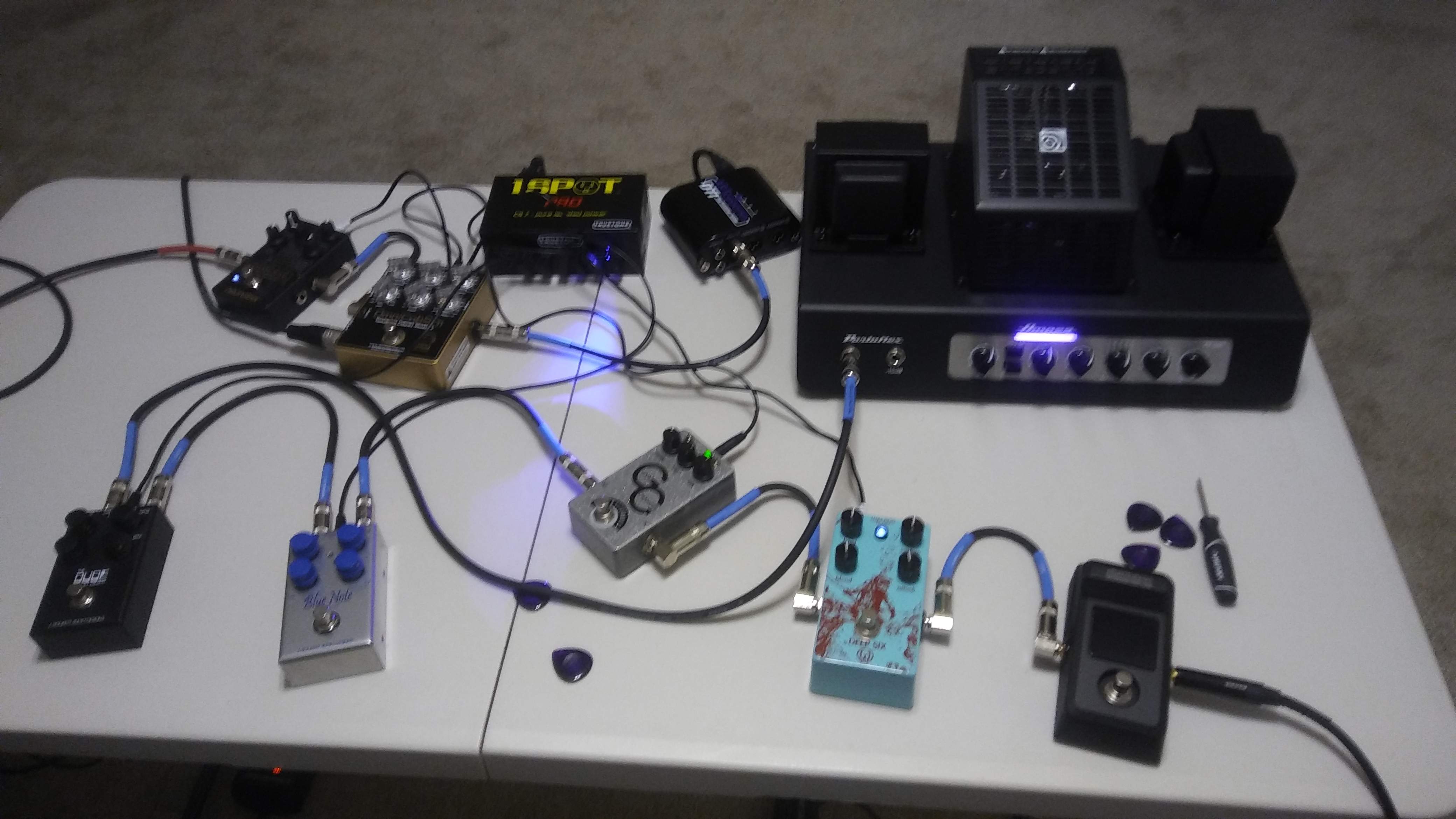

My final chain.

The Omnicabsim just kills it -

Fantastic!!!



[speyer]

Hey Folks! I am the proud owner of Omnicabsim deluxe #4 and I'm sad to say I've decided to let it go to the classefieds. Its a fantastic pedal... but selling off a pile of stuff to pay some bills and my pedal board will only consist of the absolute nececities.

So if anyone here is looking for a MINT deluxe version feel free to PM me! FS thread is here: For Sale - Brimstone, Dark glass,DSM,Swell, Iron Ether, EWS, Source, Mesa,Radial, Dr. Scientist, TC, EH



[wavebass1968]

A question for @Dsmnoisemaker ...

You say to use Omnicabsim with an extended range, flat response speakers.

This is EV ELX115P, a powered PA speakers. Is enough extended and flat?



[Zoot H Rollo]

i use it with my Yamaha DSR-115 and it's great.



[XLunacy]

You might find this thread useful

DSM Noisemaker OmniCabSim Deluxe : knobs and frequency response



[Dsmnoisemaker]

A question for @Dsmnoisemaker ...

You say to use Omnicabsim with an extended range, flat response speakers.

This is EV ELX115P, a powered PA speakers. Is enough extended and flat?

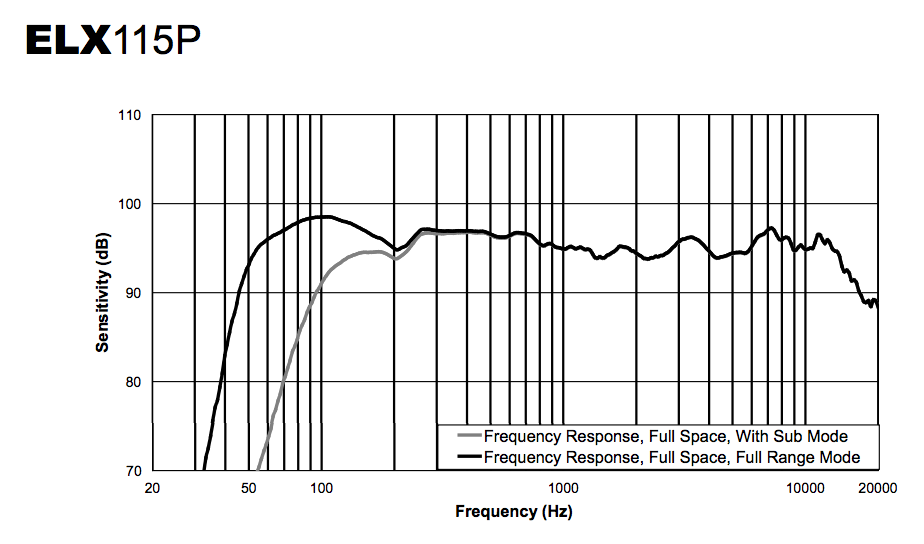

View attachment 1125758

Yes, that's a pretty flat response for a speaker
Cheers!!



[wavebass1968]

hey guys, i made a little chart for some settings to get started..
check it out :

[Invalid or Expired Link Removed]

I cannot found little chart... @Dsmnoisemaker , can you repost?



[XLunacy]

I cannot found little chart... @Dsmnoisemaker , can you repost?

I don't have the picture, but I saved the approximate settings when I made that thread about frequency responses. Every number is given /10 ; 0/10 being 7 o'clock, 10/10 being 5 o'clock, and 5/10 being noon and in the following order : Highs / Size / Resonance / Punch / Mids :

1x15 :4 8.5 8.5 5 6

4x10w/twitter :10 8 9.5 9.5 10
1x10 : 5.5 6.5 5 5 8
8x10 : 7.5 10 9.5 8 8​



[wavebass1968]

Cool! Thanks.

It would be nice to know the settings to emulate a 1x12 bass cabinet
like Bergantino 1x12 or similar.



[XLunacy]

Cool! Thanks.

It would be nice to know the settings to emulate a 1x12 bass cabinet
like Bergantino 1x12 or similar.

We could try, if you could provide us with a frequency response chart



[wavebass1968]

We could try, if you could provide us with a frequency response chart

You provoked me ... start with this ...

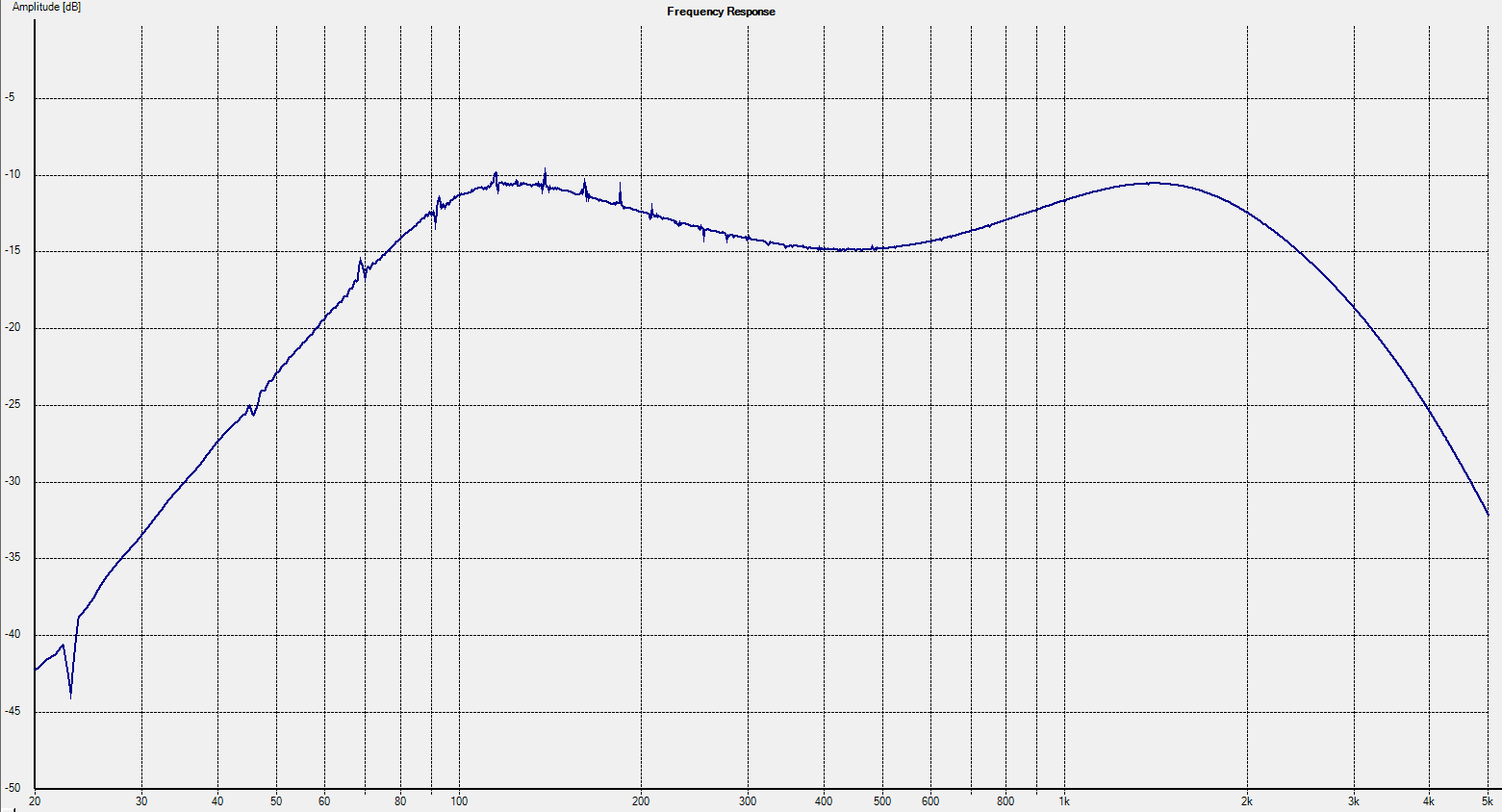

Gallien-Krueger MB150E-III
Software RAW
Mic UMIK-1 (measure 2 inch away from grid , the measurement signal has been passed through the FX return socket)



[XLunacy]

You provoked me ... start with this ...

Gallien-Krueger MB150E-III
Software RAW
Mic UMIK-1 (measure 2 inch away from grid , the measurement signal has been passed through the FX return socket)

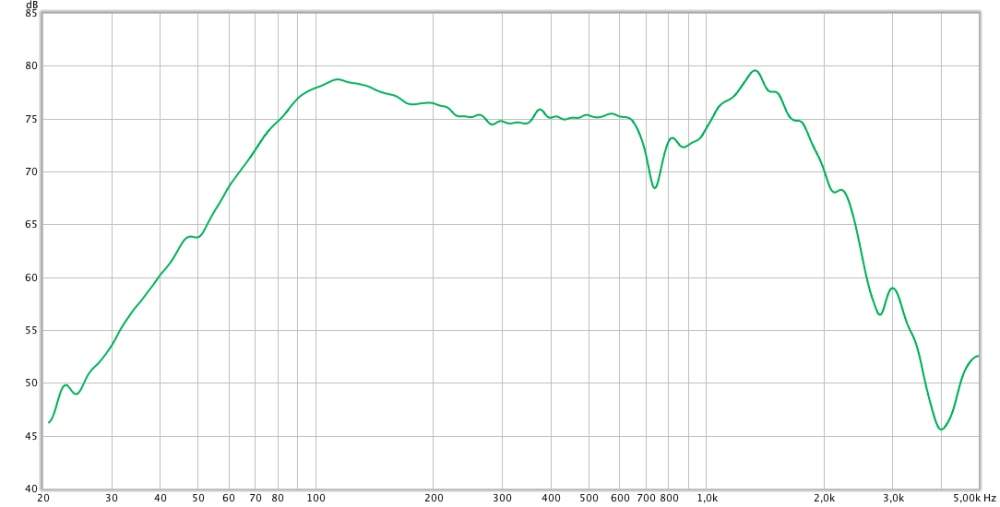

View attachment 1136522

This is what I could do

That is really dark sounding though (high response is at minimum).
I attached a small mp3 to give you an idea



[wavebass1968]

Great result!!!

The peak around 1500hz can not be more "vertical"?

p.s. post also position of knobs...



[XLunacy]

Great result!!!

The peak around 1500hz can not be more "vertical"?

p.s. post also position of knobs...

I could not get it any narrower, and given the controls I don't think I could have done much better at all ; however this could easily be done with an additional EQ
Once again this is a pretty dark sounding setting, was your mic off axis or something ?

Settings are as follows (Highs / Size / Resonance / Punch / Mids) :
0 / 6 / 7.5 / 4 / 3



[wavebass1968]

In the centreline of the cone at 4 centimeters away from the grille



[Dsmnoisemaker]

Hello everyone!
i´m stepping in to let you know that we are having an Omnicabsim preorder offer again!
the original price is U$259.00 but on presale is U$210.00!!
Of course, all pre order units are signed and the estimated time of shipping is by the end of June!!
so stay tuned for updates!

Cheers!



[jwr]

So this pedal can be used as a simple bi amp right? Just want to make sure I'm looking at the diagram correctly. That's what it looks like. So clean signal to one amp, dirty signal to another.



[Dsmnoisemaker]

So this pedal can be used as a simple bi amp right? Just want to make sure I'm looking at the diagram correctly. That's what it looks like. So clean signal to one amp, dirty signal to another.

Well, if by "dirty" you mean "effected", then yes, you can send the "stimulated cabinet" signal to one amp or FOH, and the unaffected signal to another.



[jwr]

Yes, sorry I meant it that way. I was thinking of running my GK amp as a clean amp and my Mesa as a dirty (with pedals) amp.

Thanks!! Love your pedals btw!! The Drive Maker is amazing!!



[J.Wolf]

Love love love my Omnicabsim. Its what I always wanted a Sansamp to be.

I dont use it all the time, but what a great way to reign in a super hifi/wide/deep rig that otherwise can be hard to pocket when needed. I only have one main rig, and I want it to work for modern jazz, latin, world music, plus blues and rock. This pedal is by far the best way I've found to get all those sounds from one rig!
