Offset/Staggered 410? Does what I want exist?

#41
murphy said:
Pictures?
and what is it?
Click to expand...
Homemade. Internally it’s two 2x10s, each with the same internal volume and porting. Lots of front-to-back bracing. Tuned to something like 52Hz if I recall. Eminence 2510ii neo drivers. Switchable tweeter. Weight somewhere around 58 lbs.

Super-easy to transport, with integrated casters, handles, and skid rails.

Pic before the grill went on:


  • Like
  • Love
Reactions: 6thplanet, BeauZooka, 5StringPocket and 5 others
#43
Thundar said:
RevSound....I'd love to have one! If I had a need for it I wouldve bought one long ago...50 lbs
www.revsound.net

RS410V/RS410VT | RevSound

https://fb.watch/dHi4G9hpv6/The new RS410VT was released in March of 2015 after the strong performance demonstrated by it's "big brother" the RS810T. It has performed wonderfully in venues small to large. Ease of transport, small footprint, huge power handling and strong voice make it a...
www.revsound.net www.revsound.net
Click to expand...

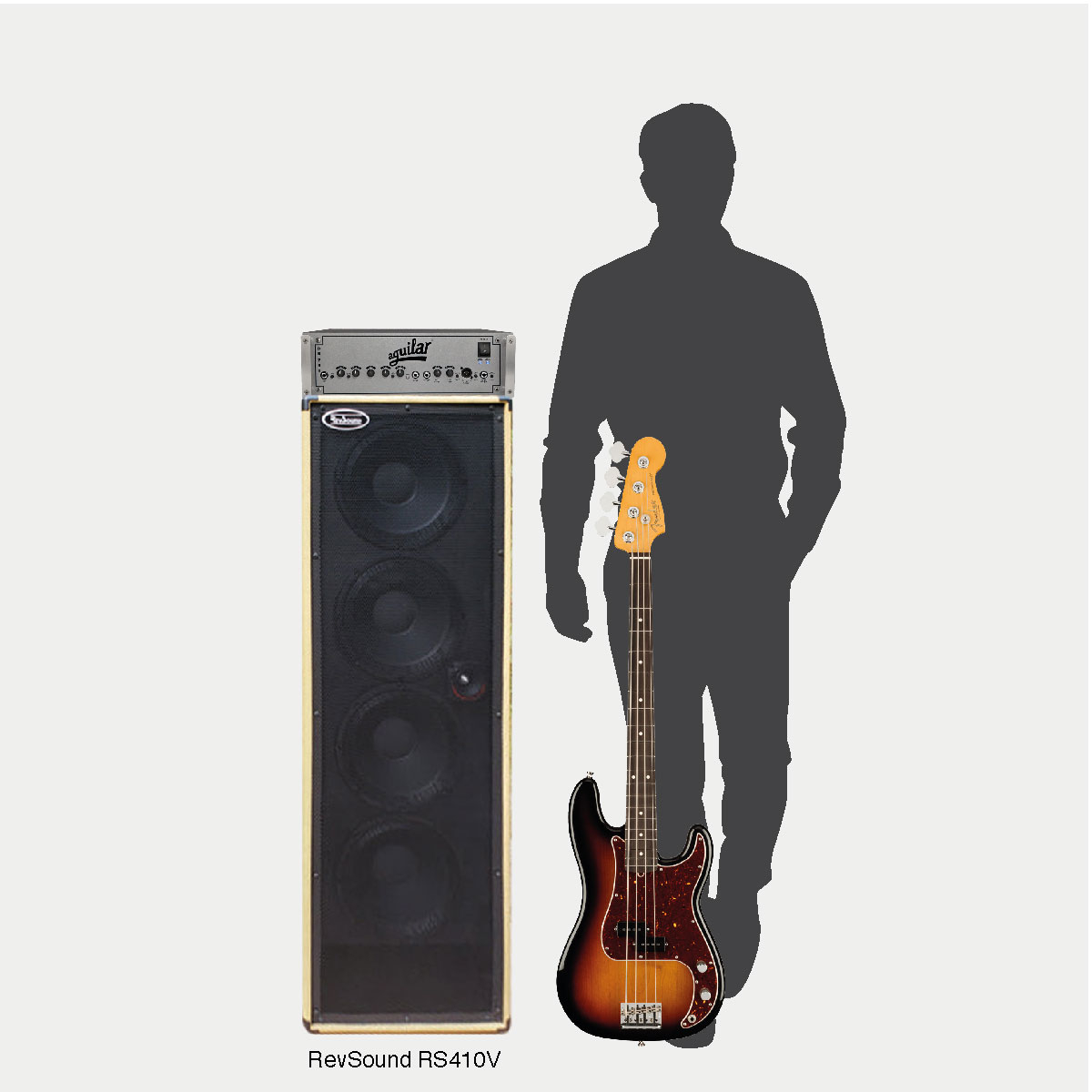

The mockup is a bit dirty because the original image was not taken from the front…

  • Like
Reactions: Thundar
#44
ctmullins said:
Homemade. Internally it’s two 2x10s, each with the same internal volume and porting. Lots of front-to-back bracing. Tuned to something like 52Hz if I recall. Eminence 2510ii neo drivers. Switchable tweeter. Weight somewhere around 58 lbs.

Super-easy to transport, with integrated casters, handles, and skid rails.

Pic before the grill went on:

Click to expand...
Cool cab, but even cooler bass! I wish I could make the vertical 410 work, but the head in the rack case is almost 21” wide so it would be noticeably hanging over both sides.

VERY cool bass though! Did you make that as well?

  • Like
Reactions: ctmullins and gtirard
#46

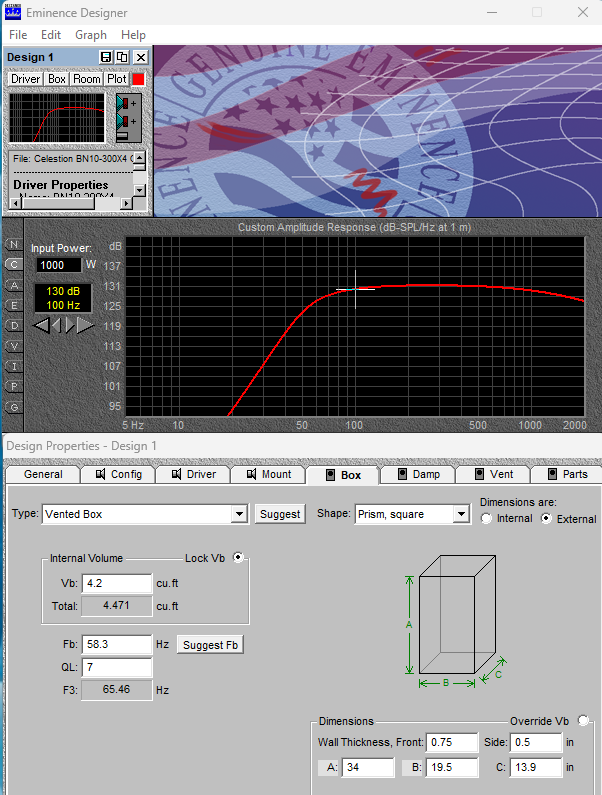

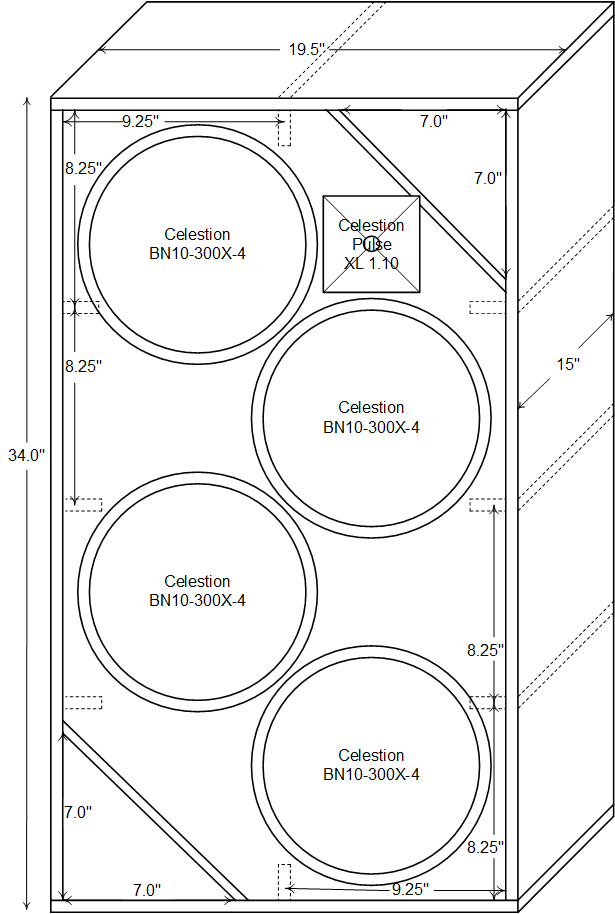

A number of good options have already been posted. A 410 vertical is about 48" tall and narrow. Here is a DIY staggered design with Celestion BN10-300X(4) drivers in a 34"H x 19.5"W x 15"D format which can have castors and a tilt back handle. The 19.5" width would be a good fit for a rack mounted head and is not so tall as to be tippy. This 4-ohm model has the cab tuned to 58.3 Hz. A 45Hz high pass would be advisable at high power levels to protect the drivers and keep the lows tight. I like this driver but might consider a 3rd order high pass at 2500 Hz for the tweeter to extend the treble.
celestion.com

Celestion BN10-300X (4) - 10 inch Bass Guitar Speaker

Celestion BN10-300X (4) - This neodymium 10 inch bass guitar speaker is a lightweight tone machine with superb low end projection and detailed mid-range
celestion.com celestion.com


Last edited:
  • Like
Reactions: basscooker, ctmullins and ric4682
#49
5StringPocket said:
I like that TF410V but don’t see it on their website.
Click to expand...

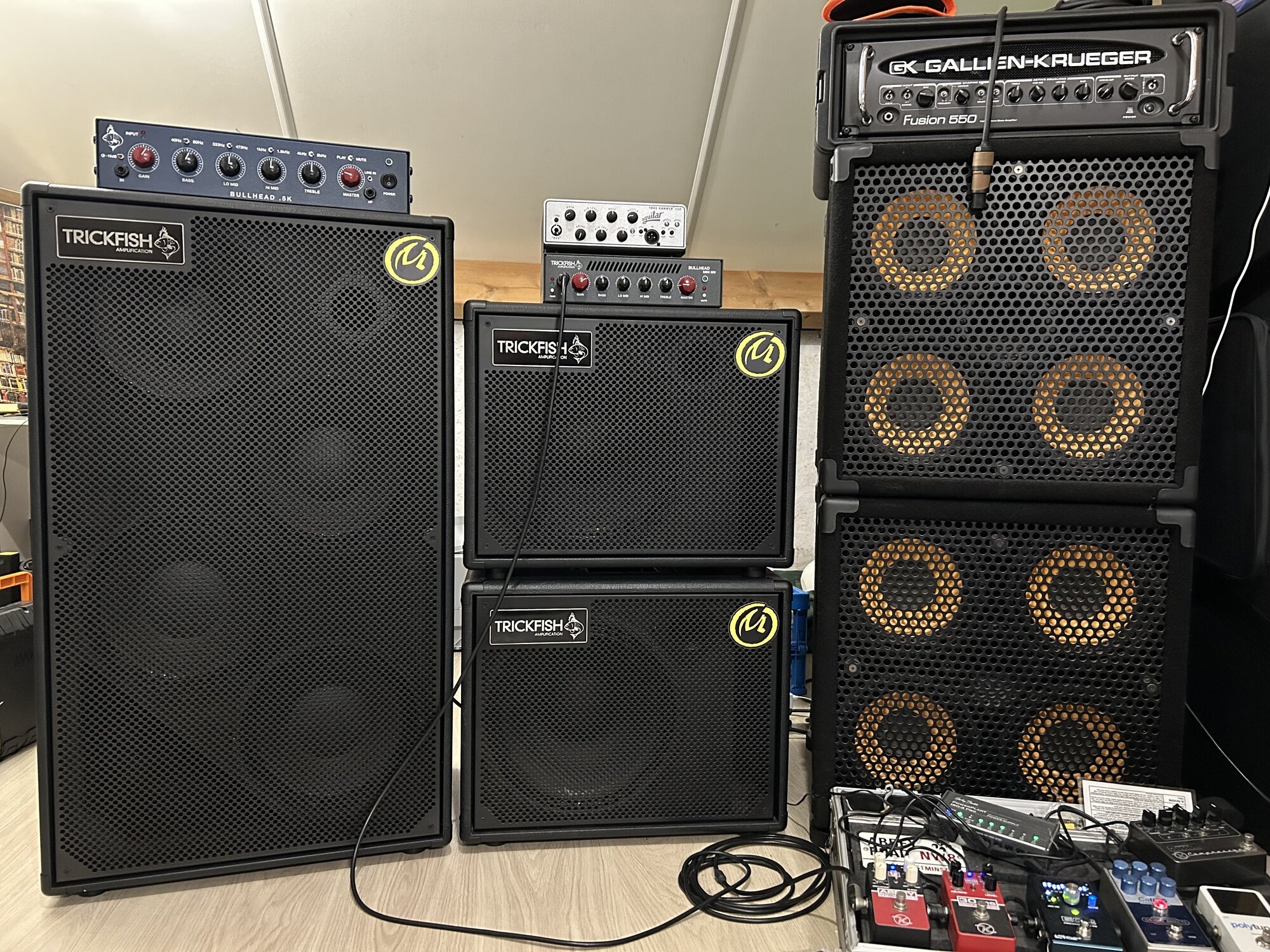

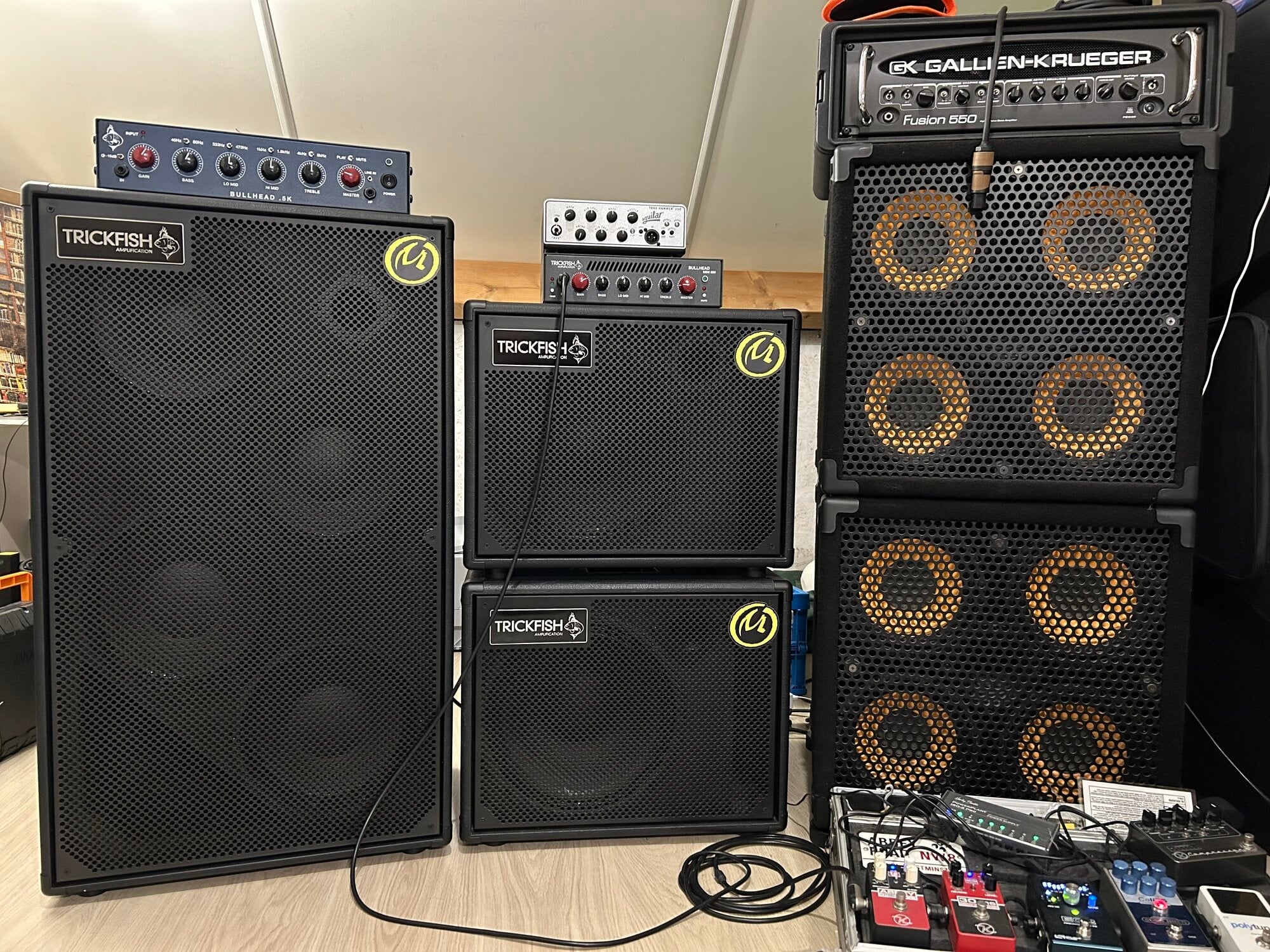

With only a total of 10 cabs being made (4 and 8 ohm, mine's 8 ohm) before it was discontinued it doesn't surprise me it's not on their website. I dunno why it was so short-lived. From what I read here on TB it was quite well received at NAMM. There are only two in the Netherlands of which I have one. I've seen pictures of a bass player who uses two (sumoband on Instagram). Perhaps we TF410V owners could start a very small club... :)

  • Like
Reactions: wave rider, 5StringPocket, ric4682 and 1 other person
#50
ric4682 said:
Cool cab, but even cooler bass! I wish I could make the vertical 410 work, but the head in the rack case is almost 21” wide so it would be noticeably hanging over both sides.

VERY cool bass though! Did you make that as well?
Click to expand...
Thanks! Yes, the bass took me six years (off and on) to complete. Definitely more involved than the cab. 😂

  • Like
Reactions: 6thplanet and ric4682
