OK, I'm convinced...I need a real power supply

#101
mmbongo said:
You can get a Decibel11 at Prymaxe for $120-ish (17% off sale)
Invalid Link Removed

I can't see that MXR IsoBrick fitting under a Pedaltrain board without blocking a whole row of outputs but I don't know as I've never seen on in person. Just an observation based on my experience with the Decibel 11 which has one row of outputs and just barely clears (but is a non-issue, almost like the two were designed together).
Click to expand...
I ordered the Decibel 11 Deluxe thru Prymax earlier today.

As Jimmy mentioned on the other thread, it might be possible to use right angle plugs on the row that sits lower with the MXR. I think it would be tight weaving them between the other row of plugs but it might work.

#102
rmars said:
I ordered the Decibel 11 Deluxe thru Prymax earlier today.

As Jimmy mentioned on the other thread, it might be possible to use right angle plugs on the row that sits lower with the MXR. I think it would be tight weaving them between the other row of plugs but it might work.
Click to expand...

Very good!

As far as the MXR fitting, check out more info here:
MXR Iso-Brick

It would be a very, very tight squeeze. But also like I said...I have no first hand experience with the MXR so I could be 100% wrong.

  • Like
Reactions: rmars
#103

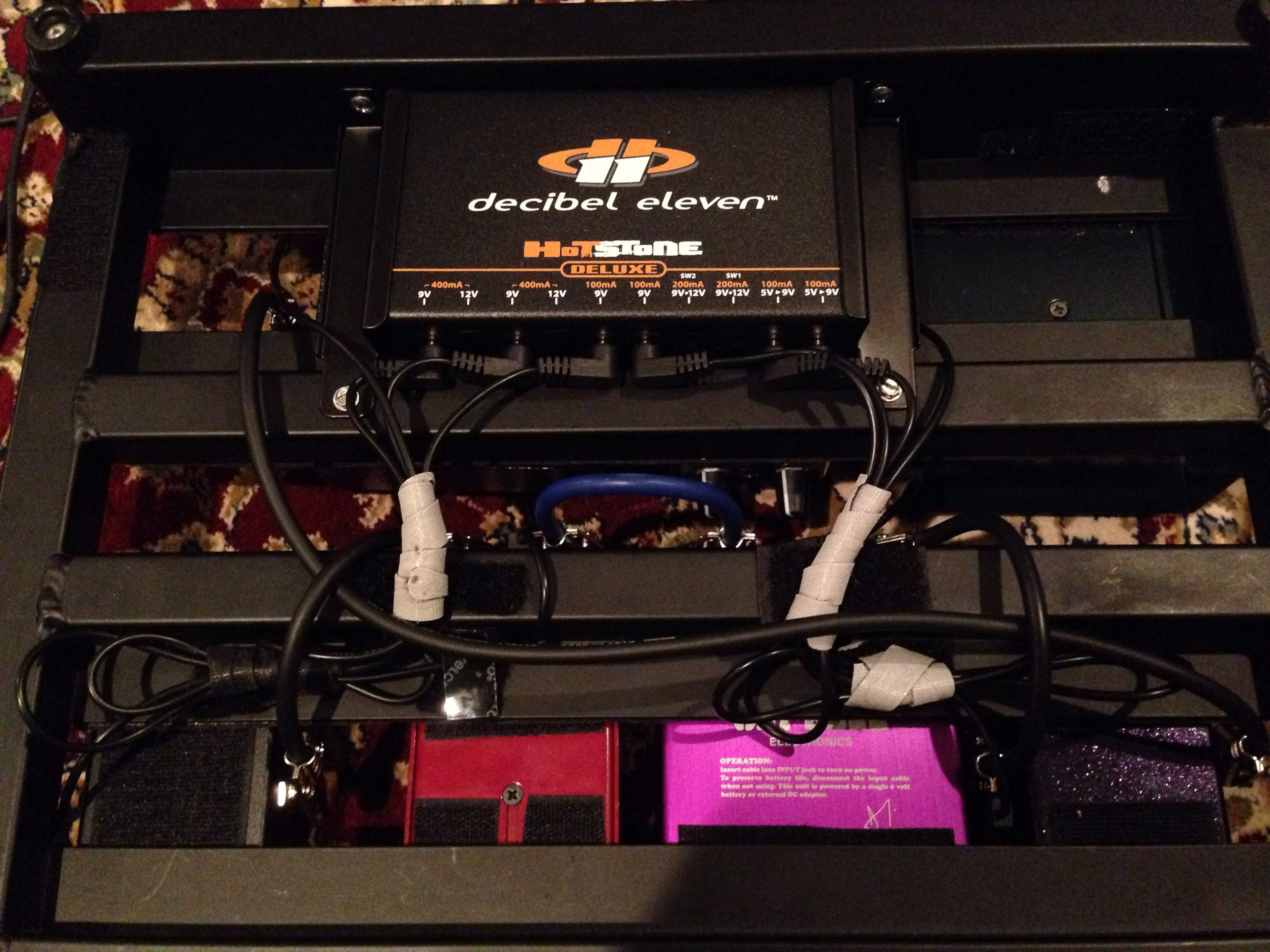

Jimmy, I will echo bongo and advise that before you get the MXR power supply you should check that it will fit. The taller feet will give you the clearance to fit a deeper power supply, but you may not be able to access both rows of outputs. The power supply will sit between the metal rails under the board, and it is the depth of the rail that will need to be cleared by the outputs. I have a T Rex Chameleon which has only one row of outputs, and this just clears the rail. Hope this makes sense, I can't take a picture of my setup as it's in the studio and I won't be back there for another week.

  • Like
Reactions: JimmyM
#104
mmbongo said:
Very good!

As far as the MXR fitting, check out more info here:
MXR Iso-Brick

It would be a very, very tight squeeze. But also like I said...I have no first hand experience with the MXR so I could be 100% wrong.
Click to expand...

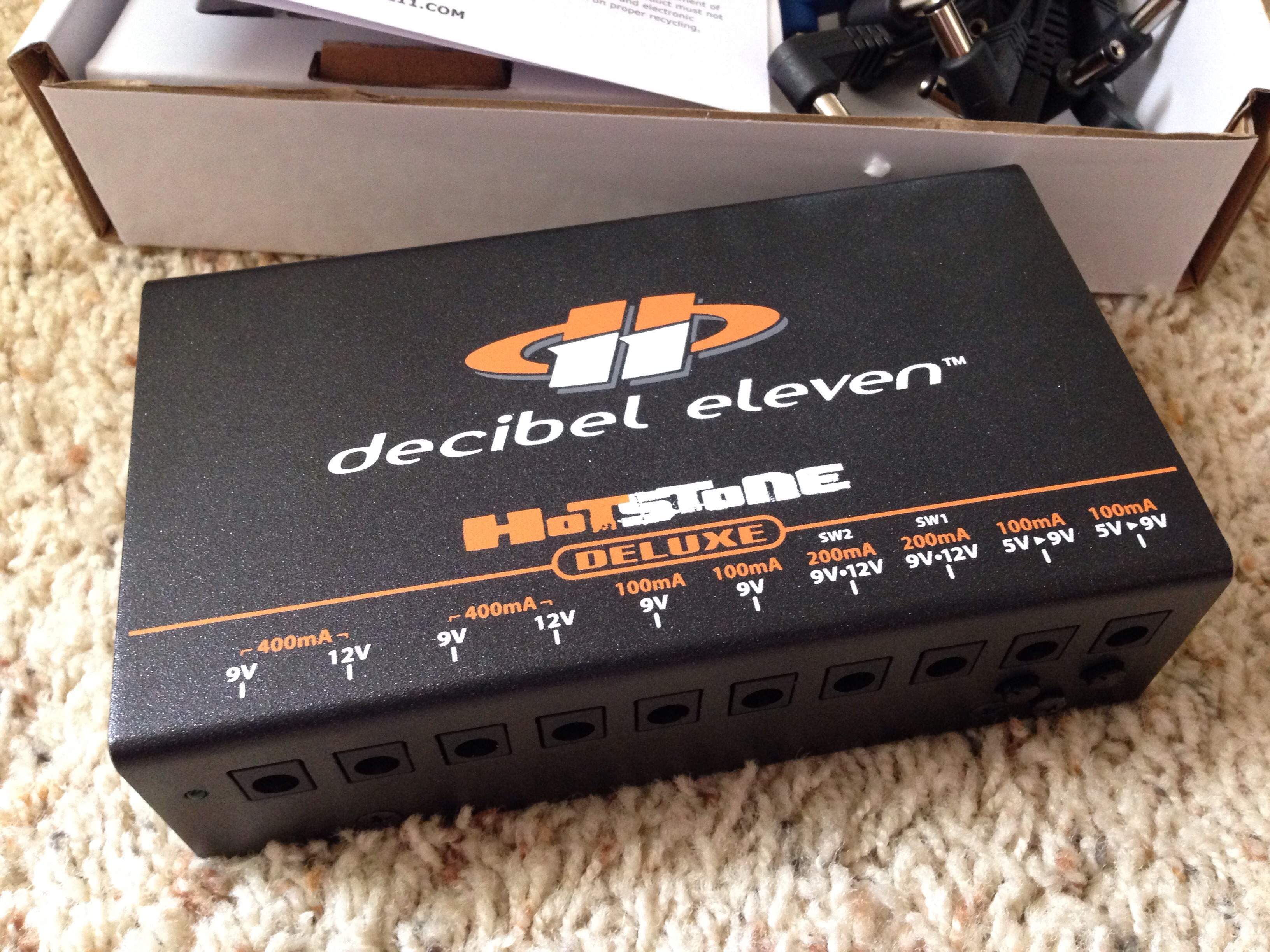

I agree. You have roughly 1/2" so you might have to plug in the recessed row of cable before you set it in the Pedaltrain. The MXR doesn't look like it uses an IEC jack like the Decibel or the Voodoo do. (see what I did there) I really like the IEC jack so that was another thing that sold me on the Hot Stone Deluxe.

Prymaxe didn't have any voltage doublers in stock so I'll have to pick one up somewhere else.

#106
JimmyM said:
I can live without the IEC jack if it means my board weighs less :D
Click to expand...
I just didn't want to deal with mounting another cable or adapter under my pedalboard

You can get 10' or 15' 18AWG IEC cables from Monoprice for $2 and they are surprisingly thin.
Invalid Link Removed

I'm going to pick one up and attach it to the guitar cable that runs from my amp to my pedal board so I can just run them at the same time and have one less thing to trip over on my side of the stage. I also run sound so the mixer and rack are next to my rig and it's always a mess. My guitarist sets snares when he runs the mic cables.:rollno:

Edit: The link was wrong but I fixed it. They also have great HDMI cables on the cheap.

Last edited:
  • Like
Reactions: JimmyM
#111

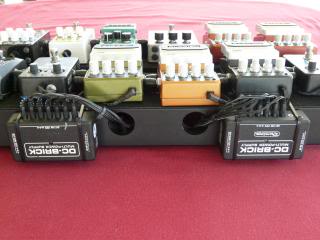

Seems to be a bit of confusion concerning the MXR Bricks, so here goes:

Not isolated >
téléchargement.jpg téléchargement (2).jpg
From JD's website: "The MXR DC Brick (silver) has eight 9v outputs and two 18v outputs, a change from the DCB10's (black) seven 9v outputs and three 18v outputs".


Isolated >
(announced at the winter NAMM and soon to hit market) >

téléchargement (1).jpg

From JD's website: : "10 outputs to accommodate a variety of voltage and current requirements: two 9V outputs at 100mA, two 9V outputs at 300mA, two 9V outputs at 450mA, two 18V outputs at 250mA, and two variable outputs adjustable from 6V to 15V at 250mA. The two variable outputs can be used to emulate voltage "sag," a drained battery effect sought by many vintage tonechasers".


Mine will hopefully get in within the next 2 weeks
:)

Last edited:
#112
I have the TRex Chameleon and the Vodoo Labs ISO 5 under my board and while both are great I have had to start using the power supply that came with my Line 6 wireless. I use the G50 and every 3rd gig or so the wireless would power down then come back on very dimly lit and flickering. Never happens with its own power supply but happens with both the TRex and the Vodoo Labs. I don't ever use all the slots of either one and don't have any unusually power hungry pedals so it isn't a case of overloading.Mine may be an aberration but I've gone back and forth testing with consistent results over the course of a few months.

  • Like
Reactions: JimmyM
#113
NonDJ said:
I have the TRex Chameleon and the Vodoo Labs ISO 5 under my board and while both are great I have had to start using the power supply that came with my Line 6 wireless. I use the G50 and every 3rd gig or so the wireless would power down then come back on very dimly lit and flickering. Never happens with its own power supply but happens with both the TRex and the Vodoo Labs. I don't ever use all the slots of either one and don't have any unusually power hungry pedals so it isn't a case of overloading.Mine may be an aberration but I've gone back and forth testing with consistent results over the course of a few months.
Click to expand...

I used my powerpedal 2 to power my Sennheiser wireless and it worked great for 3 years. Now the PowerPedal is having issues so I'm considering picking up the ISO brick. Just need to find out if it can power my wireless. It's very convenient only having to plug in my Amp and Power supply when I get to gigs.

#114
Bassmike62 said:
Isolated >
(announced at the winter NAMM and soon to hit market) >

View attachment 663424

From JD's website: : "10 outputs to accommodate a variety of voltage and current requirements: two 9V outputs at 100mA, two 9V outputs at 300mA, two 9V outputs at 450mA, two 18V outputs at 250mA, and two variable outputs adjustable from 6V to 15V at 250mA. The two variable outputs can be used to emulate voltage "sag," a drained battery effect sought by many vintage tonechasers".


Mine will hopefully get in within the next 2 weeks
:)
Click to expand...

Wow! That is a fantastic little brick. I so don't need one but it could make things a bit easier. Very jealous. Thanks for the info. Looks perfect for what I have in mind.

  • Like
Reactions: Bassmike62
#120
I've been using Voodoo Lab Pedal Power and Pedal Power IIs for years, with no problem. I've never actually used any of the PP2 features beyond the PP1. They seem like a great company to deal with too. I bought my first one of Ebay, and something was messed up with it (I forget what). The fixed it for 30 bucks shipped even though they knew I wasn't the original buyer

  • Like
Reactions: Fuzzbass
