Output Jack issue

[erhoth]

When I plug in my cable or wireless all the way, I get no signal. When I pull it out just a bit, it engages and then works. I do get a few cracks or breaks in signal while playing but it does work. Is there a fix or am I getting a new input jack??
Thx



[Zooberwerx]

When I plug in my cable or wireless all the way, I get no signal. When I pull it out just a bit, it engages and then works. I do get a few cracks or breaks in signal while playing but it does work. Is there a fix or am I getting a new input jack??
Thx

Is this a barrel jack or open-frame? The 1/4" jack is T/S, correct? Active or passive bass? Just ruling-out the dumb stuff.

Riis



[bholder]

need pics to help



[StereoPlayer]

It’s probably the “output” jack.



[erhoth]

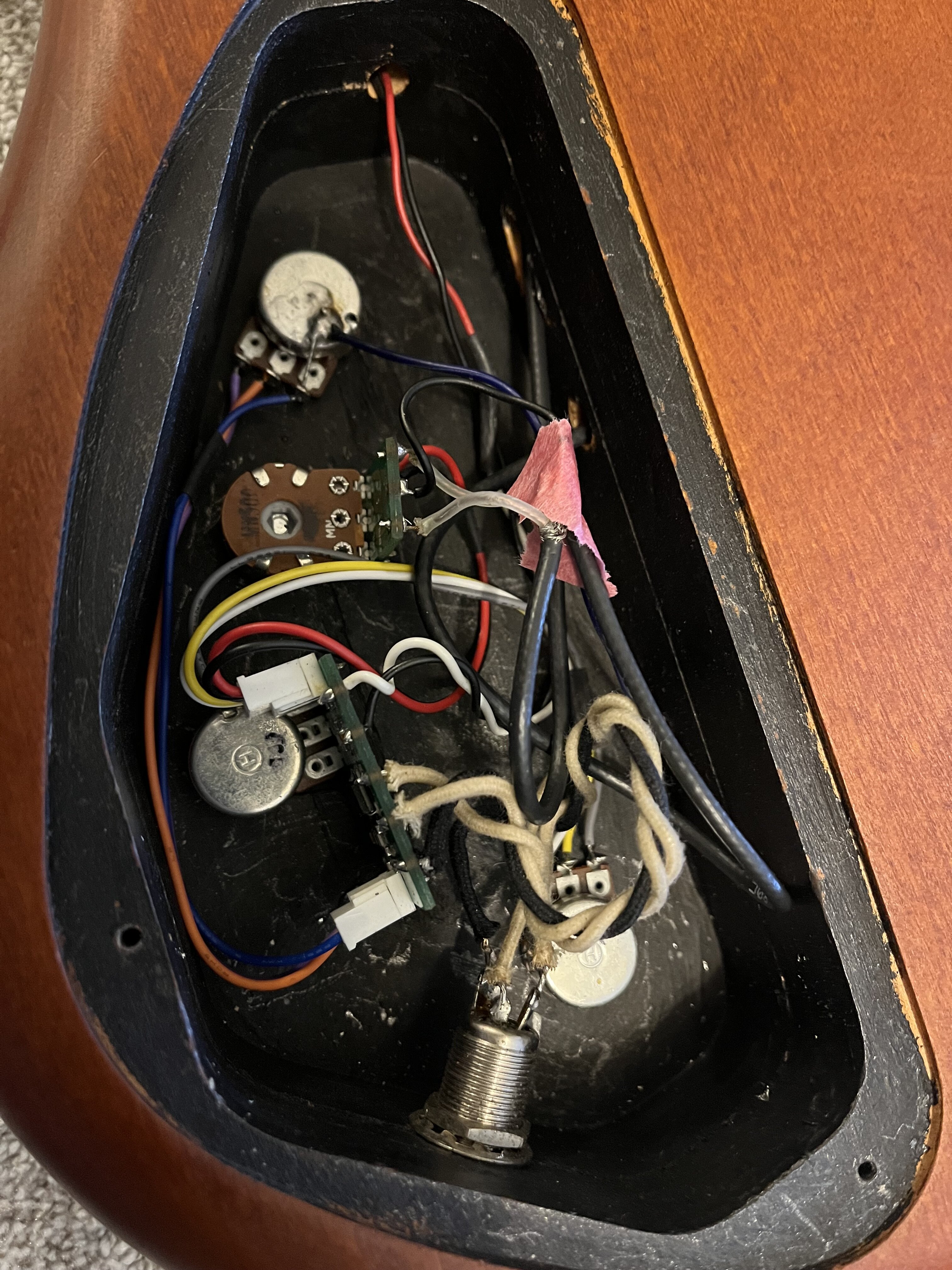

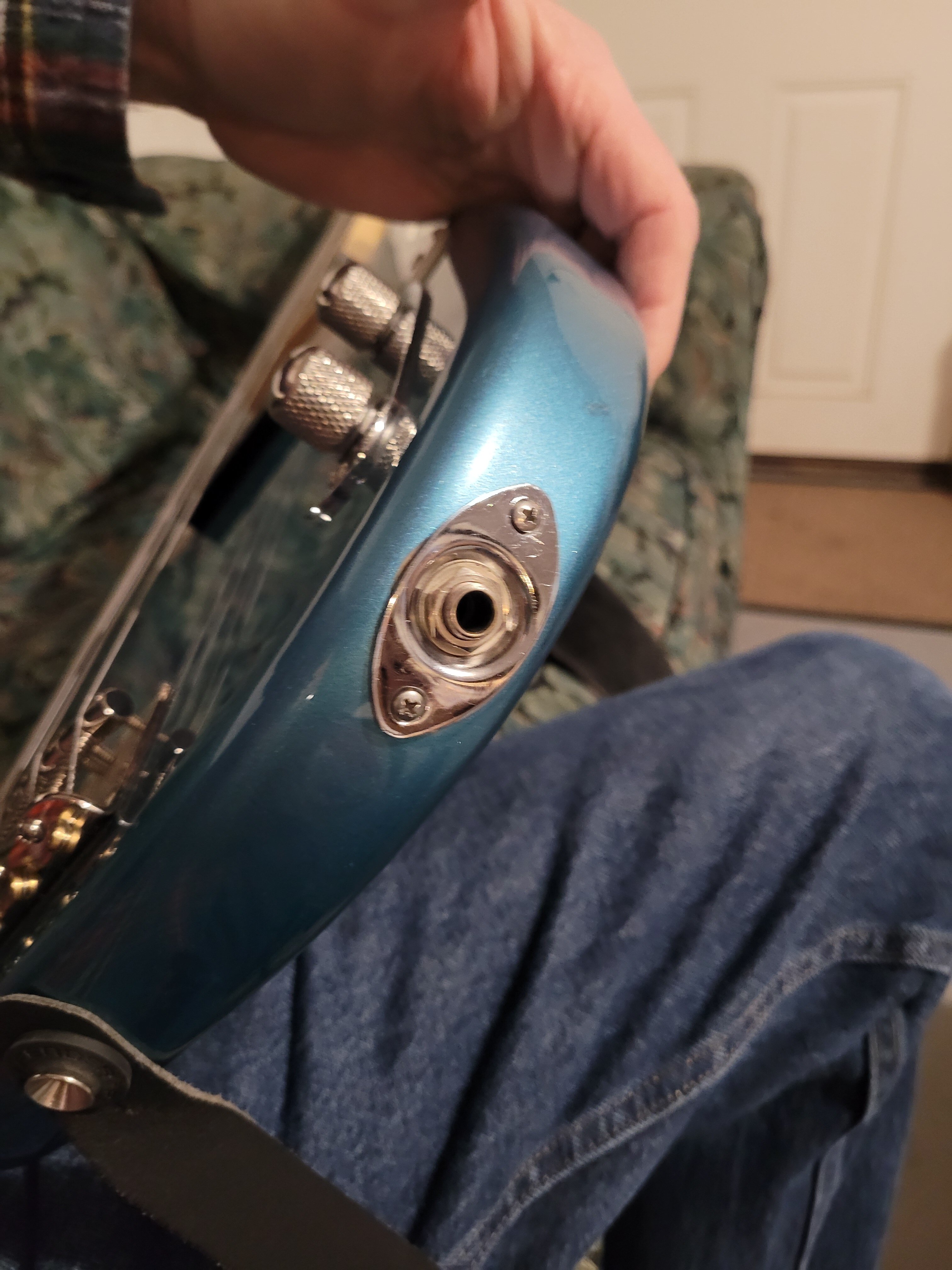

Not sure about the correct nomenclature but it is where you plug in your instrument cable. Pic attached. Thx



[Zooberwerx]

Not sure about the correct nomenclature but it is where you plug in your instrument cable. Pic attached. Thx

Two down: barrel jack and active.

Riis



[JRA]

the simplest fix would be to replace the old output jack with a new one. that type of jack (barrel) is known/prone to fail after many uses.

if you can solder without flinching it's a DIY task. have a luthier/tech do it if you want. good luck!



[Matt Liebenau]

With a barrel jack like that and a used instrument I’d probably just install a new Switchcraft jack. Double check and make sure the wires are going to the right solder tabs. Output (hot) to tip, battery negative to ring and ground to sleeve.



[erhoth]

I can do that. Thanks for the info. Much appreciated!



[C Stone]

I can do that. Thanks for the info. Much appreciated!

Might also consider using a 90 degree (right angle) cable on the bass side if you are not already less like to “jack up” up those barrel jack outputs. Good luck.



[StereoPlayer]

Might also consider using a 90 degree (right angle) cable on the bass side if you are not already less like to “jack up” up those barrel jack outputs. Good luck.

I’m a firm believer in right angle plugs.



[Stewie]

Buy two new jacks. Inlines fail regularly, and you'll have one on hand next time it happens. I've been through 3 in 5 years on my upright



[Rolling Thunder]

When in doubt, change the jack. They cost about $3 and are novice-level soldering.



[LiptonJigglers]

Is that an Ibanez bass?



[Dominic D]

I highly recommend the Pure Tone barrel jack. In my experience, they’ve lasted way longer than the Switchcraft barrel jack. It’s a much tighter connection in comparison.
https://a.co/d/cPzHvHR



[Rambo]

+1 on the puretone, switchcraft barrel jacks just fail periodically from my experience



[prowla]

Do you mean the input on your amp?



[Basvarken]

Those barrel output jacks are notorious for malfunctioning after a while.
I can recommend Pure Tone output jack or good old open frame Switchcraft.



[Stewie]

Maybe do this:
