Peavey 610TVX?

Discussion in 'Amps and Cabs [BG]' started by TJBass, Mar 2, 2010.

  1. I can't find anything on this cabinet, its being sold locally and just want to make sure this is not a scam. Did peavey make a 6x10?
  2. it's either a scam or a typo. 810tvx, 410tvx, but no 610tvx.
  3. ^ What he said.
  4. Heres a pic....

  5. Maybe they cut the bottom of an 8x10!!!!!
  6. Hmmmmmmmmm.Speakers look right,tweeter..............I can find nothing online about a 610TVX.

    Color me stumped.
  7. Who knows.. could be..

    Not sure anyone would scam a 610..

    could be a replant of speakers etc... pix aren't clear enough to ID
  8. No ports on the front either, I'm waiting to hear back from the guy, hope its not a chop job.
  9. Thornton Davis

    Thornton Davis Supporting Member

    Dec 11, 1999
    It could be a prototype cabinet that never went into production. The info above is correct Peavey only made the TVX as 810, 410, 210, 412 cabinet configurations.

  10. waleross


    Nov 27, 2009
    South Florida
    Harmony Central does not list a Peavy 610TVX, if they don't review it then it might be a scam however it could also be that nobody reviewed it either......
  11. Certainly looks like that could be what's happened.

    TVX's had front ports and were tolex covered. TXF's had rat-fur (but they also had front ports).

    Now if he had said 610TX . . . :p

    (tho I'm pretty sure that didn't exist either!)
  12. Stu L.

    Stu L.

    Nov 27, 2001
    Corsicana, Texas
    There's a PV engineer here at TB, Bobbybld maybe? I may have the username totally wrong though. I'd find and ask him.

    Edit; and from the iPhone I'm not sure I don't see a small shelf port on there.
  13. Sundogue


    Apr 26, 2001
    Wausau, WI
    I've owned every Peavey cabinet they made prior to their new product line. They never made a 610 bass cab. They did make a 610 guitar cab. Avoid it for bass!!!

    It is either an 810 cut down, or an existing (or DIY) 610 cab, perhaps loaded with Peavey speakers? Or it is a 610 guitar cab in which case do not buy it for bass.

    It would be easy to make a 610 Peavey bass cab...just find some 3/4" petrified wood, load it with some car batteries (just for the authentic weight) and then throw some speakers in it. :D

    610 Guitar cab (it doesn't look like a TVX, or TXF style at any rate, nor do the speakers look the same). It's possible someone took the guitar cab, glued on some rat fur and threw some bass speakers in it. I personally wouldn't touch it knowing Peavey never made a 610 bass cab.

  14. lug


    Feb 11, 2005
    League City, Tx
    Looks like correct Shefield speakers but definately not a TVX or TXF box.

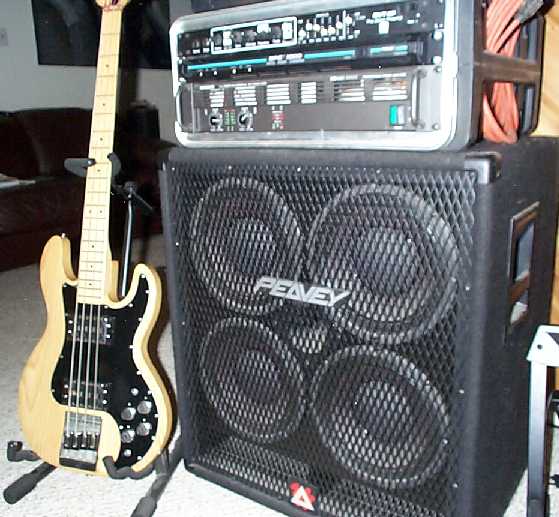

    heres a 4X10 TXF for comparison..


    See if you can get a look at the handles.
  15. Sundogue


    Apr 26, 2001
    Wausau, WI
    Despite the angle the pic is taken at, does anybody else see the difference between the bottom right speaker and the other five (look at the dust cap). The other five all show a slight diminished size due to the camera angle, but the bottom one's dust cap looks significantly smaller than the others.

    I just opened it in Photoshop and enlarged it. I also increased the color saturation evenly. You can clearly see that not only is the dustcap smaller on the bottom right speaker, the color of the cone is not the same as the others either.

  16. Yeah I can see a difference in the outer ring of the speaker with your enhancements too, like the surround is just a little thinner than the other five speakers.
  17. I also believe the Peavey cabs had rat fur covering the baffle board, whereas the cab in question does not.
  18. Sundogue


    Apr 26, 2001
    Wausau, WI
    Peavey cabs never had rat fur covering the baffle. Unless it was a custom upgrade. :D :eyebrow:
  19. I stand corrected.......thanks.

    It's been a while since I sold off my 4X10 and 2X10.
  20. RDT


    Aug 28, 2009
    I have owned a 4x10 TVX and a 4x10TX cab. There are subtle differences in each. It kinda looks like the bottom right speaker either, 1.) has been re-coned, 2.) it came from a TVX cab. The TX cabs used the same cone as the other 5 spkrs.

    Also, the older TX cabs were rear ported with a round port. Whereas the newer TVX cabs are front ported with 2 4" slots in the bottom.

    Also, the grill cover is not from a TVX or TX bass cab. The TX has black expanded metal, as does the TVX...except the TVX is slightly larger in size.

    Also, the older TX cab were covered in carpet, whereas the newer TVX cabs are in black tolex.

    If you can, look at the crossover, it'll say what it is. If it is a homeade cab, made out of peavey 10" (most likely Sheffield 8ohm), be very cautious of the actual ohms...not what the current owner says it is. With 6- 8ohms spkrs, if wired parallel/series, you'll have 5.25ohms resistance. Make sure your amp can handle it.

    I'd be a little concerned about the porting on the cab in the picture...where is it? If it's in the back...how large is it? As well as the Ohm.:eyebrow:
