Post your home built cabinet

Discussion in 'Amps and Cabs [BG]' started by etechstan, Mar 20, 2009.


  1. Getting ready to build a 2x12 cabinet and was looking for inspiration. Show me whats out there.:bag:

  2. newbold

    newbold

    Sep 21, 2008
    Toronto
    I would like to see all the designs and builds myself.

    subscribed.

  3. Everyone must be ashamed of their work or there would be pix

  4. emergere

    emergere

    Mar 19, 2009
    Jupiter FL 33478
    Do a Search for Bill Fitzmaurice, Phil Jones bass to start

  5. Schec

    Schec

    Jun 1, 2008
    Down Under
    I was also thinking of building my own cab and looking for inspiration :D

    Gotta keep my eyes on this thread.

  6. elgecko

    elgecko

    Apr 30, 2007
    Anasleim, CA

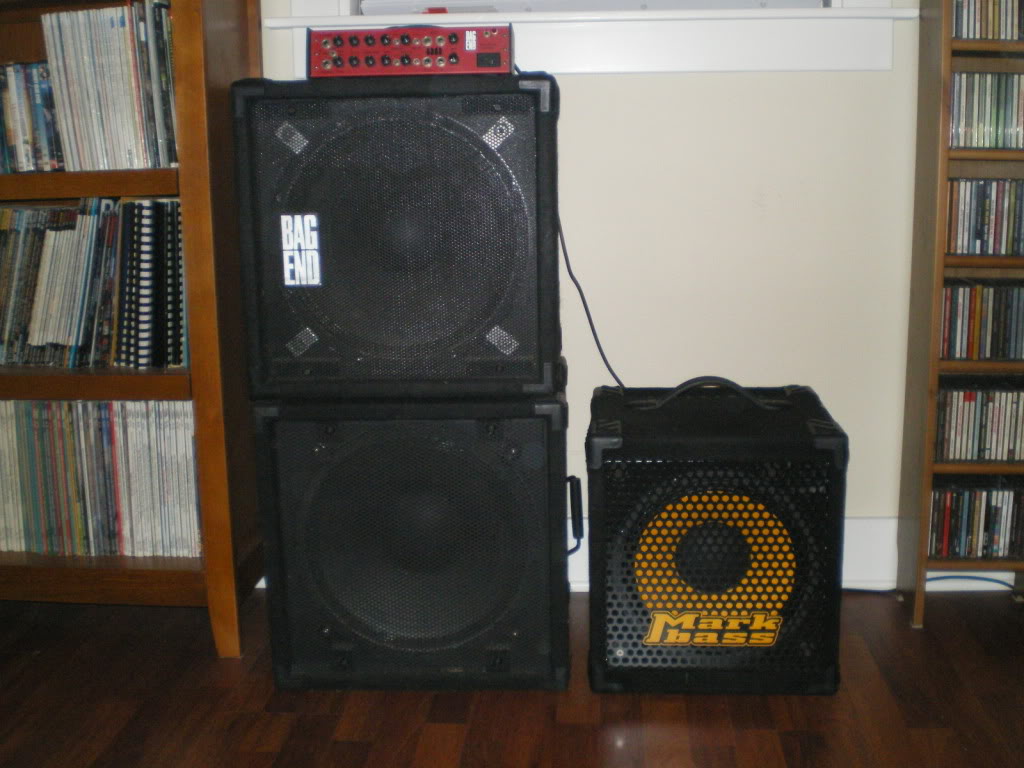

    I built the bottom left to go with the top left. If I had to do it again, I'd probably just buy a finished one.

    IMGP1430.

  7. Why not build again?

  8. Kenny Allyn

    Kenny Allyn

    Mar 25, 2006
    Memphis

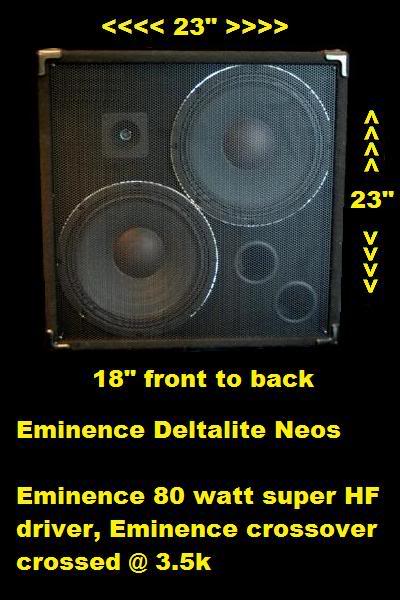

    212.


    :smug: ... This one worked out so well, it went into production

  9. elgecko

    elgecko

    Apr 30, 2007
    Anasleim, CA
    In addition to the actual time it took to build it, I spent a lot of hours hunting parts. For example, I got the grill from a sheet metal guy who cut and bent some perforated steel that I then rattle canned. The carpet seam was a particular PITA. In fact, I did it years ago and never got around to putting in some batting.

    It was fun, I learned a lot, and I ended up with a nice cab but these days, I'd rather plunk down the cash than spend the time. Of course, if you want something that someone doesn't already make, home made is the way to go.

  10. fdeck

    fdeck Supporting Member Commercial User

    Mar 20, 2004
    Madison WI
    HPF Technology LLC
    There's a section of the FAQ devoted to DIY cabs.

  11. billfitzmaurice

    billfitzmaurice Commercial User

    Sep 15, 2004
    New Hampshire
    Owner, Bill Fitzmaurice Loudspeaker Design
    FAQ would more appropriately be labeled UIATFAQ

    Usually Ignored Answers To Frequently Asked Questions. :rollno:

  12. WoodyJ

    WoodyJ Supporting Member

    Jul 29, 2008
    Atlanta, GA

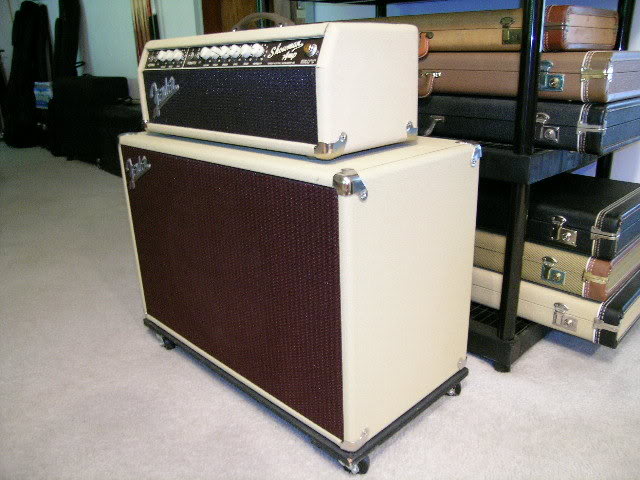

    A buddy of mine who is a boatbuilder/cabinetmaker built me this Fenderish clone to go with my Dual Showman head.

    It's a 1x15 cab, 15" deep with a 4 ohm Electro-Voice 15BX 400watt speaker. It's a great small/medium venue rig.

    DSCN1372.

  13. Rugaar

    Rugaar

    Apr 11, 2007
    wisconsin
    Here's my BFM Omni12 210 sub. It really gives our PA some nice thump. I'm planning on building more BFM speakers, probably this summer.

    IMG_1701.

  14. I can't believe this is it. There has to be more!

  15. Passinwind

    Passinwind I know nothing. Commercial User

    Dec 3, 2003
    Columbia River Gorge, WA.
    Owner/Designer &Toaster Tech Passinwind Electronics
    But wait...there's more! Details are in my profile.

    [​IMG]

    There are tons more that you can find by surfing the FAQ links though.

  16. Sundogue

    Sundogue

    Apr 26, 2001
    Wausau, WI
    Two 115 neos...27 lbs. each. 20X20X16. Made with braced 1/2" ply. Loaded with Eminence C2515's. Loud...real loud. Being light and small, below 70Hz the low end fundamental isn't loud but I don't need or want a lot of deep low end onstage. Producing loud harmonics above the fundamental is what most commercial cabs do anyway.

    [​IMG]
