Double Bass Raised saddle/tension block pictures request

[PaulV]

Could someone please post some pictures at different angles of a raised saddle/tension block?

I'm discussing the installation of one on my local luthier, but my drawing is terrible.

He has installed a tension blocks before on a cello, but this would be his first on a double-bass.


Paul



[Bassist4Life]

Why do you need to draw one for the guy doing the job?

Where are you from? Maybe we can suggest a qualified luthier in your area.

Joe



[bassist14]

Invalid Link Removed

what about this one?



[PaulV]

I'm from Antwerp, Belgium.

I had seen the raised sadle on Hein Van de Geyn's bass. [Invalid or Expired Link Removed]

I tried to explain what I had seen and that's where my drawing came in.
He also started drawing but it looked quite different from the thing I had in mind.

The Moser Height Adjustable Saddle looks like a nice option. Thanks!!!



[Eric Hochberg]

Here's mine, 2 inches out from the top. Attached with a long screw through the block.



[panos]

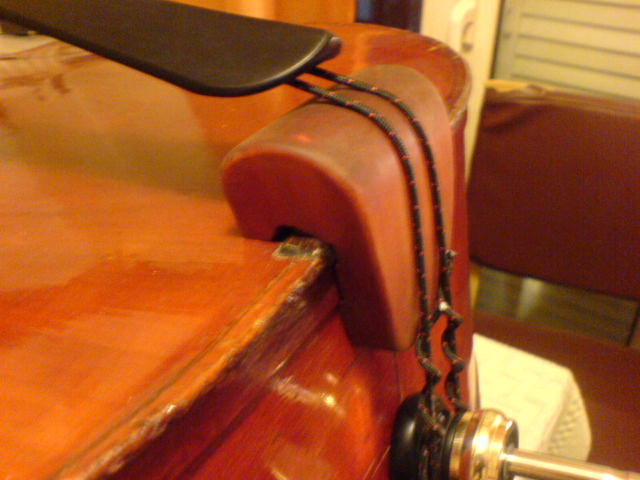

That's mine, 1 inch out of the top. Made by a local guitar luthier since there's no doublebass luthier in the area I live.
No screws.
