Recommend a soldering iron/kit

Since both adjustable wattage and adjustable temperature irons have been mentioned, I think it's important to differentiate between the two.

Irons without any control just heat at their rated wattage 100% of the time. This is bad because that wattage may or may not be appropriate for a specific job. And - one thing is certain - when the iron is just sitting still on your desk not being used, it is definitely inappropriate to have it cooking itself at full blast! An iron with no control is equivalent to driving your car with the gas pedal bolted to the floor. As soon as you turn the car on, you are at 100% full throttle, all the time - regardless of if you're trying to carefully pull into a parking spot, going up or down hills, or you're flying down the freeway. If you buy a 30 watt iron, and the types of soldering you're doing need about 30 watts, well - you're okay, when you're actually soldering. But there will be cases where you might wish you had more or less. And regardless of if it's an appropriate wattage for a specific solder job or not, irons can basically damage themselves if left on and at full blast with nowhere for that heat to go - at the very least, you'll oxidize the tip.

Some irons (like the Weller WLC100 which has been mentioned a few times) have a control with arbitrary numbers (i.e. 1 through 4, or 1 through 10). These controls are essentially variable wattage controls. The highest number is full-on where you get the rated wattage 100% of the time. When you select a different number, you get a lower wattage. So, if "4" means 50 watts, "2" might mean 25 watts. This style of iron is equivalent to being able to fix your gas pedal in one of a set number of positions. But if you fix it at the halfway point, you're at halfway no matter what. At least you get a choice - if you're soldering big huge terminals on thick wire, you can turn it all the way up. Or if you're soldering a really small sensitive component without any heatsinking capacity, you can turn it down to prevent damage. But you still just get X wattage, all the time, whether the iron is sitting in the holder or actually touching a part.

Besides the risk of burning your tips up if wattage is too high, there's the frustrating slow recovery of an iron with wattage that's too low (or set too low, if adjustable). So if you take your adjustable iron and set it to an appropriate low setting, in the hopes of keeping your tip and your parts safe, it will take a much longer time for it to warm back up between solder joints. To continue the car analogy, you might be okay moving along on flat ground at half throttle, but every once in a while you come up to a big hill and since your gas pedal is fixed at half throttle, you struggle to make it up the hill.

Meanwhile, an iron with a temperature controller is like a car with cruise control. You no longer have to worry about the gas pedal. You just pick the speed you want to go, and the car moves the gas pedal for you. Set it at 55 and you go 55 regardless of any big long hills. If your choice of solder works well at 320 C, you just set the iron to 320 C and forget about it. When the iron is sitting in the holder unused, the temp controller will pull back on wattage and keep the iron from overheating. But as soon as you touch the tip to a big thermally conductive part, the iron kicks the wattage way up and you are able to maintain temperature despite quickly heating up a lot of metal.

As such, the "ultimate" setup in terms of flexibility is really a high wattage iron (so it has a high capability to move a lot of heat no matter the part) with temperature control (so it stays at the ideal temperature - it doesn't burn itself out, and it doesn't cool down every time you use it). Even if you always set the temperature control to the same exact number, the iron will perform better and last longer than an iron without a temperature controller. The value in the controller is not just being able to pick a specific temperature, but also having an iron that will manage the wattage applied to the tip in order to maintain that temperature over a range of conditions.

Yeah, the background looks like a college anthropology or archaeology lab. And she has one electronics board on a bench, with a soldering iron with the cord running under the bench. No other electronics tools or gear in sight. A really stupid photo setup pose. Was it done deliberately for humor? To promote the need for technical training for college students?

it's shutterstock. i think i've actually seen that model in several of their other pics wearing a lab-coat. for all we know that contributor may have processed 50 other stock photo shots ranging from dog food to drones in the same day, and in the same place

Last edited:
  • Like
Reactions: wraub
This is what I have:

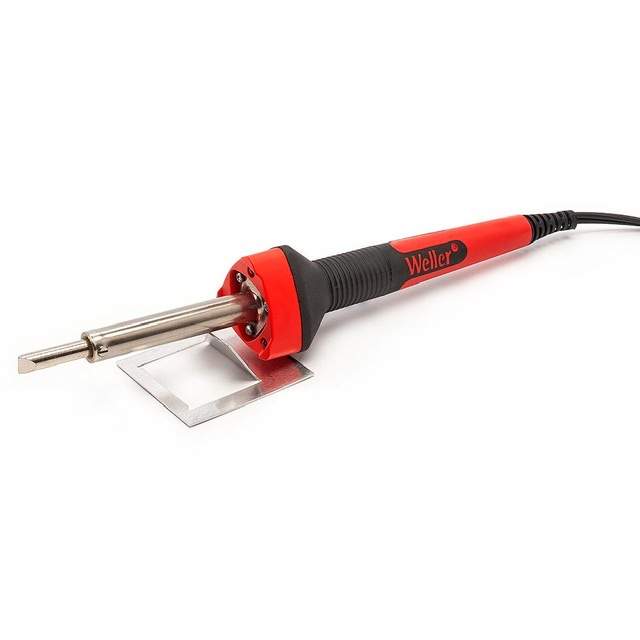

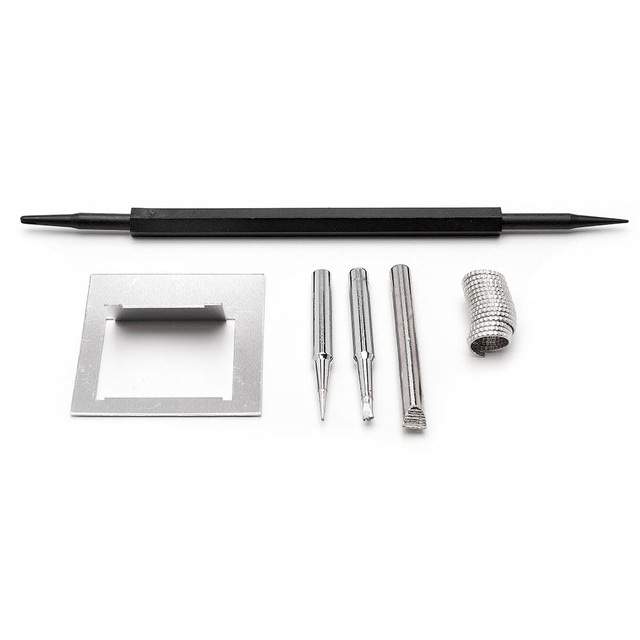

Weller 40-Watt LED Soldering Iron Kit - $24.99

Weller 40-Watt LED Soldering Iron Kit-SP40NKUS - The Home Depot

For the occasional guitar soldering I find it more than sufficient.



Last edited:
this is what i use for everything besides when i need a ton of heat (like removing can caps soldered to an amp chassis. 100w gun for that)
Weller

for me it's got just the right amount of power and being able to replace pretty much any part of it is nice. I've even mistakenly left it in for 24 hours or more and it's held up fine

Yeah, the background looks like a college anthropology or archaeology lab. And she has one electronics board on a bench, with a soldering iron with the cord running under the bench. No other electronics tools or gear in sight. A really stupid photo setup pose. Was it done deliberately for humor? To promote the need for technical training for college students?
I'm going with cheap humour, given the low quality of the photoshop-job.

I just leave my Weller WLC 100 on "4" most of the time, which seems perfect for most jobs. When blobbing solder on a pot for ground, I crank it to 5, works great. It's definitely not a Pro level iron, but unless you solder all day, you don't need one. I have a buddy who does some really sophisticated electronics, and all he ever used is a single temp pen, dude can SOLDER.

Remember the old saying, if it smells like chicken, you're holding the wrong end. ;)

I used to recommend Hakko soldering station, and have used one for nearly the entire duration of my preamp business. But on two different Hakko stations, I've had a problem where the innards of the tip and sleeve become bonded together by the heat, and have to be broken apart, or in one case, replaced. Fortunately, replacement parts were inexpensive. But today, I think the less expensive Weller temperature controlled stations are preferable.

Two items of general advice:

1. Get one with a built-in timer. That, above all else, will preserve the lifetime of your tips.

2. If you're going to use lead-free solder, I greatly prefer the newer Kester K100 alloy over the first generation alloys. It's not exactly the same as lead-tin, but much closer in behavior. You can get spools of K100 from Techni-Tool, which is where I've always gotten my soldering supplies.

How much do you want to spend? Do you have any interest in electronics work beyond just basic guitar servicing?

You need something with enough wattage and an appropriate tip. Temp or wattage control is nice, but for soldering big mechanical stuff like jacks and pots there isn't really a huge need for fine control, you just need to be able to dump some heat in fairly quickly (but not TOO quickly).

The Weller WLC100 is probably what I'd recommend for a good middle of the road soldering station for guitar work. 40w is plenty, it has a (crude) control function, and it comes with a flat tip which will be easy for a beginner to use on guitar sized parts. Weller is like the Ford of soldering - they've been around forever and are pretty solid. If $38 is too much for your budget you can go with a basic soldering pencil like this. But losing the crude wattage dial might make some jobs a little frustrating. And having the "station" with the little wire basket to park the iron in is really handy on a cluttered workbench.

If you think you want to do more, look for something with an actual temperature control (i.e. you can set it to X degrees, instead of just a meaningless "four"). Weller makes plenty of choices, Hakko is another popular brand. I have an Aoyue brand soldering station, which is a knockoff of the (now discontinued) Hakko 937. I've had it for 10 or 15 years and have made probably a few thousand joints with it, and I really like it. It was cheaper than the real thing, though in hindsight w when you get a decade or two of constant use out of a tool the price differences don't end up mattering as much as how well the tool works.

All that said, success with soldering is much more about technique than equipment, you need to understand how things like flux and tinning will help to give you a clean surface that solder will wet out easily, and you need to know how to get heat where it's needed (getting enough contact between the tip and the parts, getting both parts hot, using a solder bridge to move heat, etc.). Keeping your tip clean and well tinned is a big help. I habitually clean the tip every time I pick the iron up and tin it every time I put it back. Perhaps it's excessive but it's one of those things that's better to do too much than not enough.

In terms of everything besides the iron itself:

The little brass wire tip cleaners are waaaaay better than the stupid sponge pads that come with most cheap irons. If your iron doesn't come with a brass wire cleaner, that should be your first "upgrade."

A solder sucker and/or desoldering wick will be essential if you're working with "used" parts or reworking solder jobs. Don't get in the habit of just blobbing new solder on top of old dirty work. Clean and start fresh.

And of course solder itself. Most people would probably start with standard issue flux core 60/40. Kester is a favorite brand.

I started with one of the WLC100s, swapped out the flat tip for a pencil and used it for pedal building, amp repairs, etc. Eventually the control stopped working, it's just on 100% all the time. Still have it around as a spare but I upgraded to a weller WES51, which is apparently now discontinued. I would agree with the other posts here, if you can spend a little extra get one that has a temperature control and auto-off feature.

In addition to the good tips quoted above, get a fan/fume extractor.

As an Amazon Associate, TalkBass may receive commissions from qualifying purchases made via links on this site.
  • Like
Reactions: SlugThrower
the smoke from her burning flesh will set off the fire alarm.

what would a motherboard be doing in a lab with lapidary equipment?

Yeah, the background looks like a college anthropology or archaeology lab. And she has one electronics board on a bench, with a soldering iron with the cord running under the bench. No other electronics tools or gear in sight. A really stupid photo setup pose. Was it done deliberately for humor? To promote the need for technical training for college students?

That green machine in the background is a Hillquist thin section machine used to cut and grind petrographic thin sections (thin sections of rock). I have one in my lab. Mine is also propped up on two 2x4s because of a bad drain hole design. Other than that, it is a great machine for making thin sections of rock.

  • Like
Reactions: dwizum
Hakko is another popular brand. I have an Aoyue brand soldering station, which is a knockoff of the (now discontinued) Hakko 937. I've had it for 10 or 15 years and have made probably a few thousand joints with it, and I really like it. It was cheaper than the real thing, though in hindsight w when you get a decade or two of constant use out of a tool the price differences don't end up mattering as much as how well the tool works.
I bought my Aoyue on the "if I use it enough to break it then I'll spend for a real Hakko" plan and it still hasn't broken. Works for me, as does my "It's not a Fluke, and it didn't cost six times as much as any other more or less equivalent decent meter" clamp-on meter (I'd have to find it to tell you the brand, other than not a Fluke.)

  • Like
Reactions: dwizum
I bought my Aoyue on the "if I use it enough to break it then I'll spend for a real Hakko" plan and it still hasn't broken.

Same here pretty much, although mine did start throwing occasional error messages after a few years, which turned out to be a loose connection in the cable that took all of 10 seconds to fix.
