I recently bought a 1987 Ibanez Roadstar for my friend, and well the guy who sold it to me failed to mention he decided to open it up and rewire it. I don't think this guy knew what he was doing cause the input didn't work consistently and the wiring and soldering doesn't really seem very well done either, so I've decided to just replace all the electronics and was wondering if anyone knows what kind of pots would be good to use and where to get them.
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Replacing a Roadstar's Electronics
- Thread starter rwise93
- Start date
Which Roadstar? They came in many different varieties; some active, some passive, some with one pickup, some with 2.....

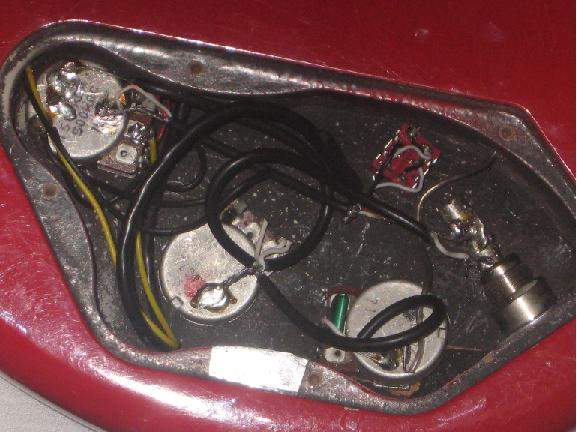

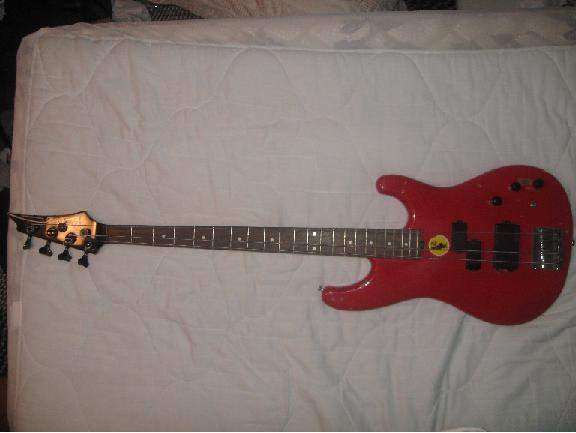

I have no idea, Here's a picture of the bass and the inside of it if it helps. and the serial number is F704745 if that helps either. And I believe there was a bottom pickup there originally, the guy said he installed the musicman pickup himself. sorry the pictures are a bad quality, I had to downsize them to put them on here.
Attachments
The simplest thing to do would just be to use standard Jazz Bass (V-V-T) wiring, though you could also do a volume and blend in place of the two volumes. There are wiring diagrams and pots, etc. available at Best Bass Gear ( www.bestbassgear.com)--look down towards the bottom of the menu at the Electronics parts and Resources sections.
Mike
Mike
