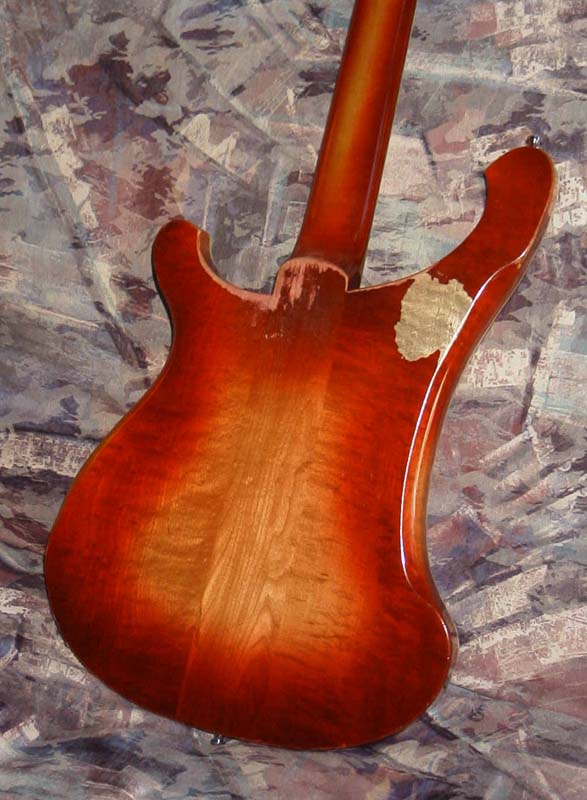

Here's a well worn famous Rickenbacker ...
Lemmy Bass Repairs
Tim Butcher (Lemmy's Tech) decided it was time for a bit of TLC on Lemmy's 2 main Bass Guitars.His main stage guitar is the Number 1 Rickenbacker Custom LK1 (shown on the left) and the number 2 back up guitar.
Both were is pretty bad shape having just completed a few hundred gigs between major servicingI managed to take a few pictures during the process for his Number 1 so for all you Lemmy Fans here is a breakdown of the repairs:

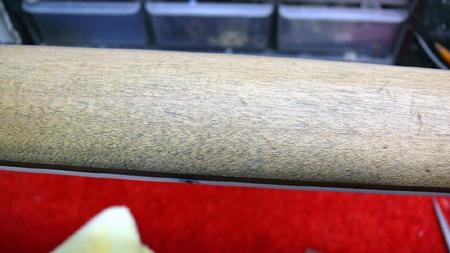

As you can see in the picture above, the back of the neck was pretty dirty - the finish had worn off and the Maple grain was full of dirt. After a very light sanding and scraping I treated the neck with a very mild solution of Oxalic Acid to burn out the remaining dirt from the pores in the wood.

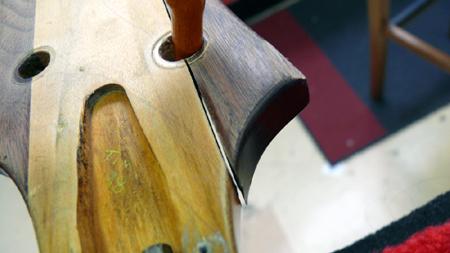

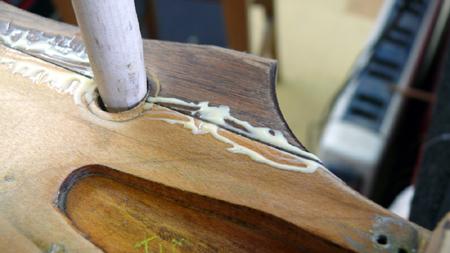

The headstock on the Bass is made from 2 mahogany "wings" either side of the central neck core of maple - these wings were both coming detached so a bit of glue and clamping fixed this problem.

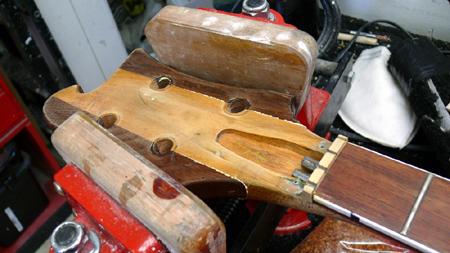

Clamped overnight using my
Stew Mac Guitar Vice

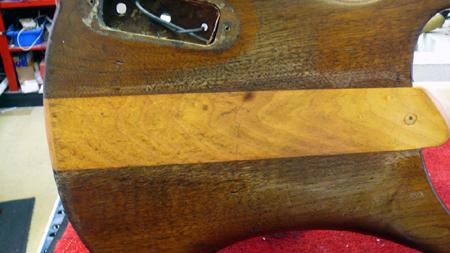

As you can see, the body was also in pretty bad shape - again light sanding and scraping, plus more acid cleaned up most of the dirt.
The relief carving needed a bit of cleaning also - after cleaning out all the dirt the background relief was re-stained black.

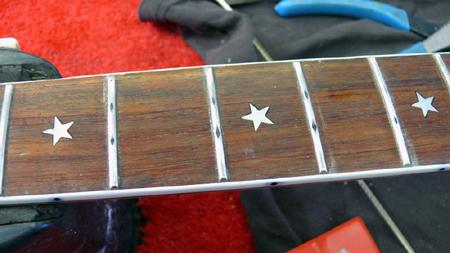

The frets on the Bass had been worn down pretty bad - I used a sharpie marker to show the playing wear.

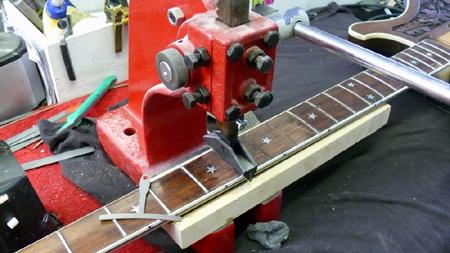

A few frets were to far gone, so new ones were installed

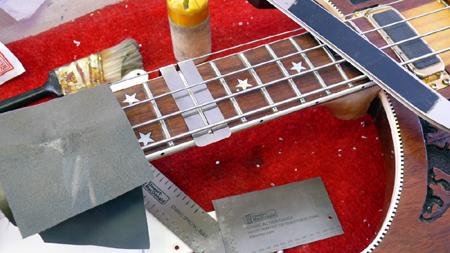

After installing the new frets a bit of dressing was still required (its nice to do fret work under string tension)

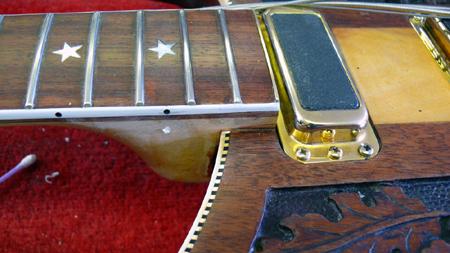

Lemmy had requested an extra fret (needs it for the song Metropolis) - this was achieved by removing the strip of neck binding and creating a brass raised binding piece on the edge of the fretboard.

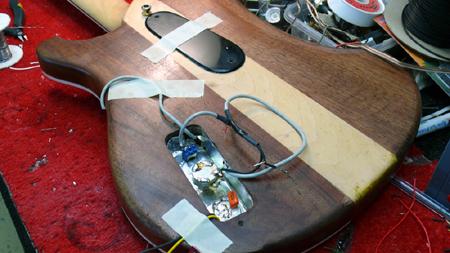

Full rewire on the electronics, nice bit of shielding etc.

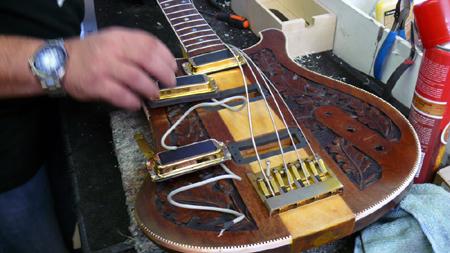

Tim Butcher installing the pickups - also note that the bridge has now been countersunk very slightly into the body.

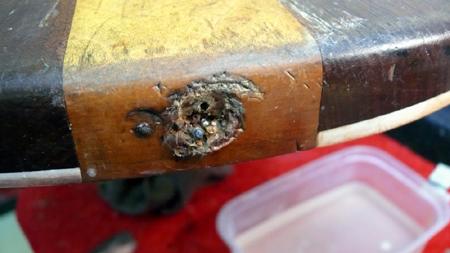

The strap button had taken huge abuse over the years (I extracted 8 snapped screws and left in another 5)

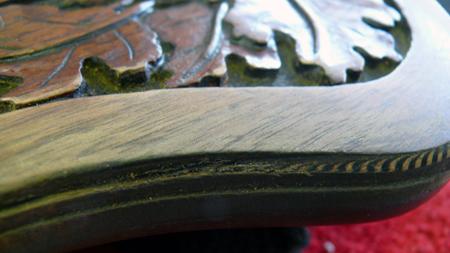

The binding had completely disintegrated - I managed to track down some replacement checkerboard binding but it arrived too late to reinstall so faux binding was created to take off the sharp edge - we will install the replacement binding at the next service.

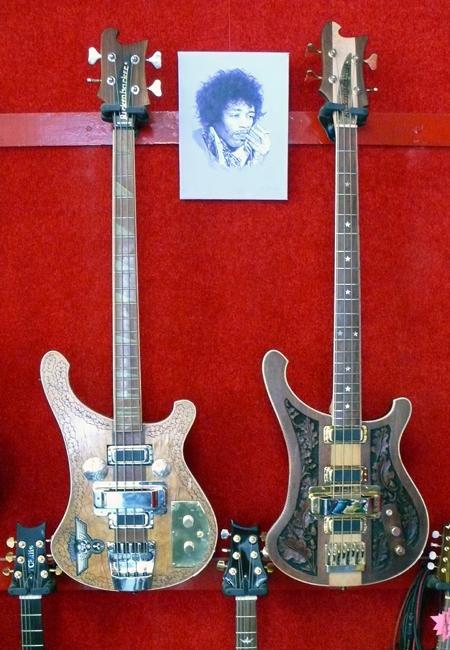

Finally finished - a lot of work went into these 2 Bass Guitars - really happy with the results - especially loved testing them prior to going back to Lemmy!
