That might work, and I might try some fine-grit oxide paper and see if that does it.
Good idea.
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Roland VB-99
- Thread starter fokof
- Start date
That might work, and I might try some fine-grit oxide paper and see if that does it.
Good idea.
Inside the socket?
wouldn't want to leave any grit behind.
Another object i can think of that may work is one of those tiny files a dentist uses for rootcanals.
Good point. Yeah, a fine file might be better, then washing it out after with contact spray. I wonder if those cables are available with gold contacts?
Yeah those cables a finicky to deal with.
The weak link (pun intended) of that system.
I had this problem too and shots of contact cleaner did the trick.
I do take good care of them since then:
I never put any pressure on them , always pass the cable behind my straplock and leave a little loose cable.

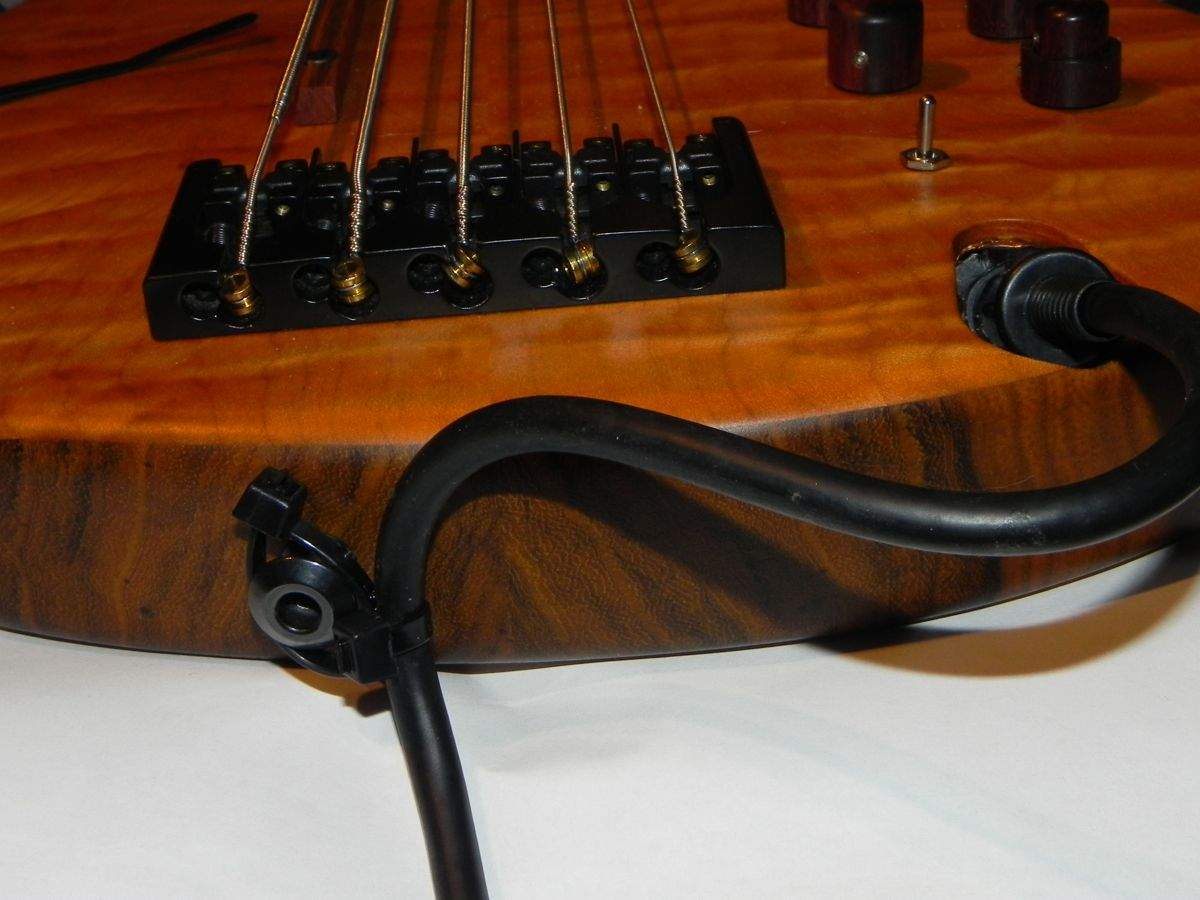

I use two Tie-wrap for this , see photo.
I also check when the bass is on a stand for the connector.

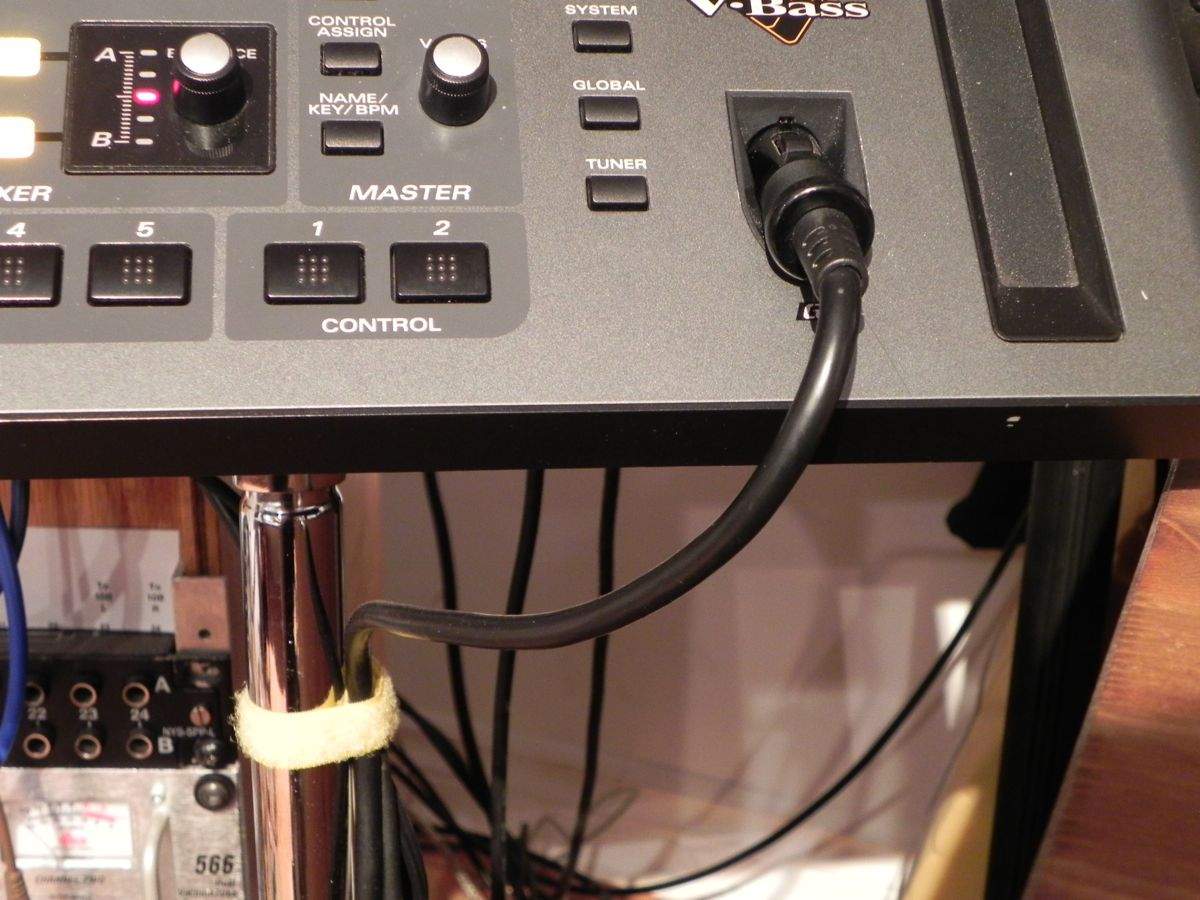

I also attach the VB's end with a velcro so no accidental pressure is done there too.
The weak link (pun intended) of that system.
I had this problem too and shots of contact cleaner did the trick.
I do take good care of them since then:
I never put any pressure on them , always pass the cable behind my straplock and leave a little loose cable.
I use two Tie-wrap for this , see photo.
I also check when the bass is on a stand for the connector.
I also attach the VB's end with a velcro so no accidental pressure is done there too.
Attachments
Thanks for the photos.
Exactly what I did on on all 3 counts. Maybe my cord is just bad - which doesn't seem likely, but is obviously possible. OR maybe I'm just using the wrong contact cleaner. I bought it on Amazon and it was rated as "Food Grade."
Maybe that's industry code for "non-toxic but doesn't work, either"
My guess too !!!
The real schmuzz: Deoxit
http://www.caig.com
Carvin have a pretty good GK cable.
I got one of 'en and it is very sturdy.
They advertise it as MIDI , but in fact it is a 13 pin cable.
And the price is right too
[Invalid or Expired Link Removed]
Thanks, I'll check that out. What I'd like to find is a really awesome cable with gold contacts - if they exist.
It's a very powerful FX to add to any Synth patch , can change the tone completely. Also very good on distortion patches.
Tip:
Put to "Intelligent"
Effect level +- 30
Direct level 100
Play the the frequency.
Default is 38 but at 1 , 24 , 76 and 100 is doin' different type of magic.
At 24 , it creates a type of Synthish octave lower
At 76 and 100 , a octave higher
At 1 , it creates a very subtil vibrato.
EDIT: I just posted a patch with an audio clip back at Vguitar forum of a dirty bass with ring modulation
Tip:
Put to "Intelligent"
Effect level +- 30
Direct level 100
Play the the frequency.
Default is 38 but at 1 , 24 , 76 and 100 is doin' different type of magic.
At 24 , it creates a type of Synthish octave lower
At 76 and 100 , a octave higher
At 1 , it creates a very subtil vibrato.
EDIT: I just posted a patch with an audio clip back at Vguitar forum of a dirty bass with ring modulation
A little subtlety in the "control assign" function :
If you want to assign a filter or T-Arm from the ribbon or D-Beam section to any controller , you need to assign an "On/Off" also.
The "Ribbon/D-Beam" section is particular in that respect.
If you only assign the controller , it won't work , maybe some of you (from the millions of users) came across that problem without finding the solution.
Lets setup a "dive bomb" with the EXP1 of an FC300:
-go to control assign page 2 = D-Beam
-pitch
-Pitch type = T-arm
-T-arm ch = A+B
-type = transpose
-Down min = +24
-Down max = 0
-exit
then go to the controller you want it assigned to , let's say:
-FC300 EXP1 (page 5 )
-SW = on
-F4 = D-Beam
-F5 = T-Arm
-F6 = sw
-min = on
-max = off
-range low = 126
-range high = 127
-SW = on
-F4 = D Beam
-F5 = T-Arm
-F6 = Control
-min = 0
-max = 100
-range low = 0
-range high = 127
Hope that helps
If you want to assign a filter or T-Arm from the ribbon or D-Beam section to any controller , you need to assign an "On/Off" also.
The "Ribbon/D-Beam" section is particular in that respect.
If you only assign the controller , it won't work , maybe some of you (from the millions of users) came across that problem without finding the solution.
Lets setup a "dive bomb" with the EXP1 of an FC300:
-go to control assign page 2 = D-Beam
-pitch
-Pitch type = T-arm
-T-arm ch = A+B
-type = transpose
-Down min = +24
-Down max = 0
-exit
then go to the controller you want it assigned to , let's say:
-FC300 EXP1 (page 5 )
-SW = on
-F4 = D-Beam
-F5 = T-Arm
-F6 = sw
-min = on
-max = off
-range low = 126
-range high = 127
-SW = on
-F4 = D Beam
-F5 = T-Arm
-F6 = Control
-min = 0
-max = 100
-range low = 0
-range high = 127
Hope that helps
Quick Question: I have a bass being built with the internal GK-3B kit...does the unit receive power from the GK cable or does it tap power from the bass 9V?
The +7volts and -7volts comes from the VB/GR unit via the 13 pin cable.
The internal kit does have an internal electronic switch capability to disable the internal 9 volt pickup battery from your existing active pickup when the 13 pin system is powered off/unplugged.
Thanks for the reply.
The last part basically means it won't burn your 9V battery down unnecessarily, right?
Also, if I'm reading the supplied wiring diagram correctly, the GK-3B (again, the internal kit) gets its direct bass signal from the output jack, right? (therefore it's getting the bass preamp as well?)
Yes and Yes.
The internal GK 9volt switch is so you don't have to have a jack plug in the normal existing bass pickup output to engage the 9 volt preamp switch in the jack socket.
The internal GK 9volt switch is so you don't have to have a jack plug in the normal existing bass pickup output to engage the 9 volt preamp switch in the jack socket.
I was just wondering how the preamp would engage without the cable plugged in...thanks for that answer!
In response to a sturdier 13-pin cable: maybe you could use the Carvin cable and then put techflex sleeving on it followed by heat-shrinks (kinda like armor gold cables)?
Hey, if anyone in this forum still has the mp3's that Wiro posted years ago that goes through all the VB-99 presets I'd be more than grateful if you could send them to me or send a link to get them (his original link is inactive).
Oh man , the presets are so lame .......
Haha I'm sure they are...do you have any soundclips I could listen to of your presets? I'm particularly interested in hearing:
A Geddy Lee and/or Chris squire Rickenbacker
A hopefully better sounding upright
Any vintage synth tones you typically use for cover songs
I did post a couple of soundclips of patches there :
http://www.vguitarforums.com/smf/index.php
You have to register to see the VB99 section though....
(a good thing if you have one )
I haven't posted sound clip of all patches but did A YYZ attempt:http://www.vguitarforums.com/smf/index.php?topic=4448.0
A Squire patch (no soundclip) : http://www.vguitarforums.com/smf/index.php?topic=4448.0
Upright patch: http://www.vguitarforums.com/smf/index.php?topic=3375.0
And loads of synth patches (some audio) :
http://www.vguitarforums.com/smf/index.php?board=103.0
http://www.vguitarforums.com/smf/index.php
You have to register to see the VB99 section though....
(a good thing if you have one )
I haven't posted sound clip of all patches but did A YYZ attempt:http://www.vguitarforums.com/smf/index.php?topic=4448.0
A Squire patch (no soundclip) : http://www.vguitarforums.com/smf/index.php?topic=4448.0
Upright patch: http://www.vguitarforums.com/smf/index.php?topic=3375.0
And loads of synth patches (some audio) :
http://www.vguitarforums.com/smf/index.php?board=103.0
Thanks for the links...actually about 5 seconds after I posted, I remembered I saw an mp3 in Vguitar forums so I went back and checked all those things...Thanks.
Question (please note that I don't have a VB-99 yet, but have one on order with the pickup currently being internally installed into a custom bass): I read several times about the delay issue between engines A and B when using different COSM/FX/etc, and that you should put a ch delay on the faster one to put them closer in phase...but is there a parameter in the VB99 to delay the "bass direct" signal so that it matches up more closely?
For example: If I wanted to have 2 OSC synths running AND hear my direct bass sound at the same time, how would I go about this (while keeping everything as closely in phase as possible)?
