In a recent edition of the magazine "Guitar and Bass" (August 2012) Geddy was one of the featured artists. Towards the back of the magazine, there was this Orange Amplifer full page ad (page 124).

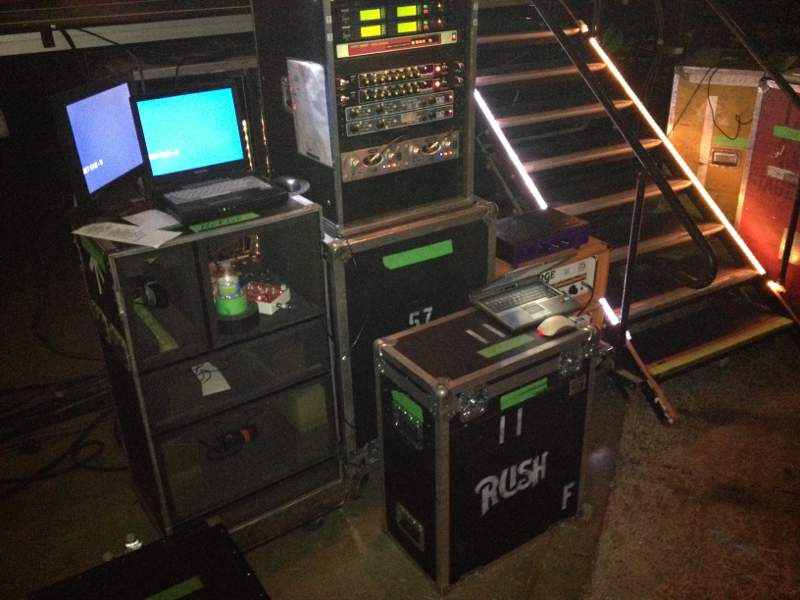

It depicts Geddy's Clockwork Angels live rig. Here's an enlarged view ...
In the written feature article, it says this about his road rig (verbatum quote):
"
The Time Machine Rig.
From Shure UHF-R to a Kitty Hawk MIDI looper to an Axess Electronics splitter in parallel with a SansAmp RPM preamp, a Palmer PDI-05 speaker simulator, an Avalon U5 DI, and an Orange AD200 Mk3 amplifier driving another Palmer PDI-05 (with a Rivera RockCrusher power attenuator providing a load - in the studio this was replaced by a mic'd Orange 4x10" cab). These four lines then ran direct (there being no cabs onstage), with Brad Madix (FOH) and Brent Carpenter (monitors) add a fifth element of 'amp modelling' at console, otherwise, the amp settings don't change."
(End Quotes).
Ok , that is a verbatum quote. It's a bit confusing but I
think it breaks down (something) like this:
** (Input stage) - Shure UHF-R to a Kitty Hawk MIDI looper to an Axess Electronics splitter where the signal is split into four separate feeds, that go into these four destinations...
1.) SansAmp RPM (this seems to have replaced the RBI that Geddy used for so long. From this picture it's impossible to tell though, because the RPM and the RBI now look identical - I think they used to have different colored handles on the older ~grey~ versions, one had chrome ones, the other had black ones.).
2.) Palmer Speaker Simulator.
3.) Avalon U5.
4.) Orange amp driving a second Palmer Speaker Simulator, with the power amp of the Orange also fed into the Rivera RockCrusher power attenuator to keep the Orange from blowing up due to no load (that is an assumption on my part).
Those four feeds are run to the FOH where the soundguy mixes them to suit the venue, and those same four feeds also go to the in-ear monitor sound guy to give Geddy his bass monitor signal. A fifth sound is created at the FOH using some sort of (??) "amp modeller" that is added to the House Mix.
So a grant total of FIVE different feeds, all mixed together to create a whole. Wow.

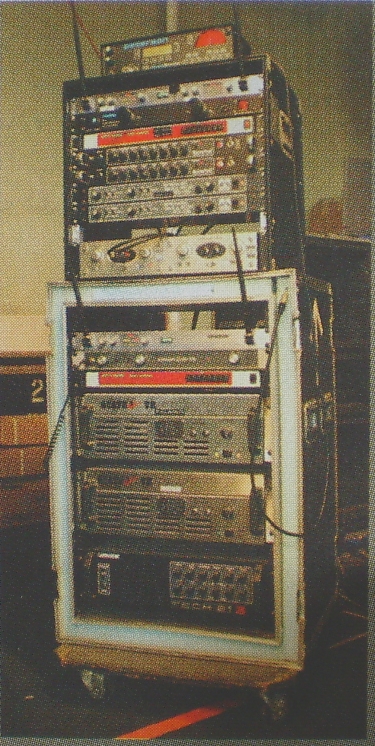

Ok, in contrast to that, here's Geddy's live rig from 2004.
Same pic but softened and re-lit a bit.
This picture mates up with another magazine article featuring Geddy ... "Guitar World's Bass Guitar - August/September 2004".
Here's how this rig was described (quoting verbatum):
"POWER WINDOWS a peek inside Geddy Lee's gear truck
(snipped) .... Instead of a typical backline, the stage behind Geddy features three front-loading Maytag dryers (set to Heavy, perhaps?). You see, Geddy runs his bass through a speakerless rig consisting of an Avalon U5 tube DI, a Palmer PDI-05 speaker simulator and a Tech 21 SansAmp RBI preamp, a setup he uses live and in the studio, mixing the signals of all three units depending on his needs. Ryan warms the tone another step with a Trace Elliot Quattovalve amp. "I run the signal into the input of that amp, then run the speaker out back into the Palmer input. The audio guys take a direct XLR output". Speakers still play a part in Lee's chain: Ryan also sends that Trace signal into a Trace Elliot cabinet beneathe the stage, "because if I don't the amp will just blow". Onstage, Lee relies on Ultimate Ears in-ear monitors run through a Sennheiser wireless system."
(End Quotes).
NOTE: "Ryan" is Russ Ryan, Geddy's bass tech.
So once again we've multiple parallel feeds.
1.) Avalon U5 (I used to have two of those, great GREAT active DIs).
2.) Palmer speaker simulator.
3.) Tech 21 RBI.
Exactly where the Trace Elliot is connected up is a bit confusing. It's unclear whether or not all three signals are mixed together and fed into the TE, or if the Trace Elliot is fed a fourth parallel signal, or if it placed before the Palmer speaker simulator, or if there is a second Palmer used just for the Trace .. or what. Just going by the picture I'd guess that a second Palmer is used.
I spy a Tech 21 Landmark 600 down there on the bottom of the amp rack in the 2004 rig. Cooly. I had a Landmark 300 years ago .... excellent rig. I regret selling it. Anyhow, not sure where that comes in, or if it is just some sortof backup, or what.
Kinda cool how there is ~two~ of nearly everything there in both the 2004 and 2012 racks. Most likely to deal with equipment failures during a show, would be my guess.
Funniest quote from the Bass Guitar interview:
(Interviewer) "Why don't you just slap and pop?"
(Geddy) "I could never get that down (laughs). I used to watch Jeff Berlin do it. I remember telling him that I wanted to learn how to do that, and he said "Don't! Don't learn it! It's destroying all bass players! Just play, man!"
I posted this stuff for posterity ... just something to enjoy ... it's also quite relevant to the topic of this thread.
