SBO 23 By Groggy

[2groggy]

other build needs lovin' too.



[Reedt2000]

groggy happy - Yeeeah!. Except now groggy has to sand, fill, sand and finish - Boooo!.

View attachment 5191475

So cool...

I want one, 5 string, 17mm spacing, 33" scale, P pickup in the sweet spot, double J at the bridge please.



[Lo-E]

Groggy pretty good at this.



[Flamingo21]

Ninety degrees would be easier but not look as purdy.

Why not?



[2groggy]

It's called rope binding because it looks like rope made from three twisted strands.

I guess that 90 degree cuts would look OK too, but would look more "dental" molding (looks like teeth).



[2groggy]

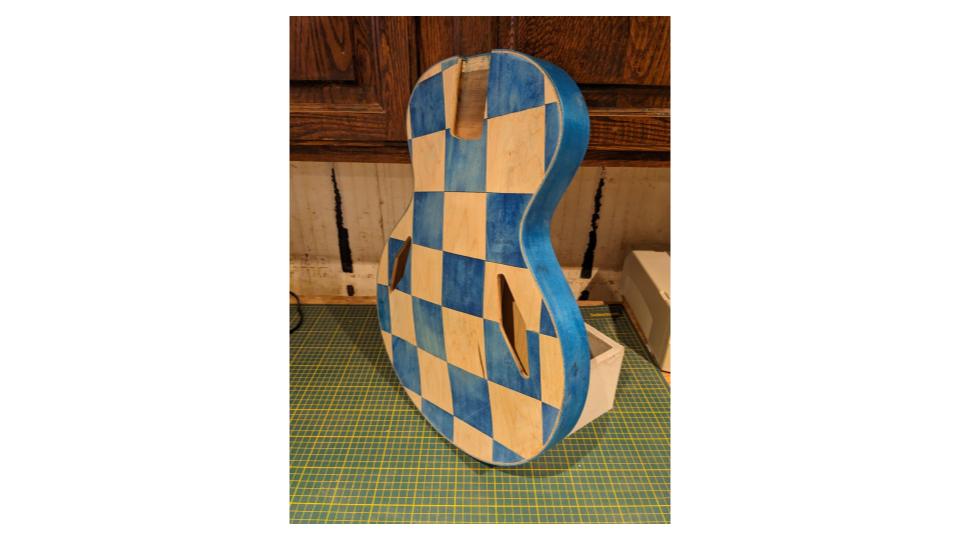

Now checkerboard needs filling and sanding too.



[2groggy]

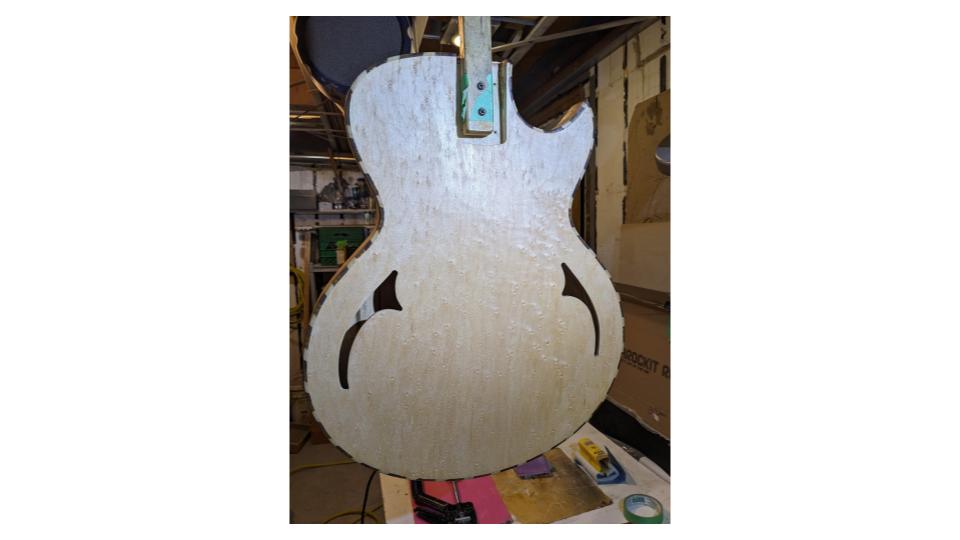

First coat of a semi-gloss



[2groggy]

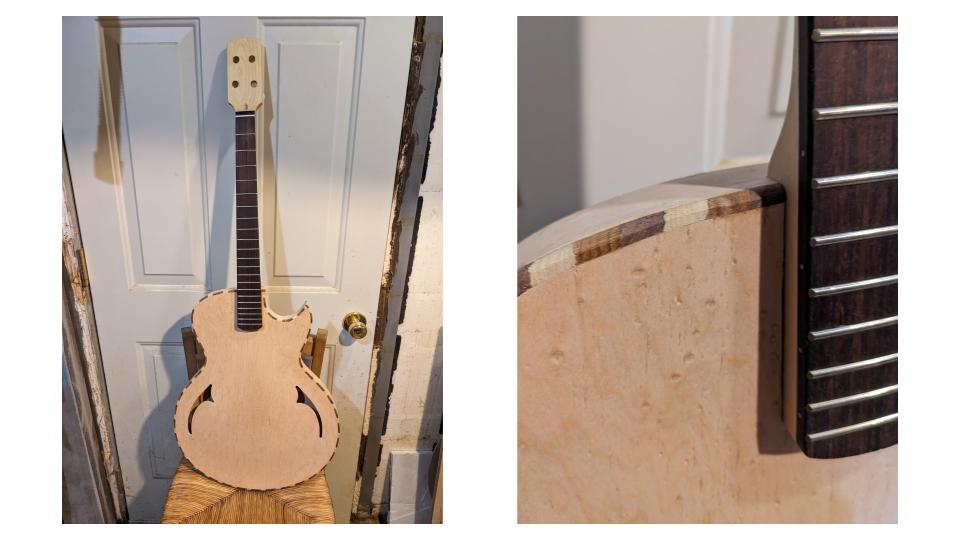

Neck is on. Next up, fabricate 4 string bridge saddle and tailpiece bar.



[2groggy]

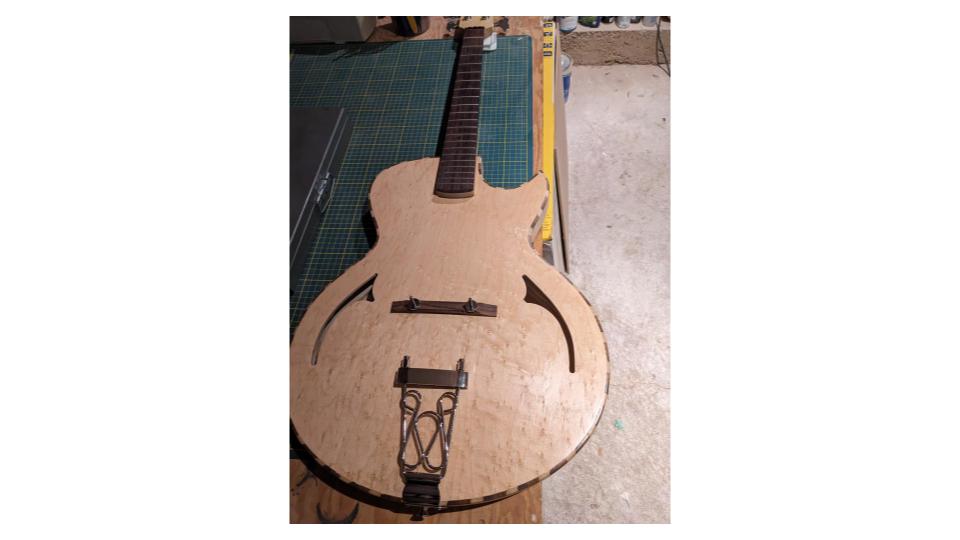

Assembled. Experimental rubber bridge needs revisions. I have tonight and tomorrow.



[2groggy]

Some details:

• Hollow archtop of laminated maple
• Acoustic (for now)
• Sub-short scale (25.5") with the low 4 strings from a 5 string set, tuned to EADG
• Purchased neck came with paddle headstock.
• Gotoh tuners



[Reedt2000]

Experimental rubber bridge

Groggy elaborate



[2groggy]

Groggy used block of rubber because curious how it sounds. Easy to replace if it stinks.



[Beej]

Lemme guess, when you plucked a string, it sounded like "fwub". Am I close?



[2groggy]

At the high end of the fretboard, you may be right. Harmonics... big nope. At the low end, it seemed like a solid thud with very short sustain. There was a little too much "boing" to the sound. I attribute this to having too soft of a rubber block at hand. If you search "rubber guitar bridges" on google, you will see what others have achieved, but only with guitars.
Maybe I'll try it on one of my hollow bass VIs.



[2groggy]

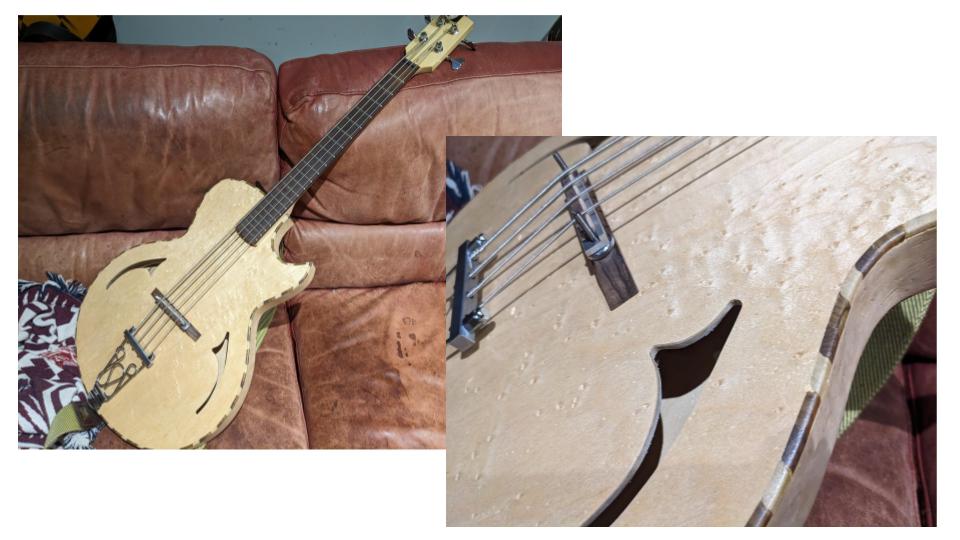

Official Entry for Groggy SBO 23 - Partial Build Category

• Hollow archtop of laminated maple - Birdseye maple veneer show surfaces
• Rope binding of poplar or ash, roasted maple and walnut
• Groggy's unique internal frame design to reduce need for side molds.
• Acoustic (for now)
• Floating bridge of walnut and maple with room to add a damper to the top
• Sub-short scale (25.5") with the low 4 strings from a 5 string set, tuned to EADG
• Purchased neck came with paddle headstock.
• Gotoh tuners

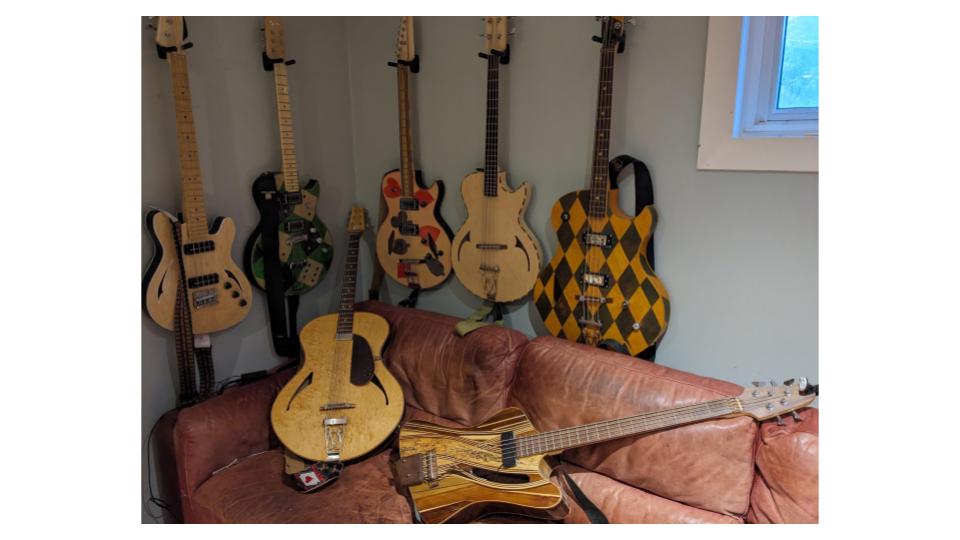

And the family of hollow build challenge siblings



[Mickey666]

Still dig that t-bird shaped one!



[2groggy]

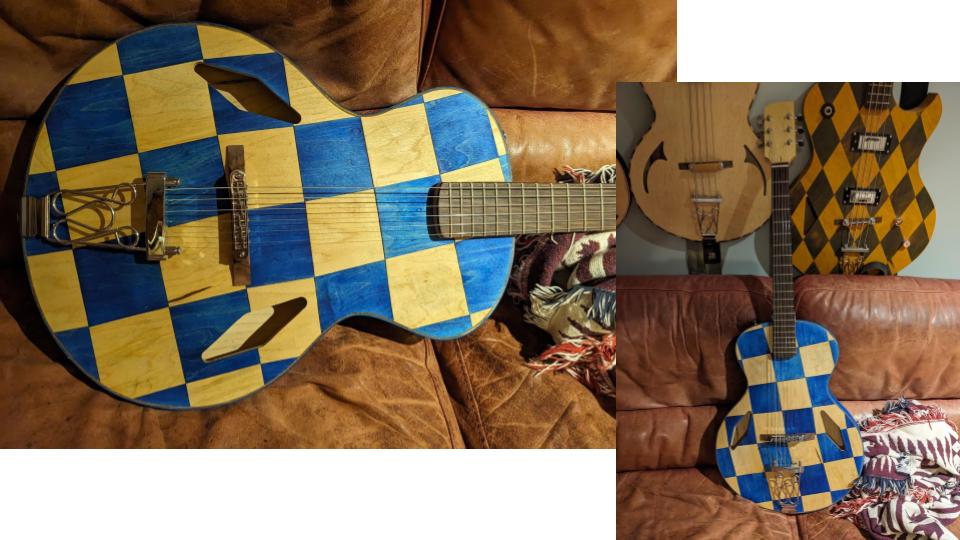

And finally, the official entry for Groggy SBO 23 - Non-Bass Build Category

• 6 string guitar, 25,5" scale
• Hollow archtop of laminated maple - Dyed and clear maple veneer show surfaces
• Groggy's unique internal frame design to reduce need for side molds.
• Acoustic (for now)
• Floating bridge
• Purchased neck came with paddle headstock.
• Wilkinson tuners



[TerribleTim68]

Groggy has nice collection.



[Flamingo21]

Still dig that t-bird shaped one!

Oh, yes!



[SteC]

What called squiggly tailpiece? Where get?
