Show me your compact pedalboard setup

[Eadger]

I like it, no soft switch, but I prefer that.

You sure? I swear mine has a soft switch....



[Drucifer]

Turbo Tuners are the best, I have an ST-300 and an ST-300 mini and love both, they're very fast, fast enough that I can keep an eye on intonation while I'm playing. I have a Polytune 3 as well. I saw the new Peterson Strobostomp HD tuner at NAMM, it looks great but definitely not a mini. The Peterson has an always-on setting, so does the ST-300, but the ST-300 mini does not, I have to use it in a side-chain.

EDIT: just talked myself into pre-ordering the Peterson from Sweetwater.

Sweetwater says they'll ship in April .



[Hypercaffium]

A couple small squares in the corners of pedals is all you need that stuff is strong

Yep. I watched some YouTube clips before purchasing the Dual Lock and learned that, luckily. Some people used too much DL under their pedals and it's a pain in the a**.



[rollie 55]

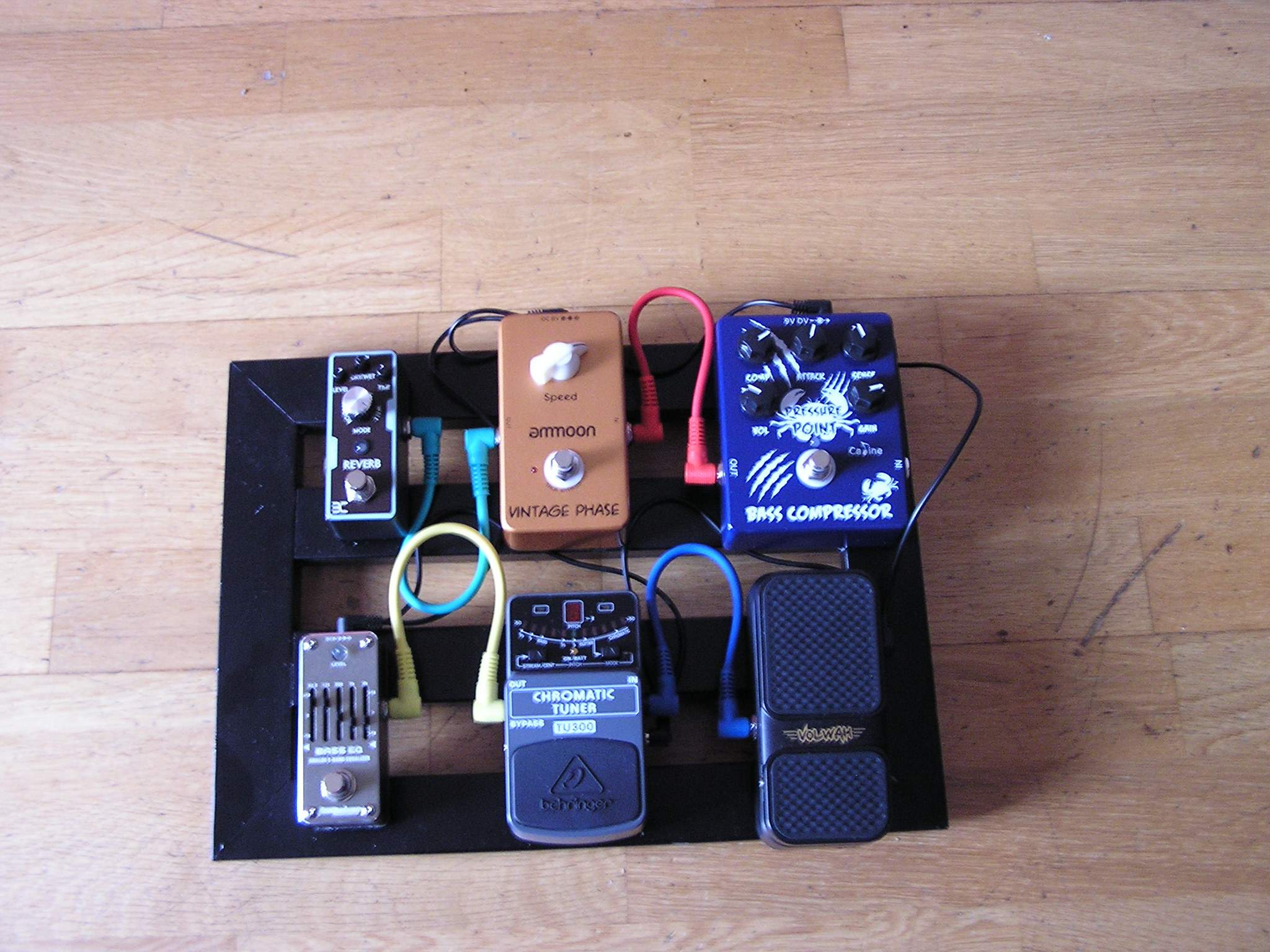

this is one that i have that i like



[rollie 55]

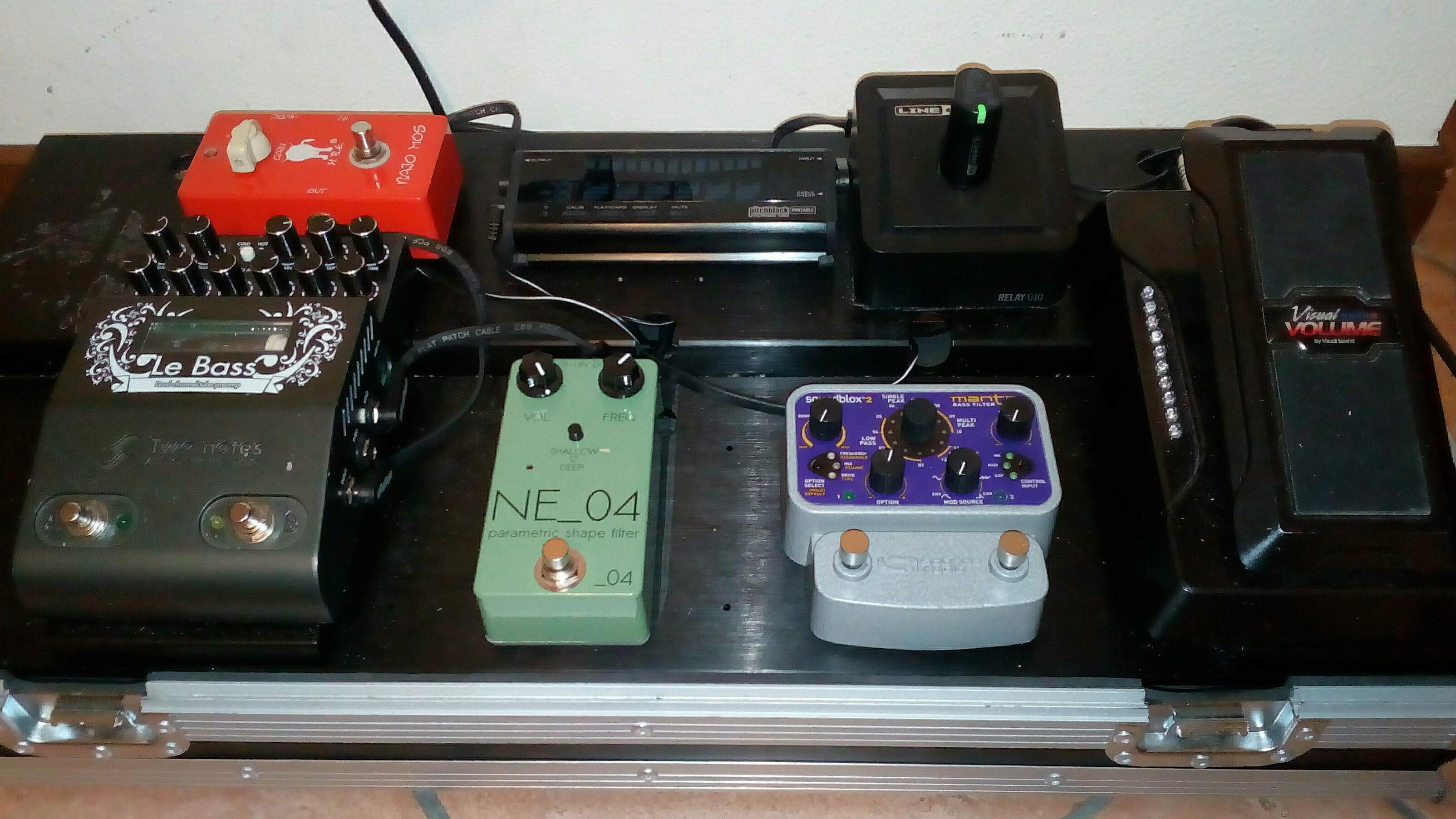

LOL my pedals are sitting pretty comfy, currently. Anyway I'm planning to shrink the whole thing. Smaller board (maybe a Tone Trunk 56), and replacing the NE04 + Manta with a Soundblox Pro BEF, and I also have a Cusack More Louder collecting dust, I might as well swap the Bajo Mos for it.View attachment 3301906

why shrink expand it lets stick one to the guitarists



[DoctorZee]

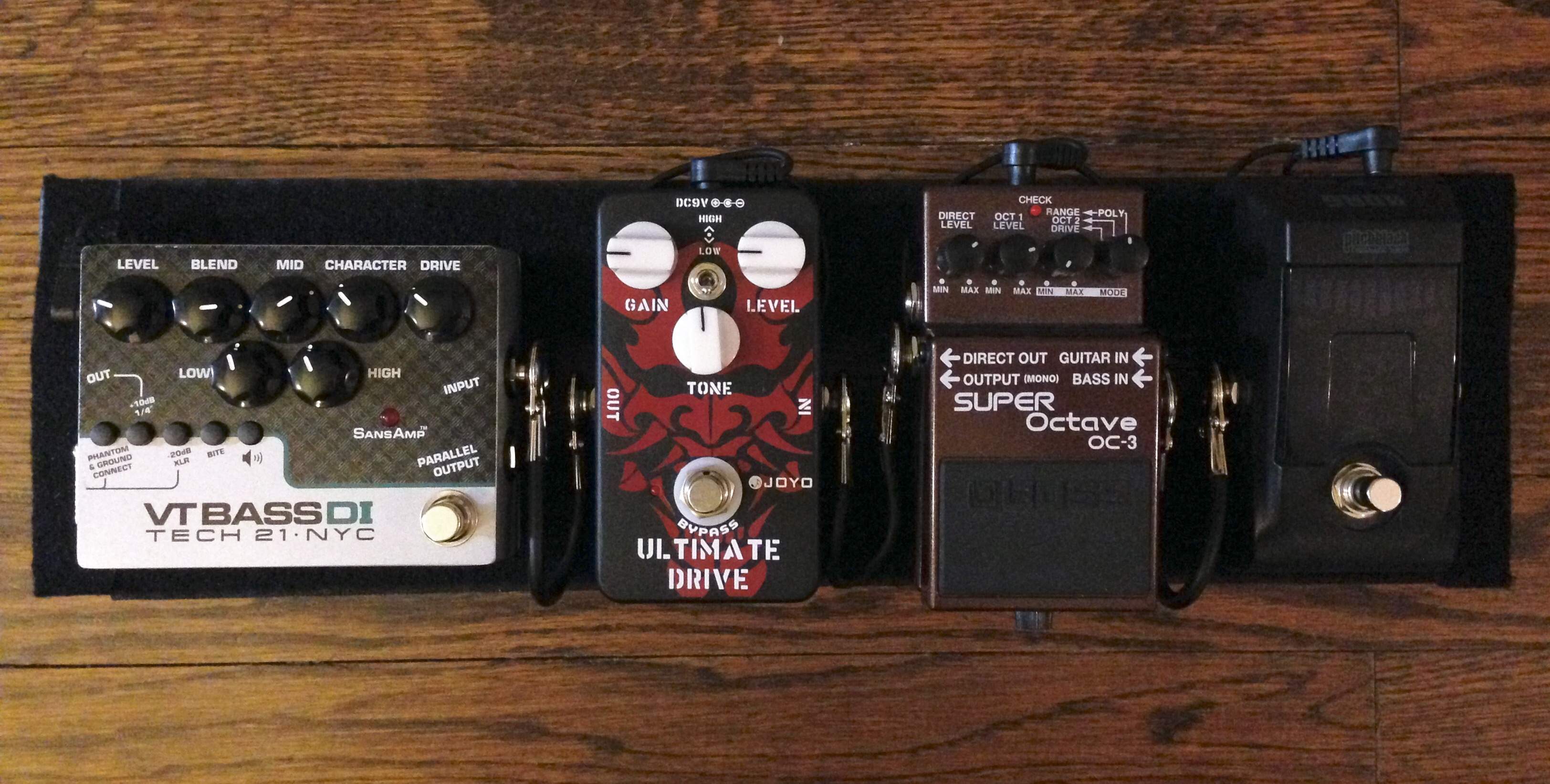

Swapped my Programmable SansAmp for a VT, which freed up space on the Nano+ for a Joyo Ultimate Drive.

Haven't measured, but pretty sure if I turn the VT sideways and go all the way to the edge, I can squeeze in one more: that'll probably be the MXR Bass Envelope Filter, I think.



[krdp_nsk]

Swapped my Programmable SansAmp for a VT, which freed up space on the Nano+ for a Joyo Ultimate Drive.

View attachment 3318153

Haven't measured, but pretty sure if I turn the VT sideways and go all the way to the edge, I can squeeze in one more: that'll probably be the MXR Bass Envelope Filter, I think.

Yep, the VT goes a bit beyond the pedalboard, but then the MHR Bass EF will fit exactly )



[armybass]

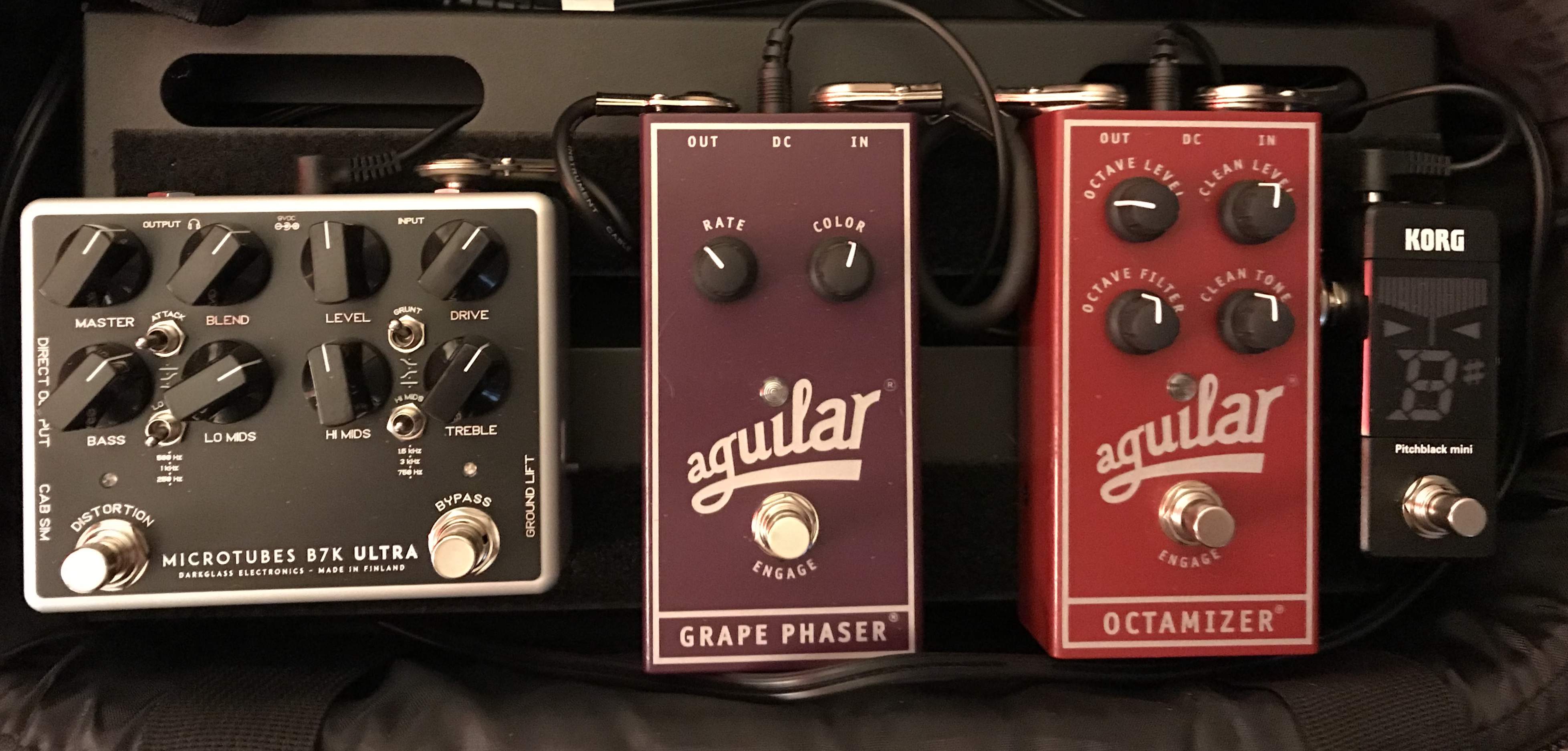

Here’s a new one I just put together. Gonna replace the Grape Phaser with the Darkglass Hyper Lumina later this week when I get it. This is a flyboard for a band I am in that does mostly classic rock and country. Using a Ric into a Quilter BB800 pushing PJB cabs.



[Btbp]

Yep. I watched some YouTube clips before purchasing the Dual Lock and learned that, luckily. Some people used too much DL under their pedals and it's a pain in the a**.

Glad I saw your post on this before I bought anything, there's a great 5-part series on setting up boards with DL on YT.



[Hypercaffium]

Glad I saw your post on this before I bought anything, there's a great 5-part series on setting up boards with DL on YT.

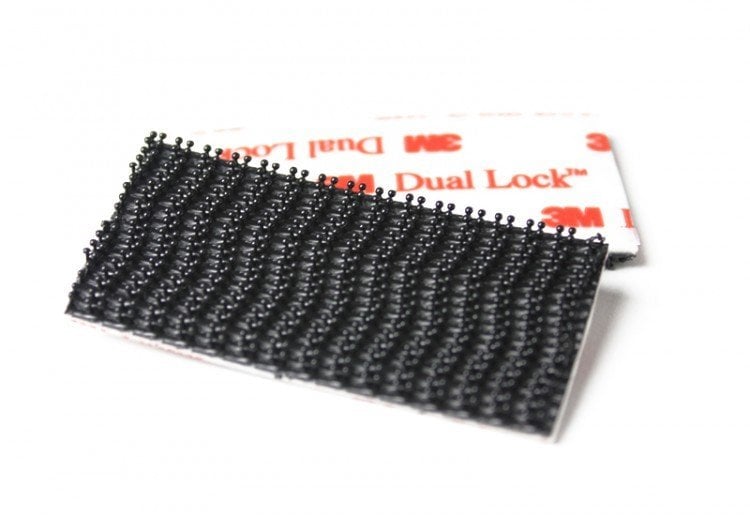

Another important thing that you should know is that the Dual Lock has its vertical pattern, similar to an "S".

Remember that in order to make a pedal stick to the board, the two sides must match in the pattern, so they must be oriented in the same direction. Let me know if you understand, english is not my native language.



[krdp_nsk]

Another important thing that you should know is that the Dual Lock has its vertical pattern, similar to an "S".
View attachment 3318385
Remember that in order to make a pedal stick to the board, the two sides must match in the pattern, so they must be oriented in the same direction. Let me know if you understand, english is not my native language.

You right!



[Hypercaffium]

You right!

I learned it while assembling my board yesterday. I noticed that a couple of pedals weren't well fixed and realized that since they were mounted horizontally the pattern didn't match. Luckily I was able to remove the pieces I used and turn them. I didn't need to use new pieces of DL, jut turned the old ones and it worked.



[Jens_C]

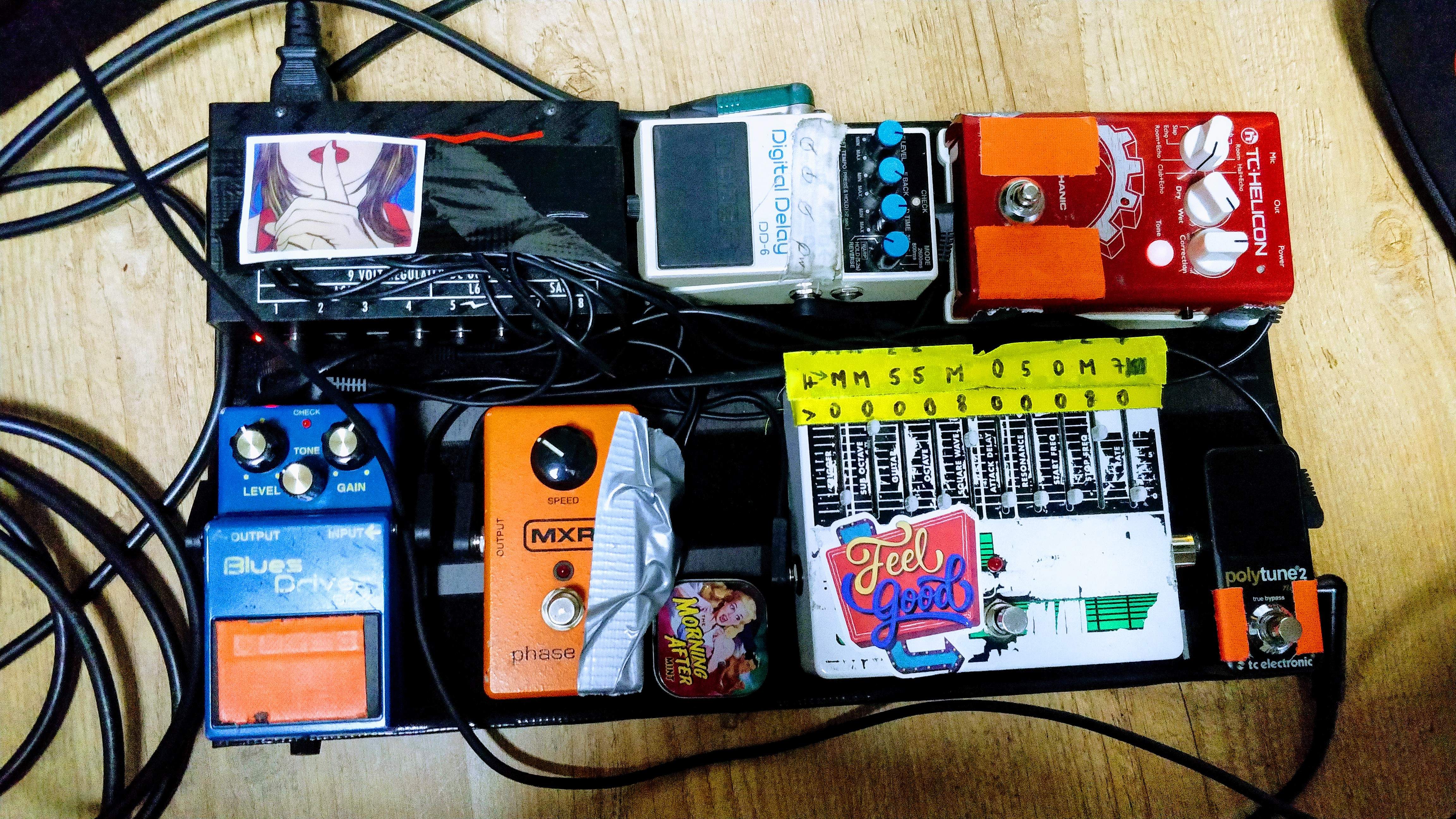

I had a huge board and kept downsizing... Last week I got myself an Orange Terror Bass and now the VT Deluxe went out. Love this practical little thing. I use this giggin' board for a stoner/psychedelic band and a rock cover band (rival sons, qotsa, royal blood, ... ).

Signal: Fender jazz or precision => tuner => micro synth => bluesdriver => phaser => delay => amp (Orange Terror Bass with a 4x10 and 1x12 markbass cab).



[Hypercaffium]

I had a huge board and kept downsizing... Last week I got myself an Orange Terror Bass and now the VT Deluxe went out. Love this practical little thing. I use this giggin' board for a stoner/psychedelic band and a rock cover band (rival sons, qotsa, royal blood, ... ).

Signal: Fender jazz or precision => tuner => micro synth => bluesdriver => phaser => delay => amp (Orange Terror Bass with a 4x10 and 1x12 markbass cab).

View attachment 3318398

I always preferred smaller boards. The bigger pedalboard I've had was a Pedaltrain Jr which is still medium size btw, the smallest was a Nano+ which I still use.
Metro 16 is my favourite format/size and my #1 choice, even for just 3/4 pedals. I find its size more portable and easy to arrange compared to the Nano+ which is a little bit longer. That third row can be used or not depending on the size of pedals and/or if you want to place them horizontally, if you remove the third row you have an older Nano, before the Nano+ was released.



[Tao_of_Bass]

My little contribution to this A m a z i n g thread.

I carry this Black box around and i really like it.

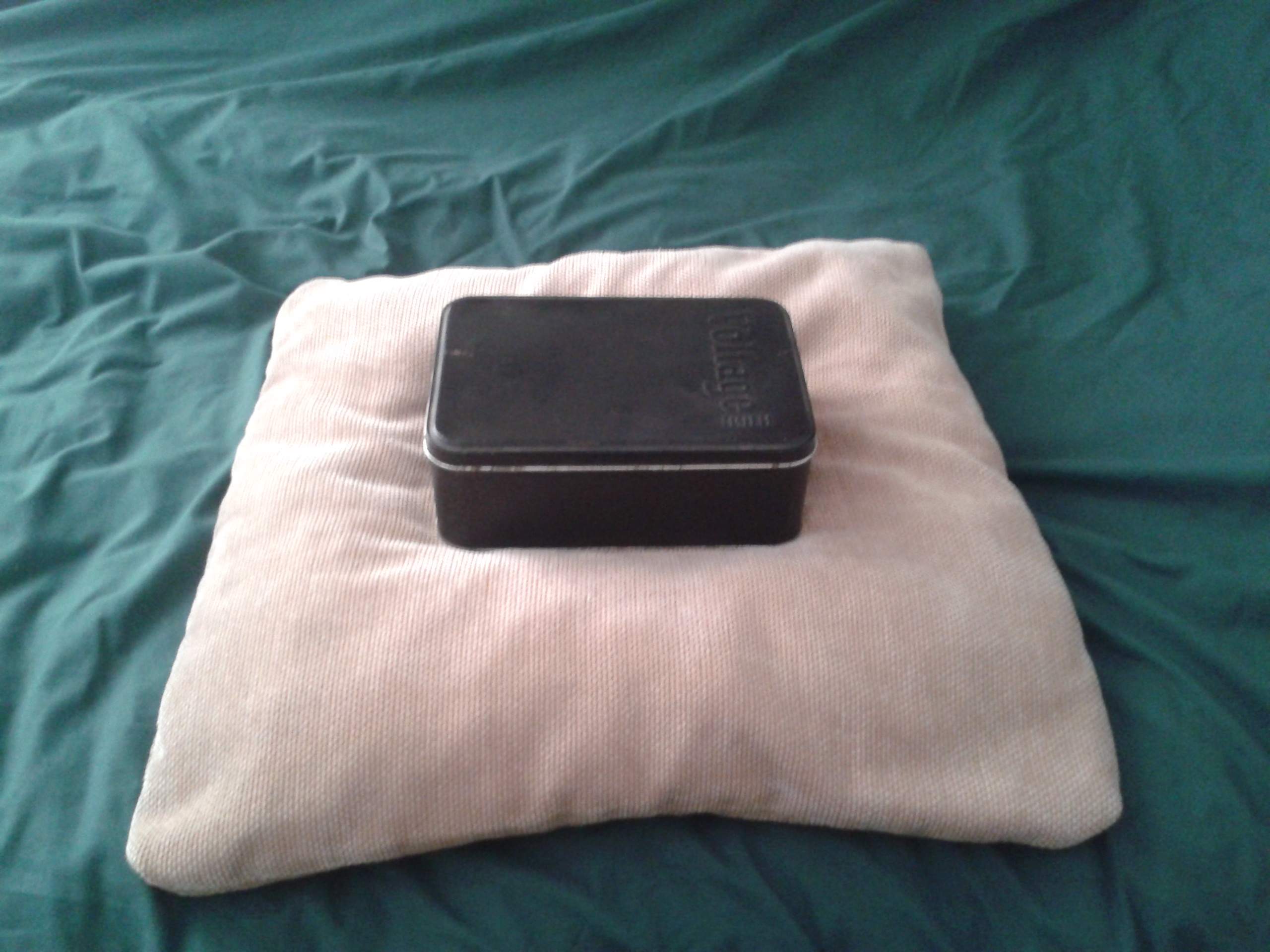

pic no 1. The Black box

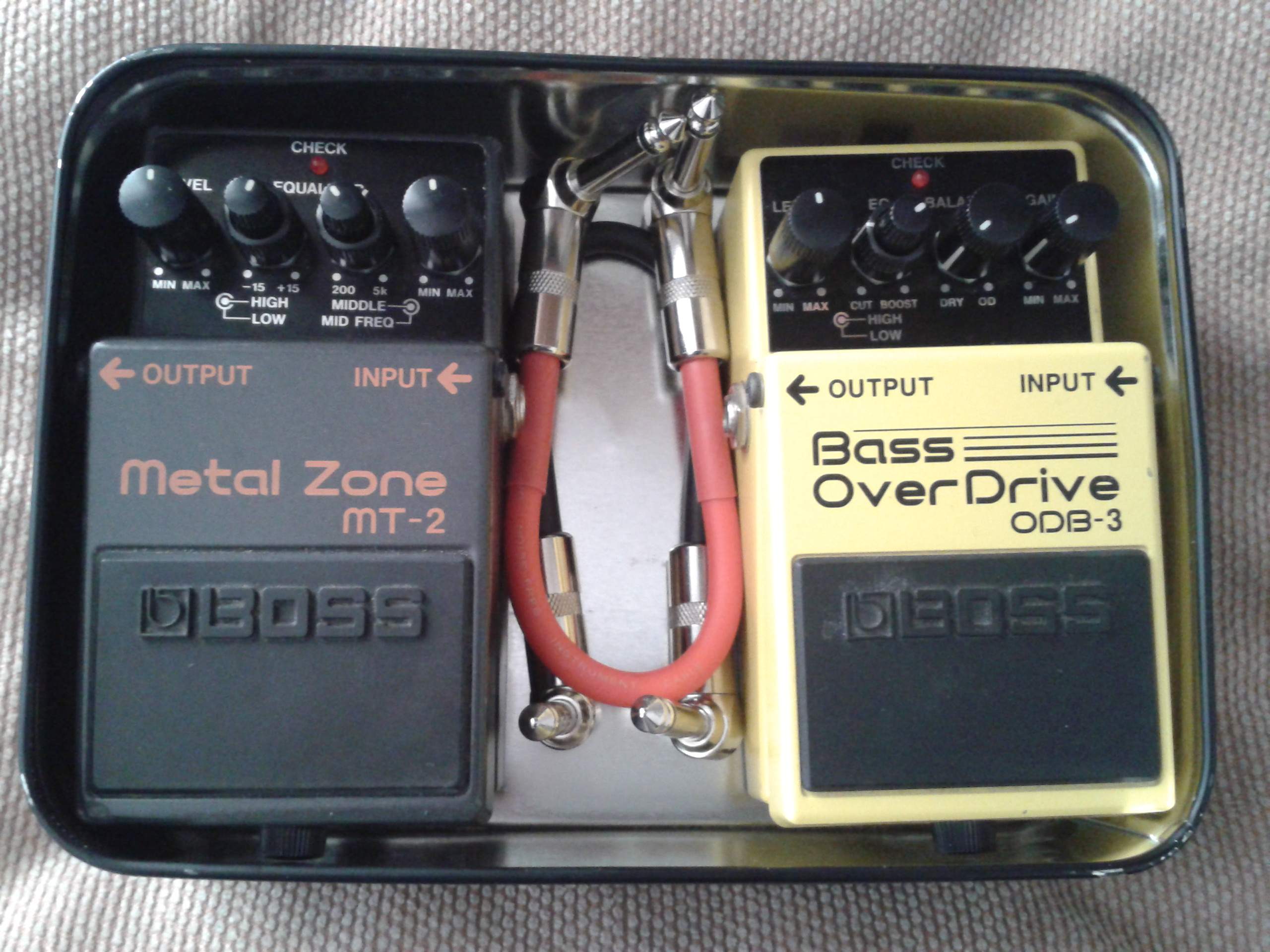

pic no 2. The Insides

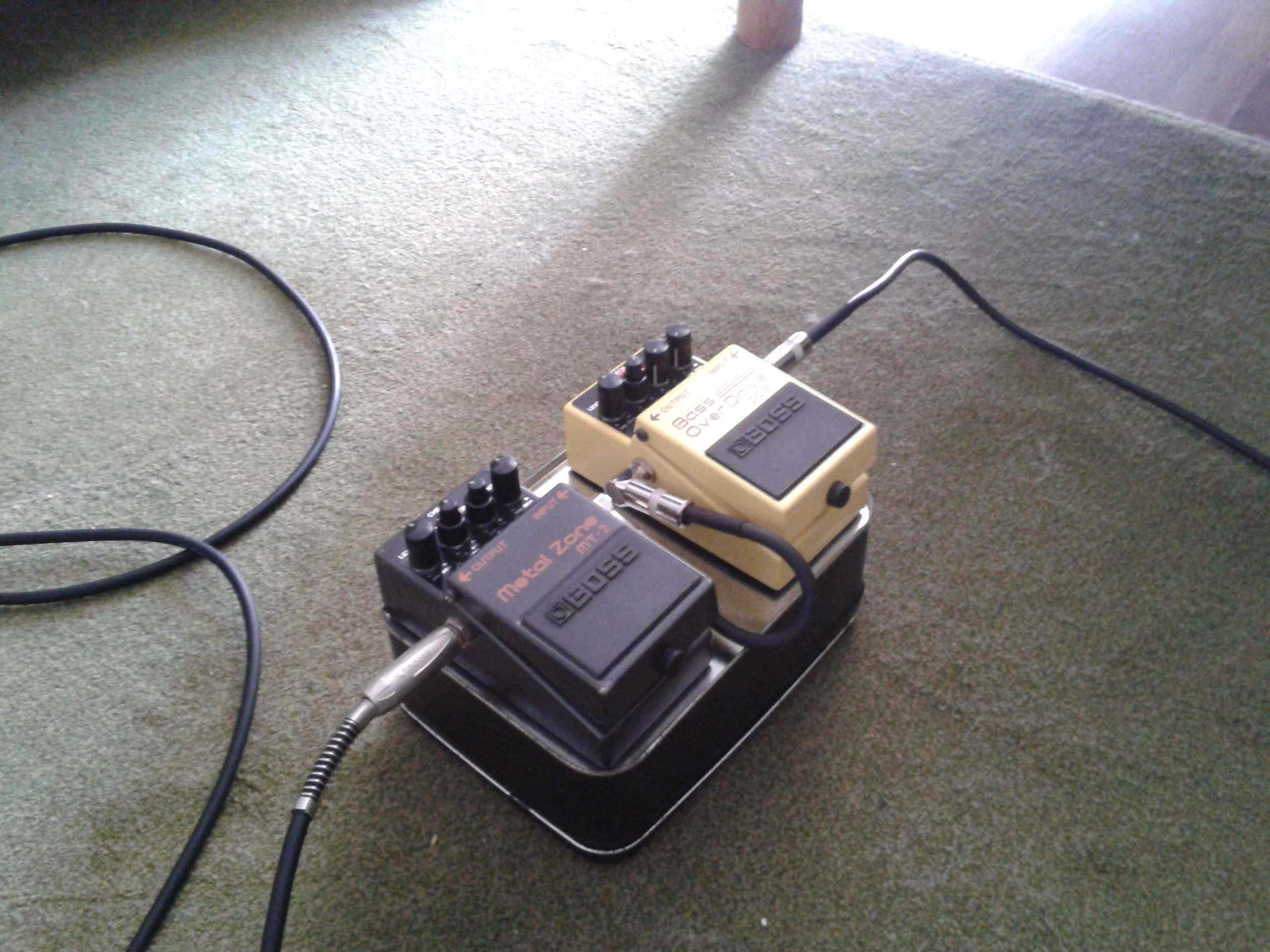

pic no 3. War mode ON
pic no 4. Side view.(the metal frame of the box keeps the pedals in place)

Some notes: I play metal and extreme metal and along a clip on tuner those pedals have served me well so far.I keep ODB-3 always on for a slight Growl, and when needed i kick on MT-2 for sonic Mayhem.Both are battery powered.(Battery on Metal zone is kinda low on the pics.)



[Das Jugghead]

My little contribution to this A m a z i n g thread.

I carry this Black box around and i really like it.

pic no 1. The Black box
pic no 2. The Insides
pic no 3. War mode ON
pic no 4. Side view.(the metal frame of the box keeps the pedals in place)

Some notes: I play metal and extreme metal and along a clip on tuner those pedals have served me well so far.I keep ODB-3 always on for a slight Growl, and when needed i kick on MT-2 for sonic Mayhem.Both are battery powered.(Battery on Metal zone is kinda low on the pics.)

Talk to me about that Boss Bass Overdrive - how do you like it?



[Btbp]

Another important thing that you should know is that the Dual Lock has its vertical pattern, similar to an "S".
Remember that in order to make a pedal stick to the board, the two sides must match in the pattern, so they must be oriented in the same direction. Let me know if you understand, english is not my native language.

That's great advice and you came through perfectly clear. Thanks again.



[BassIsFun17]

My Eldest board (in the last year):

My old mini board

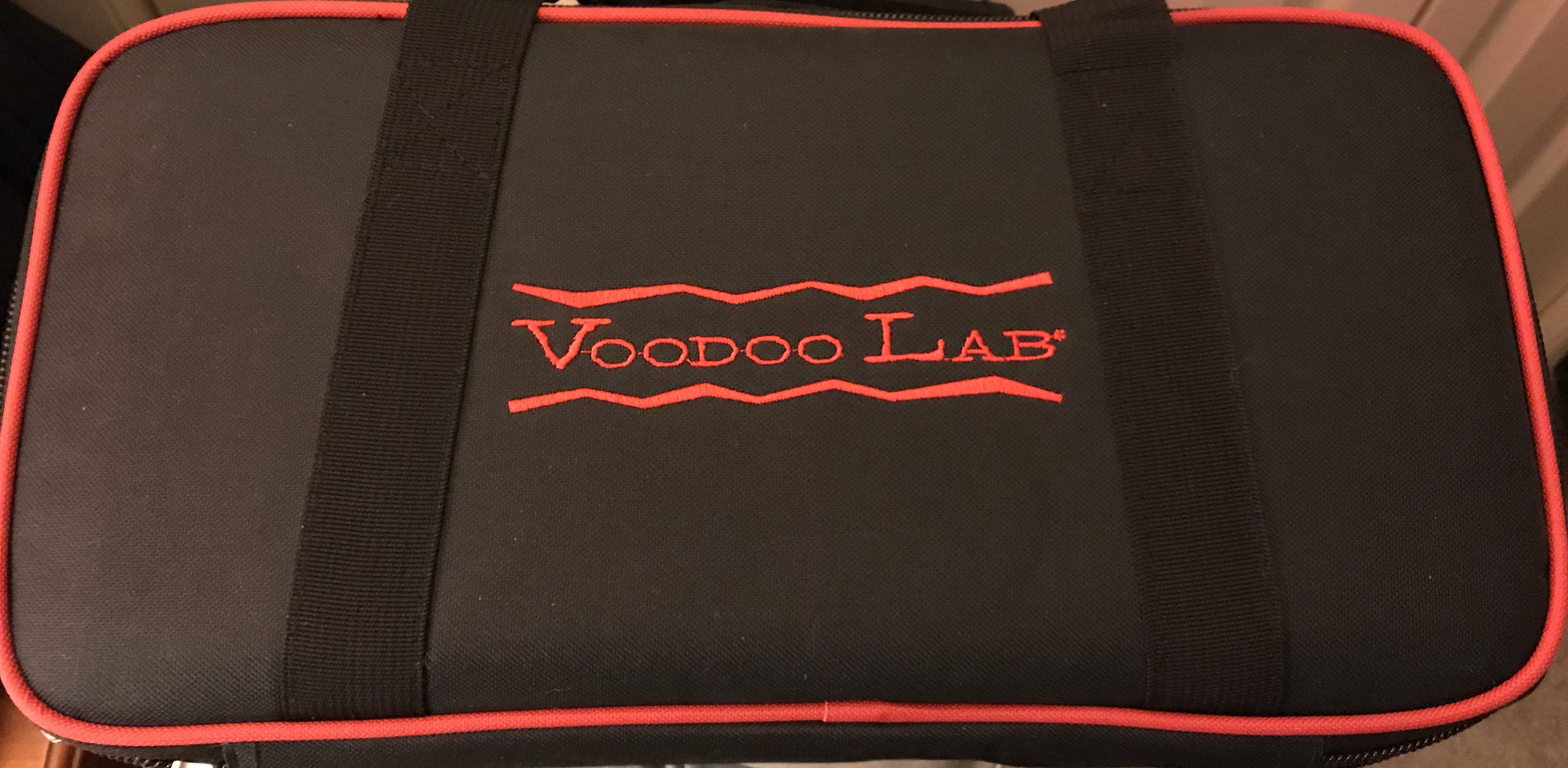

My new mini board (only board i have now): Voodoo labs pedal power x4 arriving soon.



[Tao_of_Bass]

Talk to me about that Boss Bass Overdrive - how do you like it?

I love it !

There is not much to say about this Workhorse.Rugged construction, blend knob, nice Eq and a lot (A LOT) of gain...it may sound a bit fizzy if u crank the gain over 7/10.i do like it even when it gets fizzy, its a part of its sound and character. You can always roll the knobs back and clean up everything,or EQ according to your taste.

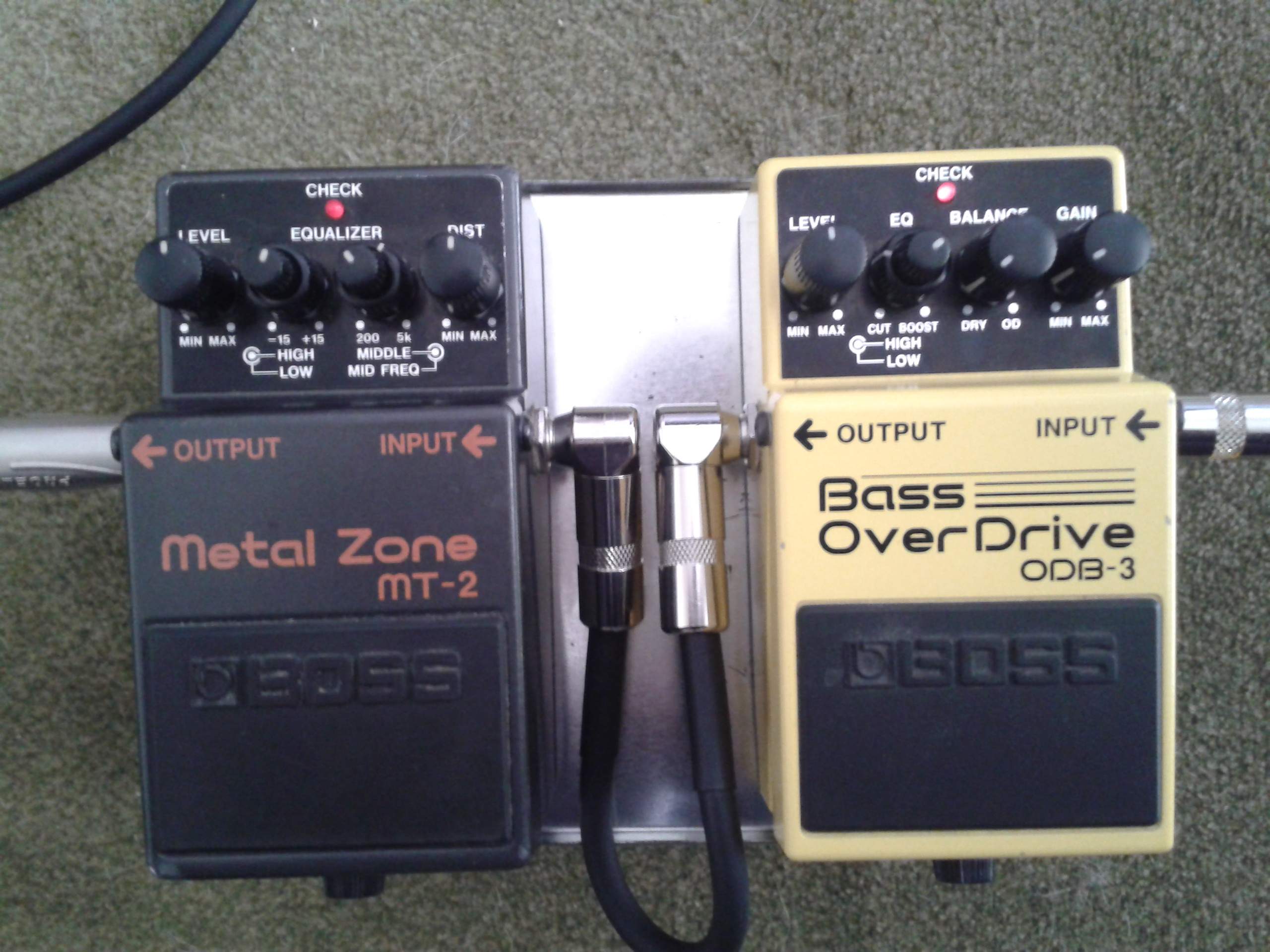

check the settings i was using the day i shot the pic, gain and balance knob(blend).You need to keep them really really low for a smooth-slightly overdriven sound.Other thing i ve noticed is that ODB-3 loves passive basses.

ODB-3 has a very distinct sound that you can recognize within seconds. I paired it with MT-2 cause i wanted to be able to imitate the sound of highly distorted thrash-extreme metal guitars.The amount of Gain and EQing they can both offer is amazing !
but...

'With great EQ, comes great responsibility'



[rollie 55]

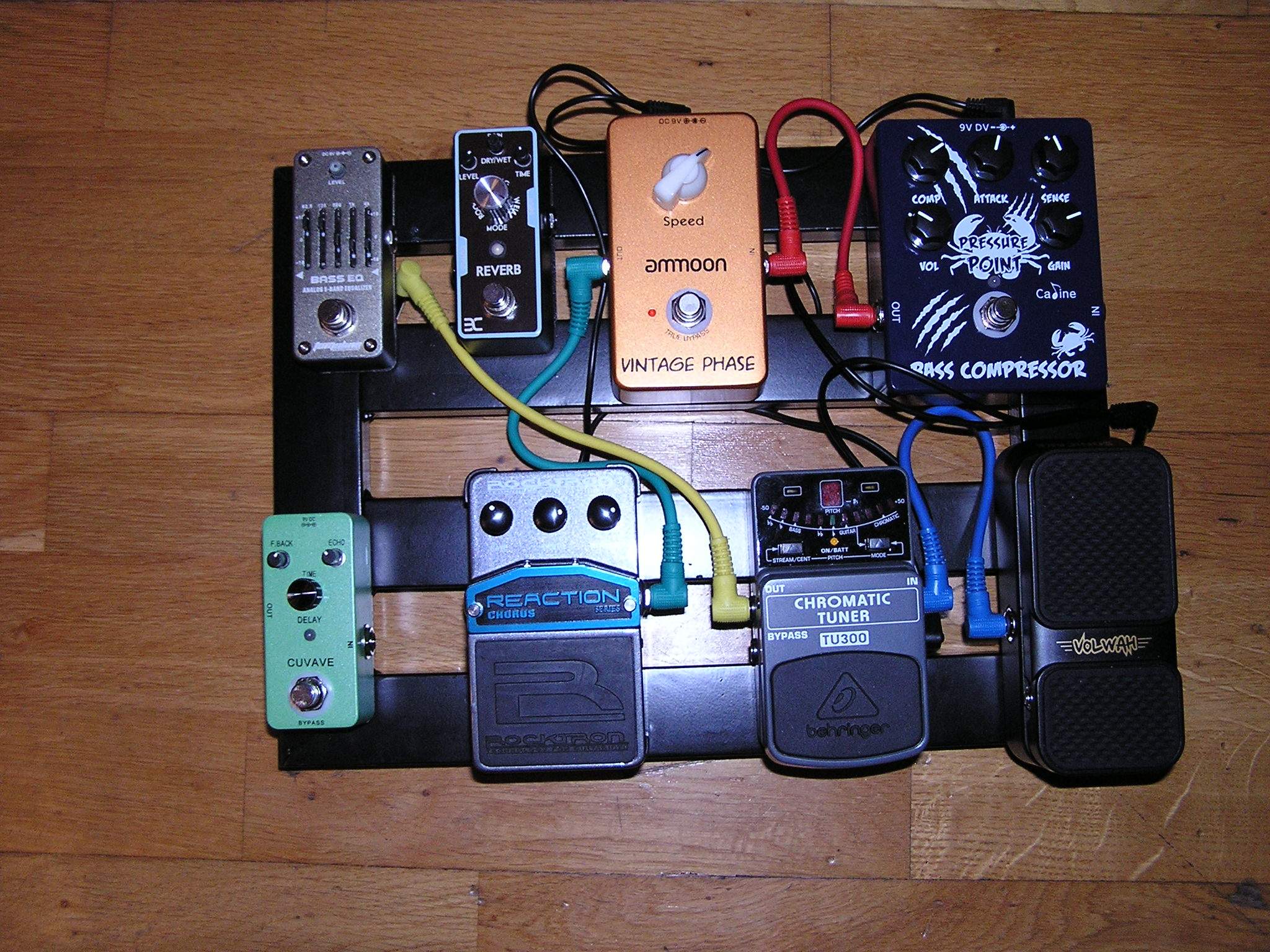

ive updated my board ive added a delay and a chorus just waiting for some more leads to turn up so i can wire it up to finish it
